Электросхемы ПРИВОД СТЕКЛОПОДЪЕМНИКОВ BMW 528i 2008

ПРИВОД СТЕКЛОПОДЪЕМНИКОВ

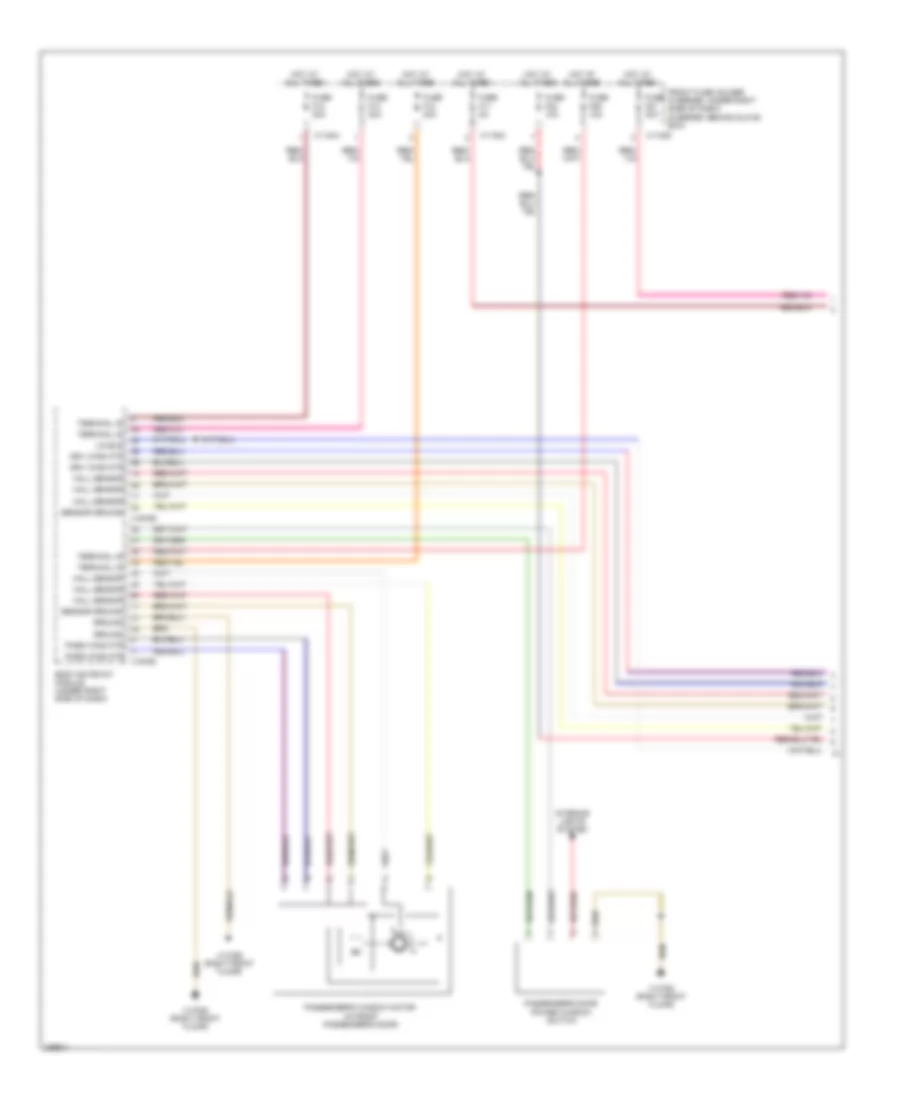

Электросхема стеклоподъемников (1 из 2) для BMW 528i 2008

Электросхема стеклоподъемников (1 из 2) для BMW 528i 2008 - Список элементов:

• Body-gateway module (under right side of dash)
• Drv wind mtr
• Front fuse holder (5 series: under right side of dash) (6 series: behind glove box)
• Fuse f10 30a
• Fuse f11 5a
• Fuse f12 30a
• Fuse f18 30a
• Fuse f27 30a
• Fuse f29 10a
• Fuse f32 10a
• Ground
• Hall sensor
• Hot at all times
• Interior lights system
• Lin bus
• Pass wind mtr
• Passenger's door power window switch
• Passenger's window motor (in front passenger's door)
• Sensor ground
• Terminal 30
• X11003
• X11004
• X11005
• X13786 (right front floor)
• X13788 (right front floor)
• X16759
• X16760

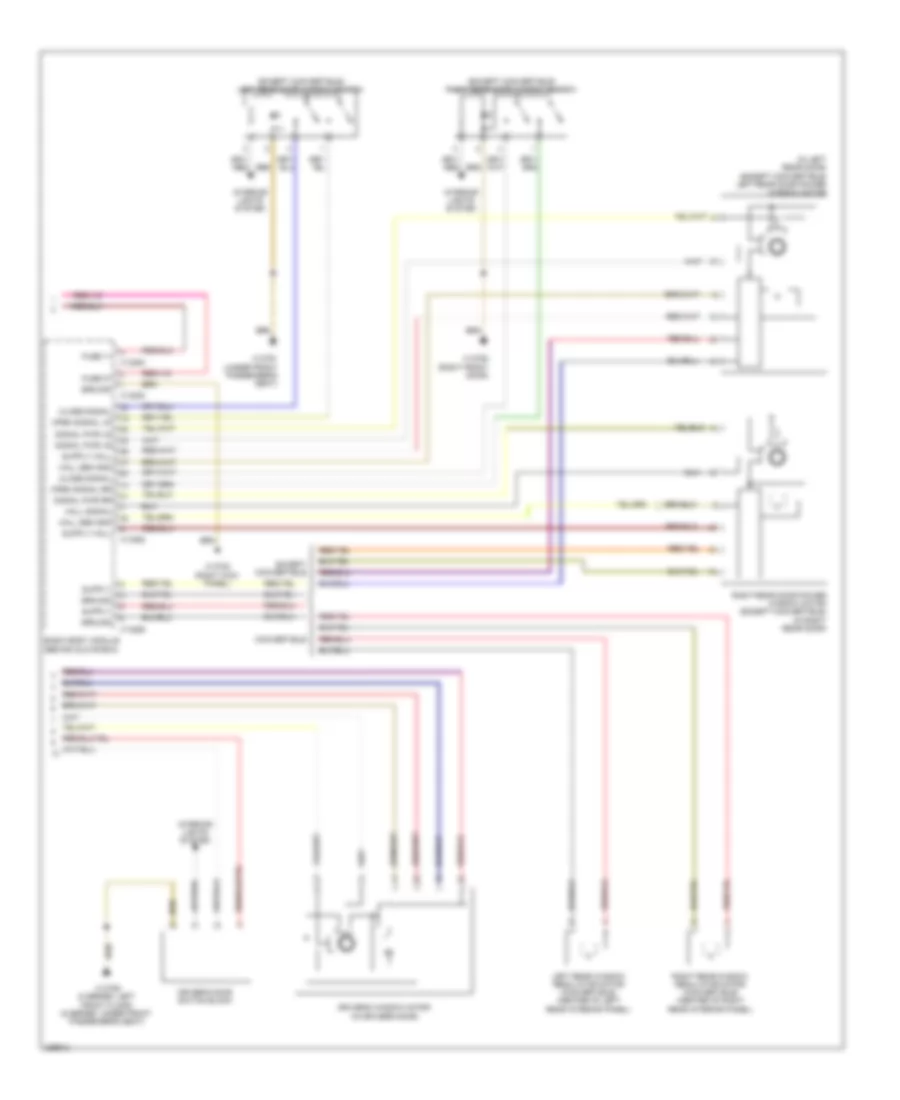

Электросхема стеклоподъемников (2 из 2) для BMW 528i 2008

Электросхема стеклоподъемников (2 из 2) для BMW 528i 2008 - Список элементов:

• (except convertible) left rear door window switch
• (except convertible) right rear door window switch
• (in left rear door) (except convertible) left rear door power window motor
• Basic body module (behind glove box)
• Close signal
• Convertible
• Driver's door switch block
• Driver's window motor (in driver's door)
• Except convertible
• Fuse 11
• Fuse 27
• Ground
• Hall sen gnd
• Hall signal
• Interior lights system
• Left rear window regulator motor (convertible) (center of left rear interior panel)
• Open signal lr
• Open signal rr
• Right rear door power window motor (except convertible) (in right rear door)
• Right rear window regulator motor (convertible) (center of right rear interior panel)
• Signal pwr lr
• Signal pwr rr
• X13252
• X13253
• X13254
• X13255
• X13782 (right kick panel)
• X13788 (right front door)
• X13789 (5 series: left front floor) (6 series: under front passenger's seat)
• X13791 (under front passenger's seat)
