Электросхемы СИСТЕМА ПЕРЕДАЧИ ДАННЫХ BMW 528i 2008

СИСТЕМА ПЕРЕДАЧИ ДАННЫХ

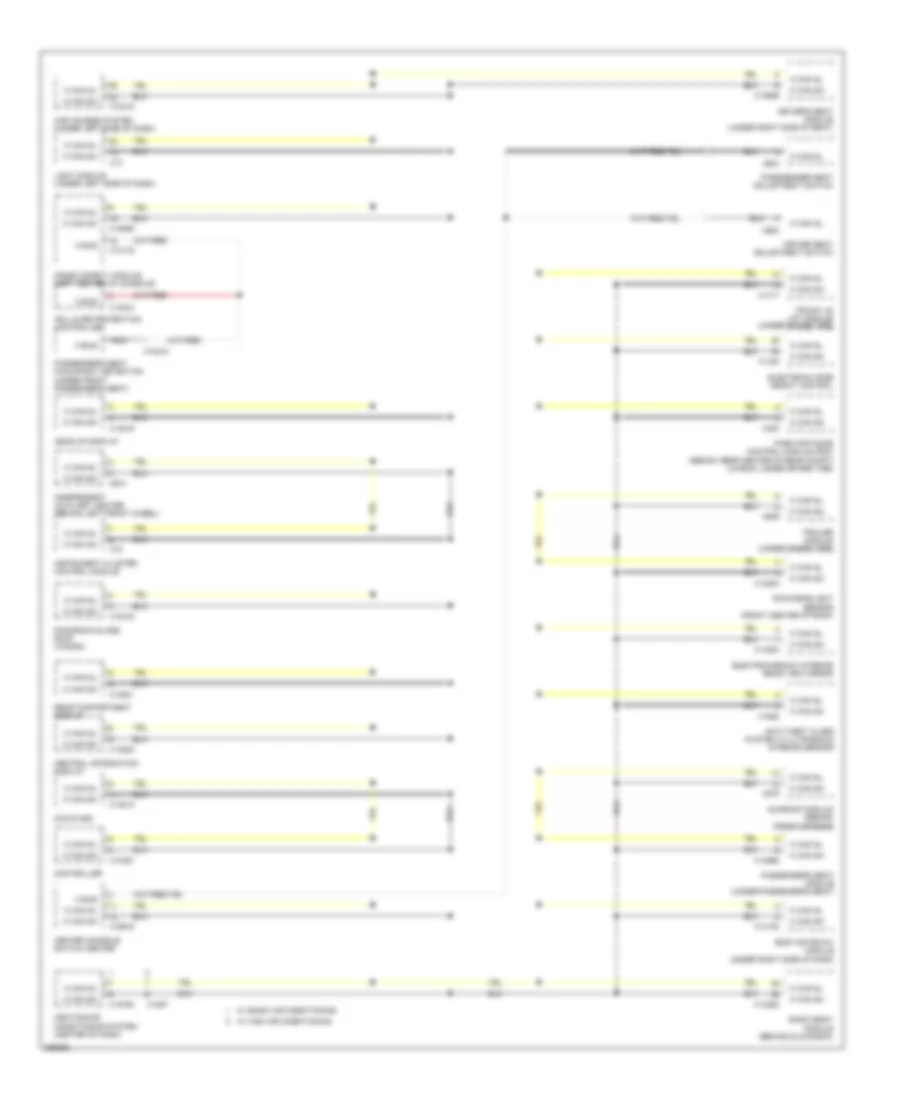

схема шины данных (1 из 3) для BMW 528i 2008

схема шины данных (1 из 3) для BMW 528i 2008 - Список элементов:

• 15 wup
• 535i & 535ix w/ dsc plus
• 550i
• Active cruise control (right front side of bumper)
• Active steering module (right footwell, under carpet)
• Battery sensor (right side of rear compt)
• Body-gateway module (under right side of dash)
• Car access system (under left side of dash)
• Digital motor electronic control module (right rear engine compt)
• Dynamic drive (right side of right footwell)
• Dynamic stability control (left front wheelwell)
• Edc electronic control module
• Except 550i
• Except 550i & m5
• Except m5
• F can h
• F can l
• Gear selector switch
• Nca
• Passenger active backrest width adjustment
• Pt can h
• Pt can l
• Pt can l
• Red
• Safety & gateway module (behind glove box)
• Sequential manual transmission (smg)
• Sequential manual transmission (smg) (right rear of engine compt)
• Transfer box control module
• Transmission control module (rear of transmission)
• X10318
• X10594
• X11551
• X13561
• X13718
• X13895
• X16760
• X1746
• X1783
• X1808
• X1877
• X2412
• X511
• X53003
• X60001
• X60002
• X60004
• X6009
• X60094
• X8500

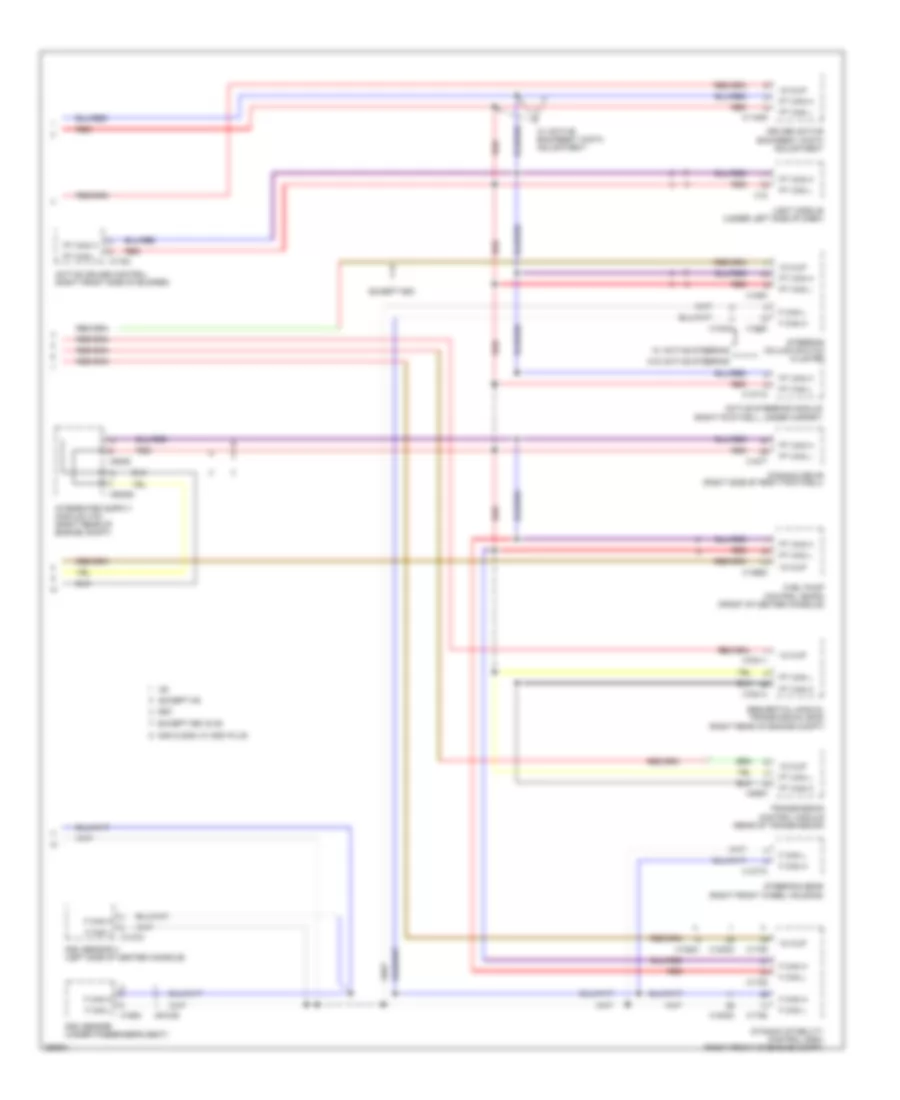

схема шины данных (2 из 3) для BMW 528i 2008

схема шины данных (2 из 3) для BMW 528i 2008 - Список элементов:

• 15 wup
• 535i & 535ix w/ dsc plus
• 550i
• Active cruise control (right front side of bumper)
• Active steering module (right footwell, under carpet)
• Driver active backrest width adjustment
• Dsc sensor (under passenger's seat)
• Dsc sensor 2 (left side of center console)
• Dynamic drive (right side of right footwell)
• Dynamic stability control (dsc) (right front of engine compt)
• Except 550i
• Except 550i & m5
• Except m5
• F can h
• F can l
• Fuel pump control (ekps) (front of center console)
• Light module (under left side of dash)
• Pt can h
• Pt can l
• Red
• Sequential manual transmission (smg) (right rear of engine compt)
• Steering column switch cluster
• Steering gear (right front wheel housing)
• Transmission control module (rear of transmission)
• W/ active backrest width adjustment
• W/ active steering
• W/o active steering
• X10334
• X10821
• X11548
• X12
• X13663
• X13718
• X13721
• X13773
• X1653
• X1746
• X1783
• X18303
• X1877
• X1880
• X5009
• X50094
• X61035
• X70011
• X70014
• X8500

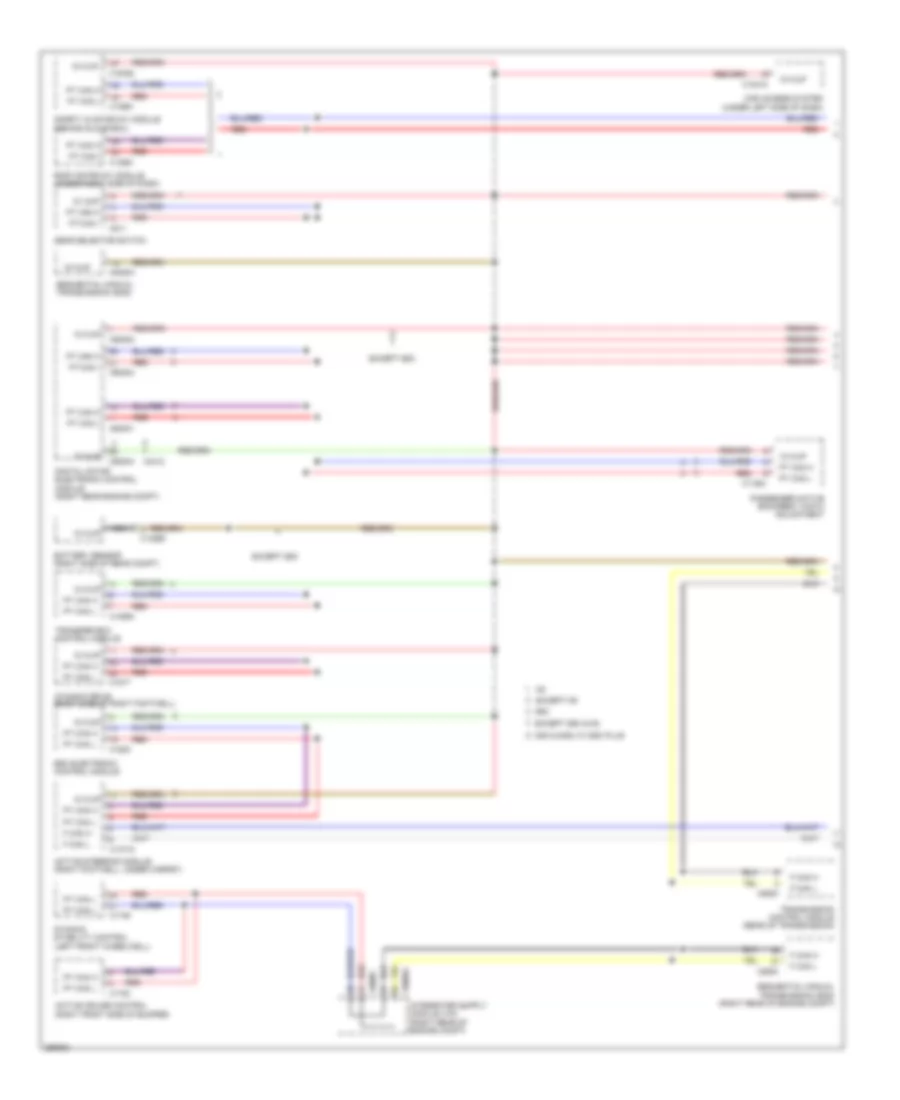

схема шины данных (3 из 3) для BMW 528i 2008

схема шины данных (3 из 3) для BMW 528i 2008 - Список элементов:

• Anti-theft alarm system w/ ultrasonic interior sensor
• Basic body module (behind glove box)
• Body-gateway module (under right side of dash)
• Car access system (under left side of dash)
• Ccc/m-ask
• Center console switch center
• Central information display
• Controller
• Crash safety module (left center of console)
• Driver seat adjustment switch
• Driver's seat module (under right side of seat)
• Electrochromic interior rear view mirror
• Electronic ride height control
• Head-up display
• Heating/air conditioning system (center of dash)
• Independent auxiliary heater (behind left front wheel)
• Instrument cluster control module
• K bus
• K can sh
• K can sl
• Light module (under left side of dash)
• Nca
• Panorama glass roof (wagon)
• Park distance control module (pdc) (sedan: rear center of rear compt) (wagon: under spare tire)
• Passenger's seat module (under passenger's seat)
• Passenger's seat occupancy detection (under front passenger's seat)
• Passsenger seat adjustment switch
• Rain/headlight sensor (front center of roof)
• Rear compartment display
• Rollover protection controller
• Sunroof module (sedan) (front of roof)
• Trailer module (under spare tire)
• Trunk lid lift module (under spare tire)
• W/ basic air conditioning
• W/ high air conditioning
• X10179
• X10218
• X10318
• X10387
• X12
• X13044
• X13084
• X13252
• X13812
• X13819
• X13821
• X13822
• X13989
• X13990
• X14102
• X14284
• X1448
• X1527
• X1582
• X16
• X16919
• X1771
• X18069
• X18793
• X19102
• X300
• X603
• X604
• X609
• X674
• X916

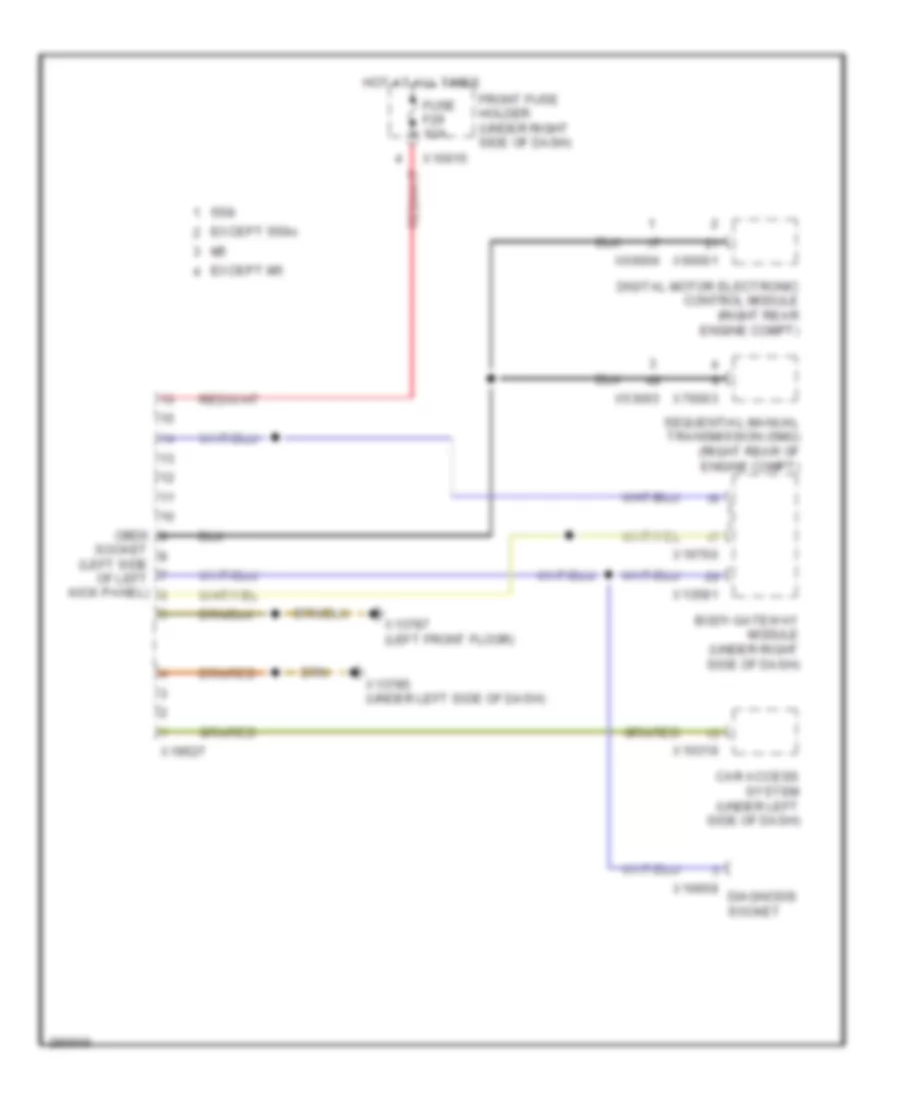

схема соединителя канала связи для BMW 528i 2008

схема соединителя канала связи для BMW 528i 2008 - Список элементов:

• 550i
• Body-gateway module (under right side of dash)
• Car access system (under left side of dash)
• Digital motor electronic control module (right rear engine compt)
• Except 550ix
• Except m5
• Front fuse holder (under right side of dash)
• Fuse f29 1oa
• Hot at all times
• Obdii
• Sequential manual transmission (smg) (right rear of engine compt)
• Socket (left side of left kick panel)
• X10015
• X10318
• X10658 diagnosis socket
• X13581
• X13785 (under left side of dash)
• X13787 (left front floor)
• X16760
• X19527
• X53003
• X60001
• X60004
• X70003
