Электросхемы СИСТЕМЫ ПАМЯТИ BMW 528i 2008

СИСТЕМЫ ПАМЯТИ

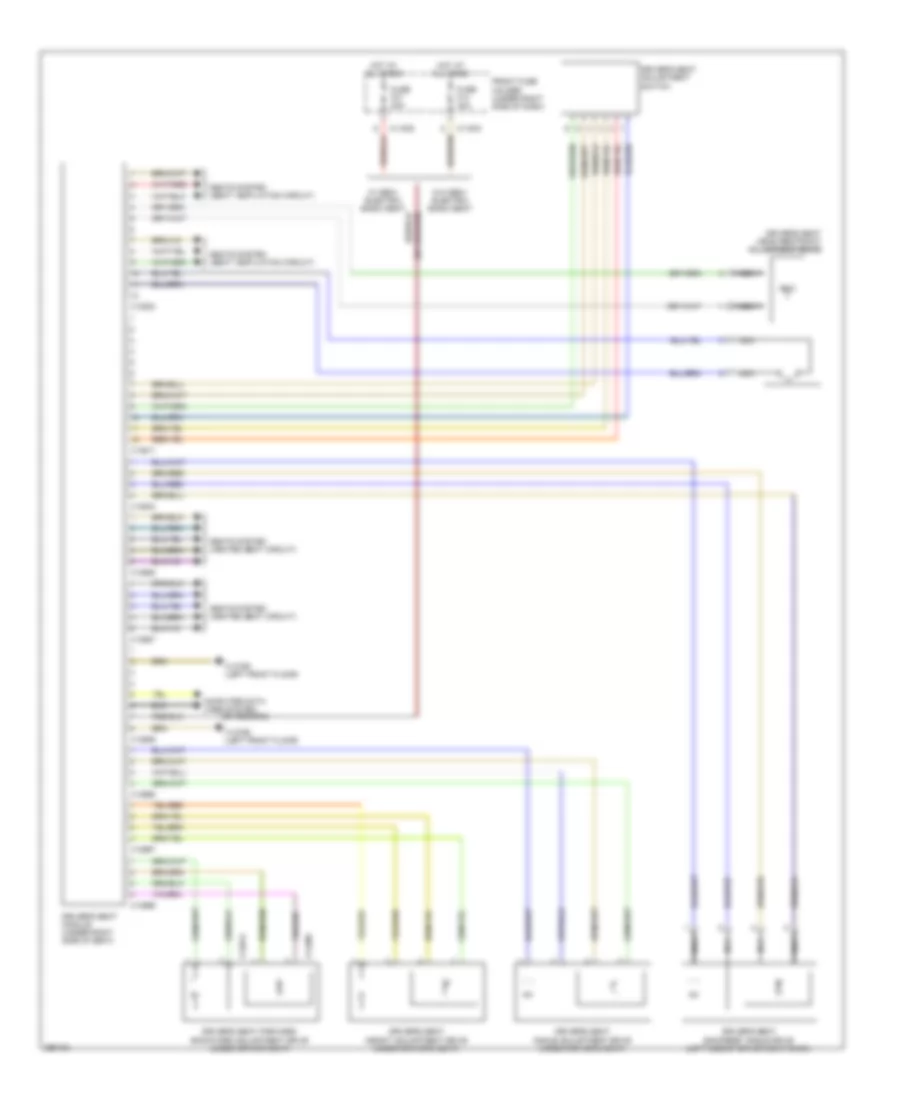

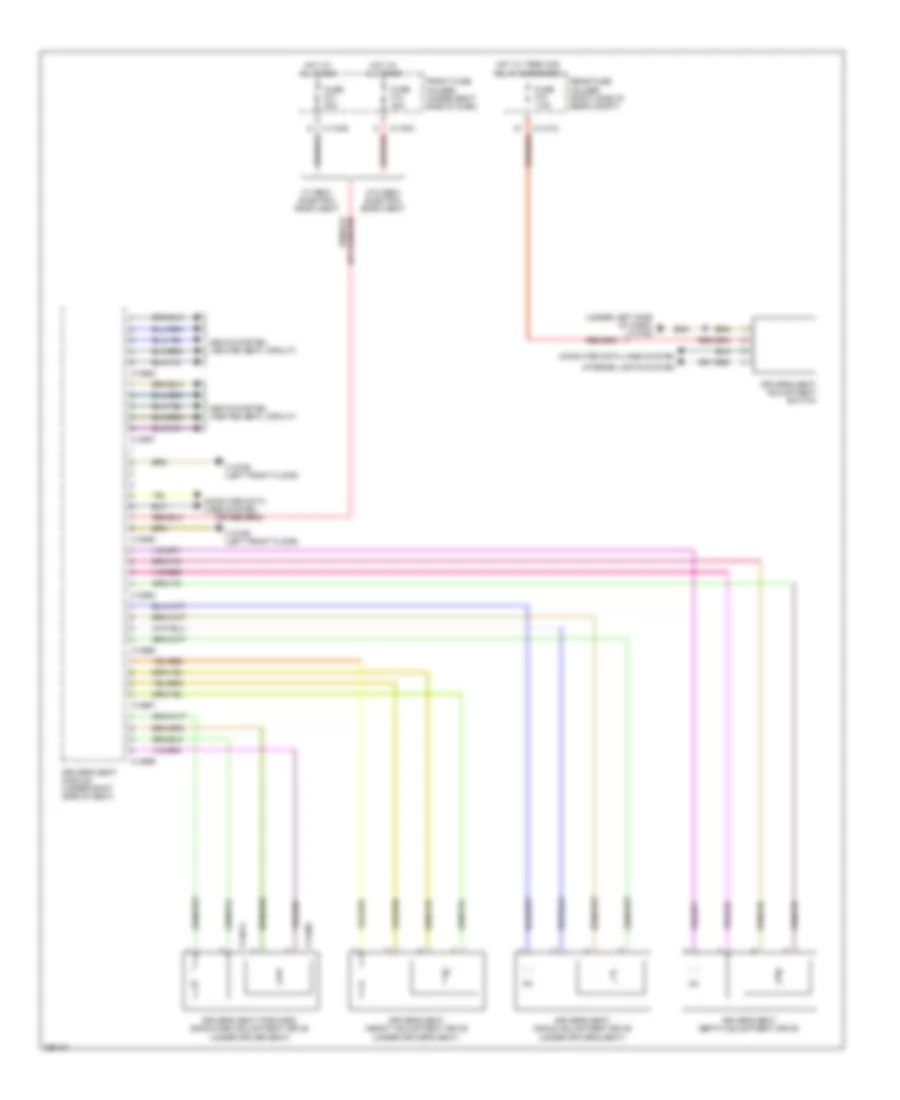

Электросхема памяти водительского сиденья, С Поясничная Поддержка, С Активные Места (1 из 2) для BMW 528i 2008

Электросхема памяти водительского сиденья, С Поясничная Поддержка, С Активные Места (1 из 2) для BMW 528i 2008 - Список элементов:

• (under left side of dash) x13785
• Computer data lines system
• Driver's seat adjustment switch
• Driver's seat angle adjustment drive (under driver's seat)
• Driver's seat depth adjustment drive
• Driver's seat forward/ backward adjustment drive (under driver seat)
• Driver's seat height adjustment drive (under driver's seat)
• Driver's seat module (under right side of seat)
• Front fuse holder (under right side of dash)
• Fuse f14 30a
• Fuse f31 30a
• Fuse f74 7.5a
• Hot at all times
• Hot w/ term 30g relay energized
• Interior lights system
• Rear fuse holder (right side of rear compt)
• Seats system (heated seat circuit)
• W/ semi- electric basic seat
• W/o semi- electric basic seat
• X11003
• X11005
• X11012
• X13789 (left front floor)
• X13985
• X13987
• X13989
• X13993
• X13995
• X13997
• X13999
• X14014
• X14305

Электросхема памяти водительского сиденья, С Поясничная Поддержка, С Активные Места (2 из 2) для BMW 528i 2008

Электросхема памяти водительского сиденья, С Поясничная Поддержка, С Активные Места (2 из 2) для BMW 528i 2008 - Список элементов:

• (driver's seatback) driver's lumbar support valve block
• Driver's seat backrest angle drive (left side of driver seat back)
• Driver's seat backrest head adjustment motor (left side of seat back)
• Driver's seat backrest width adjustment motor (bottom right of seat back)
• Driver's seat head restraint adjustment drive
• Driver's seat module (under right side of seat)
• Nca
• Seats system (orthopedic circuit)
• Seats system (seat ventilation circuit)
• X13532
• X13534

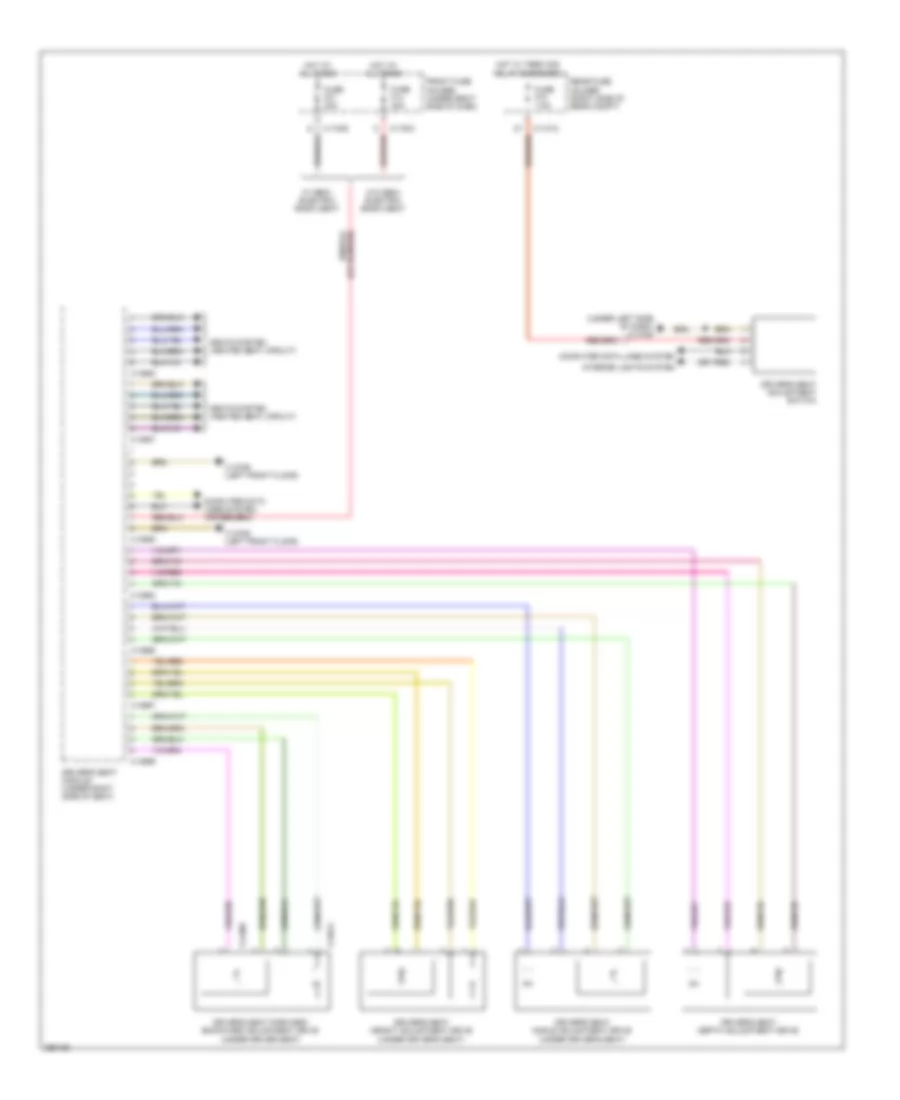

Электросхема памяти водительского сиденья, С Поясничная Поддержка, без Активные Места (1 из 2) для BMW 528i 2008

Электросхема памяти водительского сиденья, С Поясничная Поддержка, без Активные Места (1 из 2) для BMW 528i 2008 - Список элементов:

• (under left side of dash) x13785
• Computer data lines system
• Driver's seat adjustment switch
• Driver's seat angle adjustment drive (under driver's seat)
• Driver's seat depth adjustment drive
• Driver's seat forward/ backward adjustment drive (under driver seat)
• Driver's seat height adjustment drive (under driver's seat)
• Driver's seat module (under right side of seat)
• Front fuse holder (under right side of dash)
• Fuse f14 30a
• Fuse f31 30a
• Fuse f74 7.5a
• Hot at all times
• Hot w/ term 30g relay energized
• Interior lights system
• Rear fuse holder (right side of rear compt)
• Seats system (heated seat circuit)
• W/ semi- electric basic seat
• W/o semi- electric basic seat
• X11003
• X11005
• X11012
• X13789 (left front floor)
• X13985
• X13987
• X13989
• X13993
• X13995
• X13997
• X13999
• X14014
• X14305

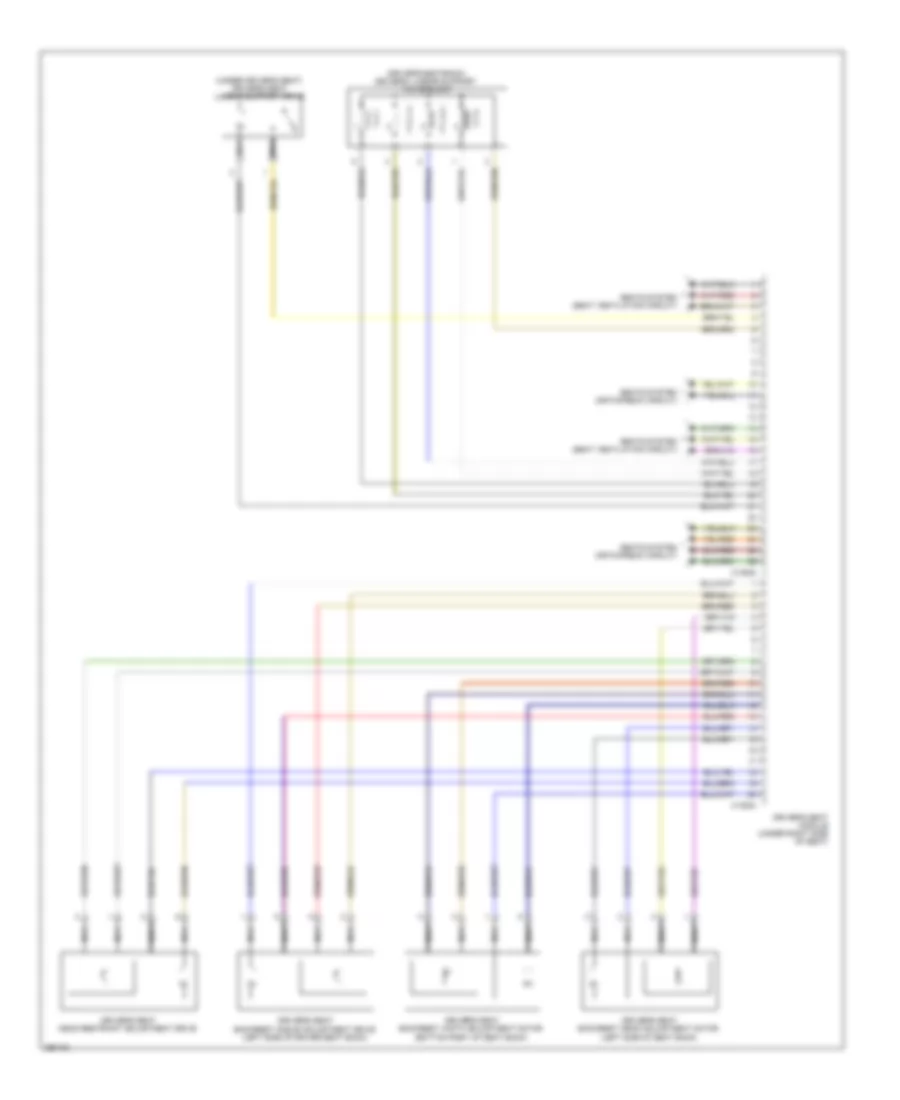

Электросхема памяти водительского сиденья, С Поясничная Поддержка, без Активные Места (2 из 2) для BMW 528i 2008

Электросхема памяти водительского сиденья, С Поясничная Поддержка, без Активные Места (2 из 2) для BMW 528i 2008 - Список элементов:

• (driver's seatback) driver's lumbar support valve block
• (under driver's seat) driver's seat lumbar support drive
• Driver's seat backrest angle adjustment drive (left side of driver seat back)
• Driver's seat backrest head adjustment motor (left side of seat back)
• Driver's seat backrest width adjustment motor (bottom right of seat back)
• Driver's seat head restraint adjustment drive
• Driver's seat module (under right side of seat)
• Nca
• Seats system (orthopedic circuit)
• Seats system (seat ventilation circuit)
• X13532
• X13534

Электросхема памяти водительского сиденья, без поясничная поддержка для BMW 528i 2008

Электросхема памяти водительского сиденья, без поясничная поддержка для BMW 528i 2008 - Список элементов:

• Computer data lines system
• Driver's seat adjustment switch
• Driver's seat angle adjustment drive (under driver's seat)
• Driver's seat backrest angle drive (left side of driver seat back)
• Driver's seat forward/ backward adjustment drive (under driver seat)
• Driver's seat head restraint adjustment drive
• Driver's seat height adjustment drive (under driver's seat)
• Driver's seat module (under right side of seat)
• Front fuse holder (under right side of dash)
• Fuse f14 30a
• Fuse f31 30a
• Hot at all times
• Nca
• Seats system (heated seat circuit)
• Seats system (seat ventilation circuit)
• W/ semi- electric basic seat
• W/o semi- electric basic seat
• X11003
• X11005
• X13532
• X13534
• X13617
• X13789 (left front floor)
• X13985
• X13987
• X13989
• X13995
• X13997
• X13999
• X14014
• X14305

Электросхема памяти пассажирского сиденья, С Поясничная Поддержка, С Активные Места (1 из 2) для BMW 528i 2008

Электросхема памяти пассажирского сиденья, С Поясничная Поддержка, С Активные Места (1 из 2) для BMW 528i 2008 - Список элементов:

• (right front floor) x13784
• Computer data lines system
• Front fuse holder (under right side of dash)
• Fuse f21 30a
• Fuse f33 30a
• Fuse f74 7.5a
• Hot at all times
• Hot w/ term 30g relay energized
• Interior lights system
• Passenger's seat adjustment switch
• Passenger's seat angle adjustment drive (under front passenger's seat)
• Passenger's seat depth adjustment drive
• Passenger's seat forward/ backward adjustment drive
• Passenger's seat height adjustment drive (under front passenger's seat)
• Passenger's seat module (under passenger's seat)
• Rear fuse holder (right side of rear compt)
• Seats system (heated seat circuit)
• W/ semi- electric basic seat
• W/o semi- electric basic seat
• X11004
• X11005
• X11012
• X13784 (right front floor)
• X13986
• X13988
• X13990
• X13994
• X13996
• X13998
• X14000
• X14015
• X14306

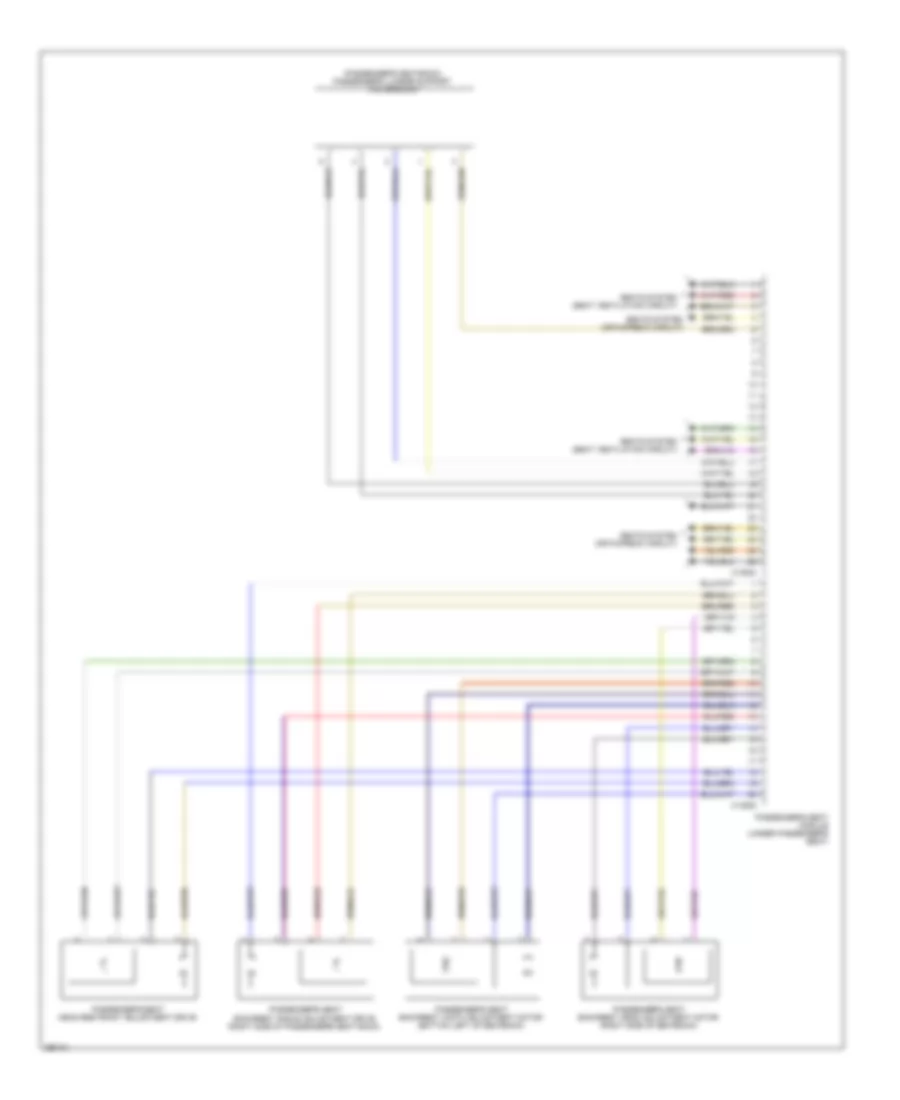

Электросхема памяти пассажирского сиденья, С Поясничная Поддержка, С Активные Места (2 из 2) для BMW 528i 2008

Электросхема памяти пассажирского сиденья, С Поясничная Поддержка, С Активные Места (2 из 2) для BMW 528i 2008 - Список элементов:

• (passenger's seatback) passenger's lumbar support valve block
• Passenger's seat backrest angle adjustment drive (right side of passenger's seat back)
• Passenger's seat backrest head adjustment motor (right side of seatback)
• Passenger's seat backrest width adjustment motor (bottom left of seatback)
• Passenger's seat head restraint adjustment drive
• Passenger's seat module (under passenger's seat)
• Seats system (orthopedic circuit)
• Seats system (seat ventilation circuit)
• X13533
• X13535

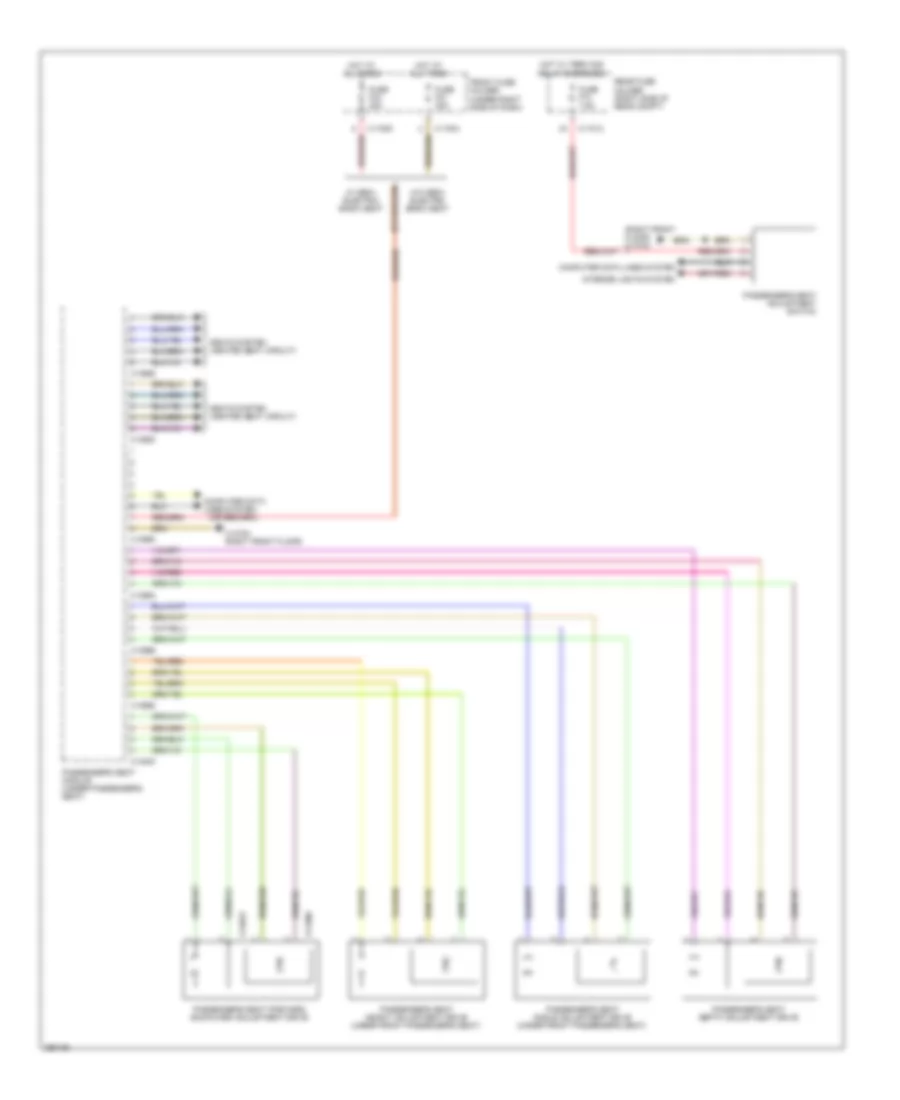

Электросхема памяти пассажирского сиденья, С Поясничная Поддержка, без Активные Места (1 из 2) для BMW 528i 2008

Электросхема памяти пассажирского сиденья, С Поясничная Поддержка, без Активные Места (1 из 2) для BMW 528i 2008 - Список элементов:

• (right front floor) x13784
• Computer data lines system
• Front fuse holder (under right side of dash)
• Fuse f21 30a
• Fuse f33 30a
• Fuse f74 7.5a
• Hot at all times
• Hot w/ term 30g relay energized
• Interior lights system
• Passenger's seat adjustment switch
• Passenger's seat angle adjustment drive (under front passenger's seat)
• Passenger's seat depth adjustment drive
• Passenger's seat forward/ backward adjustment drive
• Passenger's seat height adjustment drive (under front passenger's seat)
• Passenger's seat module (under passenger's seat)
• Rear fuse holder (right side of rear compt)
• Seats system (heated seat circuit)
• W/ semi- electric basic seat
• W/o semi- electric basic seat
• X11004
• X11005
• X11012
• X13400
• X13784 (right front floor)
• X13986
• X13988
• X13990
• X13994
• X13996
• X13998
• X14015
• X14306

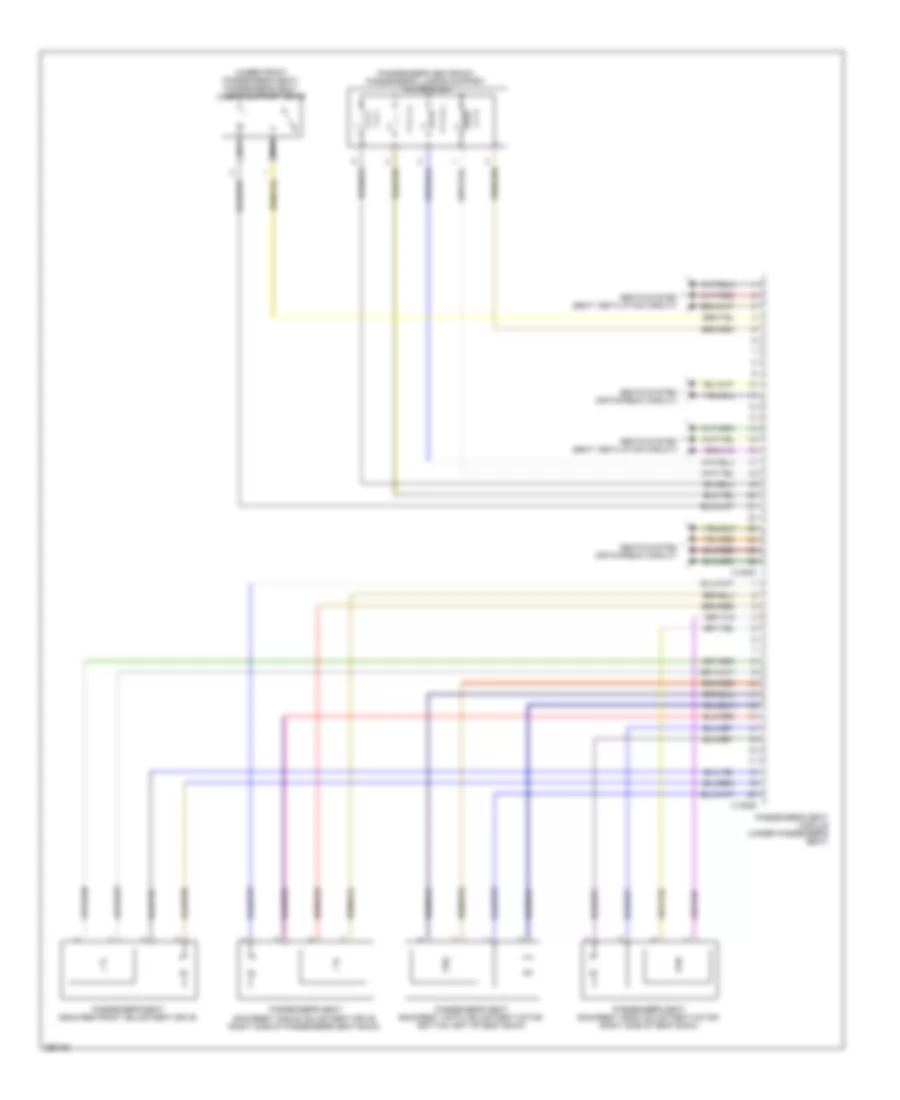

Электросхема памяти пассажирского сиденья, С Поясничная Поддержка, без Активные Места (2 из 2) для BMW 528i 2008

Электросхема памяти пассажирского сиденья, С Поясничная Поддержка, без Активные Места (2 из 2) для BMW 528i 2008 - Список элементов:

• (passenger's seatback) passenger's lumbar support valve block
• (under front passenger's seat) passenger's seat lumbar support drive
• Nca
• Passenger's seat backrest angle adjustment drive (right side of passenger's seat back)
• Passenger's seat backrest head adjustment motor (right side of seat back)
• Passenger's seat backrest width adjustment motor (bottom left of seat back)
• Passenger's seat head restraint adjustment drive
• Passenger's seat module (under passenger's seat)
• Seats system (orthopedic circuit)
• Seats system (seat ventilation circuit)
• X13533
• X13535

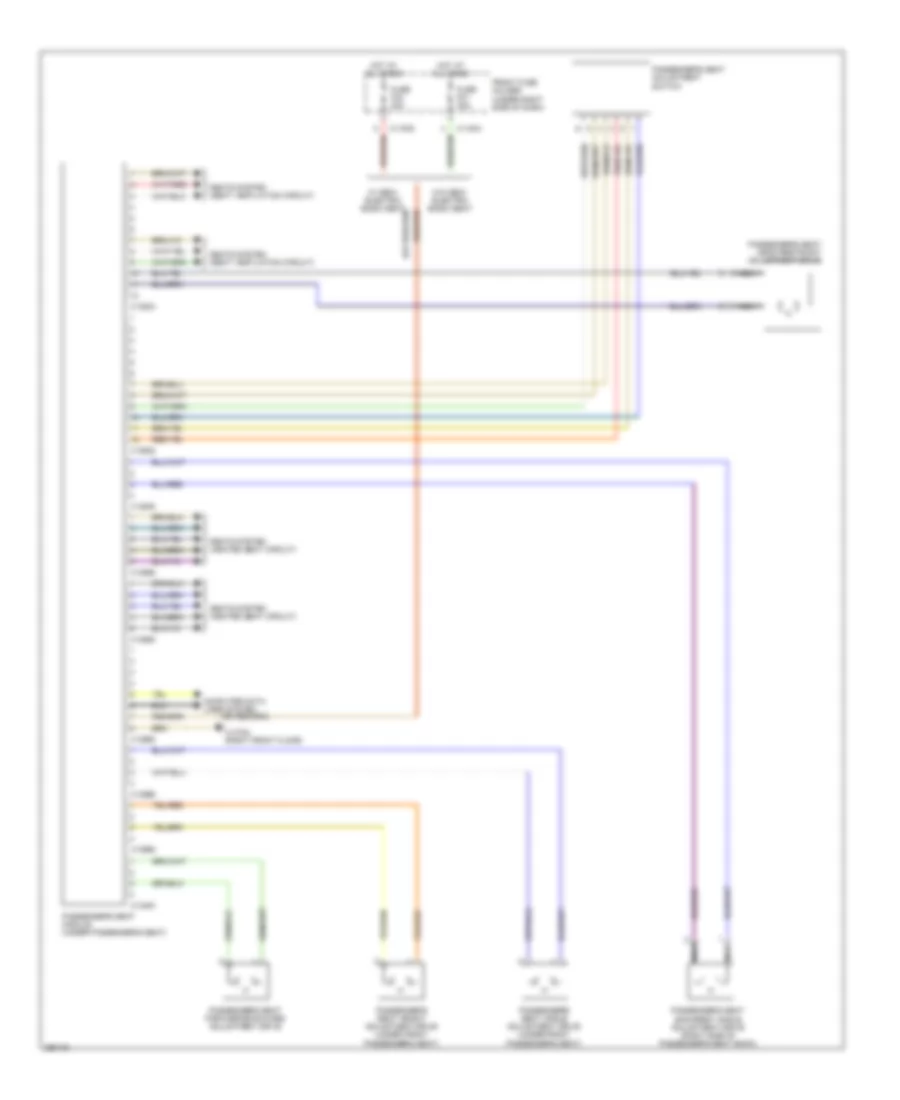

Электросхема памяти пассажирского сиденья, без поясничная поддержка для BMW 528i 2008

Электросхема памяти пассажирского сиденья, без поясничная поддержка для BMW 528i 2008 - Список элементов:

• Computer data lines system
• Front fuse holder (under right side of dash)
• Fuse f21 30a
• Fuse f33 30a
• Hot at all times
• Nca
• Passenger's seat adjustment switch
• Passenger's seat angle adjustment drive (under front passenger's seat)
• Passenger's seat backrest angle adjustment drive (right side of passenger's seat back)
• Passenger's seat forward/backward adjustment drive
• Passenger's seat head restraint adjustment drive
• Passenger's seat height adjustment drive (under front passenger's seat)
• Passenger's seat module (under passenger's seat)
• Seats system (heated seat circuit)
• Seats system (seat ventilation circuit)
• W/ semi- electric basic seat
• W/o semi- electric basic seat
• X11004
• X11005
• X13400
• X13533
• X13535
• X13622
• X13784 (right front floor)
• X13986
• X13988
• X13990
• X13996
• X13998

Электросхема памяти рулевой колонки для BMW 528i 2008

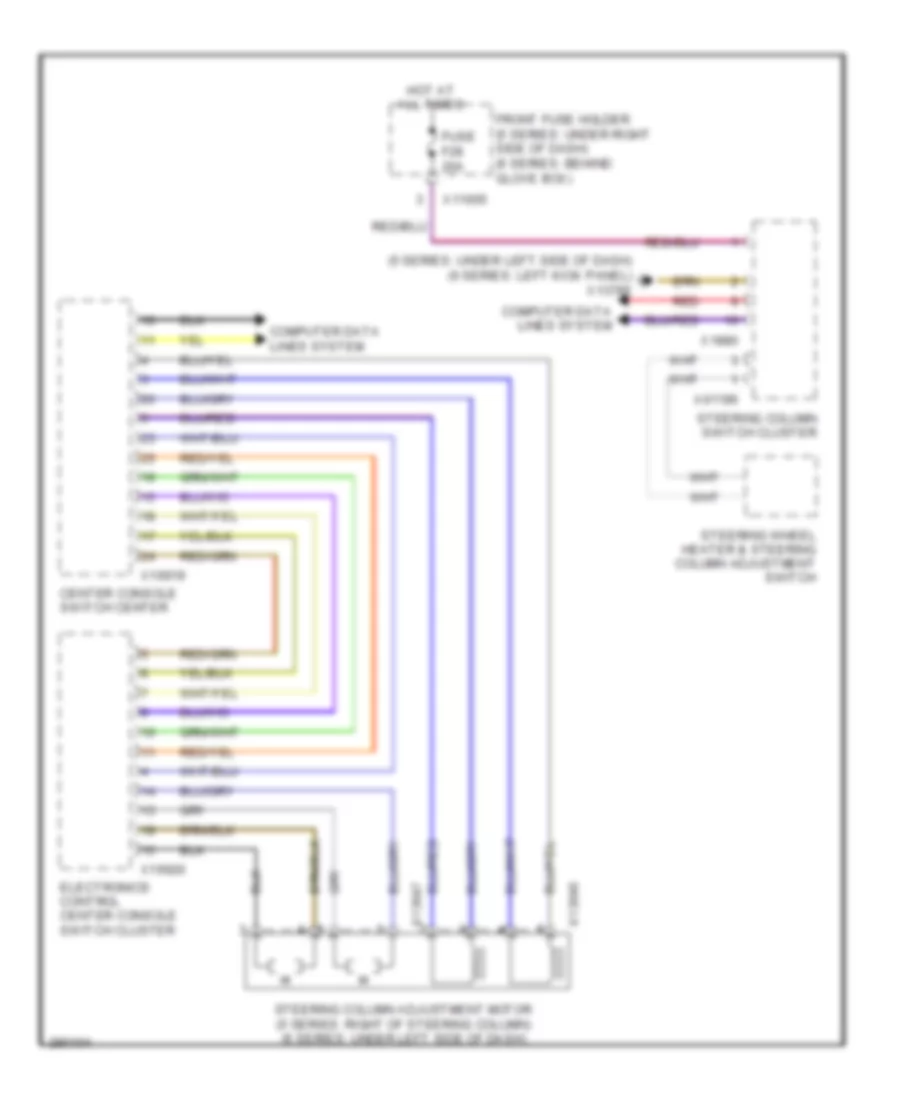

Электросхема памяти рулевой колонки для BMW 528i 2008 - Список элементов:

• (5 series: under left side of dash) (6 series: left kick panel) x13785
• Center console switch center
• Computer data lines system
• Electronics control center console switch cluster
• Front fuse holder (5 series: under right side of dash) (6 series: behind glove box)
• Fuse f28 20a
• Hot at all times
• Red
• Steering column adjustment motor (5 series: right of steering column) (6 series: under left side of dash)
• Steering column switch cluster
• Steering wheel heater & steering column adjustment switch
• X01196
• X11005
• X13846
• X13847
• X16919
• X16920
• X1880
