Электросхемы СИСТЕМЫ ПОДВЕСКИ BMW 528i 2008

СИСТЕМЫ ПОДВЕСКИ

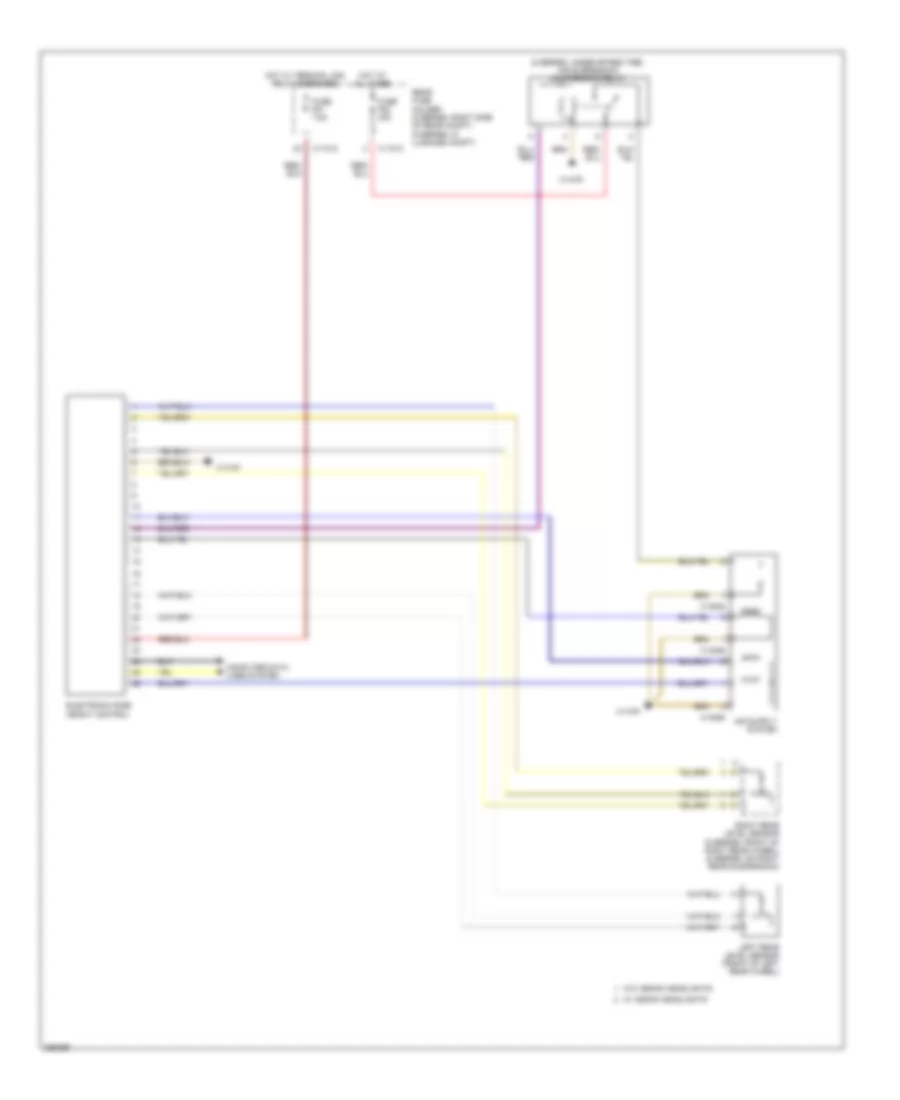

Электросхема пневмоподвески для BMW 528i 2008

Электросхема пневмоподвески для BMW 528i 2008 - Список элементов:

• (5 series: under spare tire) air suspension compressor relay
• Computer data lines system
• Electronic ride height control
• Fuse f52 40a
• Fuse f81 7.5a
• Hot at all times
• Hot w/ terminal 30g relay energized
• Left rear level sensor (front of left rear wheel)
• Rear fuse holder (5 series: right side of rear compt) (6 series: in luggage compt)
• Right rear level sensor (5 series: front of right rear wheel) (6 series: on right rear suspension)
• W/ xenon headlights
• W/o xenon headlights
• X11010
• X11012
• X14088
• X14089
• X14090
• X14191

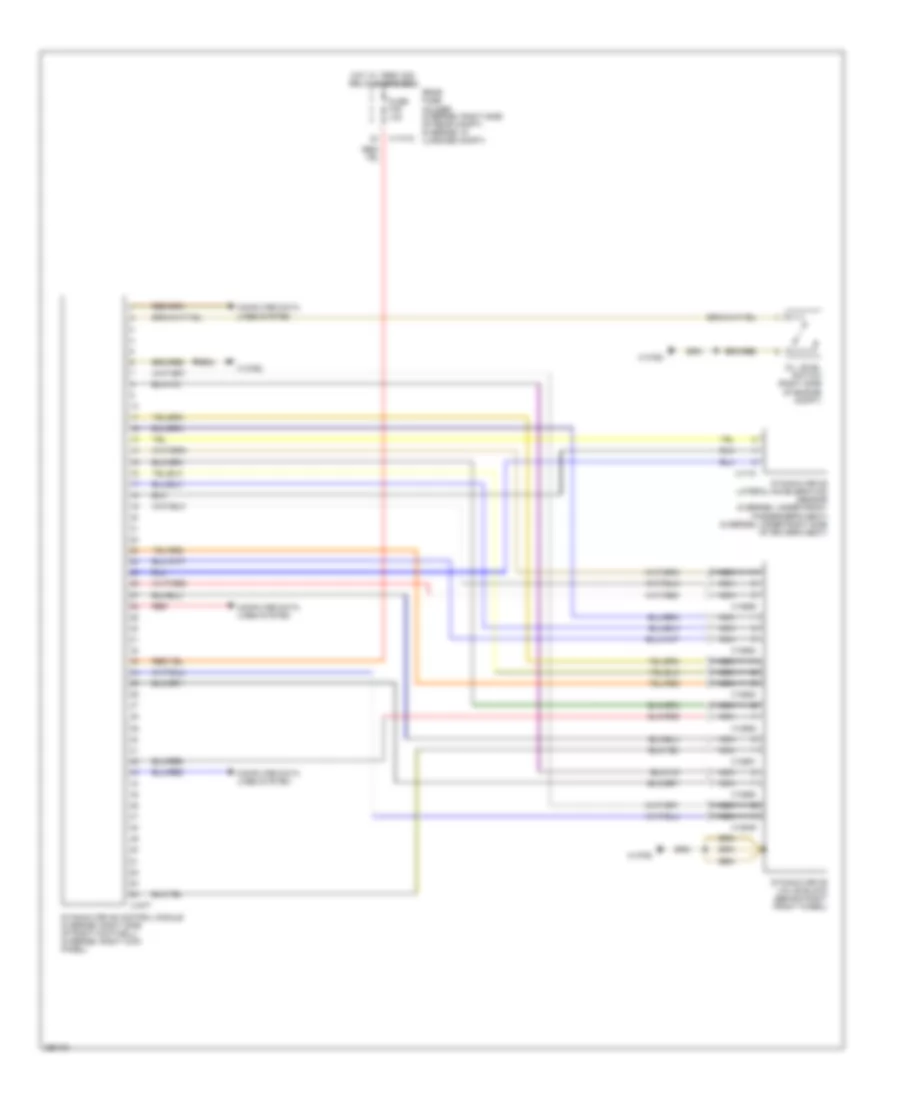

схема приостановки Динэмик-Драйв для BMW 528i 2008

схема приостановки Динэмик-Драйв для BMW 528i 2008 - Список элементов:

• Computer data lines system
• Dynamic drive control module (5 series: right side of right footwell) (6 series: right kick panel)
• Dynamic drive lateral-acceleration sensor (5 series: under front passenger's seat) (6 series: under right side of driver's seat)
• Dynamic drive valve block (behind right front wheel)
• Fuse f76 10a
• Hot w/ term 30g relay energized
• Nca
• Oil level switch (right side of engine compt)
• Rear fuse holder (5 series: right side of rear compt) (6 series: in luggage compt)
• Red
• X10649
• X10650
• X10651
• X10652
• X10653
• X10654
• X10655
• X11012
• X13762
• X1710
• X1877
