Стеклоочистители и Стеклоомыватели Дворники

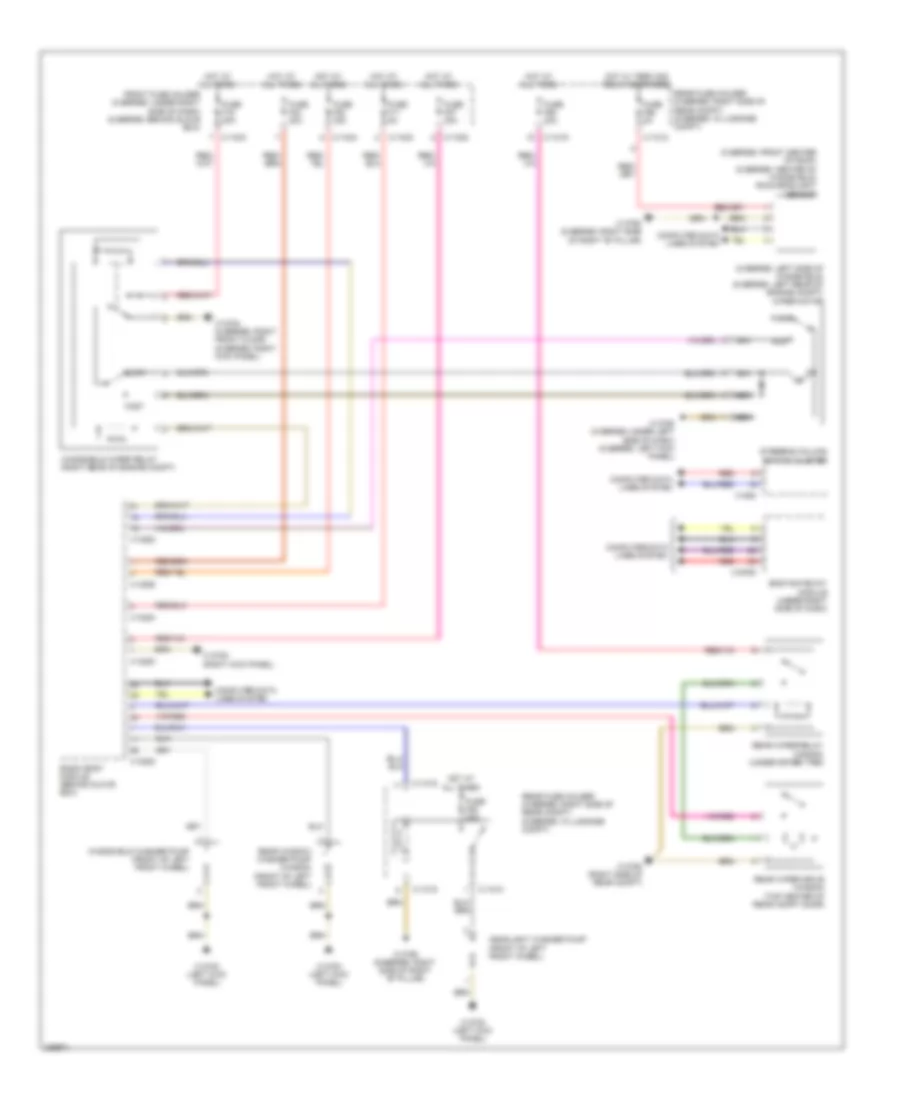

Электросхема стеклоочистителя, дворников и омывателя для BMW 528i 2008

Электросхема стеклоочистителя, дворников и омывателя для BMW 528i 2008 - Список элементов:

• (5 series: front center of roof) (6 series: center of windshield) rain/headlight sensor
• (5 series: left side of windshield) (6 series: left rear of engine compt) wiper motor
• Basic body module (behind glove box)
• Body-gateway module (under right side of dash)
• Computer data lines system
• Fast
• Front fuse holder (5 series: under right side of dash) (6 series: behind glove box)
• Fuse f11 5a
• Fuse f16 30a
• Fuse f22 30a
• Fuse f24 30a
• Fuse f27 30a
• Fuse f50 30a
• Fuse f56 5a
• Fuse f58 20a
• Headlight washer pump (front of left front wheel)
• Hot at all times
• Hot w/ term 30g relay energized
• Nca
• Park
• Rear fuse holder (5 series: right side of rear compt) (6 series: in luggage compt)
• Rear window washer pump (wagon) (front of left front wheel)
• Rear wiper drive (wagon) (top center of rear compt door)
• Rear wiper relay (wagon) (under spare tire)
• Red
• Run
• Slow
• Steering column switch cluster
• Windshield washer pump (front of left front wheel)
• Windshield wiper relay (right rear of engine compt)
• X11003
• X11004
• X11005
• X11010
• X11012
• X11015
• X13252
• X13253
• X13254
• X13255
• X13782 (right kick panel)
• X13783 (left kick panel)
• X13784 (5 series: right front floor) (6 series: right kick panel)
• X13785 (5 series: under left side of dash) (6 series: left kick panel)
• X13790 (6 series: right side of right "b" pillar)
• X13790 (6-series: right side of right "b" pillar)
• X13794 (right side of rear compt)
• X16760
• X1880
