Электросхемы ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ BMW 528i 2008

ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

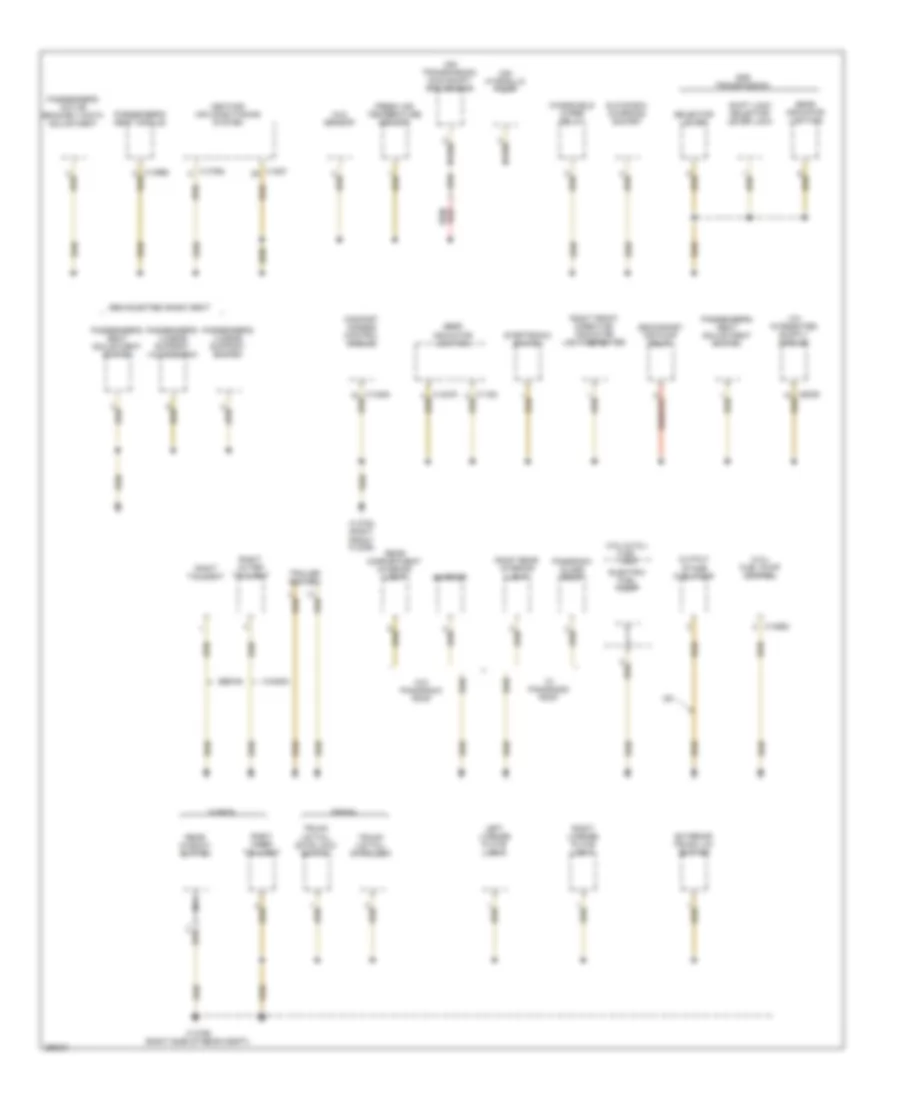

Электросхема подключение массы заземления (1 из 7) для BMW 528i 2008

Электросхема подключение массы заземления (1 из 7) для BMW 528i 2008 - Список элементов:

• (m5) electric vacuum pump
• Brake solenoid valve
• Car access system
• Clutch solenoid valve
• Crankshaft breather heating 1
• Crankshaft breather heating 2
• Disa controller 1
• Disa controller 2
• Dme control module
• Driver's seat module
• E box (right rear of engine compt)
• Engine coolant temperature sensor
• Fuel injectors relay
• Gear solenoid valve 1
• Gear solenoid valve 2
• Hot-film air mass meter
• Individual control intake system valve
• Intake pipe pressure sensor
• Left heated washer nozzle
• Light module
• Nca
• Obdii socket
• Oil condition sensor
• Rear lid release switch (interior)
• Refrigerant compressor control valve
• Reversing light switch
• Right heated washer nozzle
• Sequential manual transmission (smg)
• Shield
• Smg hydraulic pump relay
• Steering column adjust motor
• Steering column switch cluster
• Variable valve timing gear control module
• X13785 (under left side of dash)
• X6 (525i & 525xi) (right rear of engine compt)
• X6 (550i) (right rear of engine compt)
• X60092
• X64541
• X7517 (550i)

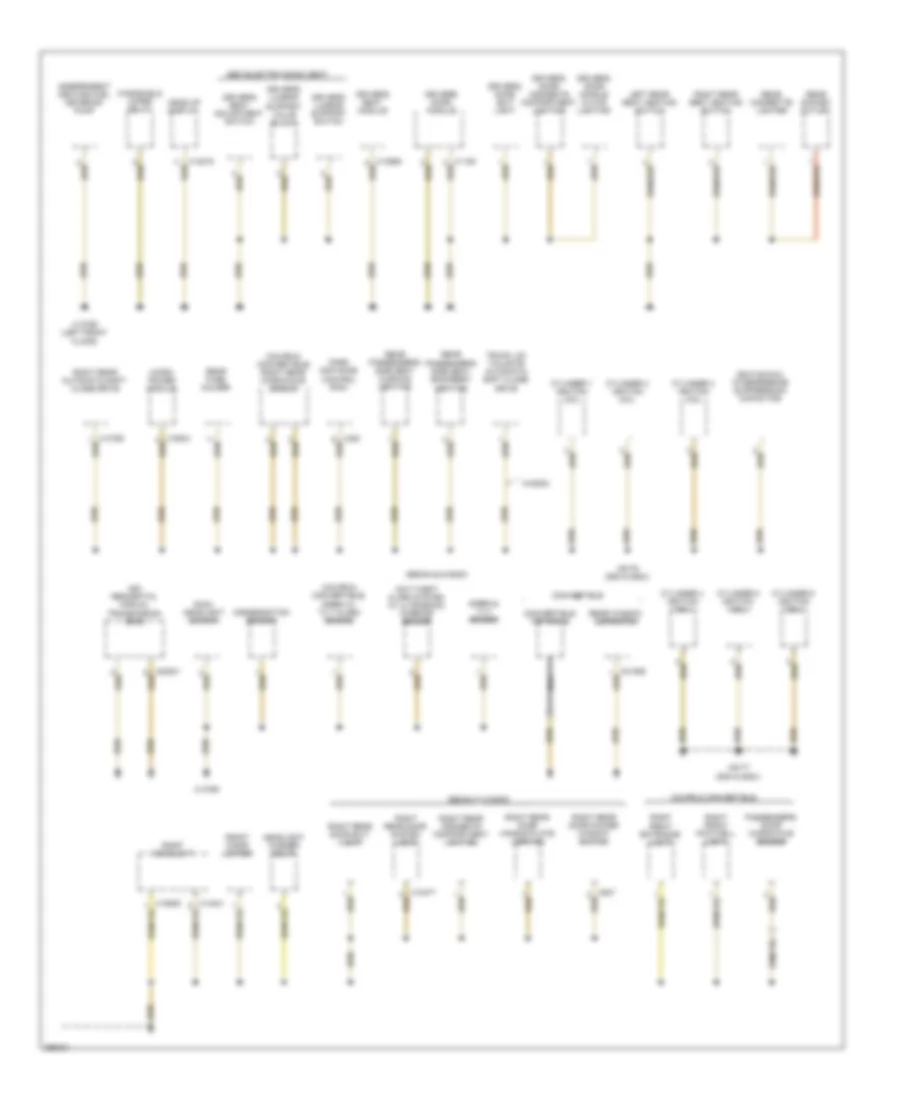

Электросхема подключение массы заземления (2 из 7) для BMW 528i 2008

Электросхема подключение массы заземления (2 из 7) для BMW 528i 2008 - Список элементов:

• (3.0l) fuel pump control
• (4.8l & 5.0l) fuel tank
• (m5) hydraulic pump
• (m5) transmission main shaft rpm sensor
• Auc sensor
• Comfort access control module
• Electric fuel pump
• Exterior trunk lid/ button
• Fresh air temperature sensor
• Gear indicator lighting
• Glove box charging socket
• Heating/ air conditioning system
• Left license plate light
• Nca
• Output stage fuel pump
• Panorama glass roof
• Passenger's active bracket width adjustment
• Passenger's lumbar support switch
• Passenger's lumbar support valve block
• Passenger's seat adjustment switch
• Passenger's seat module
• Rear compartment interior light
• Rear window button
• Right front direction indicator light repeater
• Right inner taillight
• Right license plate light
• Right outer taillight
• Right rear interior light
• Right taillight
• Secondary air pump relay
• Sedan
• Selector lever
• Semi-electric basic seat
• Shift lock selector lever lock
• Smg transmission
• Steptronic switch
• Sunroof
• Trailer socket
• Trunk lid/tail- gate lock
• Trunk lid/tail- gate lock switch
• W/ panoramic roof
• W/o panoramic roof
• Wagon
• Windshield wiper relay
• X13663
• X13765
• X13784 (right front floor)
• X13792 (right side of rear compt)
• X1527

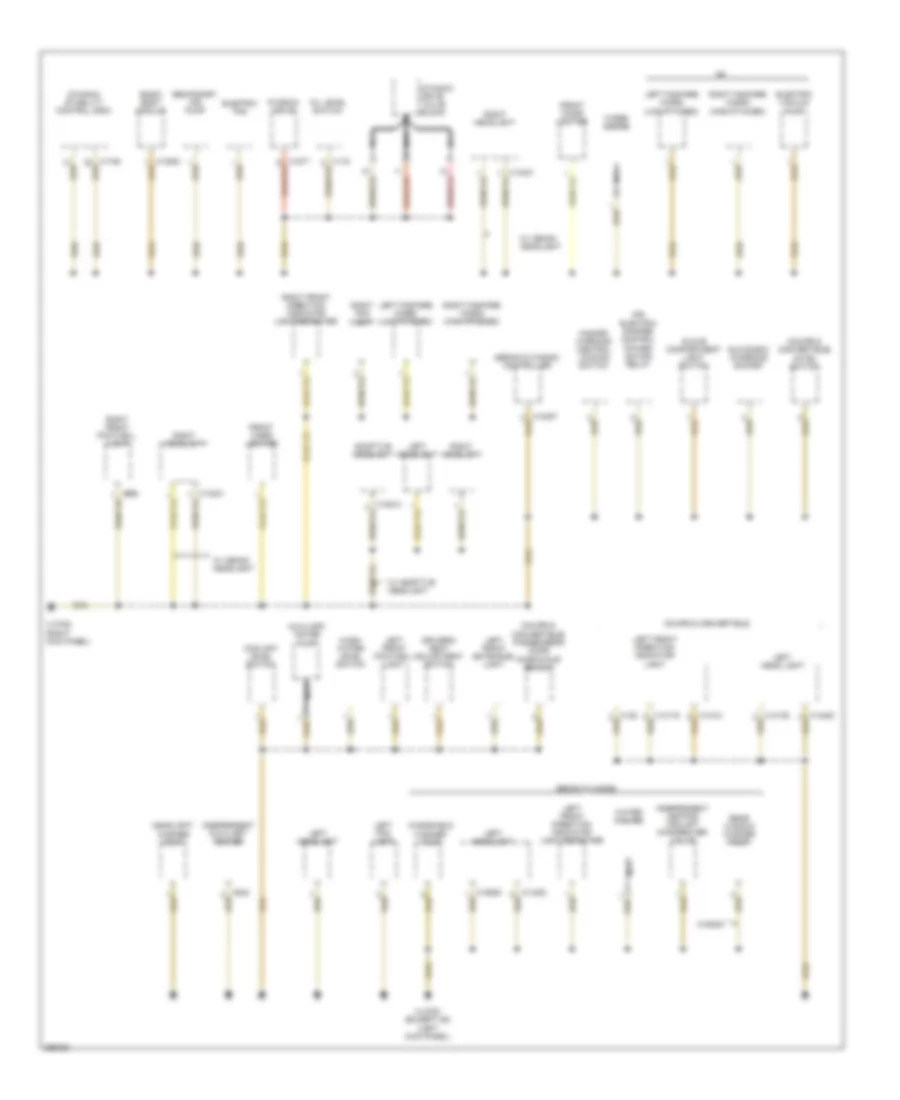

Электросхема подключение массы заземления (3 из 7) для BMW 528i 2008

Электросхема подключение массы заземления (3 из 7) для BMW 528i 2008 - Список элементов:

• (coupe & convertible) hotel switch
• (coupe & convertible) passenger's door microwave sensor
• (m5) electric damper control power- saving relay
• (sedan & wagon) controller
• Adaptive headlight
• Auxiliary water pump
• Basic body module
• Coolant level switch
• Coupe & convertible
• Driver's seat adjustment switch
• Dynamic drive
• Dynamic drive valve block
• Dynamic stability control (dsc)
• Electric fan
• Electric vacuum pump
• Front cigar lighter
• Glove box charging socket
• Glove compartment light switch
• Hazard warning/ central locking switch
• Headlight washer pump
• Independent auxiliary heater
• Independent heating coolant changeover valve
• Left fanfare (horn) (low-pitched)
• Left fog light
• Left front direction indicator light
• Left front direction indicator light repeater
• Left front entrance light
• Left front footwell light
• Left head light
• Left headlight
• Nca
• Oil level switch
• Rear window washer pump
• Right fanfare (horn) (high-pitched)
• Right fog light
• Right front direction indicator light repeater
• Right front footwell light
• Right headlight
• Secondary air pump
• Sedan & wagon
• W/ adaptive headlight
• W/ xenon headlight
• Wagon
• Wash water level switch
• Water valves
• Windshield washer pump
• Wiper motor
• X13782 (right kick panel)
• X13783 (except m5) (left kick panel)

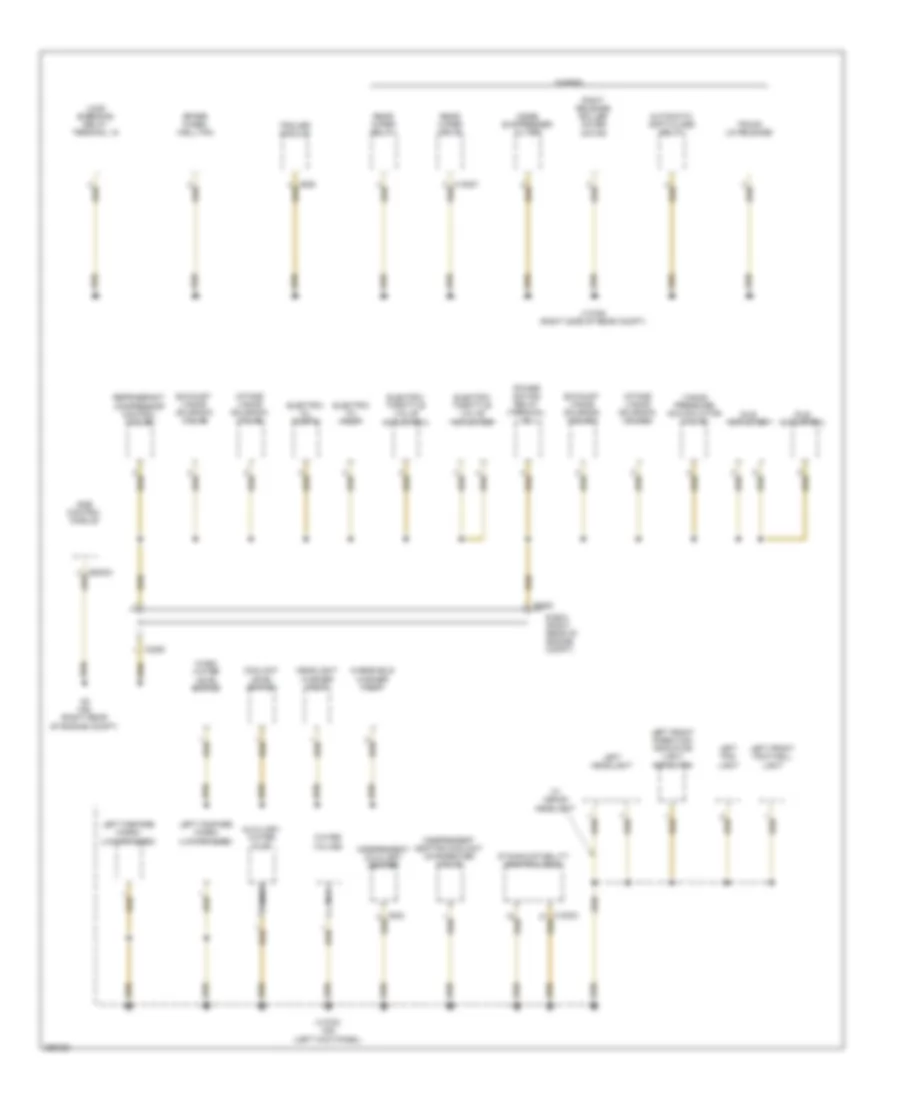

Электросхема подключение массы заземления (4 из 7) для BMW 528i 2008

Электросхема подключение массы заземления (4 из 7) для BMW 528i 2008 - Список элементов:

• (m5) sequential manual transmission (smg)
• Active steering
• Blower output stage
• Brake fluid level switch
• Brake light switch
• Car access system
• Center console switch center
• Central information display
• Clutch switch module
• Driver's side outer door handle electronic module
• Dsc sensor
• Dsc sensor 2
• Dsc/dtc button
• Edc electronic damper control
• Indicator lamp for passenger air bag deactivation
• Instrument cluster control module
• Left "b" pillar satellite
• Left rear outer door handle electronic module
• Light module
• Nca
• Obdii socket
• Occupancy detection passenger's seat
• Passenger's door exit light
• Passenger's door handle plate lighting
• Passenger's door module
• Passenger's door oddments compartment lighting
• Passenger's side outer door handle electronic module
• Power button
• Rear compartment display
• Right "b" pillar satellite
• Right rear outer door handle electronic module
• Safety & gateway module
• Steering column switch cluster
• Steering gear
• Transfer box control module
• Transmission control
• Vehicle center satellite
• X13786 (right front floor)
• X13787 (left front floor)
• X13788 (right front floor)

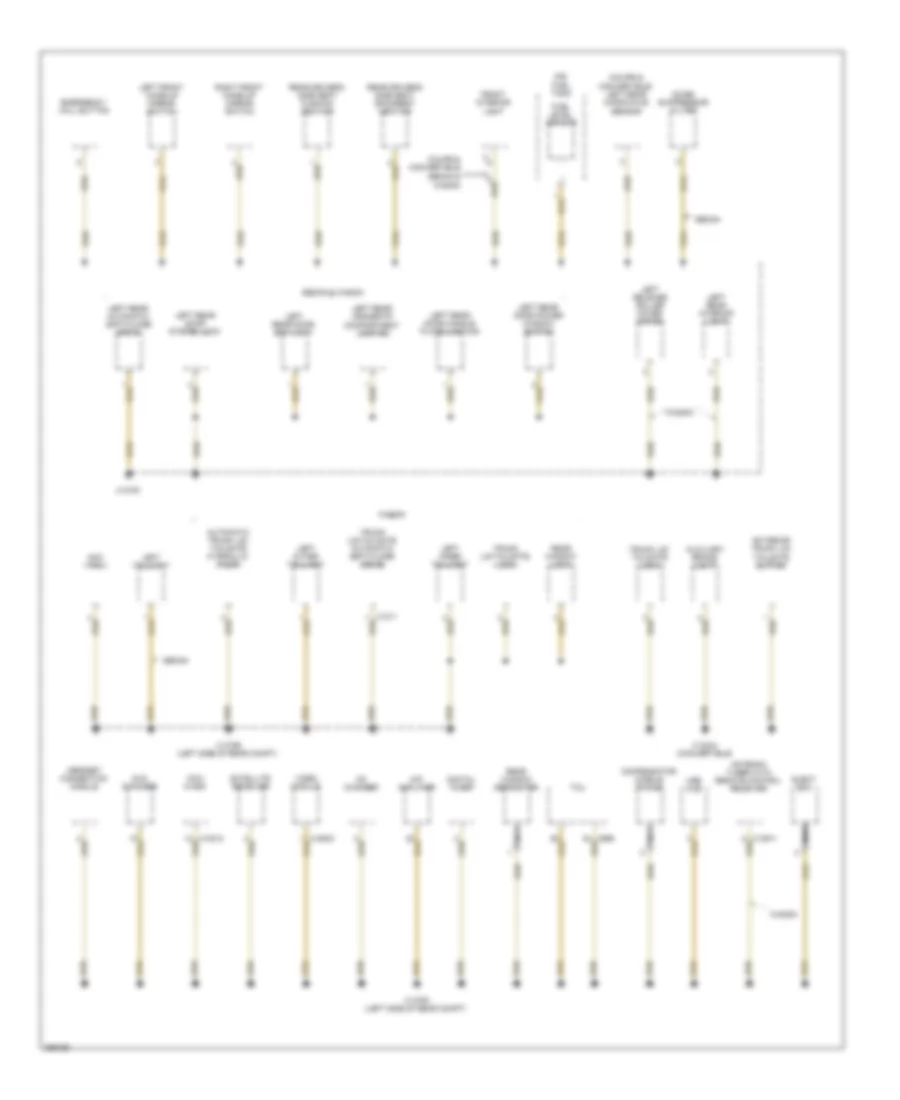

Электросхема подключение массы заземления (5 из 7) для BMW 528i 2008

Электросхема подключение массы заземления (5 из 7) для BMW 528i 2008 - Список элементов:

• (coupe & convertible) right rear microwave sensor
• (coupe & convertible) siren w/ tilt alarm sensor
• (m5) sequential manual transmission (smg)
• Anti-theft alarm system w/ ultrasonic interior sensor
• Condensation sensor
• Convertible
• Convertible top drive
• Coupe & convertible
• Cylinder 1 ignition coil
• Cylinder 2 ignition coil
• Cylinder 3 ignition coil
• Cylinder 4 ignition coil
• Cylinder 5 ignition coil
• Cylinder 6 ignition coil
• Driver's door exit light
• Driver's door handle plate lighting
• Driver's door module
• Driver's door oddments compartment lighting
• Driver's lumbar support switch
• Driver's lumbar support valve block
• Driver's seat adjustment switch
• Driver's seat module
• Front cigar lighter
• Head-up display
• Headlight washer relay
• Ignition coil interference suppression capacitor
• Independent heating fuel metering pump
• Left rear seat heating switch
• Micro- power module
• Nca
• Park distance control (pdc)
• Passenger's door microwave sensor
• Rain/ headlight sensor
• Rear cigarette lighter
• Rear fuse holder
• Rear passenger's side seat backrest heating
• Rear passenger's side seat cushion heating
• Rear socket outlet
• Rear window defroster
• Right front entrance light
• Right front footwell light
• Right headlight
• Right rear automatic soft- close drive
• Right rear door exit light
• Right rear door handle plate lighting
• Right rear door power window switch
• Right rear door system lock
• Right rear oddments compartment lighting
• Right rear seat heating switch
• Sedan & wagon
• Semi-electric basic seat
• Siren & tilt sensor
• Trunk lid/ tailgate automatic soft close drive
• Wagon
• Windshield wiper relay
• X13789 (left front floor)
• X13790
• X6176 (525i & 525xi)
• X6177 (525i & 525xi)

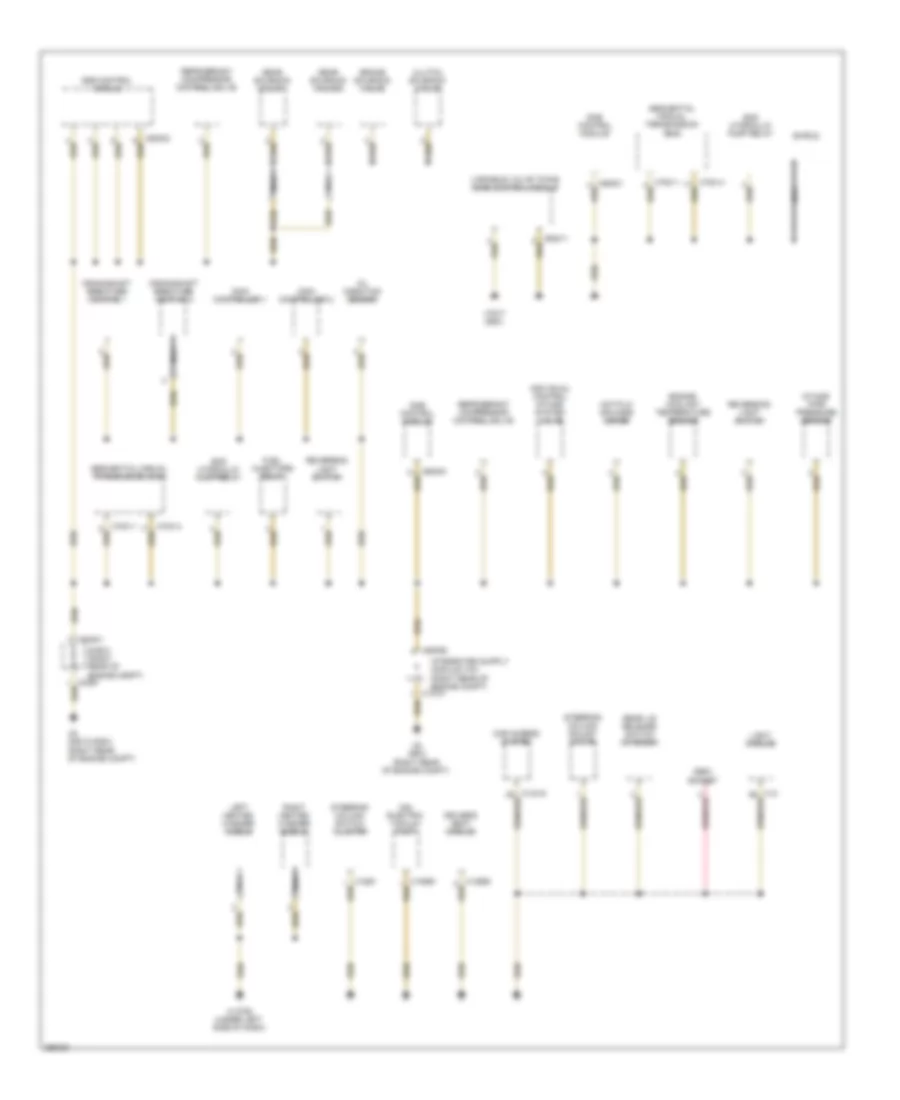

Электросхема подключение массы заземления (6 из 7) для BMW 528i 2008

Электросхема подключение массы заземления (6 из 7) для BMW 528i 2008 - Список элементов:

• (coupe & convertible) left rear microwave sensor
• (m5) fuel tank
• Antenna tuner with remote control receiver
• Automatic trunk lid/ tailgate hydraulic pump
• Auxiliary brake light
• Ccc/ m-ask
• Cd changer
• Compensator (mobile phone)
• Coupe & convertible
• Digital tuner
• Dvd changer
• Eject box
• Emergency call button
• Exterior trunk lid/ tailgate button
• Front interior light
• Fuel level sensor
• Headset connection module
• Hifi amplifier
• Left front make-up mirror switch
• Left inner taillight
• Left outer taillight
• Left rear automatic soft-close drive
• Left rear door exit light
• Left rear door handle plate lighting
• Left rear door power window switch
• Left rear door system lock
• Left rear interior light
• Left rear oddments compartment lighting
• Left release roller cover motor
• Left taillight
• Mmc fan
• Nca
• Noise suppressor filter
• Rear driver's side seat backrest heating
• Rear driver's side seat cushion heating
• Rear window defroster
• Rear window lock
• Right front make-up mirror switch
• Satellite receiver
• Sedan
• Sedan & wagon
• Tcu
• Trunk lid/ tailgate lock
• Trunk lid/tailgate automatic soft-close drive
• Trunk lid/tailgate lock
• Usb hub
• Video module
• Wagon
• X13244 (convertible)
• X13791
• X13793 (left side of rear compt)
• X13795 (left side of rear compt)

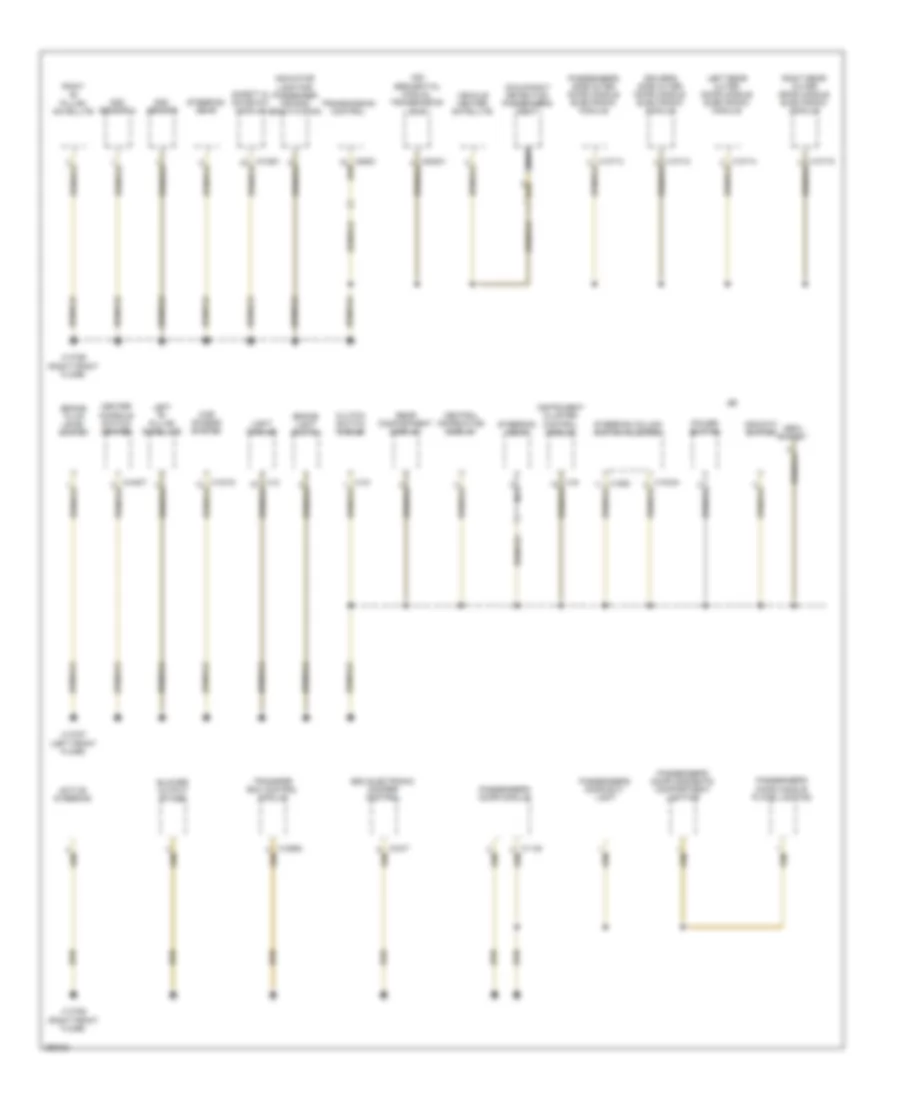

Электросхема подключение массы заземления (7 из 7) для BMW 528i 2008

Электросхема подключение массы заземления (7 из 7) для BMW 528i 2008 - Список элементов:

• Automatic soft-close relay
• Auxiliary water pump
• Coolant level switch
• Dme control module
• Dynamic stability control (dsc)
• E box (right rear of engine compt)
• Electric oil pump
• Electric oil pump 2
• Electric throttle valve actuator
• Electric throttle valve actuator 2
• Exhaust vanos solenoid valve
• Exhaust vanos solenoid valve 2
• Headlight washer pump
• Idle actuator
• Idle actuator 2
• Independent auxiliary heater
• Independent heating coolant changeover valve
• Intake vanos solenoid valve
• Intake vanos solenoid valve 2
• Left fanfare (horn) (low-pitched)
• Left fog light
• Left front direction indicator light repeater
• Left front footwell light
• Left headlight
• Load shedding relay terminal 15
• Nca
• Noise suppresser filter
• Power saving relay (terminal 15)
• Rear wiper drive
• Rear wiper relay
• Refrigerant compressor control valve
• Right release roller cover motor
• Spare wheel well fan
• Trailer module
• Trunk lid release
• Vanos pressure accumulator valve
• W/ xenon headlight
• Wagon
• Wash water level switch
• Water valves
• Windshield washer pump
• X13783 (m5) (left kick panel)
• X13794 (right side of rear compt)
• X2350
• X6 (m5) (right rear of engine compt)
• X6453
