Электросхемы ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ BMW X5 48i 2007

ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

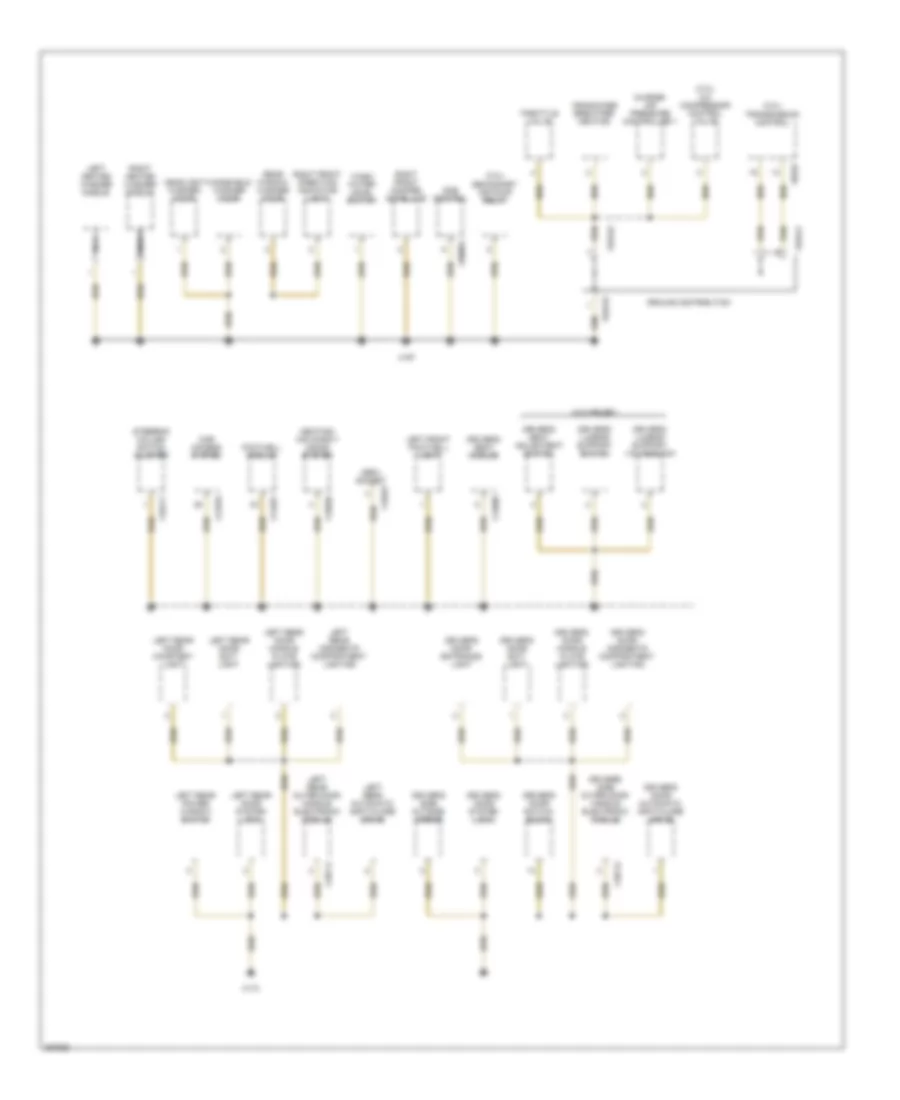

Электросхема подключение массы заземления (1 из 5) для BMW X5 48i 2007

Электросхема подключение массы заземления (1 из 5) для BMW X5 48i 2007 - Список элементов:

• Active steering
• Anti-theft alarm system horn
• Automatic trunk lid interior button
• Auxiliary water pump
• Fuel pump control (ekps)
• Independent auxiliary heater
• Independent heating coolant changeover valve
• Left fog light
• Left front damper satellite
• Left front direction indicator light
• Left headlight
• Left horn
• Nca
• Parking bark control module
• Reversing camera
• Reversing camera shield
• Right fog light
• Right headlight
• Right horn
• Secondary air hot-film air mass meter
• Secondary air pump
• Trailer module
• Trailer socket
• Trunk lid lift
• Trunk lid/ tailgate automatic soft-close drive
• W/ xenon headlights
• W/o xenon headlights
• Water valve
• Wiper motor
• X10375
• X13420
• X13663
• X13718
• X14088
• X14089
• X14090
• X151 (right side of rear compt floor)
• X165 (left side of engine compt)
• X166 (right side of engine compt)
• X609
• X630
• X642

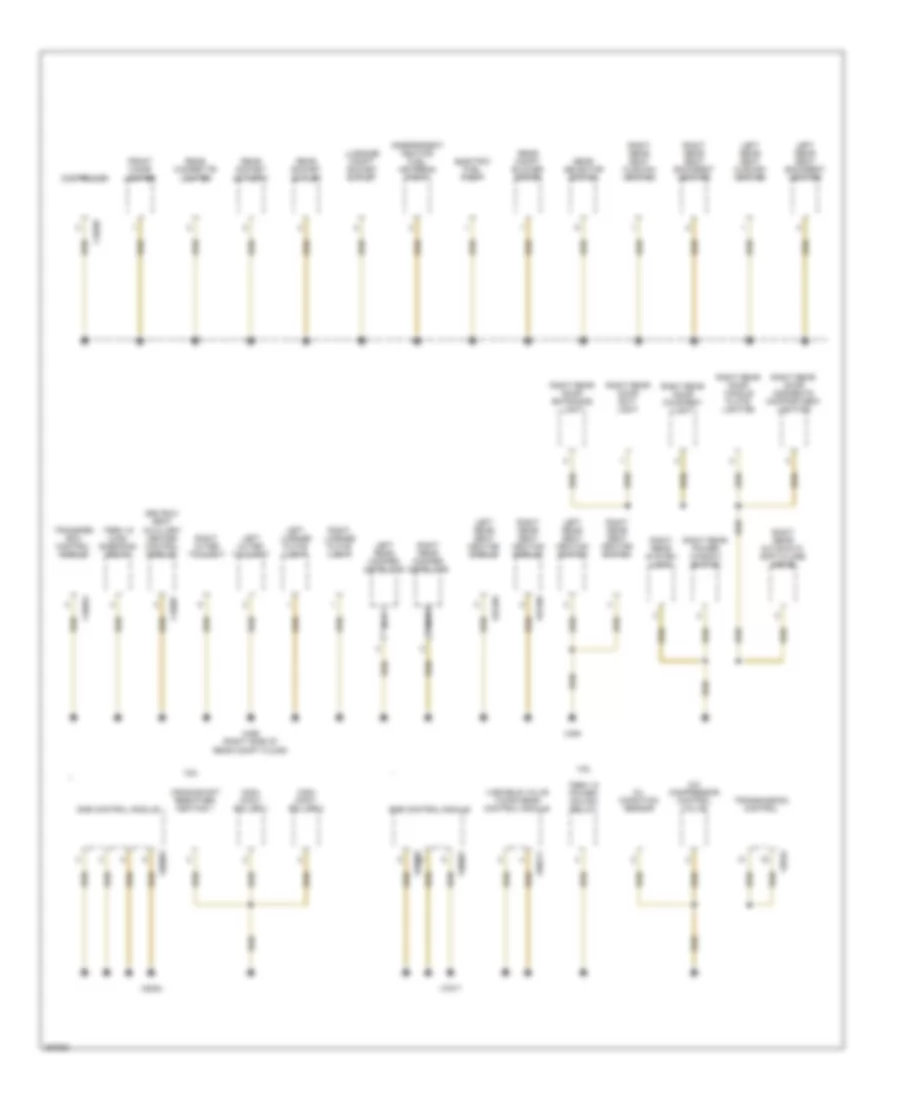

Электросхема подключение массы заземления (2 из 5) для BMW X5 48i 2007

Электросхема подключение массы заземления (2 из 5) для BMW X5 48i 2007 - Список элементов:

• (3.0l) a/c compressor control valve
• (3.0l) secondary air pump relay
• (3.0l) transmission control
• Car access system
• Charge- air pressure controller 1
• Crankcase breather heating
• Dme control
• Driver's door automatic soft-close drive
• Driver's door entrance light
• Driver's door exit light
• Driver's door handle plate lighting
• Driver's door oddments compartment lighting
• Driver's door switch block
• Driver's door system lock
• Driver's lumbar support switch
• Driver's lumbar support valve block
• Driver's seat adjustment switch
• Driver's seat module
• Driver's side outer door handle electronic module
• Driver's side outside mirror
• Footwell module
• Ground distribution
• Headlight washer pump
• Heating/ air condit- ioning system
• Left front footwell light
• Left heated washer nozzle
• Left rear automatic soft-close drive
• Left rear door courtesy light
• Left rear door exit light
• Left rear door handle plate lighting
• Left rear door system lock
• Left rear oddments compartment lighting
• Left rear outer door handle electronic module
• Left rear power window switch
• Nca
• Obdii socket
• Rear window washer pump
• Right front damper satellite
• Right front direction indicator light
• Right heated washer nozzle
• Steering column switch cluster
• Throttle valve
• W/o memory
• Wash water level switch
• Windshield washer pump
• X10171
• X10712
• X10714
• X13376
• X13989
• X14261
• X167
• X16826
• X173
• X19527
• X60004
• X64541
• X64542
• X64543
• X8532

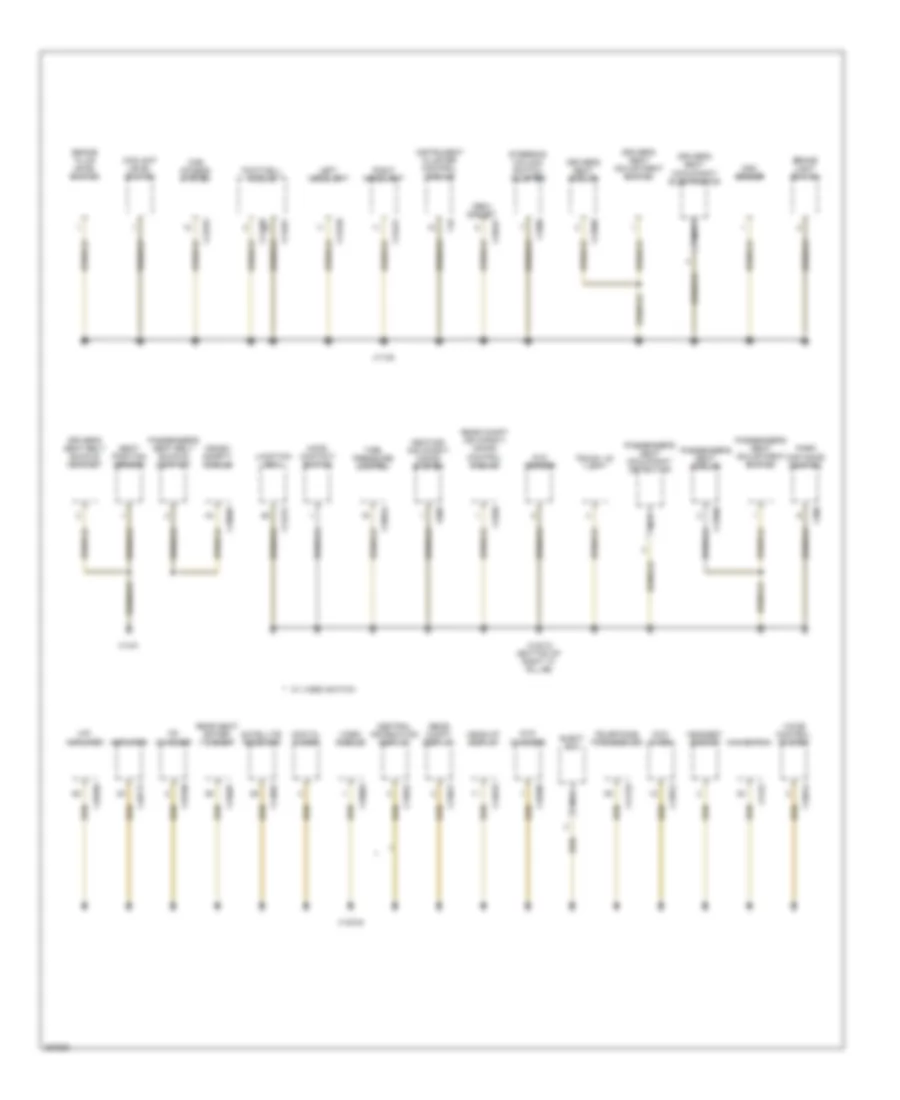

Электросхема подключение массы заземления (3 из 5) для BMW X5 48i 2007

Электросхема подключение массы заземления (3 из 5) для BMW X5 48i 2007 - Список элементов:

• Amplifier
• Auc sensor
• Box
• Brake fluid level switch
• Brake light switch
• Car access system
• Ccc/ m-ask
• Cd changer
• Central information display
• Coolant level switch
• Crash safety
• Digital tuner
• Driver's seat adjustment switch
• Driver's seat belt buckle contact
• Driver's seat module
• Driver's seat occupancy electronics
• Dsc sensor
• Dvd changer
• Eject box
• Footwell module
• Head-up display
• Headset socket
• Heating/ air condit- ioning system
• Hifi amplifier
• Hood contact switch
• Instrument cluster control module
• Junction
• Left headlight
• Module
• Navigation
• Nca
• Obdii socket
• Park distance control
• Passenger's seat adjustment switch
• Passenger's seat belt buckle contact
• Passenger's seat module
• Passenger's seat occupancy detection
• Rear compt air condit- ioning control module
• Rear compt display
• Rear seat enter- tainment
• Right headlight
• Satellite receiver
• Seat position sensor
• Steering column switch cluster
• Telephone transceiver
• Tire pressure control
• Trunk lid lift
• Video module
• Voice control system
• W/ video switch
• X10012 (bottom of right "a" pillar)
• X10266
• X10389
• X1108
• X13016
• X1312
• X13376
• X13420
• X13421
• X13812
• X13819
• X13821
• X13822
• X13989
• X13990
• X14062
• X14133
• X14260
• X14261
• X14272
• X1441
• X15607
• X16
• X16844
• X18034
• X18069
• X18180
• X1830
• X18773
• X1880
• X18803
• X19527
• X300
• X608

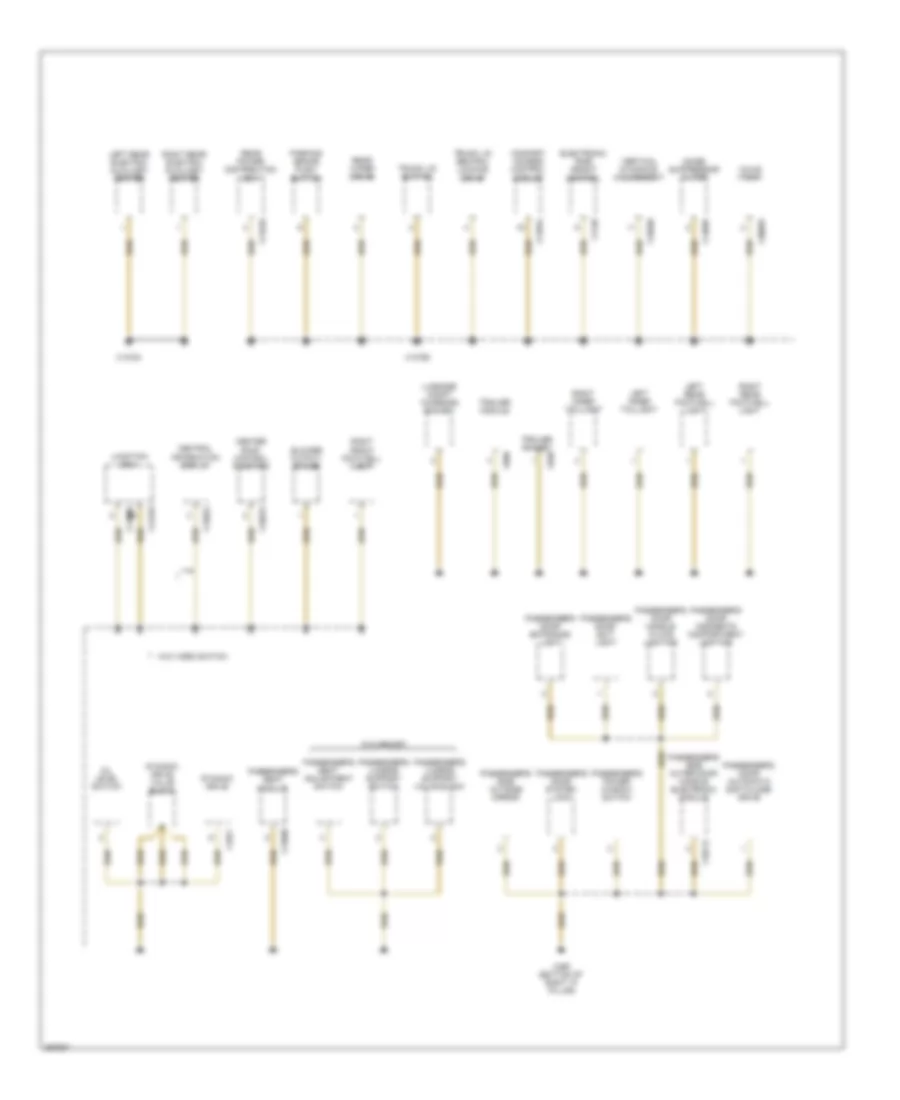

Электросхема подключение массы заземления (4 из 5) для BMW X5 48i 2007

Электросхема подключение массы заземления (4 из 5) для BMW X5 48i 2007 - Список элементов:

• Blower output stage
• Box
• Center roof control function
• Central information display
• Comfort access control module
• Dynamic drive
• Dynamic drive valve block
• Electronic ride height control
• Junction box
• Left inner taillight
• Left rear electric auxiliary heater
• Left rear footwell light
• Luggage compt charging socket
• Noise suppressor filter
• Oil level switch
• Parking brake push- button
• Passenger's door automatic soft-close drive
• Passenger's door entrance light
• Passenger's door exit light
• Passenger's door handle plate lighting
• Passenger's door oddments compartment lighting
• Passenger's door system lock
• Passenger's lumbar support switch
• Passenger's lumbar support valve block
• Passenger's power window switch
• Passenger's seat adjustment switch
• Passenger's seat module
• Passenger's side outer door handle electronic module
• Passenger's side outside mirror
• Rear power distribution
• Rear wiper drive
• Right front footwell light
• Right inner taillight
• Right rear electric auxiliary heater
• Right rear footwell light
• Trailer module
• Trailer socket
• Trunk lid button
• Trunk lid central locking drive
• Vertical dynamics management
• W/o memory
• W/o video switch
• Wave trap
• X10712
• X11006
• X11018
• X13354
• X13784
• X13790
• X13822
• X13990
• X14095
• X14270
• X1448
• X16815
• X16820
• X1877
• X30055
• X490 (bottom of right "a" pillar)
• X609
• X630

Электросхема подключение массы заземления (5 из 5) для BMW X5 48i 2007

Электросхема подключение массы заземления (5 из 5) для BMW X5 48i 2007 - Список элементов:

• 3.0l
• 3rd row seat auxiliary heater control module
• 4.8l
• A/c compressor control valve
• Controller
• Crankshaft breather heating 1
• Disa cont- roller 1
• Disa cont- roller 2
• Dme control module
• Electric fuel pump
• Front cigar lighter
• Gear selector switch
• Independent heating fuel metering pump
• Left license plate light
• Left outer taillight
• Left rear damper satellite
• Left rear seat backrest heating
• Left rear seat cushion heating
• Left rear seat heating module
• Left rear seat heating switch
• Luggage compt socket outlet
• Nca
• Oil condition sensor
• Outlet ii
• Rear cigarette lighter
• Rear compt blower motor
• Rear socket
• Rear socket outlet
• Right license plate light
• Right outer taillight
• Right rear automatic soft-close drive
• Right rear damper satellite
• Right rear door courtesy light
• Right rear door entrance light
• Right rear door exit light
• Right rear door handle plate lighting
• Right rear door oddments compartment lighting
• Right rear power window switch
• Right rear seat backrest heating
• Right rear seat cushion heating
• Right rear seat heating module
• Right rear seat heating switch
• Right rear system lock
• Term 15 load- shedding relay
• Term 15 power- saving relay
• Transfer box control module
• Transmission control
• Variable valve timing gear control module
• X01265
• X01266
• X10387
• X10594
• X16887
• X494
• X498 (right side of rear compt floor)
• X60001
• X60003
• X60005
• X60211
• X6454
• X7517
• X8532
