Электросхемы Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала Mitsubishi Outlander SE 2014

Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала

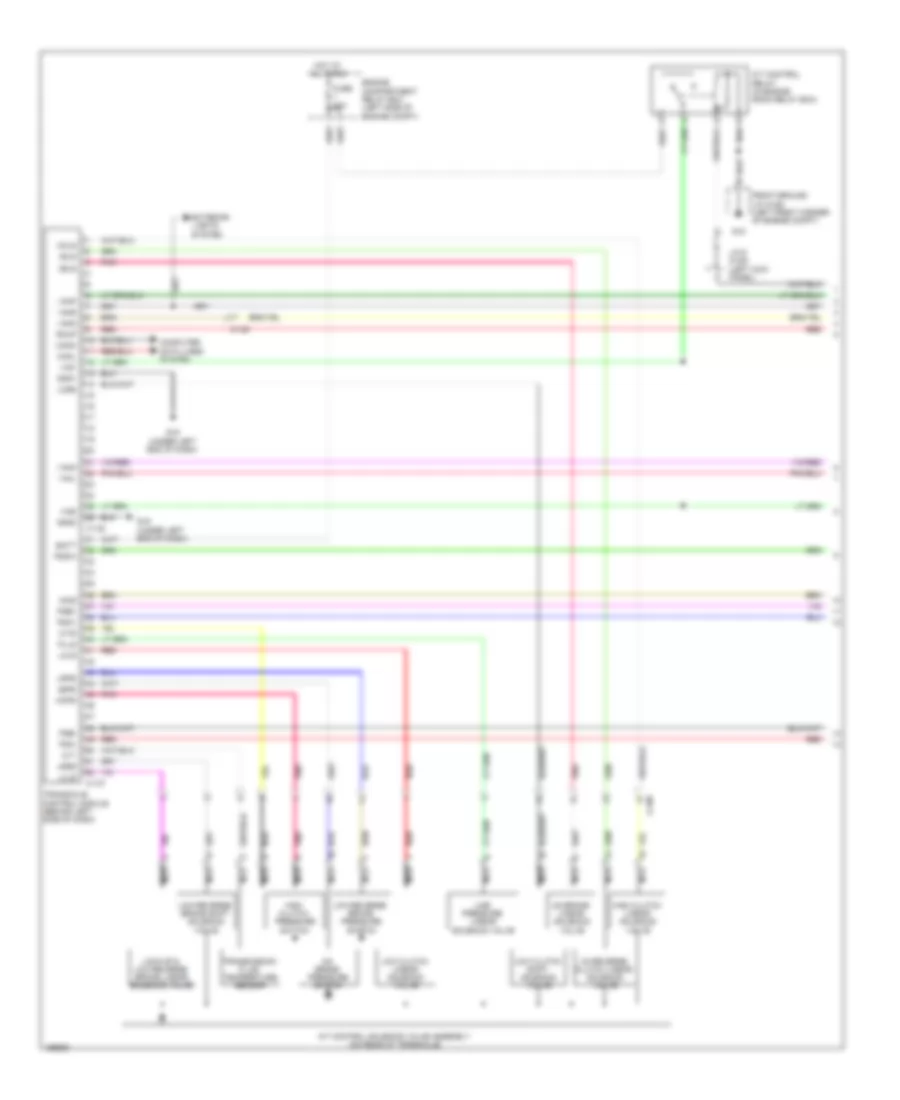

Электросхема автоматической коробки передач АКПП (1 из 2) для Mitsubishi Outlander SE 2014

Электросхема автоматической коробки передач АКПП (1 из 2) для Mitsubishi Outlander SE 2014 - Список элементов:

• 2-6 brake linear solenoid valve
• 2-6 brake pressure switch
• 26ls
• 26ps
• 3-5 reverse clutch linear solenoid valve
• 35ls
• A-108
• A/t control relay (in engine room relay box)
• A/t control solenoid valve assembly (on rear of transaxle)
• Batt
• C-137
• C-138
• Canh
• Canl
• Computer data lines system
• Engine compartment relay box (left side of engine compt)
• Exterior lights system
• Front ground j/c (a-25) (left front corner of engine compt)
• Fuse 20a
• G15
• G19 (under left end of dash)
• Gnd1
• Gnd2
• Hcls
• Hcps
• High clutch linear solenoid valve
• High clutch pressure switch
• Hot at all times
• I nhd
• I nhl
• I nhn
• I nhp
• I nhr
• Inhs
• J/c 6 (c-28) (left kick panel)
• Lcss
• Line pressure linear solenoid valve
• Lock-up & low-reverse brake linear solenoid valve
• Lols
• Low clutch linear solenoid valve
• Low clutch shift solenoid valve
• Low-reverse brake pressure switch
• Low-reverse brake shift solenoid valve
• Lrps
• Lrss
• Luls
• Nca
• O/t-
• O/ts
• Pddw
• Pdup
• Pga-
• Pga1
• Pgb-
• Pgb1
• Plls
• Pnk
• Red
• Transaxle control module (behind left side of dash)
• Transmission fluid temperature sensor
• Vig1
• Vig2

Электросхема автоматической коробки передач АКПП (2 из 2) для Mitsubishi Outlander SE 2014

Электросхема автоматической коробки передач АКПП (2 из 2) для Mitsubishi Outlander SE 2014 - Список элементов:

• A-106
• A-107
• A-108
• C-126
• C-127
• C-129
• C-402
• C-415
• C-417
• Can drive circuit
• Can transceiver circuit
• Combination meter
• Computer data lines system
• Cpu
• Dash ground j/c (c-30) (behind left side of dash)
• Etacs-ecu (behind left side of dash)
• Fuse 10a
• Fuse 7.5a
• Hot w/ ig1 relay energized
• Ill
• Input shaft speed sensor (top center of transaxle)
• Interface circuit
• Interior lights system
• J/c 4 (c-05) (behind center of dash)
• Lcd (cvt position, cvt temperature & cvt failure) (w/ high contrast meter)
• Output shaft speed sensor (top right of transaxle)
• Paddle shift switch
• Red
• Selector lever assembly
• Starting/charging system
• Transmission range switch (top of transaxle)

схема AWC для Mitsubishi Outlander SE 2014

схема AWC для Mitsubishi Outlander SE 2014 - Список элементов:

• (under driver's seat) g20
• 4wdf
• A-107
• Awc-ecu (under left end of dash)
• C-129
• C-23
• C-402
• C-413
• C-415
• C-417
• Can drive circuit
• Can h
• Can l
• Center electronic control coupling solenoid (on transfer case)
• Circuit can transceiver
• Combination meter
• Computer data lines system
• Cpu
• D-138
• Dash ground j/c (c-30) (behind left side of dash)
• Drive mode selector
• Etacs-ecu (behind left side of dash)
• Front electronic control coupling solenoid (on transfer case)
• Fsl+
• Fsl-
• Fuse 10a
• Gnd 1
• Hot at all times
• Hot w/ ig1 relay energized
• Ig16
• Ill
• Interface circuit
• Interior lights system
• J/c 4 (c-05) (behind center of dash)
• Nca
• Off
• Pnk
• Red
• Snow) normal, lock, (awc-eco, lcd
• Sol+
• Sol-
• Sw-1

Электросхема полного привода AWD для Mitsubishi Outlander SE 2014

Электросхема полного привода AWD для Mitsubishi Outlander SE 2014 - Список элементов:

• (w/ high contrast 4wd lock) 4wd failure, 4wd eco, (4wd auto, lcd
• 4wd e ind (w/ standard meter)
• 4wdf
• Awd-ecu (under left end of dash)
• C-23
• C-402
• C-413
• C-415
• C-417
• Can drive circuit
• Can h
• Can l
• Circuit can transceiver
• Circuit led drive
• Combination meter
• Computer data lines system
• Cpu
• D-138
• Dash ground j/c (c-30) (behind left side of dash)
• Drive mode selector
• Electronic control coupling solenoid (on transfer case)
• Etacs-ecu (behind left side of dash)
• Fuse 10a
• G20 (under driver's seat)
• Gnd 1
• Hot at all times
• Hot w/ ig1 relay energized
• Ig16
• Ill
• Interface circuit
• Interior lights system
• J/c 4 (c-05) (behind center of dash)
• Lock ind (w/ standard meter)
• Meter)
• Nca
• Off
• Pnk
• Red
• Sol+
• Sol-
• Sw-1

схема CVT (1 из 2) для Mitsubishi Outlander SE 2014

схема CVT (1 из 2) для Mitsubishi Outlander SE 2014 - Список элементов:

• (in engine room relay box) a/t control relay
• A-108
• Batt
• C-130
• C-131
• Canh
• Canl
• Computer data lines system
• Cvt assembly
• Engine compartment relay box (left side of engine compt)
• Exterior lights system
• Front ground j/c (a-25) (left front corner of engine compt)
• Fuse 20a
• G15
• G19 (under left end of dash)
• Gnd1
• Gnd2
• Hot at all times
• I nhd
• I nhl
• I nhn
• I nhp
• I nhr
• Inhs
• J/c 6 (c-28) (left kick panel)
• Line pressure solenoid valve
• Lock-up selection solenoid valve
• Lock-up solenoid valve
• Lprs
• Luls
• Luos
• Nca
• Pddw
• Pdup
• Plls
• Pnk
• Prms
• Red
• Rom-assembly
• Rom1
• Rom2
• Rom3
• Scls
• Secondary pressure solenoid valve
• Secondary transmission fluid pressure sensor
• Secs
• Sgnd
• Spm1
• Spm2
• Spm3
• Spm4
• Spwr
• Sspw
• Stepper motor
• Transaxle control module (behind left side of dash)
• Transmission fluid temperature sensor
• Vig1
• Vig2

схема CVT (2 из 2) для Mitsubishi Outlander SE 2014

схема CVT (2 из 2) для Mitsubishi Outlander SE 2014 - Список элементов:

• A-106
• A-107
• A-108
• C-126
• C-127
• C-129
• C-402
• C-415
• C-417
• Can drive circuit
• Can transceiver circuit
• Combination meter
• Computer data lines system
• Cpu
• Dash ground j/c (c-30) (behind left side of dash)
• Ds position switch (w/o paddle shift)
• Etacs-ecu (behind left side of dash)
• Fuse 10a
• Fuse 7.5a
• Hot w/ ig1 relay energized
• Ill
• Interface circuit
• Interior lights system
• J/c 4 (c-05) (behind center of dash)
• Lcd (cvt position, cvt temperature & cvt failure) (w/ high contrast meter)
• Nca
• Paddle shift switch
• Primary pulley speed sensor (on transaxle)
• Red
• Secondary pulley speed sensor (top of transaxle)
• Selector lever assembly
• Starting/charging system
• Transmission range switch (top of transaxle)
