Электросхемы БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Mazda B3000 SE 1995

БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ

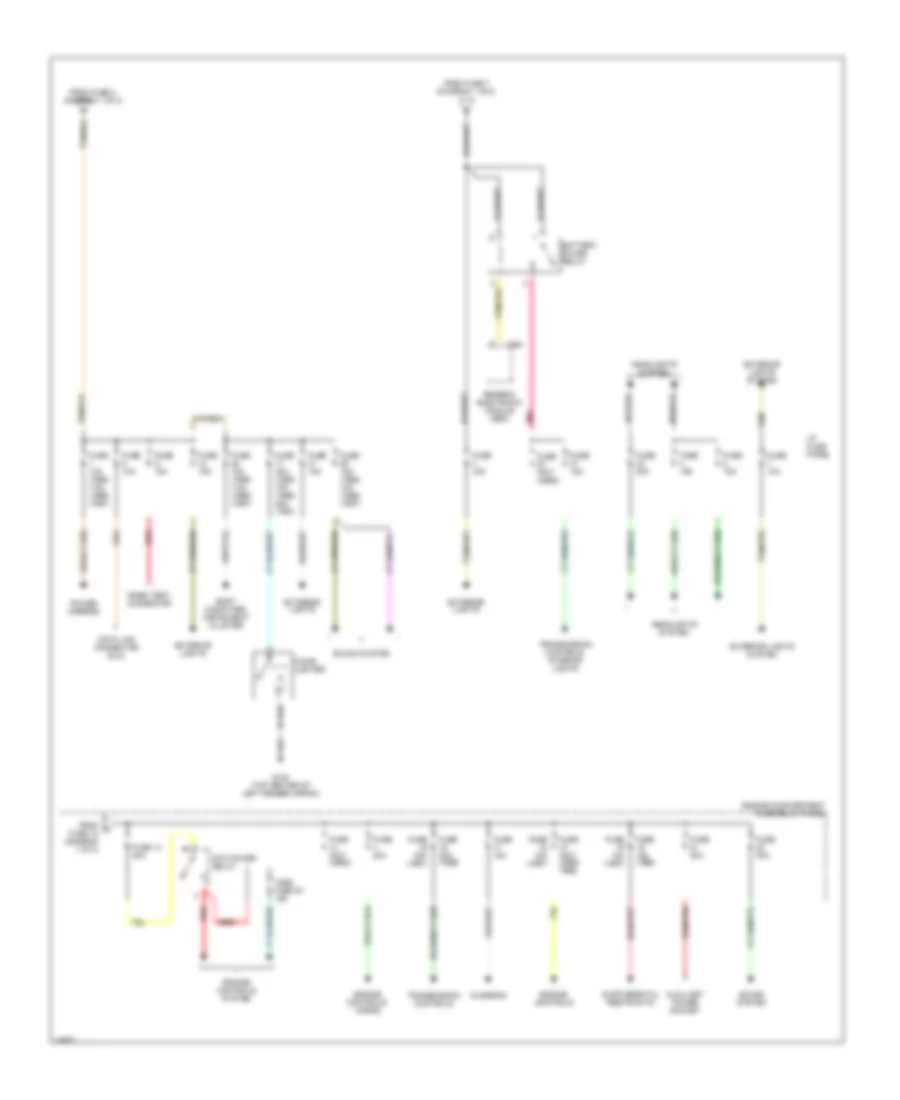

Электросхема блока предохранителей и реле (1 из 2) для Mazda B3000 SE 1995

Электросхема блока предохранителей и реле (1 из 2) для Mazda B3000 SE 1995 - Список элементов:

• (not used)
• A/c
• Acc
• Anti- lock brakes
• Anti- theft
• Battery
• Body computer
• Body computer, anti-theft sound system
• Circuit breaker 5 20a
• Cruise control
• Daytime running lamps
• Engine compartment fuse/relay box
• Engine controls
• Exterior lights
• Fuse (not used 1996, 1997)
• Fuse (not used)
• Fuse 1 50a
• Fuse 10 30a
• Fuse 10a
• Fuse 10a (1995)
• Fuse 10a (1995) (1996) 7.5a (1997)
• Fuse 10a (1995) 7.5a (1996) (1997)
• Fuse 10a (ex 1996, 1997 w/ rabs) 20a (1996, 1997 w/ rabs)
• Fuse 11 20a
• Fuse 12 20a
• Fuse 15 15a
• Fuse 15a
• Fuse 15a (1995) 10a (1996) (1997)
• Fuse 15a (1995) 20a (1996) (1997)
• Fuse 15a (1995) 7.5a (1996) (1997)
• Fuse 2 50a
• Fuse 25a
• Fuse 3 (not used)
• Fuse 30a
• Fuse 6 40a
• Fuse 7 20a
• Fuse 7.5a (1996) (1997)
• Fuse 8 (not used)
• Fuse 9 30a
• Generator
• Headlights
• Headlights, exterior lights
• I/p fuse panel
• Ignition switch
• Instrument cluster
• Lock
• Off
• Power door locks
• Power seats
• Power windows
• Red
• Run
• Shift interlock
• Start
• Starter motor/ solenoid
• Starter relay
• Starting/ charging
• To battery saver relay (diagram 2 of 2)
• To fuse 1 (diagram 2 of 2)
• To fuse 13 (diagram 2 of 2)
• Transmission controls
• Wiper/ washer

Электросхема блока предохранителей и реле (2 из 2) для Mazda B3000 SE 1995

Электросхема блока предохранителей и реле (2 из 2) для Mazda B3000 SE 1995 - Список элементов:

• Auxiliary power socket
• Battery saver relay
• Body computer, instrument cluster
• C224
• Charging
• Cigar lighter
• Data link connector (dlc)
• Engine compartment fuse/relay panel
• Engine controls
• Engine controls system
• Engine controls, horns
• Exterior lights
• Exterior lights system
• From c fuse 12 (diagram 1 of 2)
• From fuse 2 (diagram 1 of 2)
• From fuse 7 (diagram 1 of 2)
• Fuse (not used 1996)
• Fuse (not used)
• Fuse 10a
• Fuse 10a (1995) 7.5a (1996) (1997)
• Fuse 10a (1996)
• Fuse 10a (1997)
• Fuse 13 30a
• Fuse 15a
• Fuse 15a (1995) 10a (1996) (1997)
• Fuse 15a (1997)
• Fuse 20a
• Fuse 20a (1996)
• Fuse 20a (1997)
• Fuse 30a
• Fuse 30a (1995) 15a (1996) 25a (1997)
• G104 (top center of left fender apron)
• Generic electronic module (gem)
• Headlights system
• Ho2s fuse 20 15a
• I/p fuse panel
• Pcm power relay
• Pnk
• Power mirrors
• Rabs test connector
• Red
• Sound system
• Transmission controls
• Transmission controls, interior lights
