Электросхемы БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Mitsubishi Diamante ES 1996

БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ

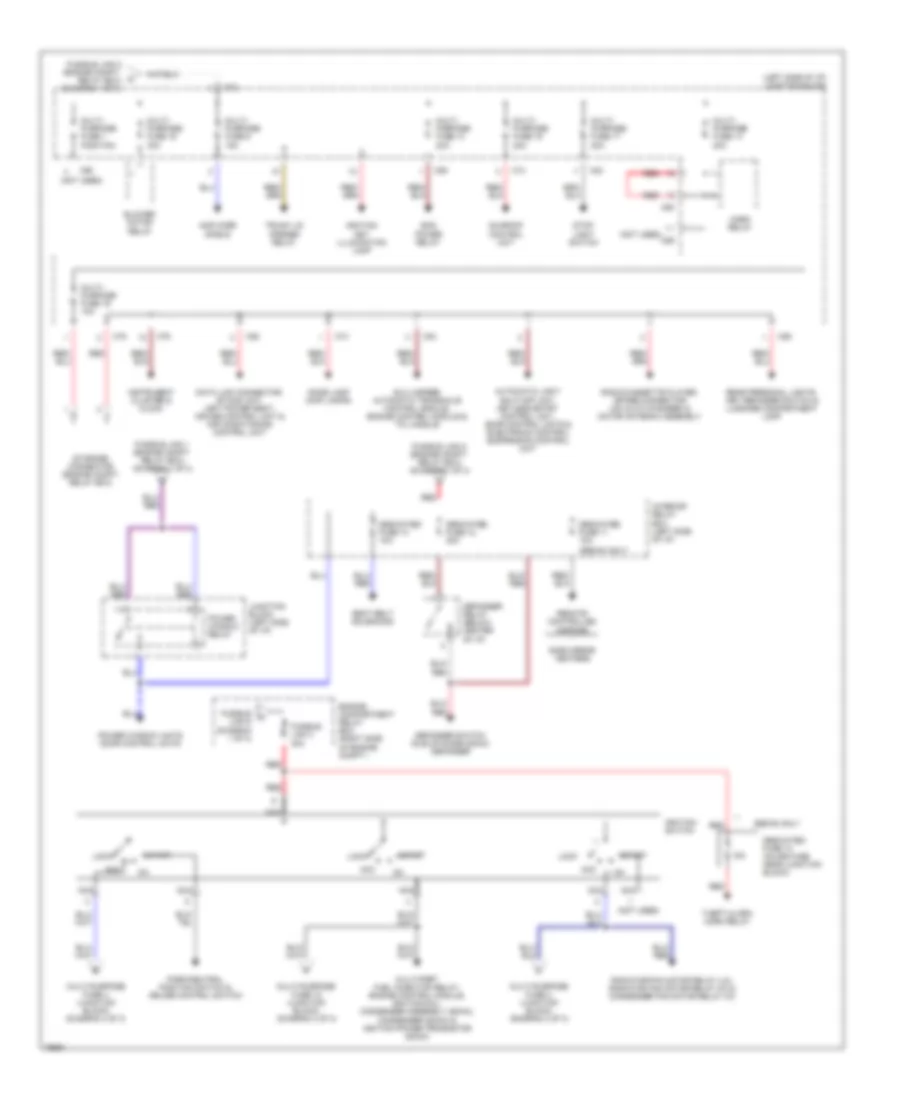

Электросхема блока предохранителей и реле (1 из 3) для Mitsubishi Diamante ES 1996

Электросхема блока предохранителей и реле (1 из 3) для Mitsubishi Diamante ES 1996 - Список элементов:

• Abs motor relay & abs valve relay
• Air conditioning compressor clutch relay
• Battery
• Condenser fan motor
• Dedicated fuse 1 10a
• Dedicated fuse 12 (interior relay box) (diagram 2 of 3)
• Dedicated fuse 2 15a
• Dedicated fuse 3 10a
• Dedicated fuse 5 15a
• Dedicated fuse 7 30a
• Dedicated fuse 8 20a
• Dedicated fuse 9 15a
• Engine compartment relay box (right side of engine compt.)
• Fusible link 1 30a
• Fusible link 2 50a
• Fusible link 3 (ignition switch) (diagram 2 of 3)
• Fusible link 4 40a
• Fusible link 5 40a
• Fusible link 6 60a
• Fusible link 7 100a
• Fusible link 8 60a
• G101 (right side of engine compt., behind battery)
• G119 (right front of engine, on transaxle stud)
• Generator
• Generator (* w/ sohc only)
• Generator (w/ dohc only)
• Hazard switch
• Headlamps
• Headlight relay
• Instrument cluster
• Multi-port fuel injection relay
• Multi-purpose fuse 6 (junction block) (diagram 2 of 3)
• Power seats
• Power window relay (junction block) (diagram 2 of 3)
• Power/economy changeover switch, hazard switch, defogger switch, tcs switch, ecs switch, cruise control main switch, overdrive switch, power seat memory switch, rheostat, idle-up diode (dohc only), glove compartment illumination lamp, instrument cluster, air conditioning control panel, radio/cassette player, clock, automatic anti-glare inside rear view mirror, vanity mirrors, front parking/side marker lamps, rear combination lights, rear lid lights & license plate lamps
• Radiator fan motor
• Red
• Return pump relay & compressor relay
• Solenoid valve relay
• Starter
• Tail light relay

Электросхема блока предохранителей и реле (2 из 3) для Mitsubishi Diamante ES 1996

Электросхема блока предохранителей и реле (2 из 3) для Mitsubishi Diamante ES 1996 - Список элементов:

• (left side of i/p) junction block
• (not used)
• (sedan only)
• 15a
• Acc
• Amplifier (radio)
• Automatic light shut-off unit, keyless entry control unit, door control units & electronic control suspension control unit
• Blower motor relay
• C72
• C74
• C75
• C76
• C84
• C86
• C88
• C89
• C90
• Data link connector, etacs unit, left power seat, cruise control unit & air conditioning control unit
• Dedicated fuse 11 10a
• Dedicated fuse 12 30a
• Dedicated fuse 13 10a
• Dedicated fuse 14 (inline fuse near junction block)
• Defogger relay (below center of i/p)
• Defogger switch idle-up diode (dohc) defogger
• Dome lamp (map lamps)
• Ecs power relay
• Elc 4-speed automatic transaxle control module, engine control module & tcl module
• Engine compartment relay box (right side of engine compt.)
• Fusible link 1 (engine compt. relay box) (diagram 1 of 3)
• Fusible link 3 30a
• Fusible link 6 (diagram 1 of 3)
• Fusible link 8 (engine compt. relay box) (diagram 1 of 3)
• Horn relay
• Ignition key illumination lamp
• Ignition switch
• Instrument cluster & clock
• Interior relay box (left side of i/p)
• Junction block (left side of i/p)
• Lock
• Multi- purpose fuse 1 position
• Multi- purpose fuse 13 20a
• Multi- purpose fuse 14 20a
• Multi- purpose fuse 15 20a
• Multi- purpose fuse 16 30a
• Multi- purpose fuse 17 20a
• Multi- purpose fuse 19 10a
• Multi- purpose fuse 6 15a
• Multi-port fuel injection relay, engine control module, ignition coil, condenser assembly (sohc), condenser (dohc) & ignition power transistor (dohc)
• Multi-purpose fuse 18 (junction block) (diagram 3 of 3)
• Multi-purpose fuse 3 (junction block) (diagram 3 of 3)
• Multi-purpose fuse 4 (junction block) (diagram 3 of 3)
• Nca
• Park/neutral position switch & cruise control switch
• Power window relay
• Power window units door control units
• Radiator fan motor relay (lo), radiator fan motor relay (hi) & condenser fan motor relay (hi)
• Radio/cassette player, spare connector (cd auto changer) & motor antenna assembly
• Rear personal lights, key reminder switch & luggage compartment lamp
• Red
• Remote controlled mirrors
• Seat belt solenoids
• Sedan only
• Side mirror heaters
• Start
• Stop light switch
• Storage connector (engine compt. relay box)
• Sunroof control unit
• Theft-alarm horn relay
• Trunk lid opener relay

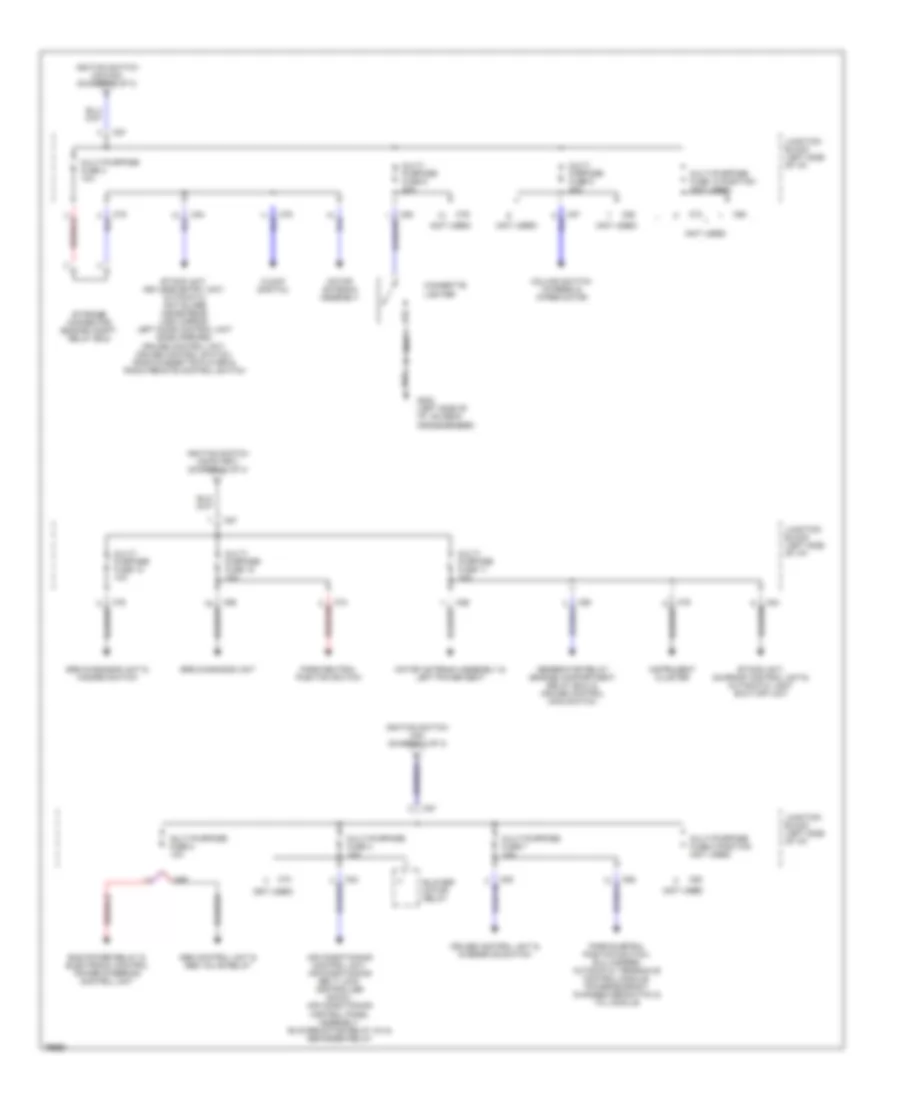

Электросхема блока предохранителей и реле (3 из 3) для Mitsubishi Diamante ES 1996

Электросхема блока предохранителей и реле (3 из 3) для Mitsubishi Diamante ES 1996 - Список элементов:

• (not used)
• Abs control unit & abs valve relay
• Air conditioning control unit, air conditi0ning belt lock controller (dohc), air conditioning control panel assembly, blower motor relay (hi) & defogger relay
• Blower motor relay
• C73
• C75
• C76
• C84
• C87
• C88
• C89
• C90
• Cigarette lighter
• Clock (digital)
• Column switch (wipers) & wiper motor
• Cruise control unit & overdrive switch
• Ecs power relay & electronic control power steering control unit
• Etacs unit, keyless entry unit, automatic anti-glare inside rear view mirror, left door control unit (side mirrors), cruise control unit, cruise control switch, radio/cassette player & radio remote control switch
• Etacs unit, sunroof control unit & automatic light shut-off unit
• G202 (left side of i/p, on deck crossmember)
• Generator relay (engine compartment relay box) & cruise control main switch
• Ignition switch (acc/on) (diagram 2 of 3)
• Ignition switch (on) (diagram 2 of 3)
• Ignition switch (on/start) (diagram 2 of 3)
• Instrument cluster
• Junction block (left side of i/p)
• Motor antenna assembly
• Motor antenna assembly & left power seat
• Multi- purpose fuse 11 10a
• Multi- purpose fuse 12 10a
• Multi- purpose fuse 18 10a
• Multi- purpose fuse 5 20a
• Multi- purpose fuse 9 20a
• Multi-purpose fuse 10 position (not used)
• Multi-purpose fuse 2 10a
• Multi-purpose fuse 3 10a
• Multi-purpose fuse 4 10a
• Multi-purpose fuse 7 10a
• Multi-purpose fuse 8 position (not used)
• Park/neutral position switch
• Park/nuetral position switch, elc 4-speed automatic transaxle control module, power/economy changeover switch & tcl module
• Srs diagnosis unit
• Srs diagnosis unit & hazard switch
• Storage connector (engine compt. relay box)
