Электросхемы БЛОКИ УПРАВЛЕНИЯ КУЗОВОМ Nissan Murano S 2011

БЛОКИ УПРАВЛЕНИЯ КУЗОВОМ

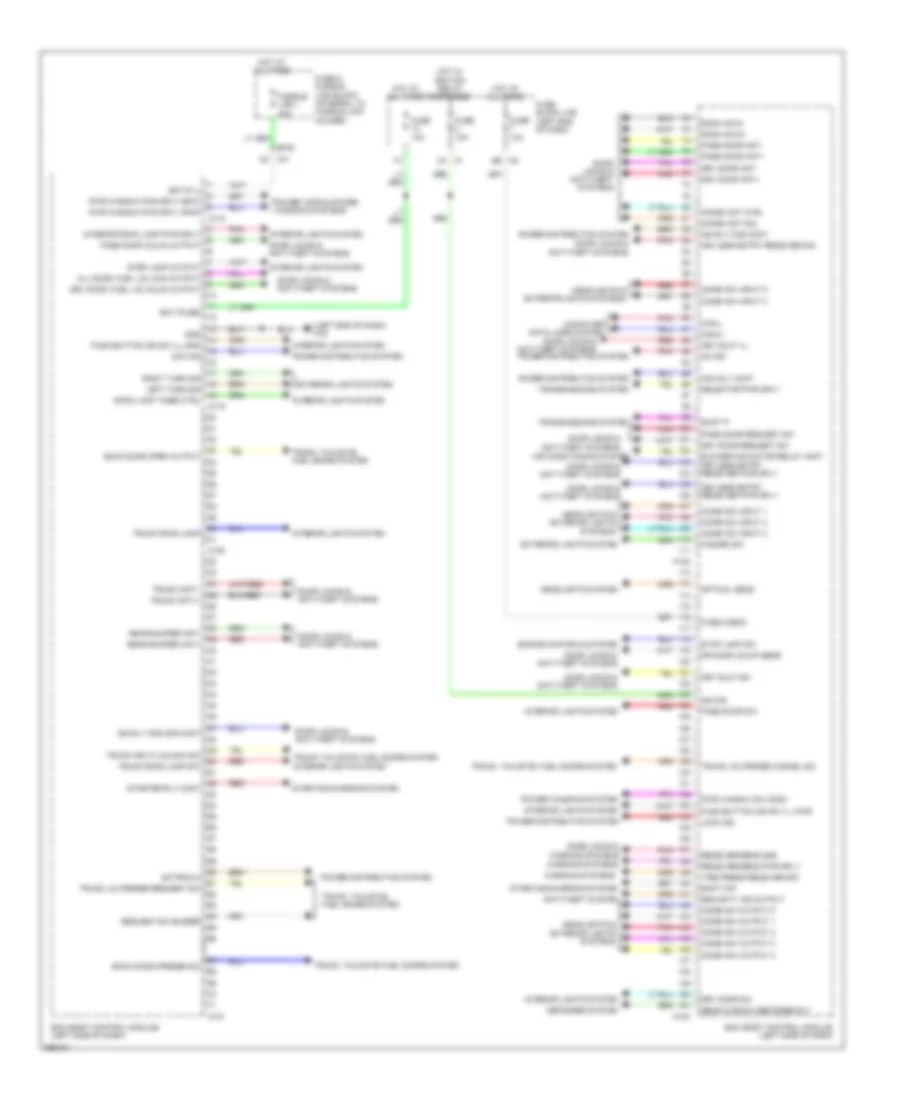

Электросхема блоков управления кузовом для Nissan Murano S 2011

Электросхема блоков управления кузовом для Nissan Murano S 2011 - Список элементов:

• (left end of dash) m76
• 2a m1
• Acc ind
• Acc rly cont
• Air conditioning system
• All door, fuel lid lock output
• Anti-theft system
• Back door open output
• Back door opener sw
• Bat (f/l)
• Bat (fuse)
• Bcm (body control module) (left side of dash)
• Blower fan motor relay cont
• Can-h
• Can-l
• Combi sw input 1
• Combi sw input 2
• Combi sw input 3
• Combi sw input 4
• Combi sw input 5
• Combi sw output 1
• Combi sw output 2
• Combi sw output 3
• Combi sw output 4
• Combi sw output 5
• Computer data lines system
• Defogger system
• Door locks & anti-theft systems
• Door locks & warning systems
• Dr door unlck sens
• Drv door ant+
• Drv door ant-
• Drv door request sw
• Drv door sw
• Drv door, fuel lid unlck output
• E105
• Engine controls system
• Exterior lights system
• Extrain 2
• Fuse & fusible link block (integral to fusible link holder)
• Fuse 10a
• Fuse block (j/b) (left end of dash)
• Fuse check
• Fusible link l 40a
• Gnd
• Hazard sw
• Headlights & exterior lights systems
• Headlights system
• Hot at all times
• Hot w/ ignition relay energized
• Ign f/b
• Ign rly (f/b) cont
• Ign rly ipdm e/r cont
• Immobi ant ctrl
• Immobi ant sig
• Interior lights system
• Interior room lamp pwr sply
• Key slot ill
• Key slot sw
• Keyless entry receiver pwr sply
• Keyless entry receiver sig
• Left turn sig
• Lock ind
• M11
• M118
• M119
• M120
• M121
• M122
• M123
• M2 9b
• On ind
• Optical sens
• Pass door ant+
• Pass door ant-
• Pass door request sw
• Pass door sw
• Pass door unlck output
• Pnk
• Power distribution system
• Power tops & power windows systems
• Power windows system
• Push-button ign sw ill gnd
• Push-button ign sw ill pwr
• Pwr window pwr sply (bat)
• Pwr window pwr sply (rap)
• Pwr window sw comm
• Rear bumper ant+
• Rear bumper ant-
• Rear window defogger rly
• Receiver/sens gnd
• Receiver/sens pwr sply
• Red
• Request sw buzzer
• Right turn sig
• Room ant2+
• Room ant2-
• Room lamp timer ctrl
• Security ind output
• Selector pwr sply
• Shift n/p
• Shift p
• Starter rly cont
• Starting/charging system
• Step lamp output
• Stop lamp sw
• Tire press receiver sig
• Transmissions system
• Trunk ant1+
• Trunk ant1-
• Trunk key/c unlock sw
• Trunk lid opener cancel sw
• Trunk lid opener request sw
• Trunk room lamp
• Trunk room lamp sw
• Trunk, tailgate, fuel doors system
• Warning systems
