Электросхемы ЦЕНТРАЛЬНЫЙ ЗАМОК Mitsubishi Outlander XLS 2010

ЦЕНТРАЛЬНЫЙ ЗАМОК

Электросхема центрального замка, С Вход Без ключа (1 из 2) для Mitsubishi Outlander XLS 2010

Электросхема центрального замка, С Вход Без ключа (1 из 2) для Mitsubishi Outlander XLS 2010 - Список элементов:

• (behind left kick panel) g17
• (behind left side of dash) joint connector (can1)
• (left side of liftgate) g9
• (right rear of engine compt) g2
• C-113
• C-127
• C-301
• C-313
• C-315
• C-317
• C-32
• Can drive circuit
• Can transceiver circuit
• Combination meter
• Computer data lines system
• Cpu
• D-12
• Etacs-ecu (behind left side of dash)
• F-17
• Fuse 12 7.5a
• Fuse 8 7.5a
• G2 (right rear of engine compt)
• G6 (behind left side of dash)
• Hot at all times
• Hot w/ ig1 relay energized
• Ignition key ring antenna
• Interface circuit
• Keyless entry receiver
• Kos-ecu (behind left side of dash)
• Lcd (kos)
• Left front door lock switch (in rear of left front door)
• Left front door unlock sensor (rear of left front door)
• Liftgate side lock switch (center of liftgate)
• Nca
• Outer tone alarm (behind center of rear bumper)
• Pnk
• Receiver antenna module (keyless operation key) (near ignition switch)
• Red
• Right front door lock switch (in rear of right front door)
• Right front door unlock sensor (rear of right front door)
• Tone alarm

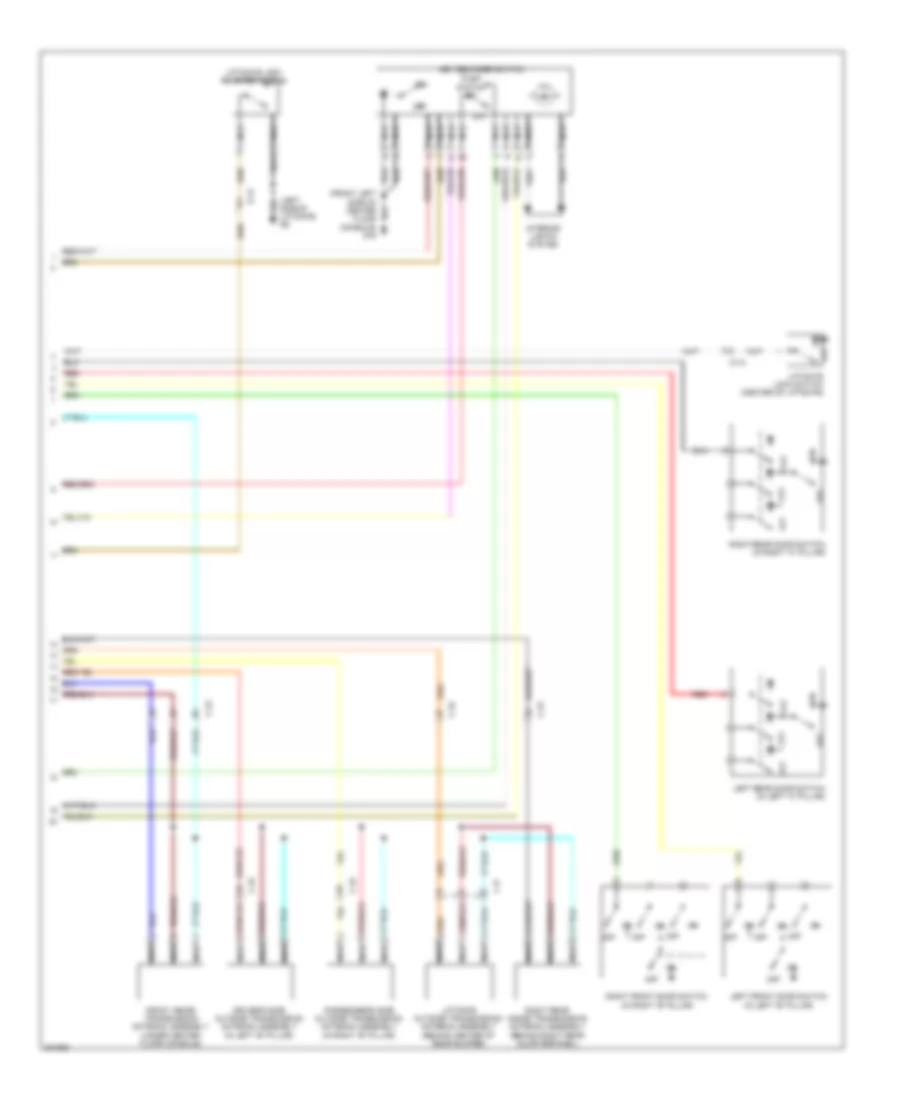

Электросхема центрального замка, С Вход Без ключа (2 из 2) для Mitsubishi Outlander XLS 2010

Электросхема центрального замка, С Вход Без ключа (2 из 2) для Mitsubishi Outlander XLS 2010 - Список элементов:

• (left side of liftgate) g9
• C-22
• C-32
• D-12
• Driver's side outside transmission antenna assembly (in left "b" pillar)
• F-17
• Front inside transmission antenna assembly (under center floor console)
• Ill
• Interior lights system
• Key reminder switch
• Left front door switch (in left "b" pillar)
• Left rear door switch (in left "c" pillar)
• Liftgate lock release handle
• Liftgate lock switch (center of liftgate)
• Liftgate outside transmission antenna assembly (behind center of rear bumper)
• Nca
• Off
• Passenger's side outside transmission antenna assembly (in right "b" pillar)
• Push switch on
• Red
• Right front door switch (in right "b" pillar)
• Right rear door switch (in right "c" pillar)
• Right rear inside transmission antenna assembly (behind right rear quarterpanel)

Электросхема центрального замка, без Вход Без ключа для Mitsubishi Outlander XLS 2010

Электросхема центрального замка, без Вход Без ключа для Mitsubishi Outlander XLS 2010 - Список элементов:

• (at rear of left front door) left front door lock actuator
• (at rear of left rear door) left rear door lock actuator
• (at rear of right front door) right front door lock actuator
• (at rear of right rear door) right rear door lock actuator
• (center of liftgate) liftgate lock actuator
• (in left "c" pillar)
• (right rear of engine compt) g2
• C-113
• C-127
• C-301
• C-311
• C-313
• C-315
• C-317
• Can drive circuit
• Computer data lines system
• D-12
• D-21
• D-36
• Door lock relay
• Driver's door unlock relay
• Etacs-ecu (behind left side of dash)
• Front power window sub switch
• Fuse 12 7.5a
• Fuse 6 20a
• Fuse 8 7.5a
• G17 (behind left kick panel)
• G2 (right rear of engine compt)
• G9 (left side of liftgate)
• Hot at all times
• Hot w/ ig1 relay energized
• Interface circuit
• Key reminder switch on
• Keyless entry receiver
• Left front door switch (in left "b" pillar)
• Left rear door switch
• Liftgate lock relay
• Liftgate lock switch (center of liftgate)
• Lock
• Lock un
• Nca
• Off
• Passenger's door unlock relay
• Pnk
• Power window main switch (in driver's door power window main switch assembly)
• Red
• Right front door switch (in right "b" pillar)
• Right rear door switch (in right "c" pillar)
• Un lock
• Wireless control module (keyless entry transmitter) (near ignition switch)
