Электросхемы ЦЕНТРАЛЬНЫЙ ЗАМОК Nissan Murano SE 2007

ЦЕНТРАЛЬНЫЙ ЗАМОК

Электросхема центрального замка, С Система безключевого доступа (1 из 3) для Nissan Murano SE 2007

Электросхема центрального замка, С Система безключевого доступа (1 из 3) для Nissan Murano SE 2007 - Список элементов:

• (behind lower center of dash) unified meter & a/c amp
• (behind right end of dash) m78
• (near steering column) steering lock unit
• 5v output
• Acc sw
• Ant +
• Ant -
• Ant1 +
• Ant1 -
• Ant2 +
• Ant2 -
• As switch
• Back dr out
• Back dr sw
• Bat
• Buzzer
• Can-h
• Can-l
• Combination meter
• Computer data lines system
• Dr ant +
• Dr ant -
• Dr ant+
• Dr lock sw
• Earth
• Front door request switch (driver side) (in driver's door)
• Front door request switch (passenger side) (in right front door)
• Fuse 10a
• Fuse block (j/b) (below left side of dash)
• Gnd
• Gnd (pwr)
• Hot at all times
• Hot in acc or on
• Hot in on or start
• Ign
• Ign sw
• Intelligent key unit (behind right side of dash)
• Key ind (green)
• Key ind (red)
• Key ind(red)
• Key sw
• Key switch & ignition knob switch
• M1 12a
• M14 (behind left end of dash)
• M25
• M49
• M50
• M78 (behind right end of dash)
• Nob ind
• Output
• Output inside
• P range sw
• P-shift ind
• Passenger side select unlock relay (behind left side of dash)
• Pnk
• Push sw
• Request sw
• Rr ant +
• Rr ant -
• Signal
• Stop lamp sw
• Strg gnd
• Strg lock sig
• Unified meter control unit
• Unlock out

Электросхема центрального замка, С Система безключевого доступа (2 из 3) для Nissan Murano SE 2007

Электросхема центрального замка, С Система безключевого доступа (2 из 3) для Nissan Murano SE 2007 - Список элементов:

• B20 (behind left rear seat)
• Back door request switch (in back door)
• Can- h
• Can- l
• Computer data lines system
• Cpu
• Cvt device (detention switch) (shift)
• Door mirror (driver side) (outside key antenna)
• Door mirror (passenger side) (outside key antenna)
• E101
• E13 (left front corner of engine compartment)
• Fuse 10a
• Fuse 15a
• Fuse block (j/b) (below left side of dash)
• Gnd (power)
• Gnd (signal)
• H/lp hi
• H/lp lo
• Head- lights system
• Horn rly
• Horns system
• Hot at all times
• Inside key antenna-1 (console) (in center console)
• Inside key antenna-2 (dashboard) (behind center of dash)
• Inside key antenna-3 (luggage room) (in cargo area)
• Intelligent key warning buzzer (engine room) (front of engine compartment)
• Intelligent key warning buzzer (inside) (behind left
• Ipdm e/r (intelligent power distribution module engine room) (right front of engine compt, behind headlight)
• Left rear door outside key antenna (in left rear door)
• M78 (behind right end of dash)
• Nca
• Outside key antenna (rear bumper) (in rear bumper)
• Pnk
• Right rear door outside key antenna (in right rear door)
• Side of dash)
• Stop lamp switch (above brake pedal, on bracket)

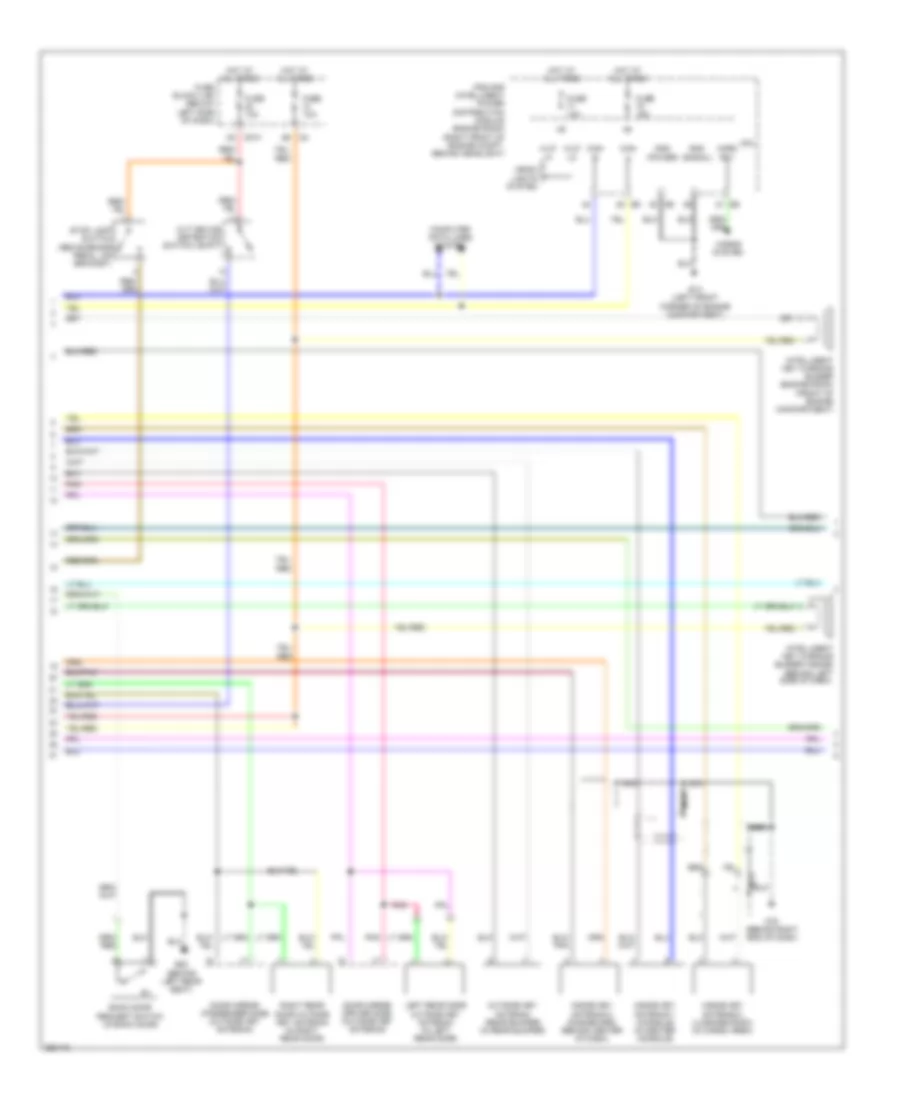

Электросхема центрального замка, С Система безключевого доступа (3 из 3) для Nissan Murano SE 2007

Электросхема центрального замка, С Система безключевого доступа (3 из 3) для Nissan Murano SE 2007 - Список элементов:

• (behind left rear seat) b20
• (behind left side of dash) body control module
• (behind right end of dash) m78
• As dr sw
• B105 (behind right kick panel)
• B20 (behind left rear seat)
• Back door lock assembly (lower center of back door)
• Back door opener relay (near left kick panel)
• Back door opener switch (in back door)
• Back dr sw
• Bat (f/l)
• Bat (fuse)
• Bat output
• Between full stroke & n
• Can-h
• Can-l
• Com
• Computer data lines system
• Cpu
• Door key cylinder switch
• Door sw
• Door sw (rl)
• Dr lock out
• Dr sw (rr)
• Dr unlock
• Exterior lights system
• Front door lock assembly (driver side) (rear of left front door)
• Front door lock assembly (passenger side) (rear of right front door)
• Fuel lid lock actuator (behind left rear quarterpanel)
• Full stroke
• Fuse & fusible link block (left front of engine compt, near battery)
• Fuse 10a
• Fuse block (j/b) (below left side of dash)
• Fuse f 50a
• Gnd
• Gnd (power)
• Hot at all times
• Hot in on or start
• Ign sw
• Interior lights system
• Key ring out
• Key sw
• Left flasher
• Left rear door lock assembly (rear of left rear door)
• Lock
• Lock switch
• M1 15a
• M14 (behind left end of dash)
• M34
• M35
• M36
• M78 (behind right end of dash)
• Passenger side front power window switch (door lock & unlock switch)
• Pnk
• Power window main switch (door lock & unlock switch)
• Power window system
• Red
• Right flasher
• Right rear door lock assembly (rear of right rear door)
• Room lmp out
• Serial link
• Step lmp out
• Unlock
• Unlock switch
• Window bat

Электросхема центрального замка, без Система безключевого доступа для Nissan Murano SE 2007

Электросхема центрального замка, без Система безключевого доступа для Nissan Murano SE 2007 - Список элементов:

• (behind left rear quarterpanel) fuel lid lock actuator
• (behind right end of dash) m78
• 15a
• B105 (behind right kick panel)
• B20 (behind left rear seat)
• Back door lock assembly (door switch) (lower center of back door)
• Back door sw
• Bat (fuse)
• Bat f/l
• Bat saver output
• Between full stroke & n
• Body control module (behind left side of dash)
• Can- h
• Can- l
• Can-h
• Can-l
• Closed
• Com
• Computer data lines system
• Cpu
• Door key cylinder switch
• Door lock actuator
• Door lock output
• Door sw (as)
• Door sw (rl)
• Door sw (rr)
• Door switch
• Door unlock output
• Driver side front door lock assembly (rear of left front door)
• Driver's door switch
• E13 (left front corner of engine compartment)
• Exterior lights system
• Flasher output (left)
• Flasher output (right)
• Full stroke
• Fuse & fusible link block (left front of engine compt, near battery)
• Fuse 10a
• Fuse 15a
• Fuse block (j/b) (below left side of dash)
• Fusible link f 50a
• Gnd
• Gnd (power)
• Gnd (signal)
• H/lp hi
• H/lp lo
• Head- lights system
• Horn rly
• Horns system
• Hot at all times
• Hot in on or start
• Ign sw
• Interior lights system
• Ipdm e/r (intelligent power distribution module engine room) (right front of engine compt, behind headlight)
• Key ring ill output
• Key sw
• Key switch (on right side of steering column)
• Left rear door lock assembly (rear of left rear door)
• Lock
• Lock switch
• M14 (behind left end of dash)
• M34
• M35
• M36
• Open
• Out
• Passenger side front door lock assembly (rear of right front door)
• Passenger side front power window switch (door lock & unlock switch)
• Pnk
• Power window main switch (door lock & unlock switch)
• Power windows system
• Pwr window serial link
• Red
• Right rear door lock assembly (rear of right rear door)
• Room lamp output
• Unlock
• Unlock switch
