Электросхемы ЦЕНТРАЛЬНЫЙ ЗАМОК Suzuki Grand Vitara 2013

ЦЕНТРАЛЬНЫЙ ЗАМОК

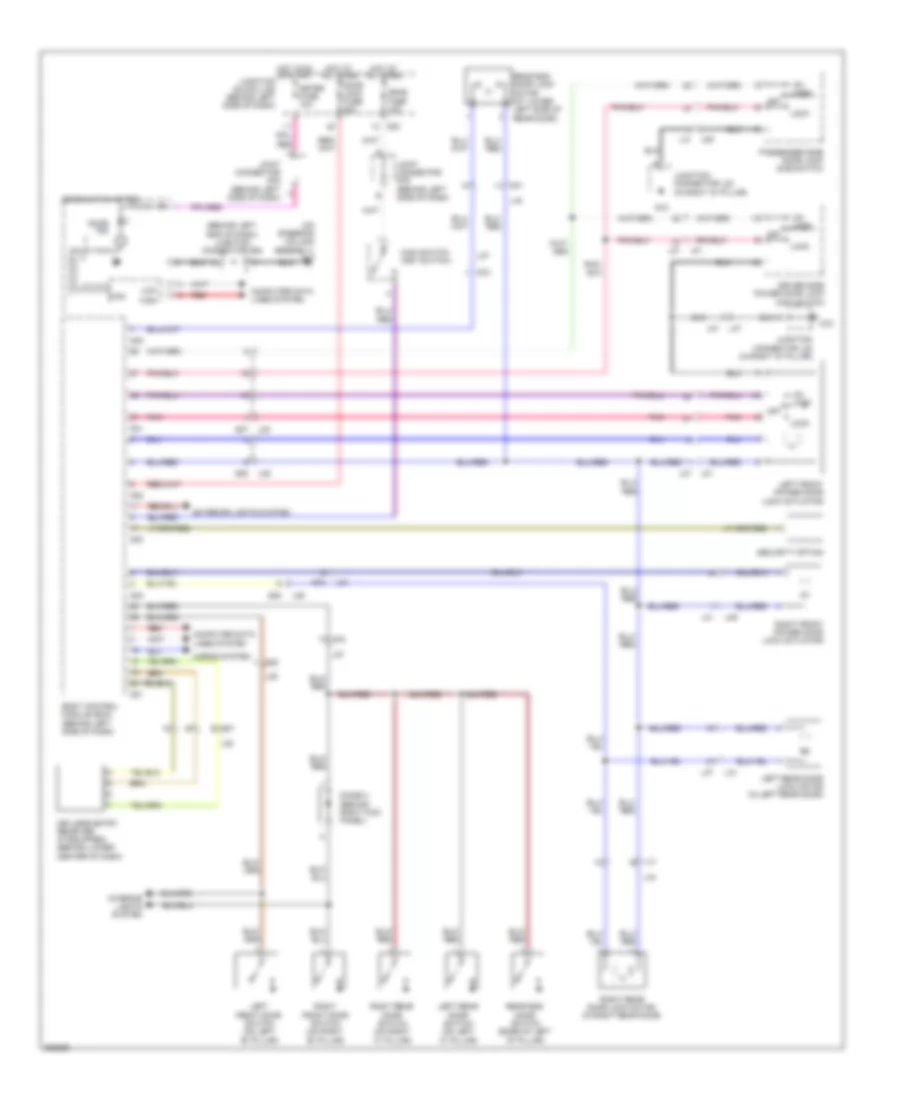

Электросхема центрального замка, С Система безключевого доступа (1 из 2) для Suzuki Grand Vitara 2013

Электросхема центрального замка, С Система безключевого доступа (1 из 2) для Suzuki Grand Vitara 2013 - Список элементов:

• (behind left end of dash) junction connector g82
• (on steering column assembly) g17
• Body control module (bcm) (behind left side of dash)
• Can
• Combination meter
• Computer data lines system
• Cpu
• Diode 3 (behind right kick panel)
• Dome fuse 10a
• Door ind
• Door lock fuse 20a
• Driver side power door lock main switch
• Exterior lights system
• G03
• G07
• G08
• G18
• G30
• G31
• G32
• G72
• High
• Horns system
• Hot at all times
• Hot in on or start
• Interior lights system
• J01
• J09
• J16
• J21
• Joint connector g76 (behind left side of dash)
• Junction block (j/b) (behind left side of dash)
• Junction connector l22 (in right "d" pillar)
• Keyless entry receiver (if equipped) (behind lower center of dash)
• L07
• L08
• L09
• L13
• L27
• L31
• L37
• L42
• Left front door switch (on left "b" pillar)
• Left front power door lock actuator
• Left rear door lock motor (in left rear door)
• Left rear door switch (on left "c" pillar)
• Lock
• Low
• Main switch (key switch)
• Meter fuse 10a
• O01
• Off
• Passenger side door lock sub switch
• Pnk
• Rear end door lock motor (at lower left side of rear door)
• Rear end door switch (base of left "d" pillar)
• Red
• Right front door switch (on right "b" pillar)
• Right front power door lock actuator
• Right rear door lock motor (in right rear door)
• Right rear door switch (on right "c" pillar)
• Security option
• Un- lock

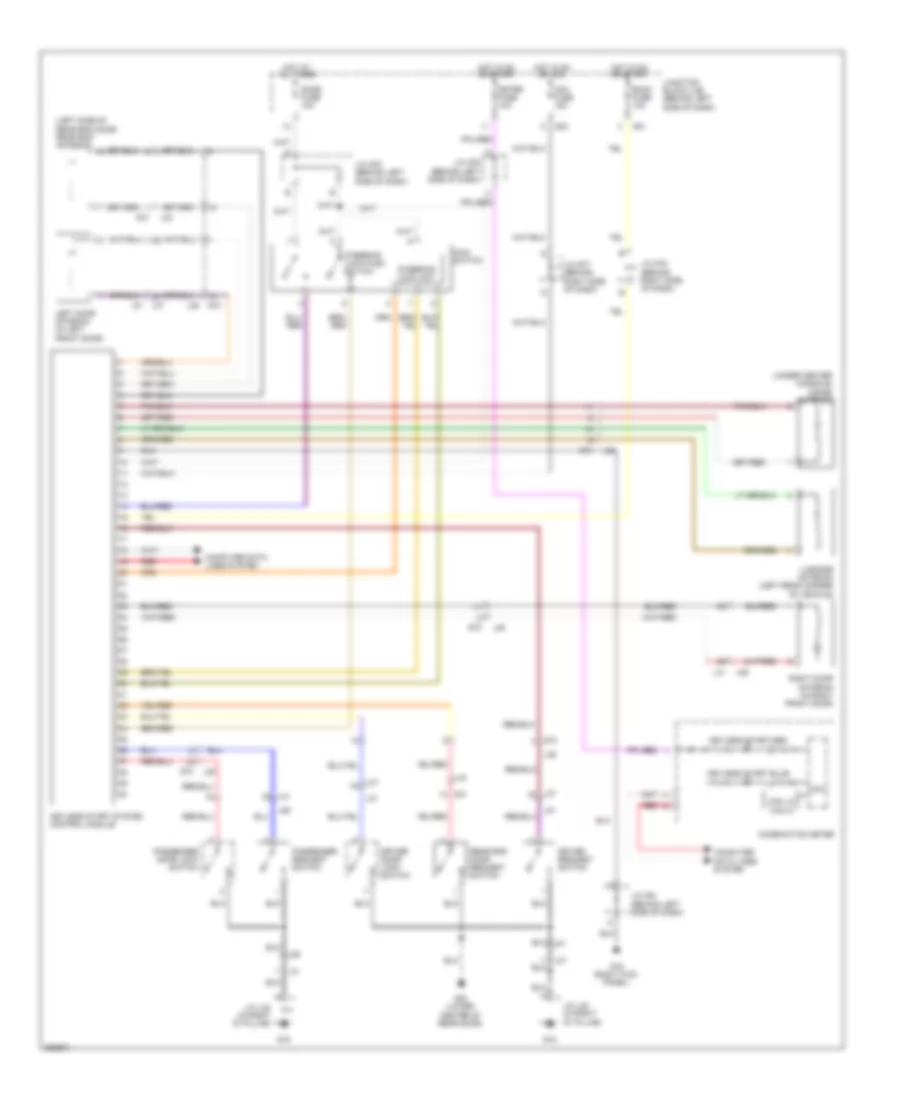

Электросхема центрального замка, С Система безключевого доступа (2 из 2) для Suzuki Grand Vitara 2013

Электросхема центрального замка, С Система безключевого доступа (2 из 2) для Suzuki Grand Vitara 2013 - Список элементов:

• (left side of rear end door) rear end antenna
• (under center console) inside antenna
• Acc fuse 15a
• Back fuse 10a
• Can lo can hi
• Combination meter
• Computer data lines system
• Cpu
• Dome fuse 10a
• Driver door lock switch
• Driver request switch
• G01
• G03
• G16 (right kick panel)
• G18
• G20 (lower center of rear door)
• G73
• Hot at all times
• Hot in on or acc
• Hot in on or start
• J/c g76 (behind left side of dash)
• J/c g77 (behind right side of dash)
• J/c g78 (behind right side of dash)
• J/c g81 (behind left side of dash)
• J/c l22 (in right "d" pillar)
• J01
• J09
• Junction block (j/b) (behind left side of dash)
• Keyless start red
• Keyless start system control module
• L07
• L28
• L31
• L42
• Left door antenna (in left front door)
• Luggage antenna (left rear corner of vehicle)
• Main switch
• Meter fuse 10a
• O01
• Passenger door lock switch
• Passenger request switch
• Rear end door request switch
• Red
• Right door antenna (in right front door)
• Steering lock push switch
• Steering lock unit

Электросхема центрального замка, без системы безключевого доступа Система для Suzuki Grand Vitara 2013

Электросхема центрального замка, без системы безключевого доступа Система для Suzuki Grand Vitara 2013 - Список элементов:

• (behind left end of dash) junction connector g82
• (on steering column assembly) g17
• Body control module (bcm) (behind left side of dash)
• Can
• Combination meter
• Computer data lines system
• Cpu
• Diode 3 (behind right kick panel)
• Dome fuse 10a
• Door ind
• Door lock fuse 20a
• Driver side power door lock main switch
• Exterior lights system
• G03
• G07
• G08
• G18
• G30
• G31
• G32
• G72
• High
• Horns system
• Hot at all times
• Hot in on or start
• Interior lights system
• J01
• J09
• J16
• J21
• Joint connector g76 (behind left side of dash)
• Junction block (j/b) (behind left side of dash)
• Junction connector l22 (in right "d" pillar)
• Keyless entry receiver (if equipped) (behind lower center of dash)
• L07
• L08
• L09
• L13
• L27
• L31
• L37
• L42
• Left front door switch (on left "b" pillar)
• Left front power door lock actuator
• Left rear door lock motor (in left rear door)
• Left rear door switch (on left "c" pillar)
• Lock
• Low
• Main switch (key switch)
• Meter fuse 10a
• O01
• Off
• Passenger side door lock sub switch
• Pnk
• Rear end door lock motor (at lower left side of rear door)
• Rear end door switch (base of left "d" pillar)
• Red
• Right front door switch (on right "b" pillar)
• Right front power door lock actuator
• Right rear door lock motor (in right rear door)
• Right rear door switch (on right "c" pillar)
• Security option
• Un- lock
