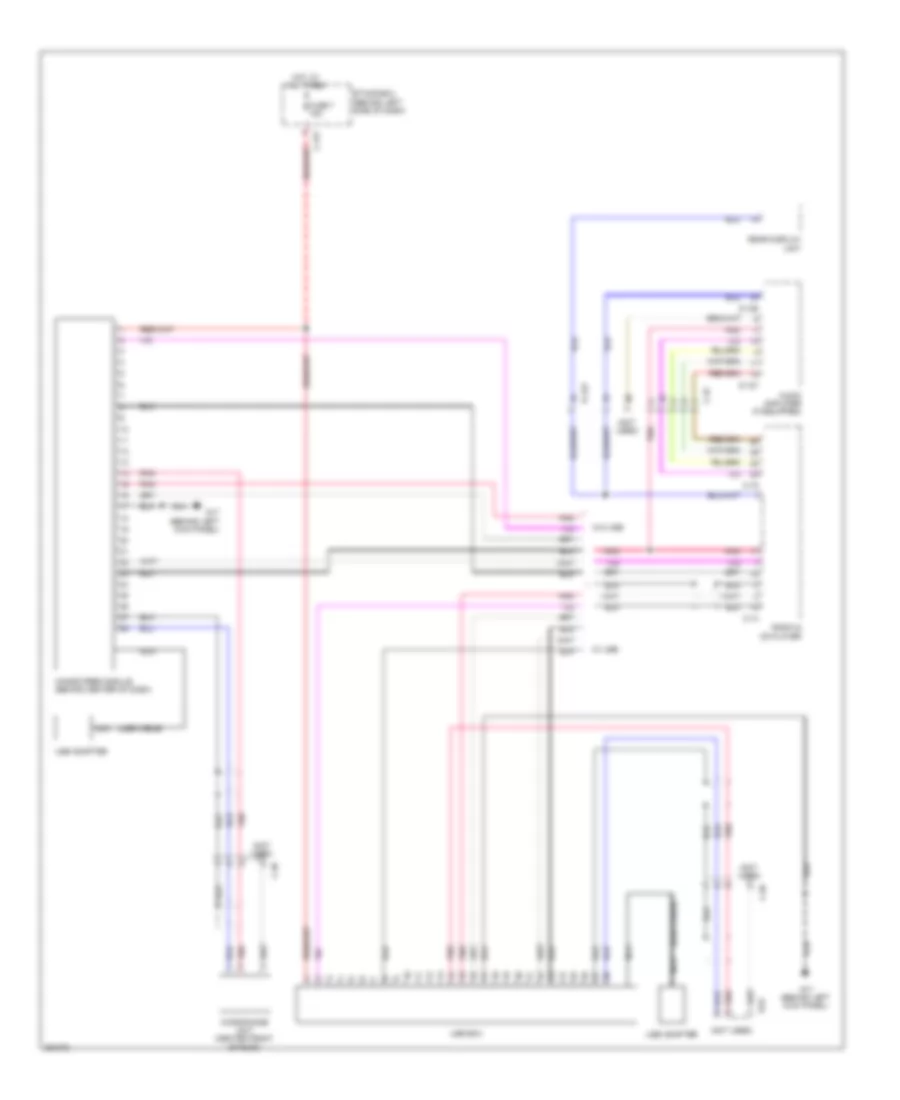

Электросхема Hands Free Bluetooth подключение телефона, С Мультисистема связи для Mitsubishi Outlander XLS 2011
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO
Электросхема Hands Free Bluetooth подключение телефона, С Мультисистема связи для Mitsubishi Outlander XLS 2011 - Список элементов:
- (behind left kick panel)
- (not used)
- (usb cable)
- Audio amplifier (if equipped)
- C-06
- C-07
- C-10
- C-15
- C-17
- C-22
- C-317
- C-36
- D-01
- D-123
- D-126
- D-127
- Etacs-ecu (behind left side of dash)
- Fuse 7 15a
- G17
- G17 (behind left kick panel)
- Hands free module (behind center of dash)
- Hot at all times
- Microphone unit (center front of roof)
- Multivision display
- Nca
- Pnk
- Rear display unit
- Usb adapter
- Usb box
- W/ usb
- W/o usb
Электросхема Hands Free Bluetooth подключение телефона, без Мультисистема связи для Mitsubishi Outlander XLS 2011
Электросхема Hands Free Bluetooth подключение телефона, без Мультисистема связи для Mitsubishi Outlander XLS 2011 - Список элементов:
- (behind left kick panel)
- (not used)
- (usb cable)
- Audio amplifier (if equipped)
- C-14
- C-16
- C-22
- C-317
- C-36
- D-01
- D-123
- D-126
- D-127
- Etacs-ecu (behind left side of dash)
- Fuse 7 15a
- G17
- G17 (behind left kick panel)
- Hands free module (behind center of dash)
- Hot at all times
- Microphone unit (center front of roof)
- Nca
- Pnk
- Radio & cd player
- Rear display unit
- Usb adapter
- Usb box
- W/ usb
- W/o usb

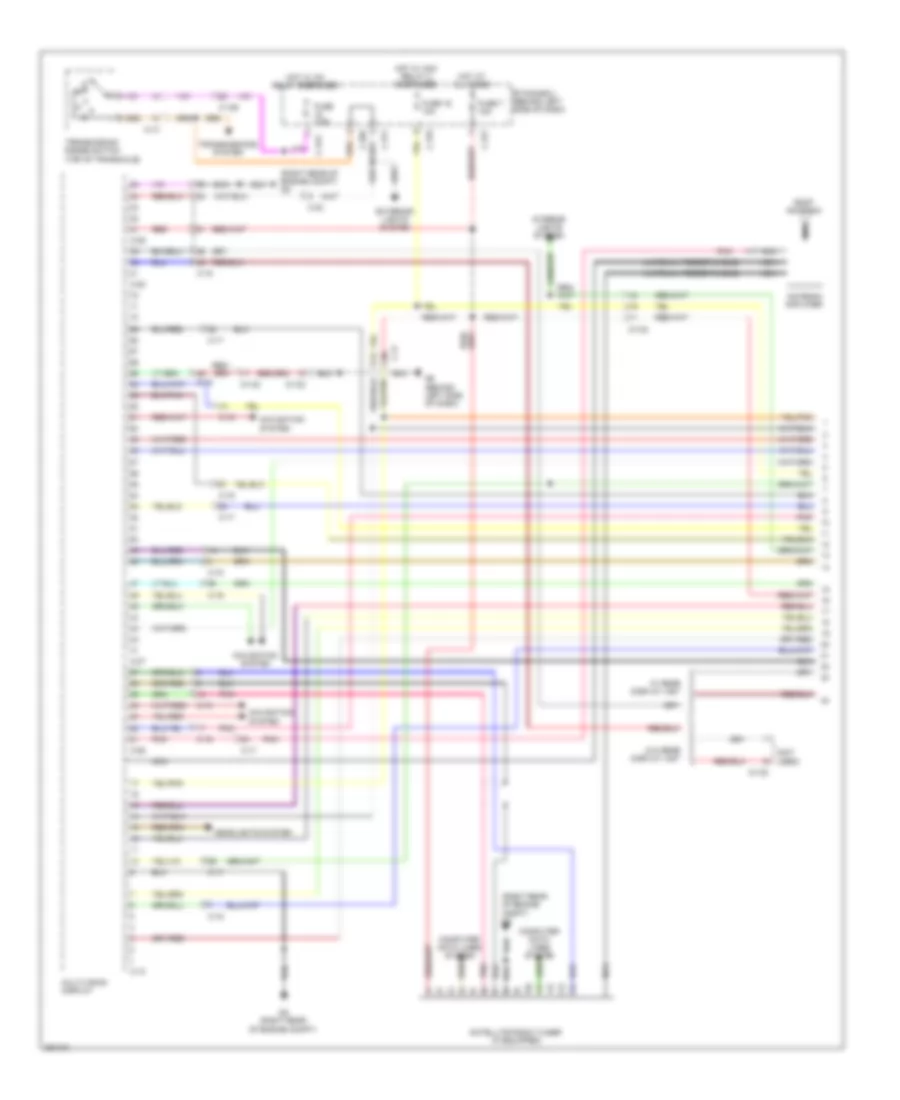

Электросхема навигации GPS, С Усилитель (1 из 3) для Mitsubishi Outlander XLS 2011
Электросхема навигации GPS, С Усилитель (1 из 3) для Mitsubishi Outlander XLS 2011 - Список элементов:
- (antenna feeder cable)
- (behind left side of dash)
- (not used)
- (right rear of engine compt) g2
- A-13
- Antenna amplifier
- C-06
- C-07
- C-08
- C-09
- C-10
- C-129
- C-15
- C-17
- C-19
- C-304
- C-311
- C-313
- C-315
- C-317
- C-32
- Computer data lines system
- D-123
- Etacs-ecu (behind left side of dash)
- Exterior lights system
- Fuse 16 10a
- Fuse 7 15a
- Fuse 7.5a
- G2 (right rear of engine compt)
- Headlights system
- Hot at all times
- Hot w/ acc relay 2 energized
- Hot w/ ig1 relay energized
- Interior lights system
- Multivision display
- Navigation system
- Nca
- Pnk
- Red
- Roof antenna
- Satellite radio tuner (if equipped)
- Transmission range switch (top of transaxle)
- Transmissions system
- W/ rear display unit
- W/o rear display unit

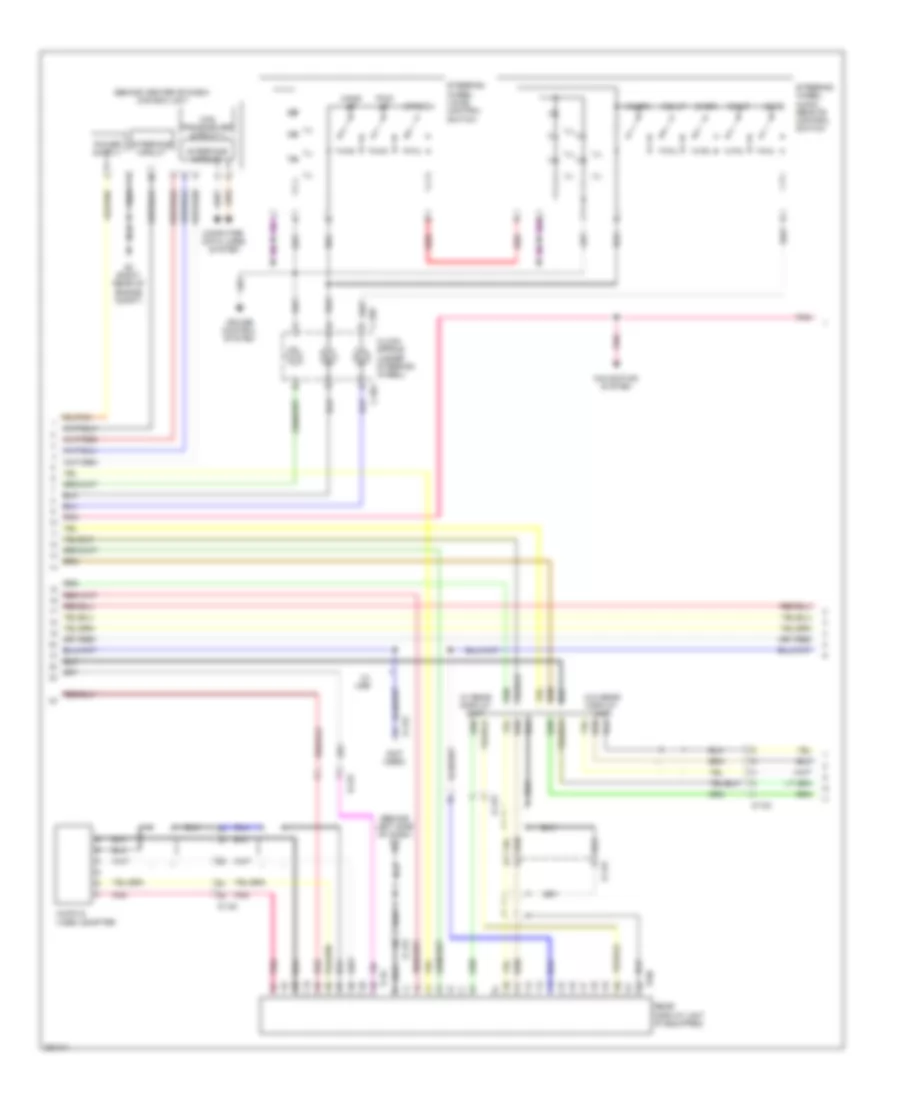

Электросхема навигации GPS, С Усилитель (2 из 3) для Mitsubishi Outlander XLS 2011
Электросхема навигации GPS, С Усилитель (2 из 3) для Mitsubishi Outlander XLS 2011 - Список элементов:
- (behind center of dash) can box unit
- (behind left side of dash) g6
- (not used)
- Audio & video adapter
- C-202
- C-204
- Can transceiver circuit
- Ch dn
- Ch up
- Clock spring (under steering wheel)
- Computer data lines system
- Cruise control system
- D-06
- D-123
- D-16
- G2 (right rear of engine compt)
- Hang up
- Ill
- Interface circuit
- Mode
- Navigation system
- Pick up
- Pnk
- Rear display unit (if equipped)
- Red
- Speech
- Steering wheel audio remote control switch
- Steering wheel voice control switch
- Vol dn
- Vol up
- W/ rear display unit
- W/ usb
- W/o rear display unit

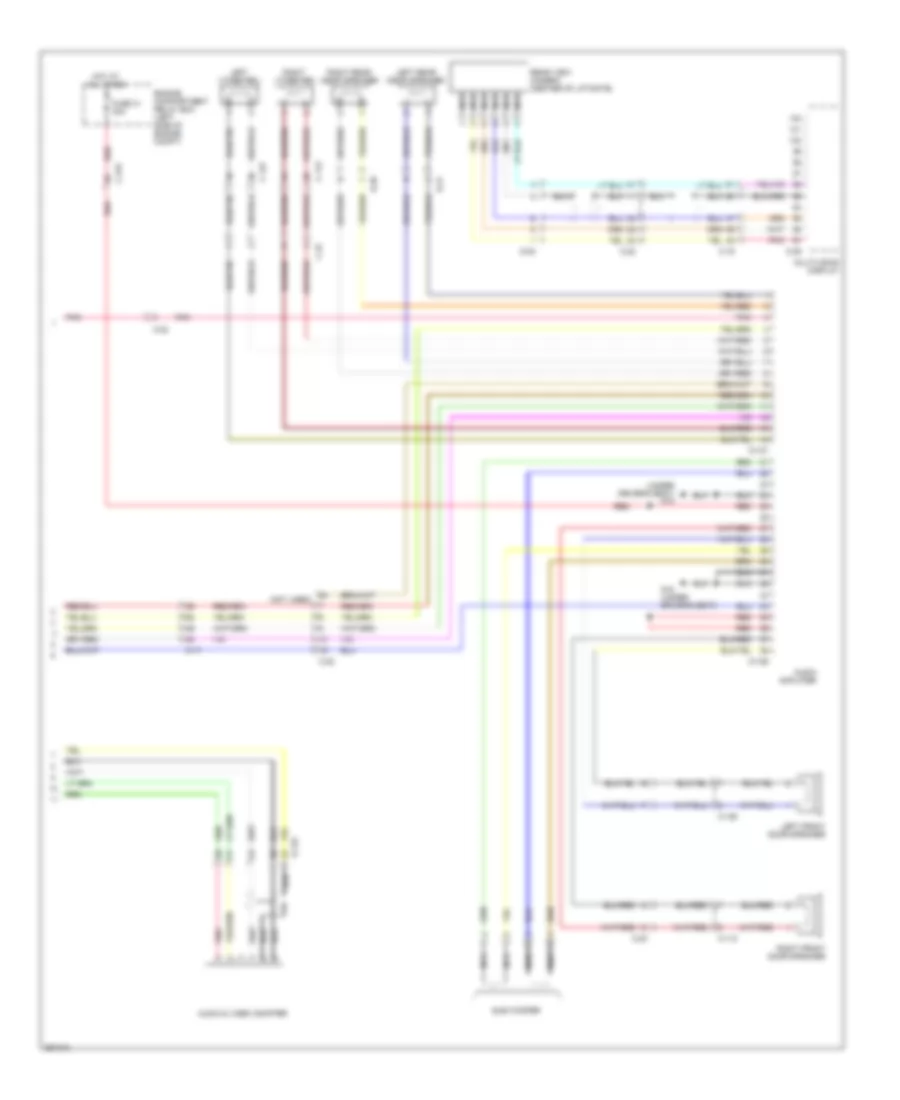

Электросхема навигации GPS, С Усилитель (3 из 3) для Mitsubishi Outlander XLS 2011
Электросхема навигации GPS, С Усилитель (3 из 3) для Mitsubishi Outlander XLS 2011 - Список элементов:
- (not used)
- (under driver's seat) g18
- Audio & video adapter
- Audio amplifier
- C-112
- C-113
- C-126
- C-127
- C-17
- C-19
- C-20
- C-219
- C-22
- C-39
- D-123
- D-126
- D-127
- D-21
- D-36
- D-38
- Engine compartment relay box (left side of engine compt)
- Fuse 31 30a
- G18 (under driver's seat)
- Hot at all times
- Left front door speaker
- Left rear door speaker
- Left tweeter
- Multivision display
- Nca
- Pnk
- Rear view camera (center of liftgate)
- Red
- Right front door speaker
- Right rear door speaker
- Right tweeter
- Sub woofer

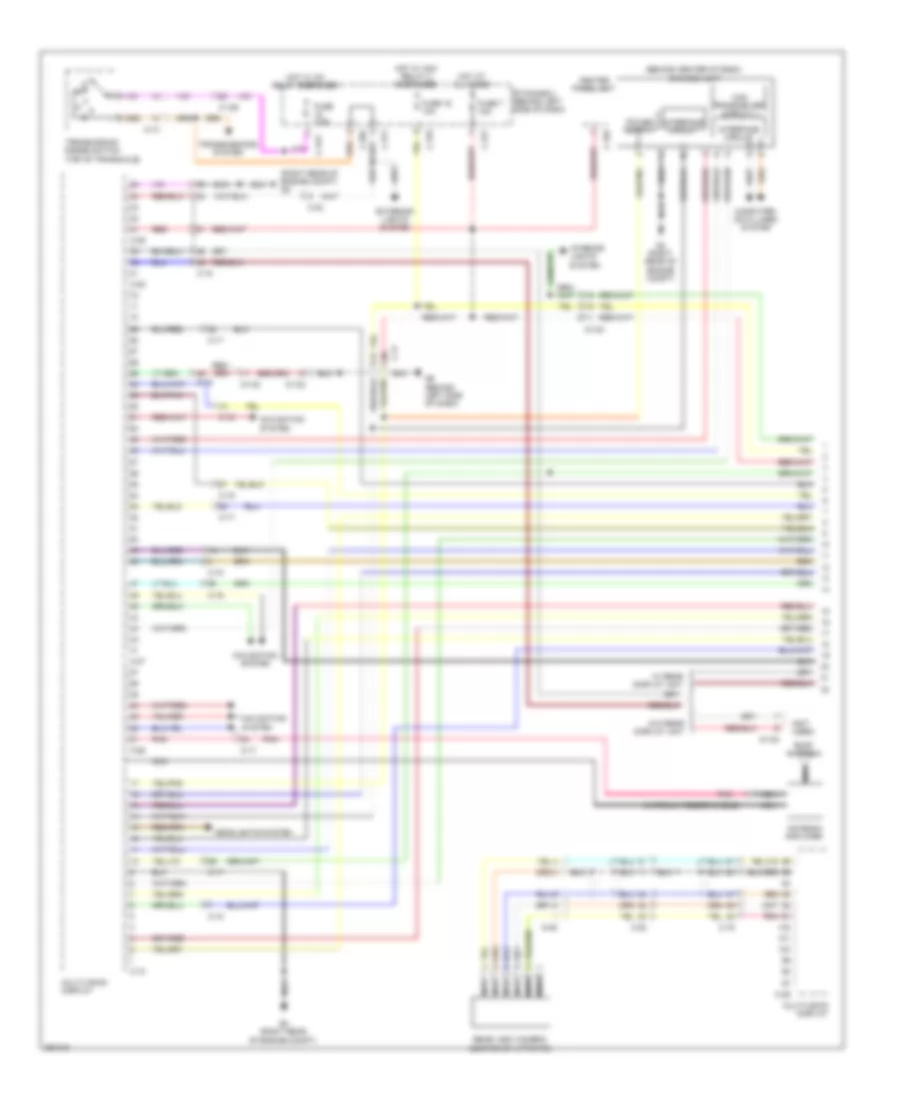

Электросхема навигации GPS, без Усилитель (1 из 2) для Mitsubishi Outlander XLS 2011
Электросхема навигации GPS, без Усилитель (1 из 2) для Mitsubishi Outlander XLS 2011 - Список элементов:
- (antenna feeder cable)
- (behind center of dash) can box unit
- (behind left side of dash)
- (not used)
- (right rear of engine compt) g2
- A-13
- Antenna amplifier
- C-06
- C-07
- C-08
- C-09
- C-10
- C-104
- C-129
- C-15
- C-17
- C-19
- C-22
- C-304
- C-311
- C-313
- C-315
- C-317
- C-32
- C-39
- Can transceiver circuit
- Center panel unit
- Computer data lines system
- D-123
- D-38
- Etacs-ecu (behind left side of dash)
- Exterior lights system
- Fuse 16 10a
- Fuse 7 15a
- Fuse 7.5a
- G2 (right rear of engine compt)
- Headlights system
- Hot at all times
- Hot w/ acc relay 2 energized
- Hot w/ ig1 relay energized
- Interface circuit
- Interior lights system
- Multivision display
- Navigation system
- Nca
- Pnk
- Rear view camera (center of liftgate)
- Red
- Roof antenna
- Transmission range switch (top of transaxle)
- Transmissions system
- W/ rear display unit
- W/o rear display unit

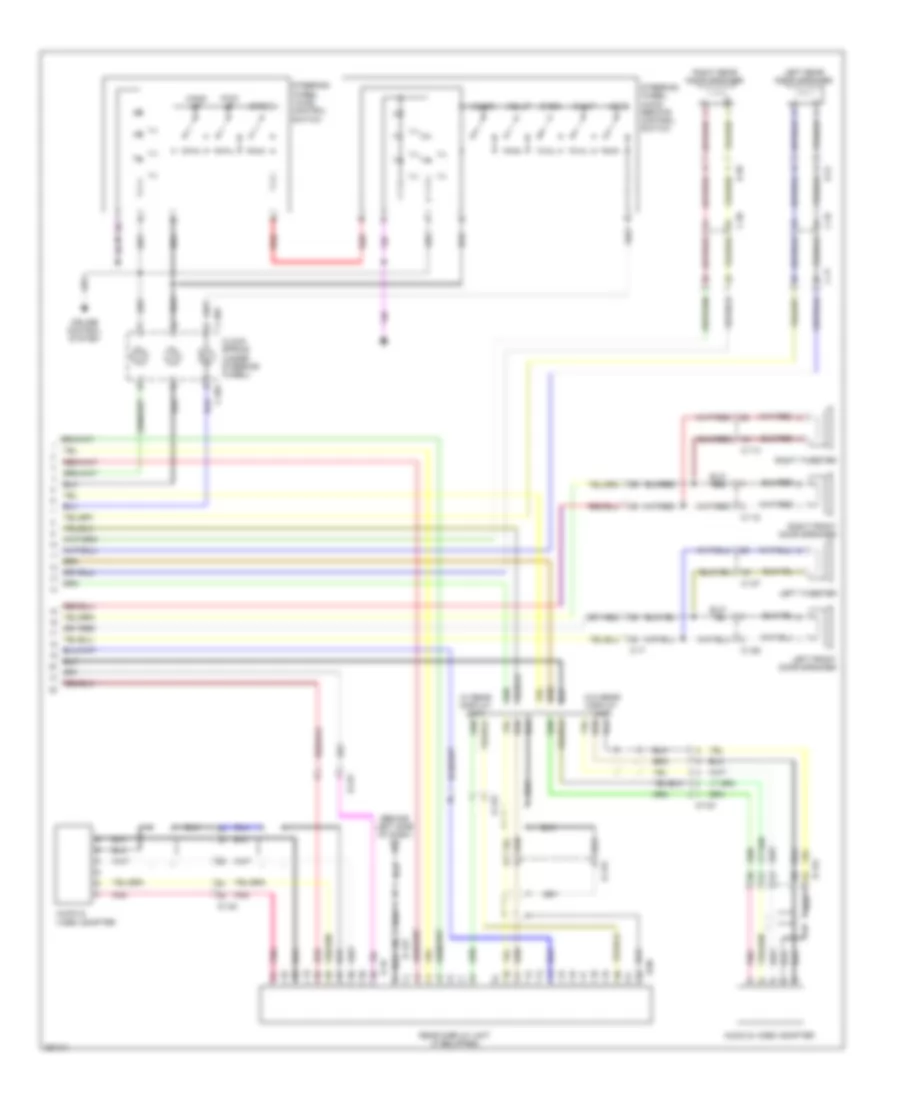

Электросхема навигации GPS, без Усилитель (2 из 2) для Mitsubishi Outlander XLS 2011
Электросхема навигации GPS, без Усилитель (2 из 2) для Mitsubishi Outlander XLS 2011 - Список элементов:
- (behind left side of dash) g6
- Audio & video adapter
- C-112
- C-113
- C-126
- C-127
- C-17
- C-20
- C-202
- C-204
- C-32
- Ch dn
- Ch up
- Clock spring (under steering wheel)
- Cruise control system
- D-06
- D-123
- D-16
- D-21
- D-36
- Hang up
- Ill
- Left front door speaker
- Left rear door speaker
- Left tweeter
- Mode
- Pick up
- Pnk
- Rear display unit (if equipped)
- Red
- Right front door speaker
- Right rear door speaker
- Right tweeter
- Speech
- Steering wheel audio remote control switch
- Steering wheel voice control switch
- Vol dn
- Vol up
- W/ rear display unit
- W/o rear display unit
