Электросхемы ПРИБОРНАЯ ПАНЕЛЬ Mitsubishi Diamante ES 1996

ПРИБОРНАЯ ПАНЕЛЬ

Электросхема панели приборов (1 из 2) для Mitsubishi Diamante ES 1996

Электросхема панели приборов (1 из 2) для Mitsubishi Diamante ES 1996 - Список элементов:

• (6 bulbs)
• Abs
• Beam
• Brake
• Brake fluid level sensor (master cylinder)
• C73
• C75
• C76
• Charge
• Check engine
• Combination meter
• Cruise
• Dedicated fuse 3 10a
• Dedicated fuse 5 15a
• Dimmer circuit
• Door
• Economy
• Engine compartment relay box
• Engine coolant temperature gauge unit (top left side of engine)
• Fuel
• Fuel gauge
• Fuel gauge unit (in fuel tank)
• G201 (behind right side of dash, on deck crossmember)
• Hot at all times
• Hot in on or start
• Hot in park or head
• Hot with headlights switched on
• Illumination
• Interior lights system
• Iod or storage connector (engine compartment relay box)
• Junction block (left side of dash)
• Left turn
• Multi- purpose fuse 11 10a
• Multi- purpose fuse 19 10a
• Nca
• Od off
• Oil
• Oil pressure switch (rear of engine)
• Parking brake switch (center console)
• Power
• Red
• Rheostat
• Right turn
• Seat belt
• Security
• Speedometer
• Srs
• Tachometer
• Tcl
• Tcl off
• Temperature gauge
• Trace off
• Vehicle speed sensor
• Washer

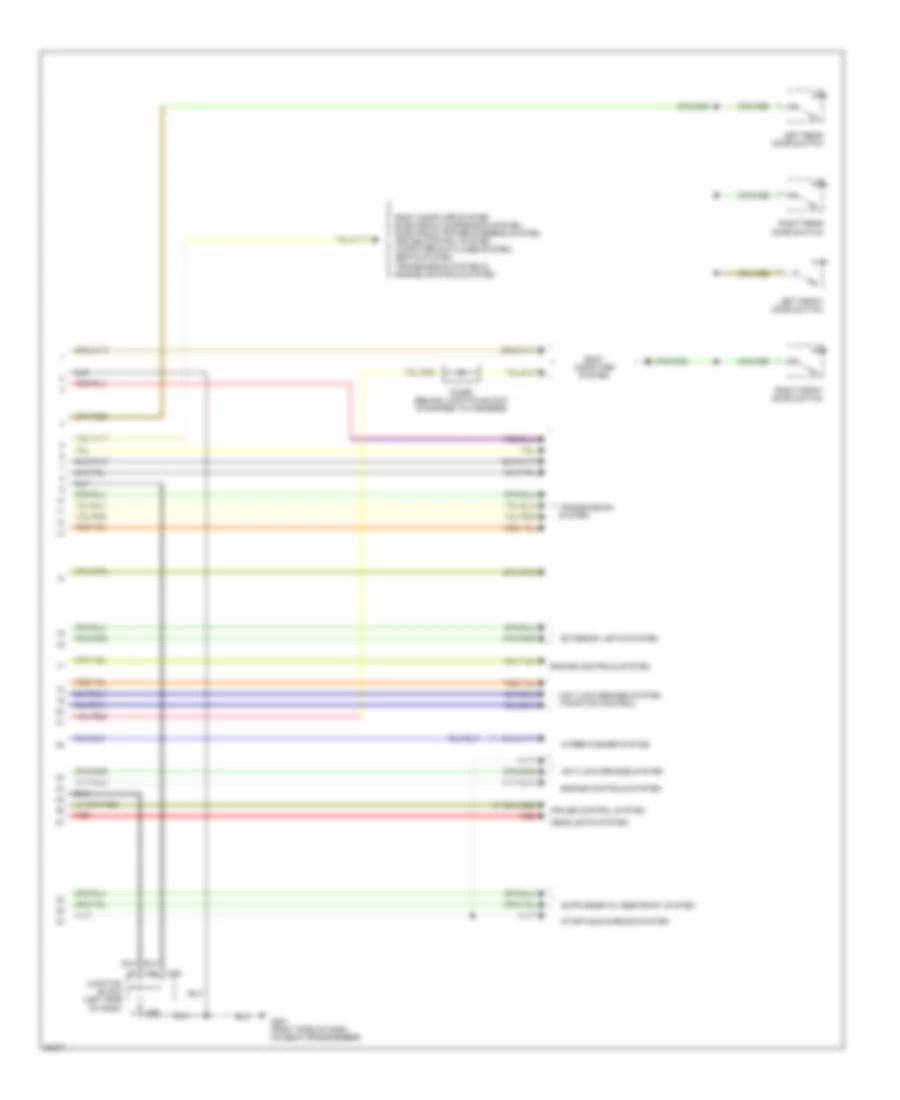

Электросхема панели приборов (2 из 2) для Mitsubishi Diamante ES 1996

Электросхема панели приборов (2 из 2) для Mitsubishi Diamante ES 1996 - Список элементов:

• Anti-lock brakes system
• Anti-lock brakes system (traction control)
• Body computer system
• Body computer system electronic suspension system, electronic power steering system, cruise control system, computer data lines system, seats system, transmission system & engine controls system
• C76
• C86
• Cruise control system
• Diode (behind junction block, strapped to harness)
• Engine controls system
• Exterior lights system
• G201 (right side of dash, on deck crossmember)
• Headlights system
• Junction block (left side of dash)
• Left front door switch
• Left rear door switch
• Red
• Right front door switch
• Right rear door switch
• Starting/charging system
• Transmission system
• Wiper/washer system
