Электросхемы ПРИБОРНАЯ ПАНЕЛЬ Nissan Murano SE 2007

ПРИБОРНАЯ ПАНЕЛЬ

Электросхема дисплея для Nissan Murano SE 2007

Электросхема дисплея для Nissan Murano SE 2007 - Список элементов:

• (left front corner of engine compartment)
• 12a
• 8p/r
• Acc
• Bat
• Can-h
• Can-l
• Compo+
• Compo-
• Computer data lines system
• Cpu
• Dcu dsp
• Display
• Display control unit (behind center of dash)
• Dsp dcu
• Dsp gnd
• Dsp shield
• E13
• Fuse 10a
• Fuse block (j/b) (below left side of dash)
• Gnd
• Gnd (power)
• Gnd (sig)
• Hot at all times
• Hot in acc or on
• Hot in on or start
• Ign
• Intelligent power distribution module engine room (ipdm e/r) (right front of engine compartment, behind headlight)
• Interior lights system
• Inv gnd
• Inv vcc
• M14 (behind left end of dash)
• M42
• M43
• M49
• M50
• Nca
• Pnk
• Rear view camera control unit (if equipped) (right rear of cargo area)
• Red
• Rgb gnd
• Rgb sync
• Sig gnd
• Sig vcc
• Sign gnd
• Sign vcc
• Speed
• Sync gnd
• Tail lamp relay
• Tail/l rly
• Tv+/vtr+
• Tv-/vtr-
• Unified meter & a/c amplifier (behind lower center of dash)

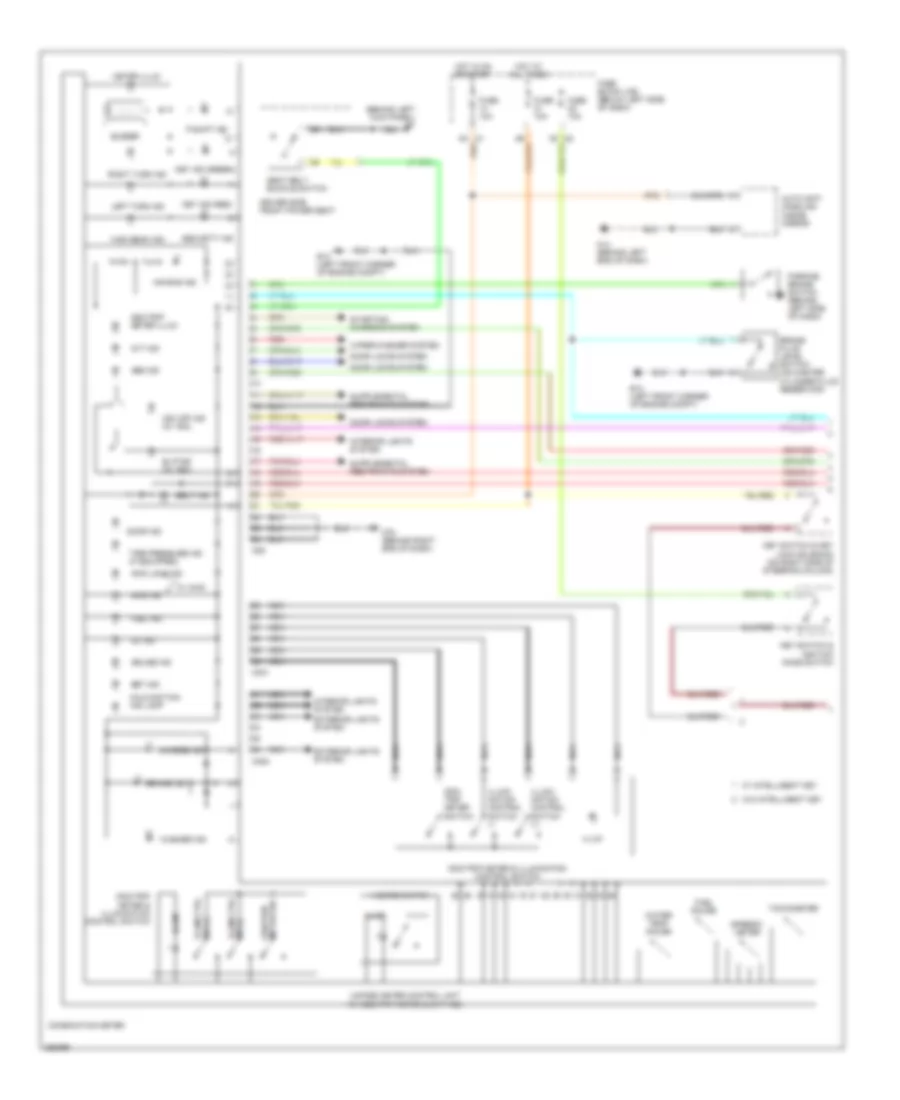

Электросхема панели приборов (1 из 2) для Nissan Murano SE 2007

Электросхема панели приборов (1 из 2) для Nissan Murano SE 2007 - Список элементов:

• (behind left kick panel) b7
• Abs ind
• Air bag ind
• Auto anti- dazzling inside mirror
• Awd ind
• Awd lock ind
• Belt ind
• Brake fluid level switch (on master cylinder fluid reservoir)
• Brake ind
• Buzzer
• Charge ind
• Combination meter
• Cruise ind
• Cvt ind
• Door ind
• Door locks system
• Driver side front power seat
• E13 (left front corner of engine compt)
• Exterior lights system
• Fuel gauge
• Fuel ind
• Fuse 10a
• Fuse block (j/b) (below left side of dash)
• Hazard switch
• High beam ind
• Hot at all times
• Hot in on or start
• Illum
• Illum ctrl sw (+)
• Illum ctrl sw (-)
• Illumi- nation control switch (+)
• Illumi- nation control switch (-)
• Interior lights system
• Key ind (green)
• Key ind (red)
• Key switch & ignition knob switch
• Key switch & key lock solenoid (on right side of steering column)
• Left turn ind
• M14 (behind left end of dash)
• M25
• M301
• M302
• M78 (behind right end of dash)
• Malfunction ind lamp
• Meter illum
• Nca
• Odo/ trip meter switch
• Odo/trip meter & illumination control switch
• Odo/trip meter illum
• Odo/trip meter sw
• Oil ind
• P-shift ind
• Parking brake switch (behind left side of dash)
• Red
• Right turn ind
• Seat belt buckle switch
• Security ind
• Set ind
• Slip ind (w/ vdc)
• Speedo- meter
• Starting/ charging system
• Tachometer
• Tire pressure ind (if equipped)
• Unified meter control unit (w/ odo/trip meter & cvt ind)
• Vdc off ind (w/ vdc)
• W/ awd
• W/ intelligent key
• W/o intelligent key
• Washer ind
• Water temp gauge
• Wiper/washer system

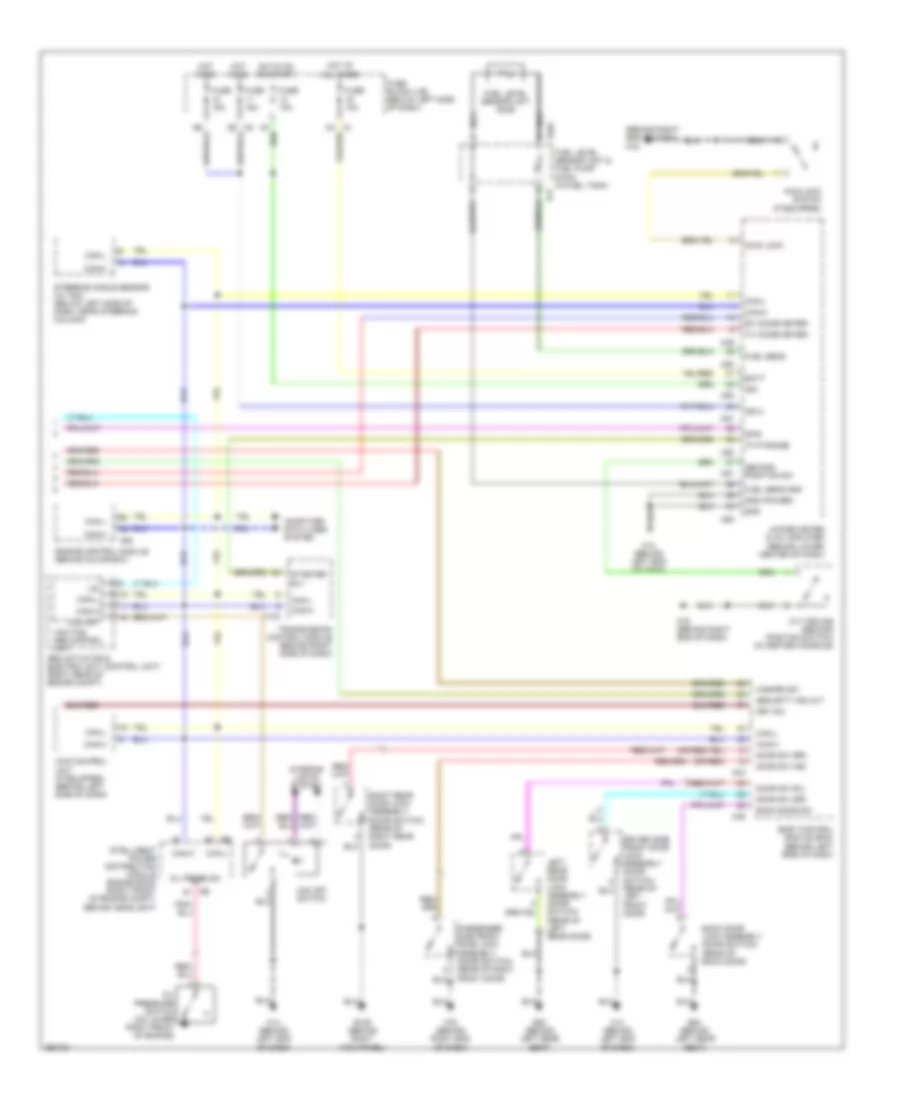

Электросхема панели приборов (2 из 2) для Nissan Murano SE 2007

Электросхема панели приборов (2 из 2) для Nissan Murano SE 2007 - Список элементов:

• (behind right end of dash) m78
• (or red)
• 8p/r
• Abs actuator & electric unit (control unit) (right rear of engine compt)
• All times
• At-p range
• Awd control unit (if equipped) (behind left side of dash)
• Awd lock
• Awd lock switch (if equipped)
• B105 (behind right kick panel)
• B17
• B20 (behind left rear seat)
• B401
• Back door lock assembly (door switch) (rear of back door)
• Back door sw
• Batt
• Body control module (bcm) (behind left side of dash)
• Can-h
• Can-l
• Computer data lines system
• Cvt device (second position switch) (in center console)
• Door sw (as)
• Door sw (dr)
• Door sw (rl)
• Door sw (rr)
• Driver side front door lock assembly (door switch) (rear of left front door)
• Engine control module (behind glove box)
• F103
• Fuel level sensor unit & fuel pump (main) (in fuel tank)
• Fuel level sensor unit (sub)
• Fuel sens
• Fuel sens gnd
• Fuse 10a
• Fuse 15a
• Fuse block (j/b) (below left side of dash)
• Gnd
• Gnd (power)
• Hazard sw
• Hot at
• Hot in on
• Hot in on or start
• Ign
• Ign 2
• Ill
• Intelligent power distribution module engine room (right front of engine compt, behind headlight)
• Interior lights system
• Key sw
• Left rear door lock assembly (door switch) (rear of left rear door)
• Lis
• M14 (behind left end of dash)
• M34
• M36
• M49
• M50
• M51
• M78 (behind right end of dash)
• M80
• Nca
• Oil press sw
• Oil pressure switch (on lower right front of engine)
• Passenger side front door lock assembly (door switch) (rear of right front door)
• Right rear door lock assembly (door switch) (rear of right rear door)
• Rx (comb meter)
• Second position sw
• Security ind out
• Starter rly
• Steering angle sensor (w/ vdc) (below left side of dash, near steering column)
• Transmission control module (behind right side of dash)
• Tx (comb meter)
• Unified meter & a/c amplifier (behind lower center of dash)
• Vdc off
• Vdc off switch
• Vdc/tcs/ abs control unit
