Электросхемы ПРИВОД ЛЮКА И КРЫШИ Nissan Murano S 2011

ПРИВОД ЛЮКА И КРЫШИ

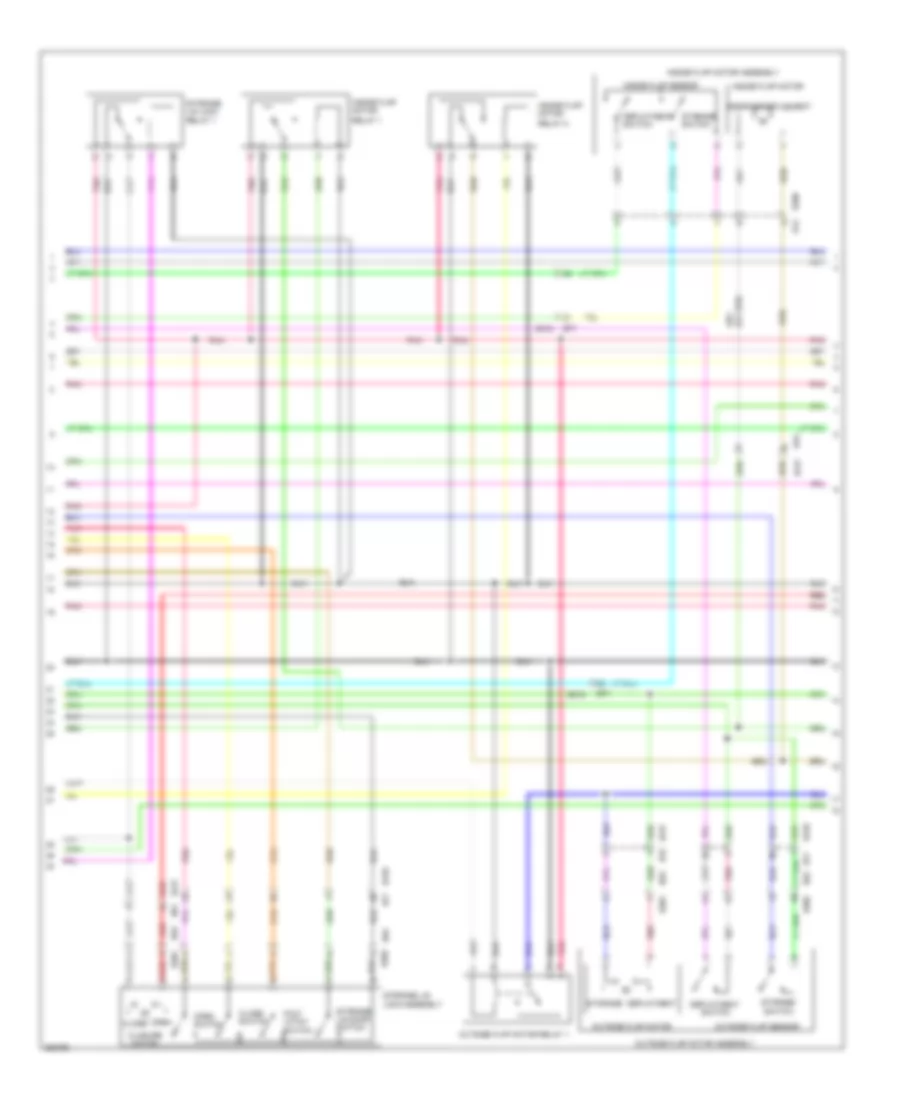

Электросхема привода люка или крыши (1 из 4) для Nissan Murano S 2011

Электросхема привода люка или крыши (1 из 4) для Nissan Murano S 2011 - Список элементов:

• (center of driver's door) driver side power window motor
• (center of front passenger door) passenger side front power window motor
• (left side of luggage compt) b26
• B11
• B26 (left side of luggage compt)
• B302
• B303
• B308
• B316
• B318
• B323
• B324
• B325
• B60
• B61
• B62
• B75
• B77
• Batt
• Can-h
• Can-l
• Close
• Close sw sig
• Closure mtr operate sig
• Combination meter (soft top)
• Computer data lines system
• D21
• D41
• Defogger system
• Deployment sw sig
• Exterior lights system
• Fuse & fusible link block (integral to fusible link holder)
• Fuse 15a
• Gnd
• Half latch sw sig
• Hot at all times
• In flap mtr rly 1
• In flap mtr rly 2
• Inside flap sens
• Left roof striker sensor
• Lh roof striker sens
• Local communication (bcm)
• Local communication (power window)
• M18
• M20
• M23
• M77
• Module
• Open
• Open sw sig
• Out flap mtr rly 1 on sig
• Out flap mtr rly 2 on sig
• Outside flap motor relay 2
• Outside flap sens
• Passenger front power window switch
• Pnk
• Power window main switch
• Pwr condition
• Rear pwr window pwr sply
• Red
• Revers sig
• Rh roof striker sens
• Right roof striker sensor
• Roof open/ close switch
• Roof open/close sw
• Roof status sig (audio)
• Roof status sig (ind)
• Rr wind defog in 1
• Rr wind defog in 2
• Sens pwr sply
• Signal roof status
• Soft top control unit
• Storage lid door sw sig
• Storage lid lock assembly
• Storage sw sig
• Strg lid lock rly 1 on sig
• Strg lid lock rly 2 on sig
• Tonneau board sw gnd
• Tonneau board sw sig
• Tonneau board switch
• Trunk lid lock assembly
• Trunk lid open sig
• Trunk lid opener actuator
• Trunk opener actuator
• Trunk room lamp sw
• Trunk room lamp switch

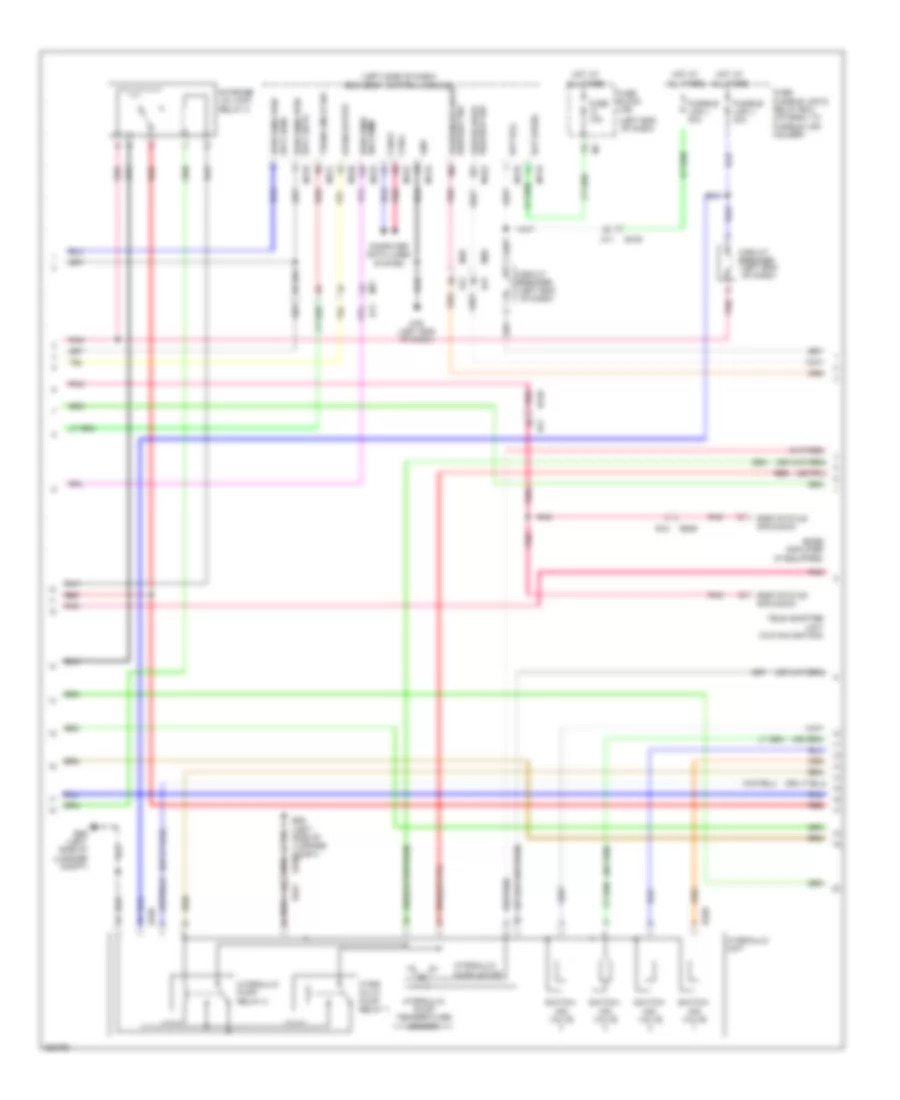

Электросхема привода люка или крыши (2 из 4) для Nissan Murano S 2011

Электросхема привода люка или крыши (2 из 4) для Nissan Murano S 2011 - Список элементов:

• B12
• B206
• B301
• B302
• B317
• B317 b76
• B318
• B318 b77
• B62
• B62 b302
• B63
• B76
• B77
• Close
• Close switch
• Closure motor
• Deployment
• Deployment switch
• Half latch switch
• Inside flap motor
• Inside flap motor assembly
• Inside flap sensor
• Open
• Open switch
• Outside flap motor
• Outside flap motor assembly
• Outside flap motor relay 1
• Outside flap sensor
• Pnk
• Red
• Relay 1
• Relay 2
• Storage
• Storage lid door switch
• Storage lid lock assembly
• Storage lid lock relay 1
• Storage switch

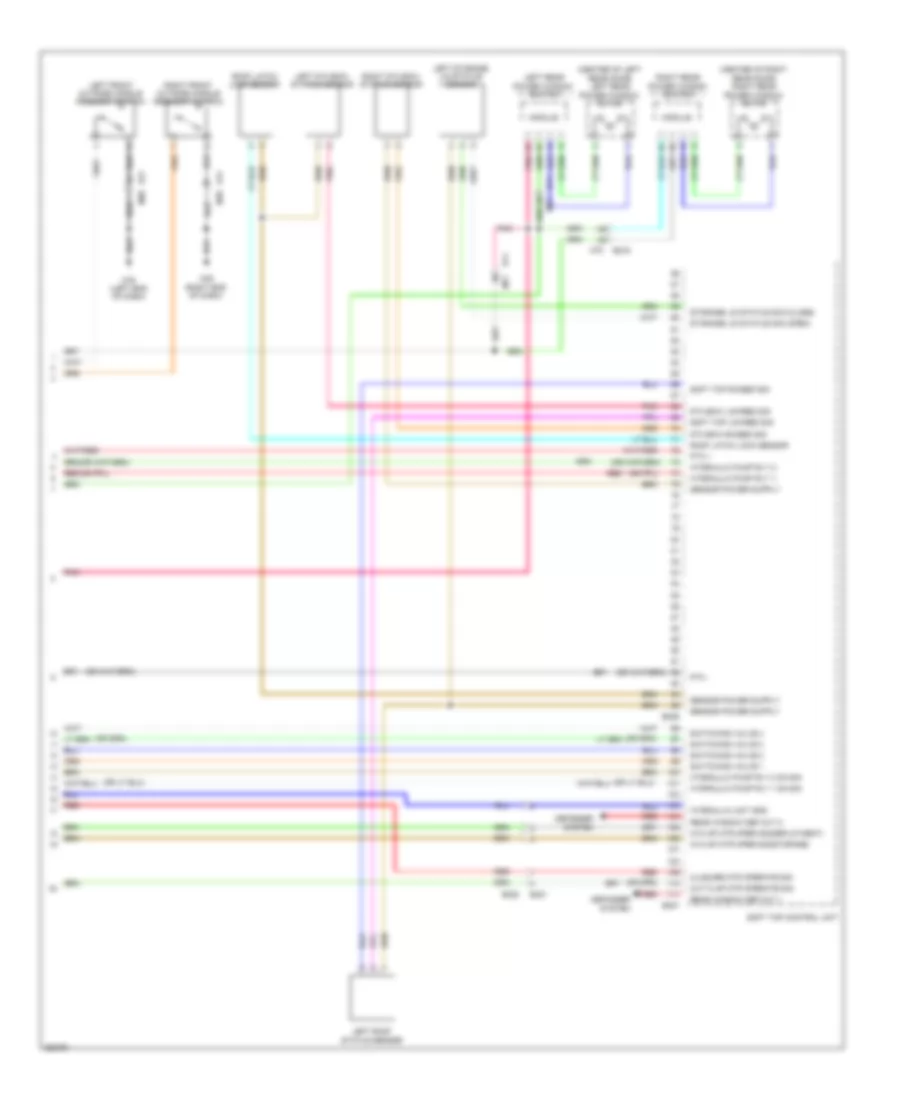

Электросхема привода люка или крыши (3 из 4) для Nissan Murano S 2011

Электросхема привода люка или крыши (3 из 4) для Nissan Murano S 2011 - Список элементов:

• (left end of dash)
• (left side of dash) bcm (body control module)
• B11
• B12
• B206
• B26 (left side of luggage compt)
• B26 (left side of luggage compt) b320
• B318
• B321
• B328
• B329
• B77
• Bat (f/l)
• Bat (fuse)
• Bose amplifier (if equipped)
• Can-h
• Can-l
• Circuit breaker
• Computer data lines system
• D21
• D41
• E105
• Fuse 10a
• Fuse block (j/b)
• Fuse, fusible link & relay box (intigral to fusible link holder)
• Fusible link j 40a
• Fusible link l 40a
• Gnd
• Hot at all times
• Hydr- aulic pump relay 1
• Hydraulic pump motor
• Hydraulic pump relay 2
• Hydraulic pump temperature sensor
• Hydraulic unit
• M11
• M118
• M119
• M120
• M121
• M122
• M123
• M18
• M20
• M76 (left end of dash)
• M77
• Open output
• Passenger door request sw
• Pnk
• Pwr wind pwr sply (bat)
• Pwr wind pwr sply (ign)
• Red
• Request sw driver door
• Roof status sig (audio)
• Storage lid lock relay 2
• Sw comm pwr wind
• Switch- ing valve
• Tele adapter unit (w/o navigation)
• Trunk rm lp sw

Электросхема привода люка или крыши (4 из 4) для Nissan Murano S 2011

Электросхема привода люка или крыши (4 из 4) для Nissan Murano S 2011 - Список элементов:

• (center of left rear door) left rear power window motor
• (center of right rear door) right rear power window motor
• 5th bow lowred sig
• 5th bow raised sig
• B11 m77
• B216
• B320
• B321
• B326
• B327
• Closure mtr operate sig
• D21 m20
• D41 m18
• Defogger system
• Hydraulic pump rly 1 on sig
• Hydraulic pump rly 1-
• Hydraulic pump rly 2 -
• Hydraulic pump rly 2 on sig
• Hydraulic unit gnd
• In flap mtr oper sig(deployment)
• In flap mtr oper sig(storage)
• Left 5th bow status sensor
• Left front outside handle (request switch)
• Left rear power window switch
• Left roof status sensor
• Left storage lid status sensor
• M35 (right end of dash)
• M70
• M76 (left end of dash)
• Module
• Out flap mtr operate sig
• Pnk
• Ptc +
• Ptc -
• Rear window def out 1
• Rear window def out 2
• Red
• Right 5th bow status sensor
• Right front outside handle (request switch)
• Right rear power window switch
• Roof latch lock sensor
• Soft top control unit
• Soft top lowred sig
• Soft top raised sig
• Storage lid status sig (close)
• Storage lid status sig (open)
• Switching valve 1
• Switching valve 2
• Switching valve 3
• Switching valve 4
