Электросхемы ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Nissan Murano S 2012

ПРИВОД СТЕКЛОПОДЪЕМНИКОВ

Электросхема стеклоподъемников, Кабриолет (1 из 2) для Nissan Murano S 2012

Электросхема стеклоподъемников, Кабриолет (1 из 2) для Nissan Murano S 2012 - Список элементов:

• +12v
• B11
• B219
• B318
• B323
• B77
• Bat (f/l)
• Bat (fuse)
• Bcm (body control module) (left side of dash)
• Between full stroke & n
• D21
• Driver front door lock assembly (door key cylinder switch) (rear of driver's door)
• Driver front door switch (left "b" pillar)
• Driver side front power window motor (center of driver's door)
• Drv door sw
• Encoder
• Full stroke
• Fuse & fusible link block (integral to fusible link holder)
• Fuse 10a
• Fuse block (j/b) (left end of dash)
• Fusible link l 40a
• Gnd
• Hot at all times
• Illumination
• Keyless entry receiver sig
• Local comm (bcm)
• Local comm (pwr wnd)
• Lock switch
• M118
• M119
• M122
• M123
• M20
• M44
• M76 (left end of dash)
• M77
• M77 b11
• Module
• Pass door sw
• Passenger front door switch (right "b" pillar)
• Pnk
• Power window lock switch
• Power window main switch
• Pwr sply
• Pwr wd pwr sply (bat)
• Pwr wd pwr sply (rap)
• Pwr window sw comm
• Receiver/sens gnd
• Red
• Remote keyless entry receiver (right end of dash)
• Sig
• Soft top control unit
• Unlock switch

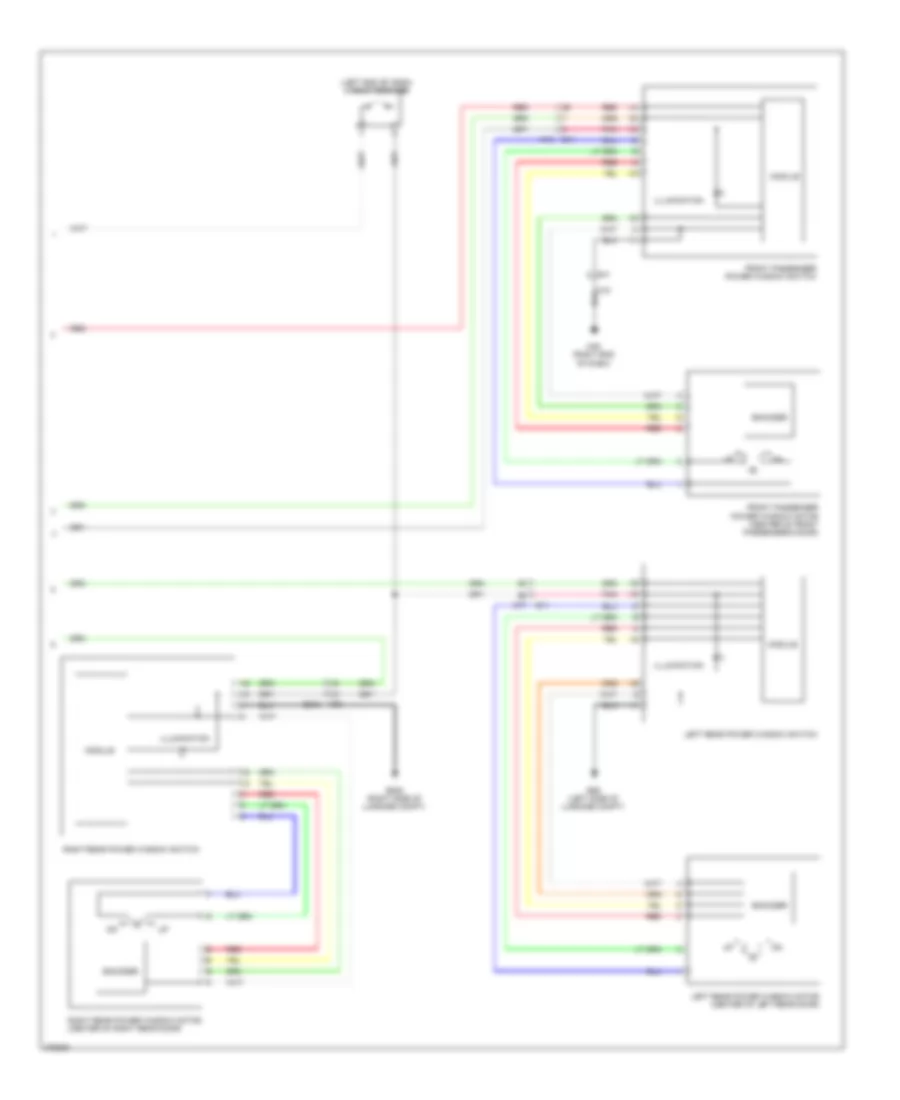

Электросхема стеклоподъемников, Кабриолет (2 из 2) для Nissan Murano S 2012

Электросхема стеклоподъемников, Кабриолет (2 из 2) для Nissan Murano S 2012 - Список элементов:

• (left end of dash) circuit breaker
• B11
• B208 (right side of luggage compt)
• B216
• B26 (left side of luggage compt)
• D41
• Encoder
• Front passenger power window motor (center of front passenger's door)
• Front passenger power window switch
• Illumination
• Left rear power window motor (center of left rear door)
• Left rear power window switch
• M18
• M35 (right end of dash)
• M70
• M77
• Module
• Pnk
• Red
• Right rear power window motor (center of right rear door)
• Right rear power window switch

Электросхема стеклоподъемников, Кабриолет Except (1 из 2) для Nissan Murano S 2012

Электросхема стеклоподъемников, Кабриолет Except (1 из 2) для Nissan Murano S 2012 - Список элементов:

• B11
• B219
• Bat (f/l)
• Bat (fuse)
• Bcm (body control module) (left side of dash)
• Between full stroke & n
• Cpu
• D21
• Driver front door lock assembly (door key cylinder switch) (rear of driver's door)
• Driver front door switch (left "b" pillar)
• Driver side front power window motor (center of driver's door)
• Drv door sw
• Encoder
• Full stroke
• Fuse & fusible link block (integral to fusible link holder)
• Fuse 10a
• Fuse block (j/b) (left end of dash)
• Fusible link l 40a
• Gnd
• Hot at all times
• Ill
• Keyless entry receiver sig
• Left rear
• Left rear door switch (left "c" pillar)
• Lh rear door sw
• Lock
• Lock switch
• M118
• M119
• M121
• M122
• M123
• M20
• M44
• M76 (left end of dash)
• M77
• Pass door sw
• Passenger front door switch (right "b" pillar)
• Pnk
• Power tops system
• Power window main switch
• Pwr sply
• Pwr wd pwr sply (bat)
• Pwr wd pwr sply (rap)
• Pwr window sw comm
• Receiver/sens gnd
• Red
• Rh rear door sw
• Right rear
• Right rear door switch (right "c" pillar)
• Unlock
• Unlock switch

Электросхема стеклоподъемников, Кабриолет Except (2 из 2) для Nissan Murano S 2012

Электросхема стеклоподъемников, Кабриолет Except (2 из 2) для Nissan Murano S 2012 - Список элементов:

• (right end of dash) remote keyless entry receiver
• 12v
• B11
• B216
• B218
• B218 d155
• B3 d81
• Cpu
• D155
• D41
• Encoder
• Front passenger power window motor (center of front passenger's door)
• Front passenger power window switch
• Gnd
• Illumination
• Left rear power window motor (center of left rear door)
• Left rear power window switch
• M18
• M35 (right end of dash)
• M70
• M70 b216
• M77
• Pnk
• Red
• Right rear power window motor (center of right rear door)
• Right rear power window switch
• Sig
