ПРИВОД СТЕКЛОПОДЪЕМНИКОВ

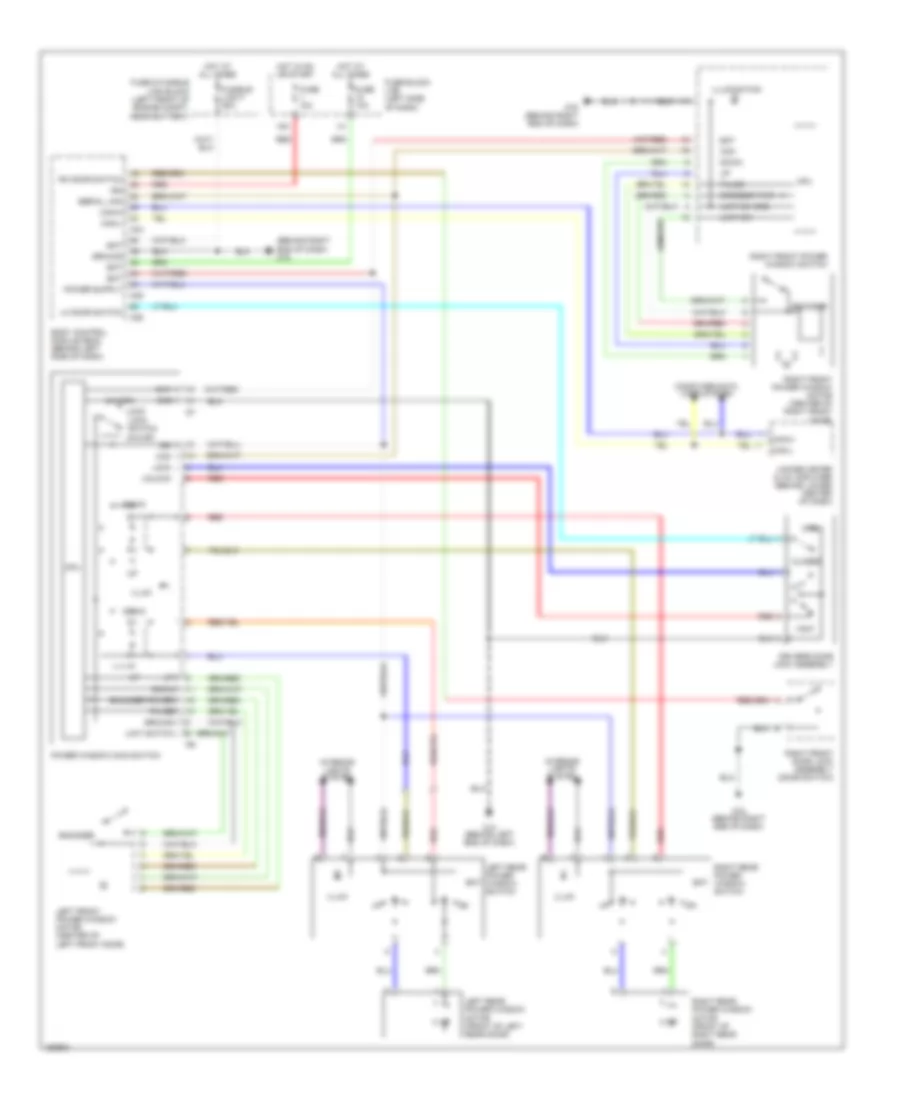

Электросхема стеклоподъемников для Nissan Murano SL 2004

Электросхема стеклоподъемников для Nissan Murano SL 2004 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема стеклоподъемников для Nissan Murano SL 2004 - Список элементов:

  • (behind right end of dash) m78
  • 15a
  • Bat
  • Body control module (bcm) (behind left side of dash)
  • Can-h
  • Can-l
  • Closed
  • Com
  • Computer data lines system
  • Cpu
  • Down
  • Drivers door lock assembly
  • Encoder
  • Encoder power
  • Encoder pwr
  • Fuse & fusible link block (left front of engine compt, near battery)
  • Fuse 10a
  • Fuse block (j/b) (left side of dash)
  • Fusible link f 50a
  • Gnd
  • Ground
  • Hot at all times
  • Hot in on or start
  • Ign
  • Illum
  • Illumination
  • Interior lights system
  • Left front power window motor (center of left front door)
  • Left rear power window motor (front of left rear door)
  • Left rear power window switch
  • Lh door switch
  • Limit sw
  • Limit sw gnd
  • Limit switch
  • Lock
  • Lock switch unlock
  • M14 (behind left end of dash)
  • M34
  • M35
  • M36
  • M78 (behind right end of dash)
  • Open
  • Power window main switch
  • Pulse
  • Red
  • Rh door switch
  • Right front door lock assembly (door switch)
  • Right front power window motor (center of right front door)
  • Right front power window switch
  • Right rear power window motor (front of right rear door)
  • Right rear power window switch
  • Serial link
  • Unified meter & a/c amplifier (behind lower center of dash)
  • Unlk
  • Unlock
