ПРИВОД СТЕКЛОПОДЪЕМНИКОВ

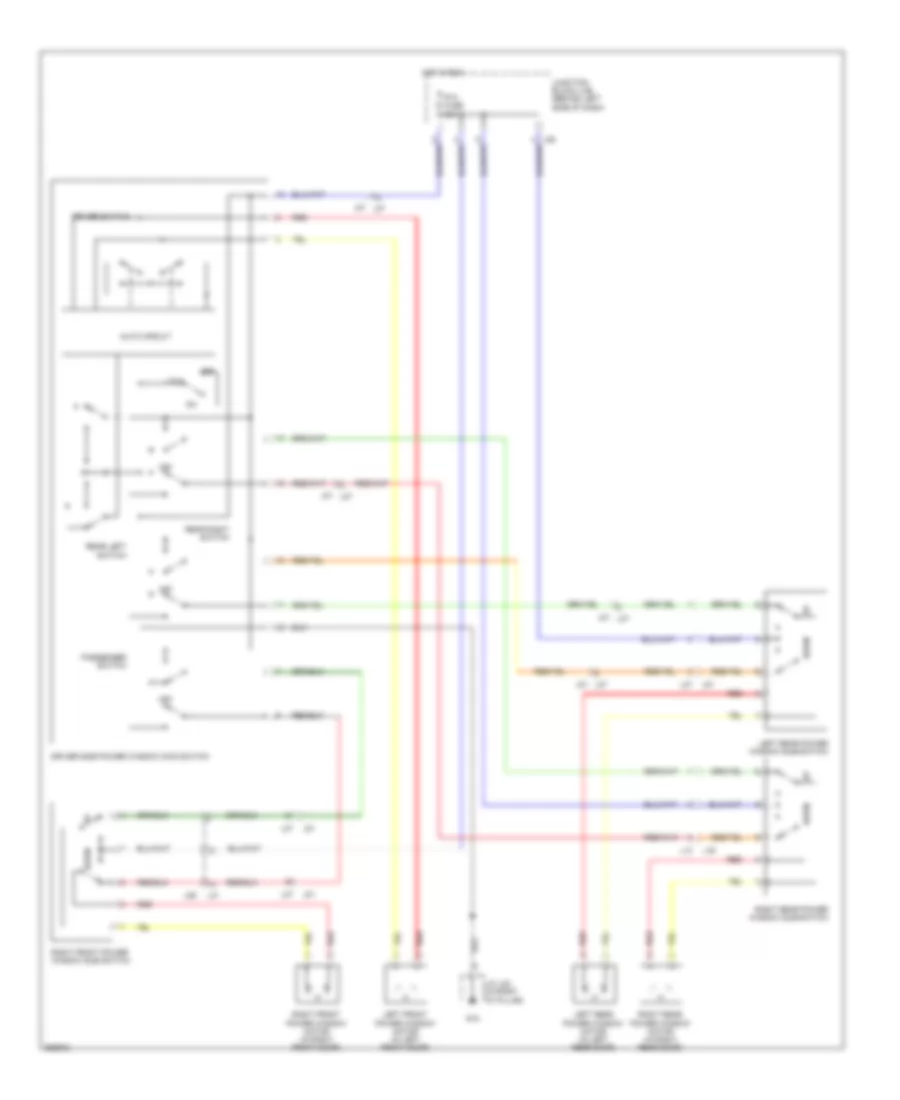

Электросхема стеклоподъемников для Suzuki Grand Vitara 2013

Электросхема стеклоподъемников для Suzuki Grand Vitara 2013 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема стеклоподъемников для Suzuki Grand Vitara 2013 - Список элементов:

  • Auto circuit
  • Down
  • Driver side power window main switch
  • Driver switch
  • G18
  • Hot in run
  • J/c l22 (in right "d" pillar)
  • J01
  • J01 l07
  • J09
  • J16
  • J21
  • Junction block (j/b) (behind left side of dash)
  • L06
  • L07
  • L13
  • L31
  • L37
  • Left front power window motor (in left front door)
  • Left rear power window motor (in left rear door)
  • Left rear power window sub-switch
  • Lock
  • Off
  • P/w fuse 30a
  • Passenger switch
  • Rear left switch
  • Rear right switch
  • Red
  • Right front power window motor (in right front door)
  • Right front power window sub switch
  • Right rear power window motor (in right rear door)
  • Right rear power window sub-switch
