Электросхемы Противоугонная система Сигнализация Mitsubishi Montero Sport LS 2000

Противоугонная система Сигнализация

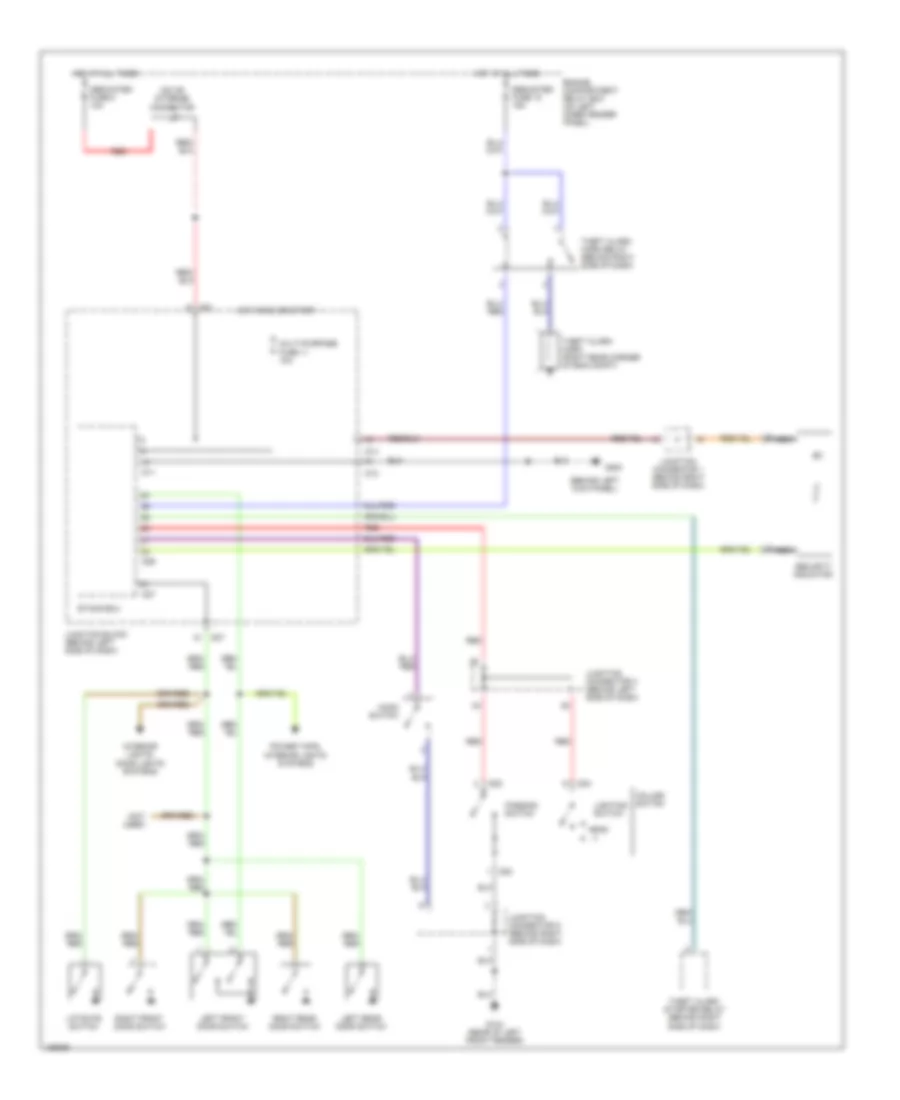

противоугонная цепь аварийной сигнализации для Mitsubishi Montero Sport LS 2000

противоугонная цепь аварийной сигнализации для Mitsubishi Montero Sport LS 2000 - Список элементов:

• (behind left kick panel)
• (not used)
• Column switch
• D01
• D11
• D13
• D14
• D22
• D24
• D26
• D27
• Dedicated fuse 15 15a
• Dedicated fuse 5 10a
• Engine compartment relay box (on left inner fender panel)
• Etacs ecu
• G104 (rear of left front fender)
• G200
• Head
• Hood switch
• Hot at all times
• Hot in run or start
• Interior lights, door lights systems
• Iod or storage connector
• Junction block (behind left side of dash)
• Junction connector 1 (behind right side of dash)
• Junction connector 3 (behind left side of dash)
• Junction connector 5 (behind right side of dash)
• Left front door switch
• Left rear door switch
• Liftgate switch
• Lighting switch
• Multi-purpose fuse 11 10a
• Nca
• Passing switch
• Power tops, interior lights systems
• Red
• Right front door switch
• Right rear door switch
• Security indicator
• Theft alarm horn (right rear corner of eng compt)
• Theft alarm horn relay (behind right side of dash)
• Theft alarm starter relay (behind right side of dash)

Электросхема иммобилайзера для Mitsubishi Montero Sport LS 2000

Электросхема иммобилайзера для Mitsubishi Montero Sport LS 2000 - Список элементов:

• (behind left kick panel)
• All times
• C14
• C90
• C92
• D01
• Dedicated fuse 5 20a
• Dedicated fuse 8 15a
• Engine comp- artment relay box (on left side of eng compt)
• Fusible link 2 20a
• G200
• Hot at
• Ignition key
• Ignition key ring antenna
• Immobilizer ecu (behind center of dash)
• Iod or storage connector
• J/c 1 (right end of dash)
• J/c 5 (right end of dash)
• Junction block (left side of dash)
• Key reminder switch
• Multiport fuel injection relay (behind right kick panel)
• Nca
• Powertrain control module (behind right side of dash)
• Red
• Security indicator
• Stoplight switch (above brake pedal)
• W/ cruise control
• W/o cruise control
