Электросхемы Противоугонная система Сигнализация Mitsubishi Outlander Sport ES 2011

Противоугонная система Сигнализация

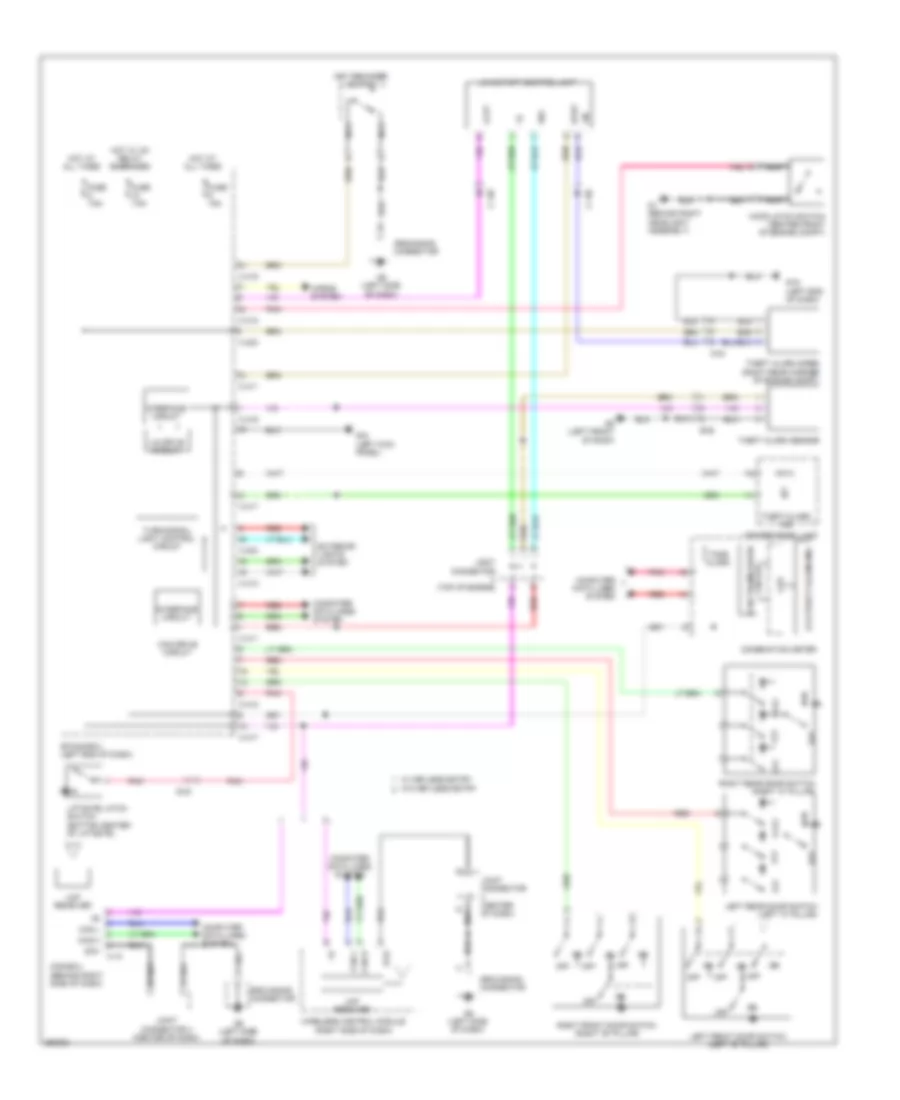

Электросхема открывания авто, С Сирена Предупреждения Воровства для Mitsubishi Outlander Sport ES 2011

Электросхема открывания авто, С Сирена Предупреждения Воровства для Mitsubishi Outlander Sport ES 2011 - Список элементов:

• A-04
• C-10
• C-128
• C-403
• C-410
• C-411
• C-412
• C-413
• C-415
• C-416
• C-417
• Can drive circuit
• Can h
• Can l
• Can transceiver circuit
• Center panel unit
• Combination meter
• Computer data lines system
• Cpu
• E-02
• Etacs-ecu (left end of dash)
• Eth
• Exterior lights system
• Fuse 15a
• Fuse 7.5a
• G-23
• G1 (behind right headlight assembly)
• G18 (left kick panel)
• G19 (left end of dash)
• G6 (left side of dash)
• G8 (left front of roof)
• Grounding connector
• Hood latch switch (center front of engine compt)
• Horns system
• Hot at all times
• Hot w/ ig1 relay energized
• Htbt
• Interface circuit
• Joint connector (center of dash)
• Joint connector (top of engine)
• Joint connector 4 (center of dash)
• Key reminder switch
• Kos-ecu (behind right side of dash)
• Lcd (theft-alarm ind)
• Lcut
• Left front door switch (left "b" pillar)
• Left rear door switch (left "c" pillar)
• Liftgate latch switch (bottom center of liftgate)
• Lin
• Lin cut off control unit
• Lin drive circuit
• Nca
• Off
• Pnk
• Red
• Right front door switch (right "b" pillar)
• Right rear door switch (right "c" pillar)
• Theft alarm sensor
• Theft alarm siren (right rear corner of engine compt)
• Theft-alarm ind
• Tone alarm
• Turn-signal light control circuit
• Uhf receiver
• Un1
• W/ keyless entry
• W/o keyless entry
• Wireless control module (right side of dash)

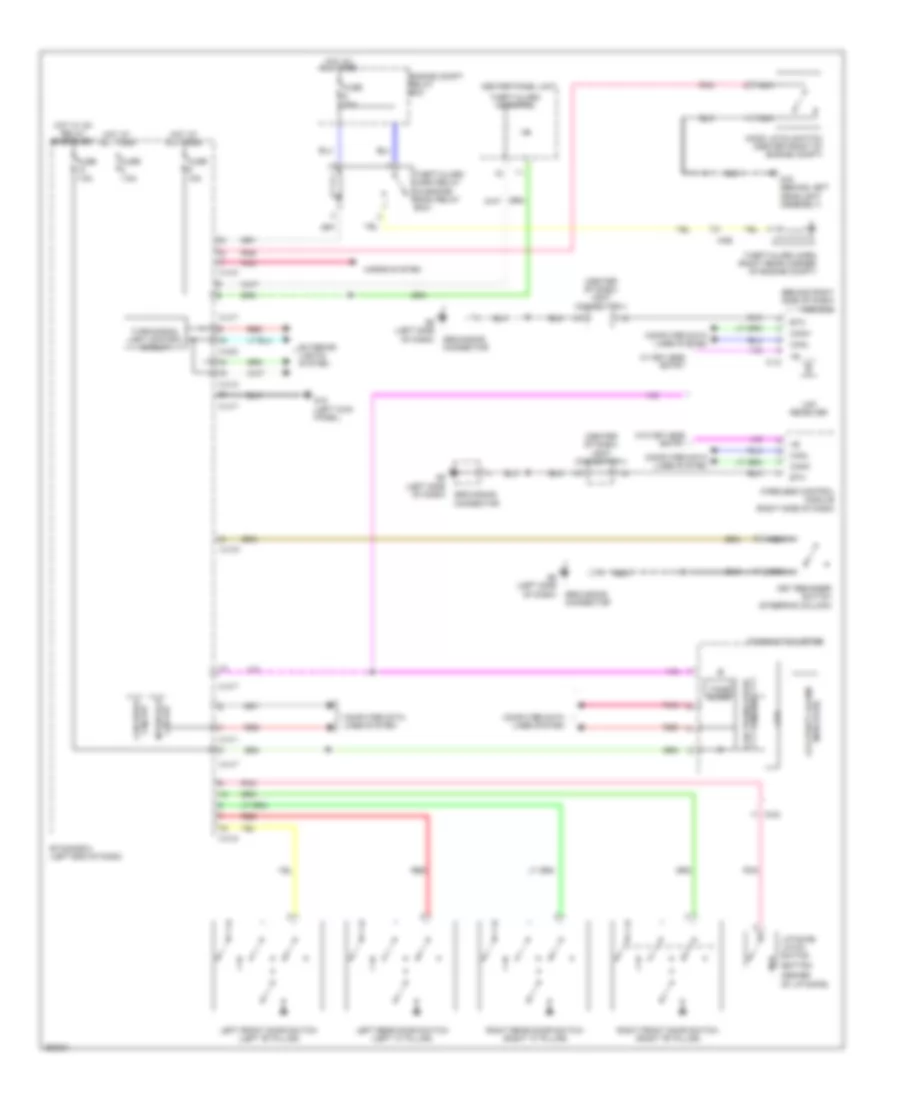

Электросхема открывания авто, без Сирена Предупреждения Воровства для Mitsubishi Outlander Sport ES 2011

Электросхема открывания авто, без Сирена Предупреждения Воровства для Mitsubishi Outlander Sport ES 2011 - Список элементов:

• (behind right side of dash) kos-ecu
• (bottom
• (center of dash) joint connector 4
• A-66
• C-10
• C-403
• C-410
• C-411
• C-412
• C-413
• C-415
• C-417
• Can drive circuit
• Canh
• Canl
• Center of liftgate)
• Center panel unit
• Circuit can transceiver
• Circuit interface
• Combination meter
• Computer data lines system
• Cpu
• Engine compt relay box
• Etacs-ecu (left end of dash)
• Eth
• Exterior lights system
• Fuse 15a
• Fuse 20a
• Fuse 7.5a
• G-23
• G16 (behind left headlight assembly)
• G18 (left kick panel)
• G6 (left side of dash)
• Grounding connector
• Hood latch switch (center front of engine compt)
• Horns system
• Hot at all times
• Hot w/ ig1 relay energized
• Indicator) lcd (theft alarm
• Key reminder switch (steering column)
• Left front door switch (left "b" pillar)
• Left rear door switch (left "c" pillar)
• Liftgate latch switch
• Nca
• Pnk
• Red
• Right front door switch (right "b" pillar)
• Right rear door switch (right "c" pillar)
• Theft-alarm horn (right rear corner of engine compt)
• Theft-alarm horn relay (in engine room relay box)
• Theft-alarm indicator
• Tone alarm
• Turn-signal light control circuit
• Uhf receiver
• W/ keyless entry
• W/o keyless entry
• Wireless control module (right side of dash)

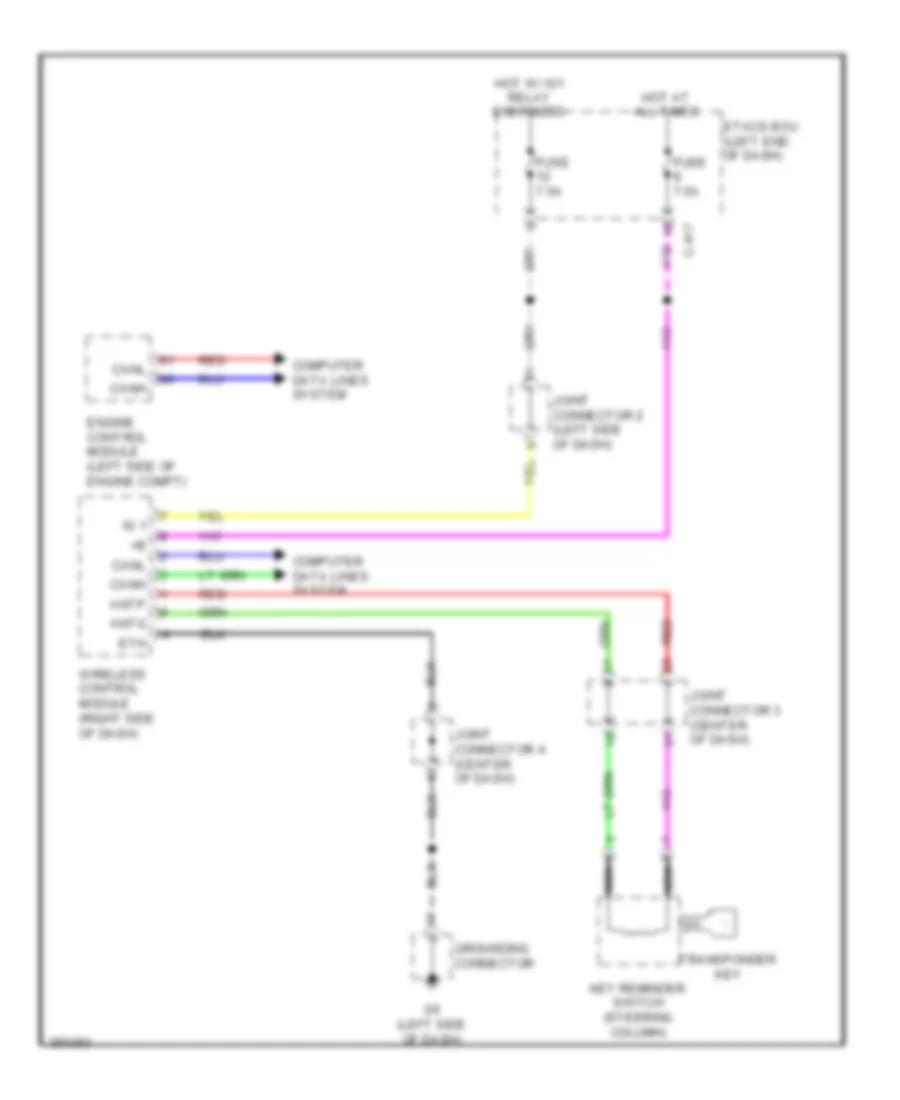

Электросхема иммобилайзера для Mitsubishi Outlander Sport ES 2011

Электросхема иммобилайзера для Mitsubishi Outlander Sport ES 2011 - Список элементов:

• Antg
• Antp
• C-417
• Canh
• Canl
• Computer data lines system
• Engine control module (left side of engine compt)
• Etacs-ecu (left end of dash)
• Eth
• Fuse 7.5a
• G6 (left side of dash)
• Grounding connector
• Hot at all times
• Hot w/ ig1 relay energized
• Ig 1
• Joint connector 2 (left side of dash)
• Joint connector 3 (center of dash)
• Joint connector 4 (center of dash)
• Key reminder switch (steering column)
• Nca
• Red
• Transponder key
• Wireless control module (right side of dash)
