Электросхемы Противоугонная система Сигнализация Nissan Murano SE 2007

Противоугонная система Сигнализация

Электросхема открывания авто для Nissan Murano SE 2007

Электросхема открывания авто для Nissan Murano SE 2007 - Список элементов:

• (behind left end of dash) m14
• (behind right end of dash) m78
• (behind right side of dash) (if equipped) intelligent key unit
• (below left headlight) horn (low)
• (below right headlight) horn (high)
• (or red)
• 12a m1
• 4b m2
• Acc
• B105 (behind right kick panel)
• B20 (behind left rear seat)
• Back door lock assembly (door switch) (lower center of back door)
• Back door sw
• Bat (f/l)
• Bat (fuse)
• Between full stroke & n
• Body control module (behind left side of dash)
• Can-h
• Can-l
• Closed
• Com
• Combination meter
• Computer data lines system
• Cpu
• Door key cylinder switch (in driver's door)
• Door sw (as)
• Door sw (dr)
• Door sw (rl)
• Door sw (rr)
• E28 (right side of engine compt)
• Front door lock assembly (driver side door key cylinder switch) (rear of left front door)
• Front door lock assembly (driver side door switch) (rear of left front door)
• Front door lock assembly (passenger side door switch) (rear of right front door)
• Front power window switch (passenger side door lock & unlock switch)
• Full stroke
• Full stroke unlock switch
• Fuse & fusible link block (left front of engine compt, near battery)
• Fuse 10a
• Fuse 15a
• Fuse block (j/b) (below left side of dash)
• Fusible link f 50a
• Gnd
• Gnd (pwr)
• Headlamp high relay
• Headlamp low relay
• Headlights system
• Horn relay (in fuse & fusible link box)
• Horns system
• Hot at all times
• Hot in acc or on
• Intelligent power distribution module engine room (ipdm e/r) (right front of engine compt, behind headlight)
• Left rear door lock assembly (door switch) (rear of left rear door)
• Lock
• Lock switch
• Lock switch full stroke
• M14 (behind left end of dash)
• M25
• M34
• M35
• M36
• M78 (behind right end of dash)
• Open
• Power window main switch (door lock & unlock switch)
• Pwr win serial link
• Red
• Right rear door lock assembly (door switch) (rear of right rear door)
• Security ind out
• Security indicator lamp
• Unlock
• Unlock switch
• W/ intelligent key
• W/o intelligent key

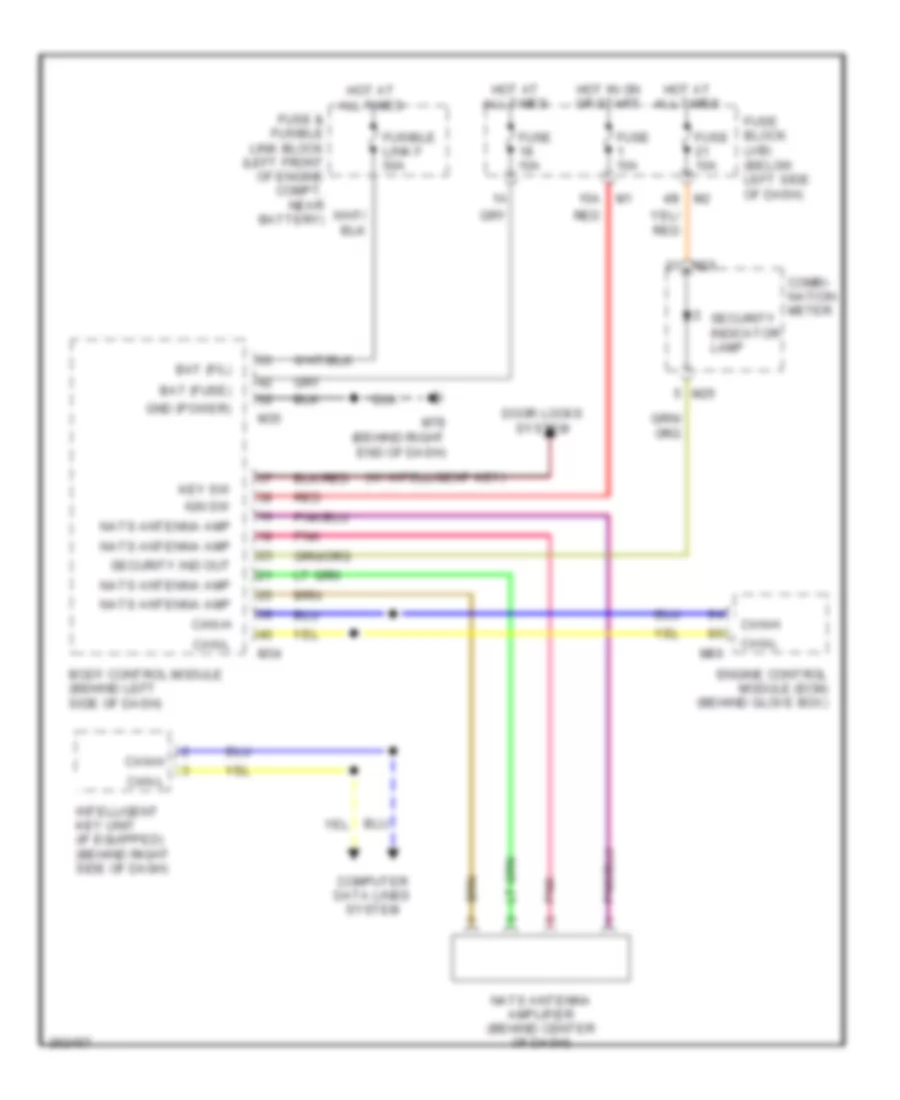

Электросхема иммобилайзера для Nissan Murano SE 2007

Электросхема иммобилайзера для Nissan Murano SE 2007 - Список элементов:

• (w/ intelligent key)
• 15a m1
• 4b m2
• Bat (f/l)
• Bat (fuse)
• Body control module (behind left side of dash)
• Can-h
• Can-l
• Combi- nation meter
• Computer data lines system
• Door locks system
• Engine control module (ecm) (behind glove box)
• Fuse & fusible link block (left front of engine compt, near battery)
• Fuse 10a
• Fuse block (j/b) (below left side of dash)
• Fusible link f 50a
• Gnd (power)
• Hot at all times
• Hot in on or start
• Ign sw
• Intelligent key unit (if equipped) (behind right side of dash)
• Key sw
• M25
• M34
• M35
• M78 (behind right end of dash)
• M80
• Nats antenna amp
• Nats antenna amplifier (behind center of dash)
• Pnk
• Red
• Security ind out
• Security indicator lamp
