Электросхемы СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS Nissan Murano SL 2004

СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS

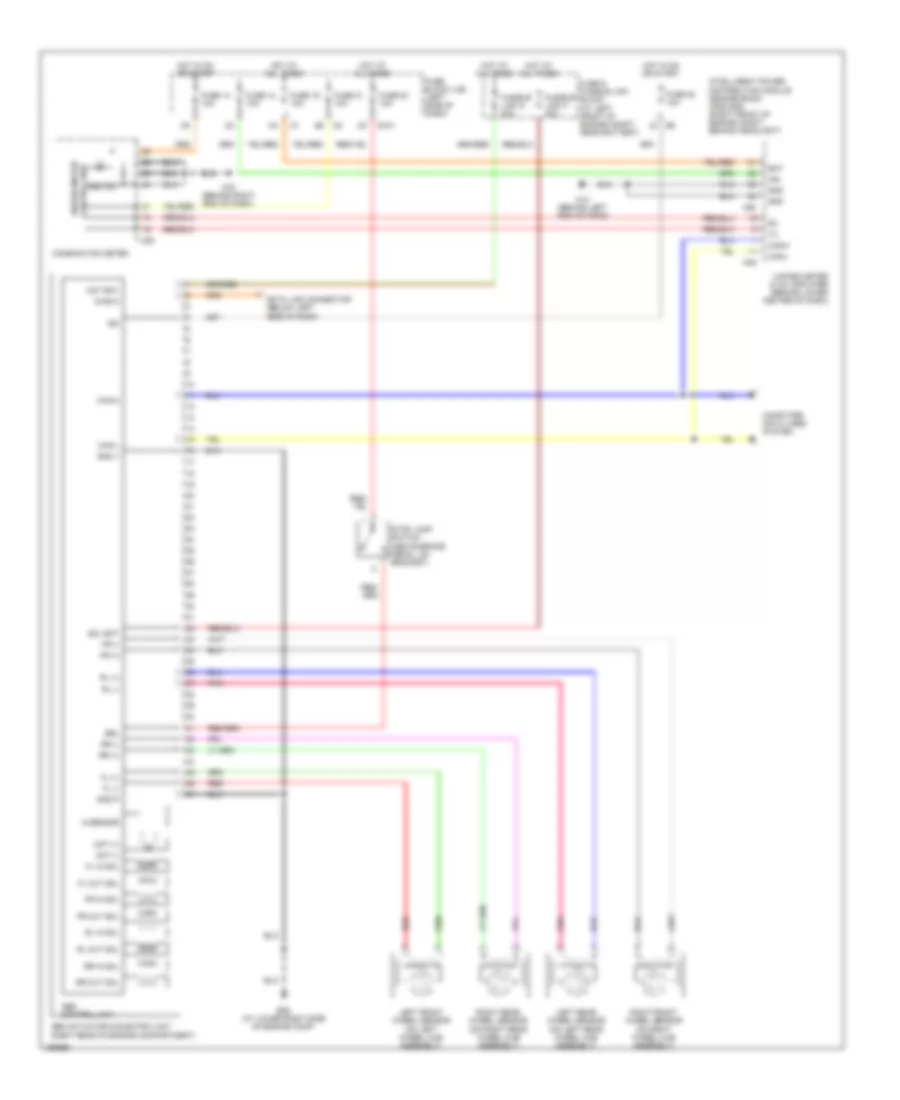

Электросхема антиблокировочной тормозной системы АБС (ABS), С Регулирование тягового усилия для Nissan Murano SL 2004

Электросхема антиблокировочной тормозной системы АБС (ABS), С Регулирование тягового усилия для Nissan Murano SL 2004 - Список элементов:

• Abs actuator & electric unit (at right rear of engine compt)
• Abs ind control unit
• Bat
• Brake fluid level switch (on master cylinder fluid reservoir)
• Brl
• Can-h
• Can-l
• Can1-h
• Can1-l
• Can2-h
• Can2-l
• Clus gnd
• Clus sp
• Combination meter
• Computer data lines system
• Data link connector (below left side of dash)
• Diag k
• Diag l
• Drv 1 gnd
• Drv 1 sig
• Drv 1 ss
• E101
• E13 (at left front corner of eng comp)
• E26 (at lower right side of engine compt)
• Fl (+)
• Fl (-)
• Fl in sol
• Fl out sol
• Fr (+)
• Fr (-)
• Fr in sol
• Fr out sol
• Fuse & fusible link block (left front of engine compt, near battery)
• Fuse 12 10a
• Fuse 14 10a
• Fuse 19 10a
• Fuse 20 10a
• Fuse 21 10a
• Fuse 82 10a
• Fuse block (j/b) (left side of dash)
• Fusible link h 30a
• Fusible link j 50a
• Gnd
• Gnd p
• Gnd v
• Hot at all times
• Hot in on or start
• Hsv1
• Hsv2
• Ign
• Illum
• Intelligent power distribution module (engine room) (ipdm e/r) (right front of engine compt, behind headlight)
• Interior lights system
• Left front wheel sensor (on left wheel hub assembly)
• Left rear wheel sensor (on left rear wheel hub assembly)
• Lis
• M14 (behnd left end of dash)
• M25
• M49
• M50
• M78 (behind right end of dash)
• M78 (behnd right end of dash)
• Mot (+)
• Mot (-)
• Mot bat
• Pnk
• Pressure sensor (at left rear of engine compt)
• Red
• Right front wheel sensor (on right wheel hub assembly)
• Right rear wheel sensor (on right rear wheel hub assembly)
• Rl (+)
• Rl (-)
• Rl in sol
• Rl out sol
• Rr (-)
• Rr +
• Rr in sol
• Rr out sol
• Slip ind
• Sol bat
• Steering angle sensor (below left side of dash, near steering column)
• Stop lamp switch (above brake pedal, on bracket)
• Unified meter
• Unified meter & a/c amplifier (behind lower center of dash)
• Usv1
• Usv2
• V out
• Vcc
• Vdc off
• Vdc off ind
• Vdc off switch
• Vdc/tcs/abs control unit
• Yaw rate/side/ decel g sensor (below center console)

Электросхема антиблокировочной тормозной системы АБС (ABS), без Регулирование тягового усилия для Nissan Murano SL 2004

Электросхема антиблокировочной тормозной системы АБС (ABS), без Регулирование тягового усилия для Nissan Murano SL 2004 - Список элементов:

• Abs actuator & electric unit (right rear of engine compartment)
• Abs control unit
• Abs ind
• Bat
• Brl
• Can-h
• Can-l
• Combination meter
• Computer data lines system
• Control unit
• Data link connector (below left side of dash)
• Diag k
• E101
• E26 (at lower right side of engine comp)
• Fl (+)
• Fl (-)
• Fl in sol
• Fl out sol
• Fr (+)
• Fr (-)
• Fr in sol
• Fr out sol
• Fuse & fusible link block (at left front of engine compt, near battery)
• Fuse 12 10a
• Fuse 14 10a
• Fuse 19 10a
• Fuse 20 10a
• Fuse 21 10a
• Fuse 82 10a
• Fuse block (j/b) (left side of dash)
• Fusible link g 30a
• Fusible link h 30a
• G sensor
• Gnd
• Gnd p
• Gnd v
• Hot at all times
• Hot in on or start
• Ign
• Intelligent power distribution module (engine room) (ipdm e/r) (right front of engine compt, behind headlight)
• Left front wheel sensor (on left wheel hub assembly)
• Left rear wheel sensor (on left rear wheel hub assembly)
• M14 (behind left end of dash)
• M25
• M49
• M50
• M78 (behind right end of dash)
• Mot (+)
• Mot (-)
• Mot bat
• Pnk
• Red
• Right front wheel sensor (on right wheel hub assembly)
• Right rear wheel sensor (on right rear wheel hub assembly)
• Rl (+)
• Rl (-)
• Rl in sol
• Rl out sol
• Rr (+)
• Rr (-)
• Rr in sol
• Rr out sol
• Sol bat
• Stop lamp switch (above brake pedal, on bracket)
• Unified meter
• Unified meter & a/c amplifier (behind lower center of dash)
