Электросхемы Система Фар Suzuki Grand Vitara 2013

Система Фар

Электросхема фар, С СКРЫТЫЕ Фары для Suzuki Grand Vitara 2013

Электросхема фар, С СКРЫТЫЕ Фары для Suzuki Grand Vitara 2013 - Список элементов:

• (behind right side of dash) junction connector g78
• Beam ind
• Body control module (bcm) (behind left side of dash)
• Can
• Combination meter
• Combination switch
• Computer data lines system
• Cpu
• Dimmer/ passing switch
• Diode 1 (behind instrument cluster)
• Drl ind
• E35
• E74
• E78 g05
• E82
• Flash
• Fr fog fuse 20a
• Front fog light relay
• Front fog light switch
• Fuse box 1 (right rear of engine compt)
• Fuse box 2 (left rear of engine compt)
• G03
• G11
• G16 (behind right center of dash)
• G16 (right kick panel)
• G17 (on steering column assembly)
• G30
• G31
• G32
• G36
• G6 (behind right headlight assembly)
• G7 (behind right headlight assembly)
• G8 (behind left headlight assembly)
• H/l fuse 10a
• H/l l fuse 10a
• H/l lo l fuse 15a
• H/l lo r fuse 15a
• H/l r fuse 10a
• Head
• Headlight high relay (in fuse box 2)
• Headlight low relay (in fuse box 2)
• High
• Hot at all times
• Junction block (j/b) (behind left side of dash)
• Junction connector g09 (under left side of dash)
• Junction connector g76 (behind left side of dash)
• Junction connector g77 (behind right side of dash)
• Junction connector g81 (behind left side of dash)
• Junction connector g82 (behind left end of dash)
• Lamp fuse 60a
• Left front fog light
• Left head- light (high)
• Left hid head- light
• Light switch
• Low
• Meter fuse 10a
• Off
• Parking brake switch (in center floor console)
• Power inte- gration 1
• Red
• Right front fog light
• Right head- light (high)
• Right hid head- light
• Tail
• Tail fuse 10a
• Tail light relay

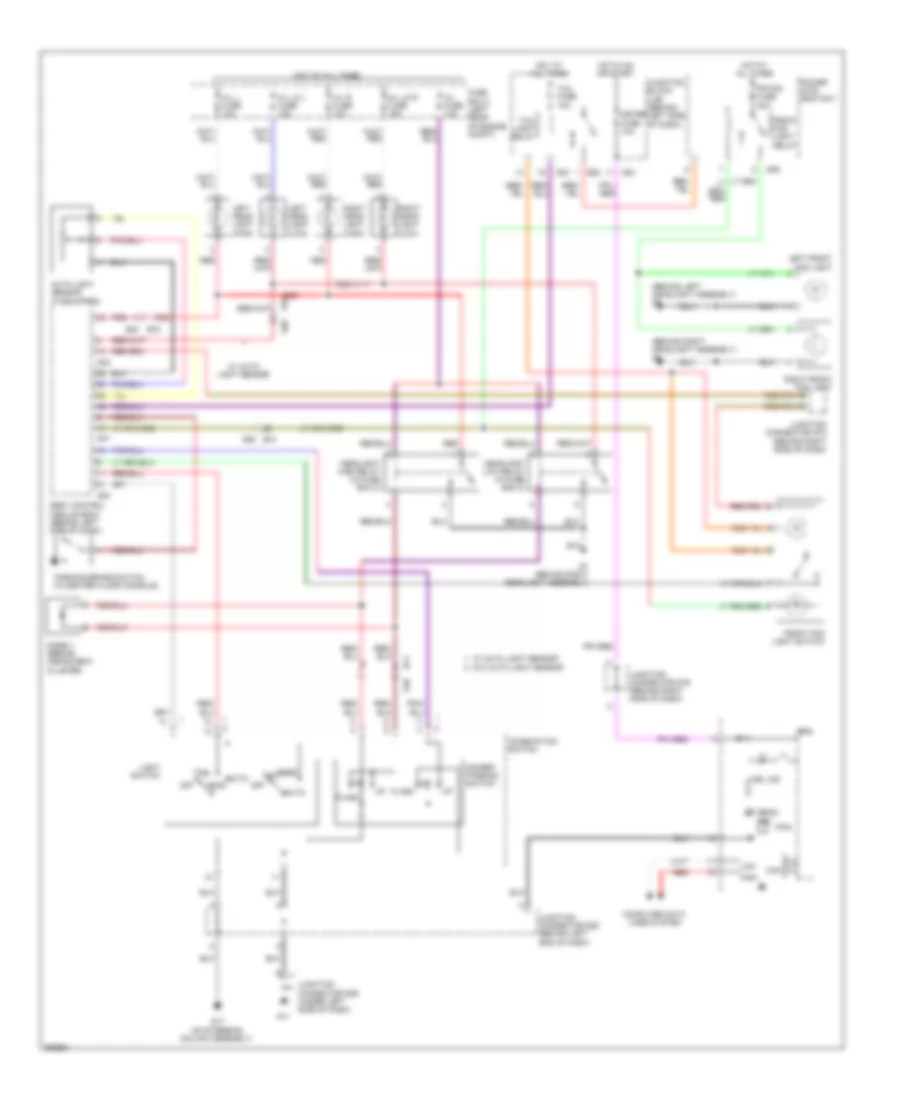

Электросхема фар, без СКРЫТЫЕ Фары для Suzuki Grand Vitara 2013

Электросхема фар, без СКРЫТЫЕ Фары для Suzuki Grand Vitara 2013 - Список элементов:

• (behind left headlight assembly) g8
• (behind right headlight assembly) g6
• Auto
• Auto light sensor (if equipped)
• Beam ind
• Body control module (bcm) (behind left side of dash)
• Can
• Combination switch
• Computer data lines system
• Cpu
• Dimmer/ passing switch
• Diode 1 (behind instrument cluster)
• Drl ind
• E35
• E74
• E74 g36
• E78
• E82
• Flash
• Fr fog fuse 20a
• Front fog light relay
• Front fog light switch
• Fuse box 2 (left rear of engine compt)
• G03
• G05
• G05 e78
• G11
• G17 (on steering column assembly)
• G30
• G31
• G32
• G36
• G7 (behind right headlight assembly)
• H/l fuse 10a
• H/l l fuse 10a
• H/l lo l fuse 15a
• H/l lo r fuse 15a
• H/l r fuse 10a
• Head
• Headlight high relay (in fuse box 2)
• Headlight low relay (in fuse box 2)
• High
• Hot at all times
• Hot in on or start
• Junction block (j/b) (behind left side of dash)
• Junction connector g09 (under left side of dash)
• Junction connector g76 (behind right side of dash)
• Junction connector g78 (behind right side of dash)
• Junction connector g82 (behind left end of dash)
• Left front fog light
• Left head- light (high)
• Left head- light (low)
• Light switch
• Low
• Meter fuse 10a
• Off
• Parking brake switch (in center floor console)
• Power inte- gration 1
• Red
• Right front fog light
• Right head- light (high)
• Right head- light (low)
• Tail
• Tail fuse 10a
• Tail light relay
• W/ auto light sensor
• W/o auto light sensor

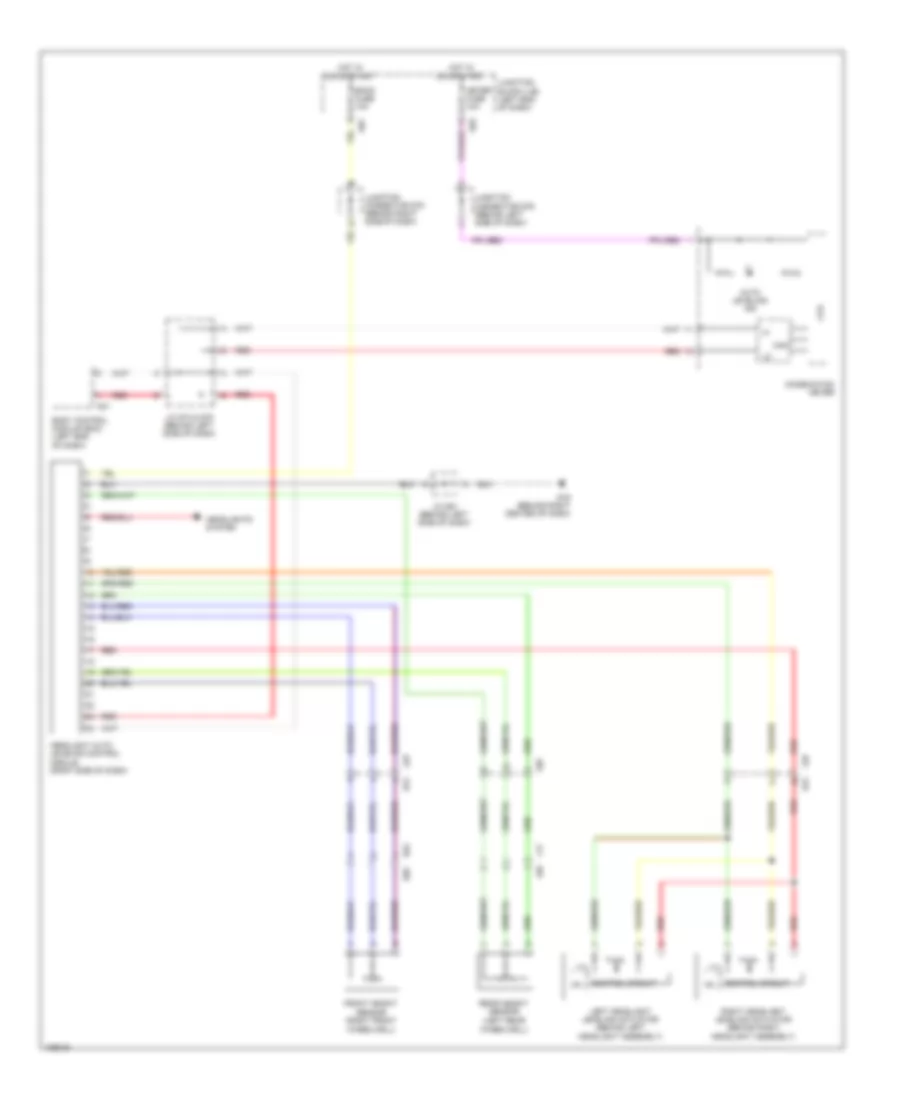

Электросхема корректора фар, тип 1 для Suzuki Grand Vitara 2013

Электросхема корректора фар, тип 1 для Suzuki Grand Vitara 2013 - Список элементов:

• (left rear wheelwell)
• Auto leveling ind
• Back fuse 10a
• Body control module (bcm) (left end of dash)
• Can
• Combination meter
• Control circuit
• Cpu
• E52
• E75
• E85
• Front height sensor (right front wheelwell)
• G01
• G03
• G07
• G16 (behind right center of dash)
• G31
• G37
• Headlight auto leveling control module (right side of dash)
• Headlights system
• Hot in on or start
• J/c g74 & g75 (behind left side of dash)
• J/c g81 (behind left side of dash)
• Junction block (j/b) (left end of dash)
• Junction connector g76 (behind left side of dash)
• Junction connector g78 (behind right side of dash)
• L17
• L66
• Left headlight leveling actuator (behind left headlight assembly)
• Meter fuse 10a
• Rear height sensor
• Red
• Right headlight leveling actuator (behind right headlight assembly)

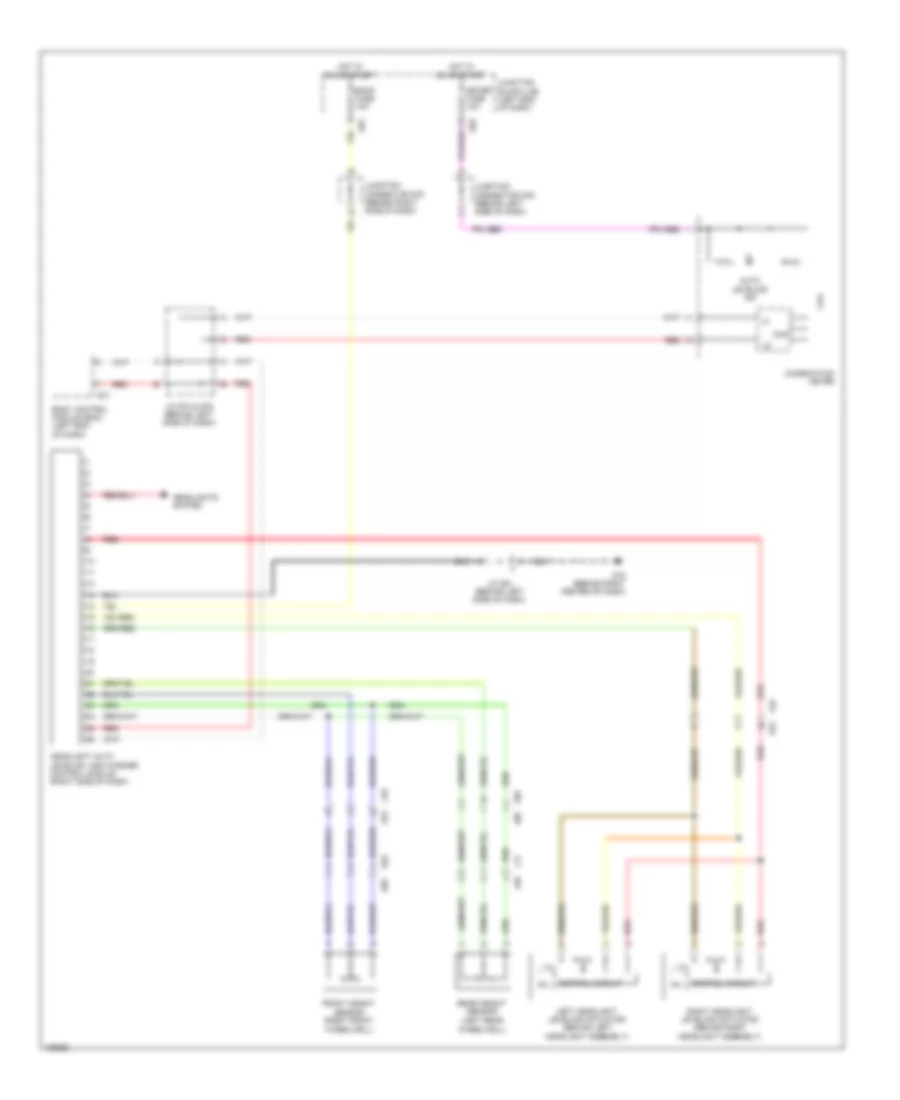

Электросхема корректора фар, тип 2 для Suzuki Grand Vitara 2013

Электросхема корректора фар, тип 2 для Suzuki Grand Vitara 2013 - Список элементов:

• (left rear wheelwell)
• Auto leveling ind
• Back fuse 10a
• Body control module (bcm) (left end of dash)
• Can
• Combination meter
• Control circuit
• Cpu
• E52
• E75
• E85
• Front height sensor (right front wheelwell)
• G01
• G03
• G07
• G16 (behind right center of dash)
• G31
• G37
• Headlight auto leveling and washer control module (right side of dash)
• Headlights system
• Hot in on or start
• J/c g74 & g75 (behind left side of dash)
• J/c g81 (behind left side of dash)
• Junction block (j/b) (left end of dash)
• Junction connector g76 (behind left side of dash)
• Junction connector g78 (behind right side of dash)
• L08
• L17
• L66
• Left headlight leveling actuator (behind left headlight assembly)
• Meter fuse 10a
• Rear height sensor
• Red
• Right headlight leveling actuator (behind right headlight assembly)
