Электросхемы СИСТЕМА КОНДИЦИОНЕРА Mitsubishi Diamante ES 1996

СИСТЕМА КОНДИЦИОНЕРА

3.0L

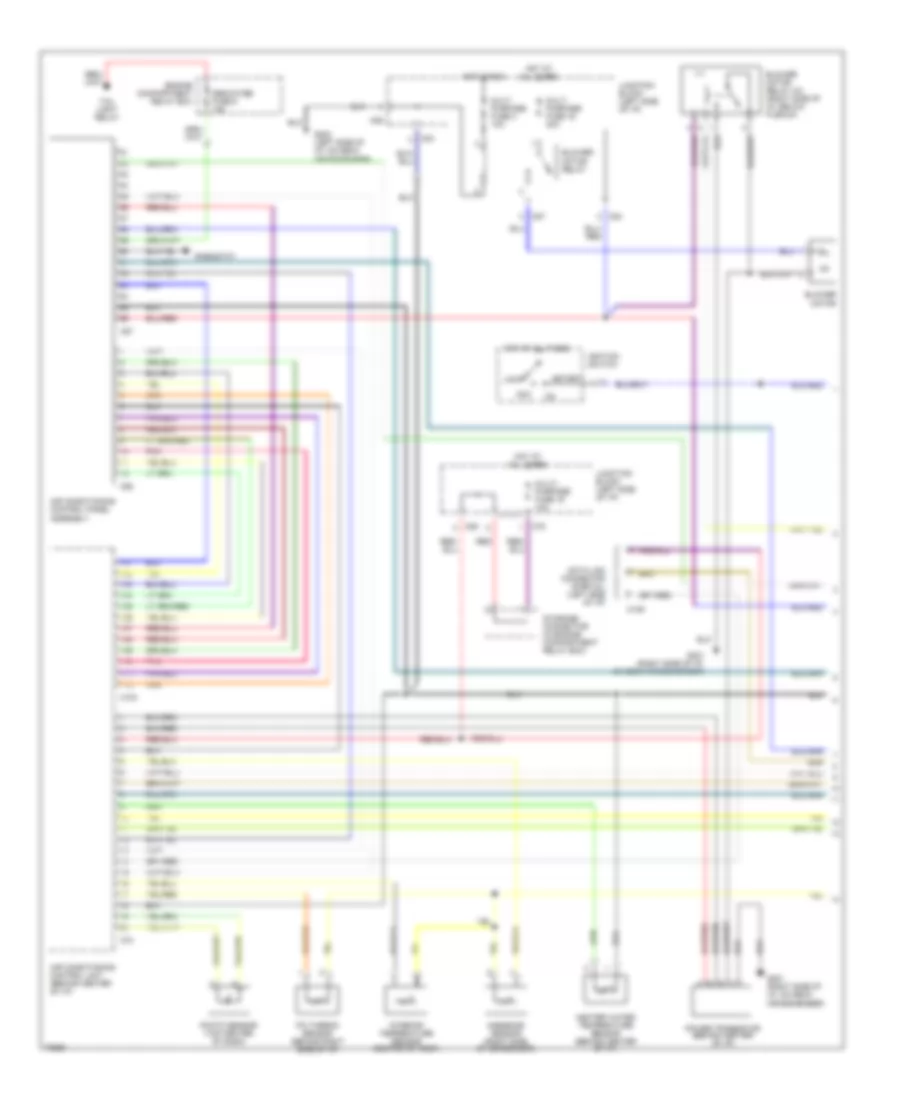

3.0L DOHC, Электросхема кондиционера (1 из 2) для Mitsubishi Diamante ES 1996

3.0L DOHC, Электросхема кондиционера (1 из 2) для Mitsubishi Diamante ES 1996 - Список элементов:

• Acc
• Air conditioning control panel assembly
• Air conditioning control unit (behind center of i/p)
• Ambience sensor (right side of condenser)
• Blower motor
• Blower motor relay
• Blower motor relay (hi) (right side of i/p, below plenum)
• C103
• C109
• C57
• C58
• C70
• C75
• C84
• C85
• C87
• C88
• Data link connector (partial) (left side of i/p)
• Dedicated fuse 5 15a
• Engine compartment relay box
• Fin thermo sensor (behind right side of i/p)
• G201 (right side of i/p, on deck crossmember)
• G202 (left side of i/p, on deck crossmember)
• Heater water temperature sensor (behind center of i/p)
• Hot at all times
• Hot in run
• Ignition switch
• Interior temperature sensor (center of roof)
• Junction block (left side of i/p)
• Lock
• Mult- purpose fuse 16 30a
• Mult- purpose fuse 3 10a
• Multi- purpose fuse 19 10a
• Photo sensor (top center of dash)
• Pnk
• Power transistor (behind center of i/p)
• Red
• Rheostat
• Start
• Storage connector (in engine compartment relay box)
• Tail light relay

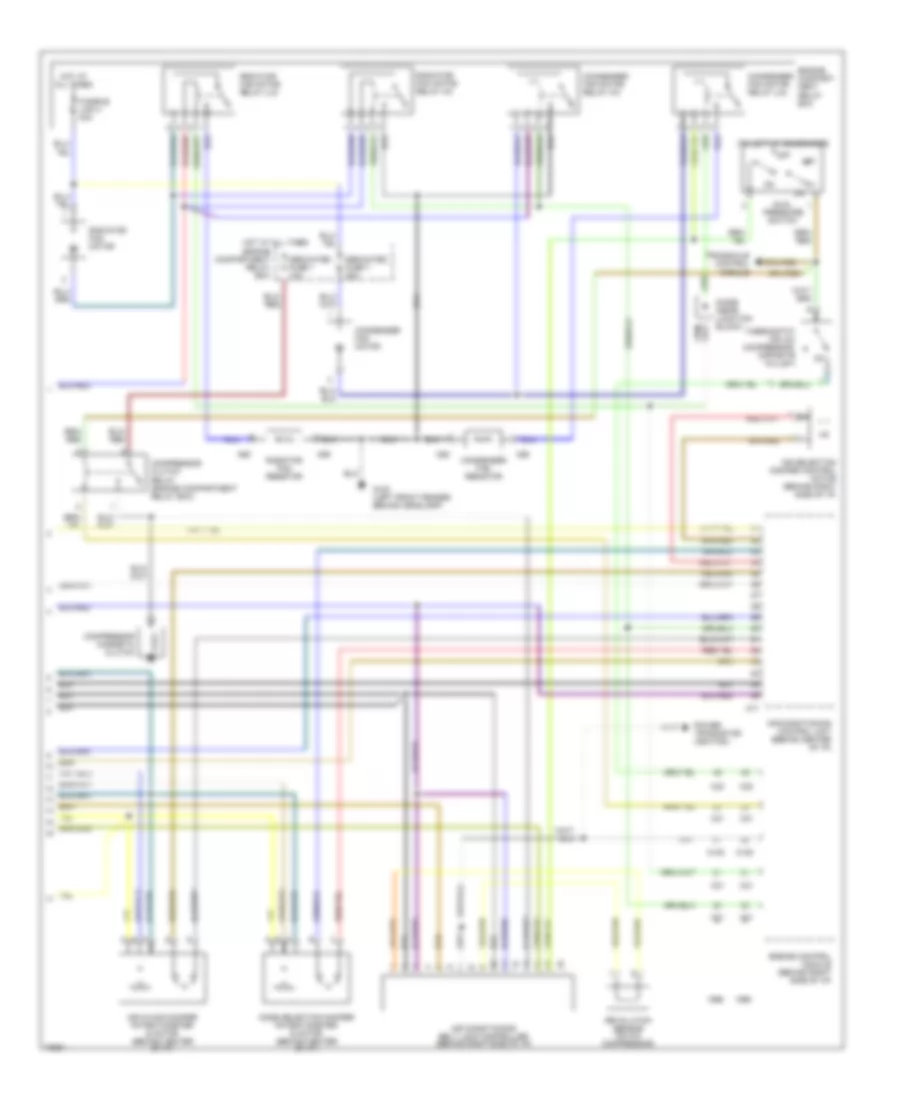

3.0L DOHC, Электросхема кондиционера (2 из 2) для Mitsubishi Diamante ES 1996

3.0L DOHC, Электросхема кондиционера (2 из 2) для Mitsubishi Diamante ES 1996 - Список элементов:

• (to left of condenser)
• A55
• A59
• Air conditioning belt lock controller (behind right side of i/p)
• Air conditioning control unit (behind center of i/p)
• Air mixing damper potentiometer & motor (behind center of i/p)
• Air selection damper control motor (behind right side of i/p)
• C108
• C21
• C23
• C71
• Compressor clutch relay (engine compartment relay box)
• Compressor magnetic clutch
• Condenser fan motor
• Condenser fan motor relay (hi)
• Condenser fan motor relay (lo)
• Condenser fan resistor
• Dedicated fuse 1 10a
• Dedicated fuse 7 30a
• Diode (near junction block)
• Dual pressure switch
• Engine compart- ment relay box
• Engine compartmemt relay box
• Engine control module (behind right side of i/p)
• Fusible link 4 40a
• G100 (left front fender, behind headlamp)
• Hot at all times
• Mode selection damper potentiometer & motor (behind center of i/p)
• Off
• Power transistor (ignition)
• Radiator fan motor
• Radiator fan motor relay (hi)
• Radiator fan motor relay (lo)
• Radiator fan resistor
• Revolution sensor (on a/c compressor)
• Thermostat (on a/c compressor, opposite pulley)
• Transaxle control module

3.0L SOHC, Электросхема кондиционера (1 из 2) для Mitsubishi Diamante ES 1996

3.0L SOHC, Электросхема кондиционера (1 из 2) для Mitsubishi Diamante ES 1996 - Список элементов:

• Acc
• Air conditioning control panel assembly
• Air conditioning control unit (behind center of i/p)
• Ambience sensor (right side of condenser)
• Blower motor
• Blower motor relay
• Blower motor relay (hi) (right side of i/p, below plenum)
• C103
• C109
• C57
• C58
• C70
• C75
• C84
• C85
• C87
• C88
• Data link connector (partial) (left side of i/p)
• Dedicated fuse 5 15a
• Engine compartment relay box
• Fin thermo sensor (behind right side of i/p)
• G201 (right side of i/p, on deck crossmember)
• G202 (left side of i/p, on deck crossmember)
• Heater water temperature sensor (behind center of i/p)
• Hot at all times
• Hot in run
• Ignition switch
• Interior temperature sensor (center of roof)
• Junction block (left side of i/p)
• Lock
• Mult- purpose fuse 16 30a
• Mult- purpose fuse 3 10a
• Multi- purpose fuse 19 10a
• Photo sensor (top center of dash)
• Pnk
• Power transistor (behind center of i/p)
• Red
• Rheostat
• Start
• Storage connector (in engine compartment relay box)
• Tail light relay

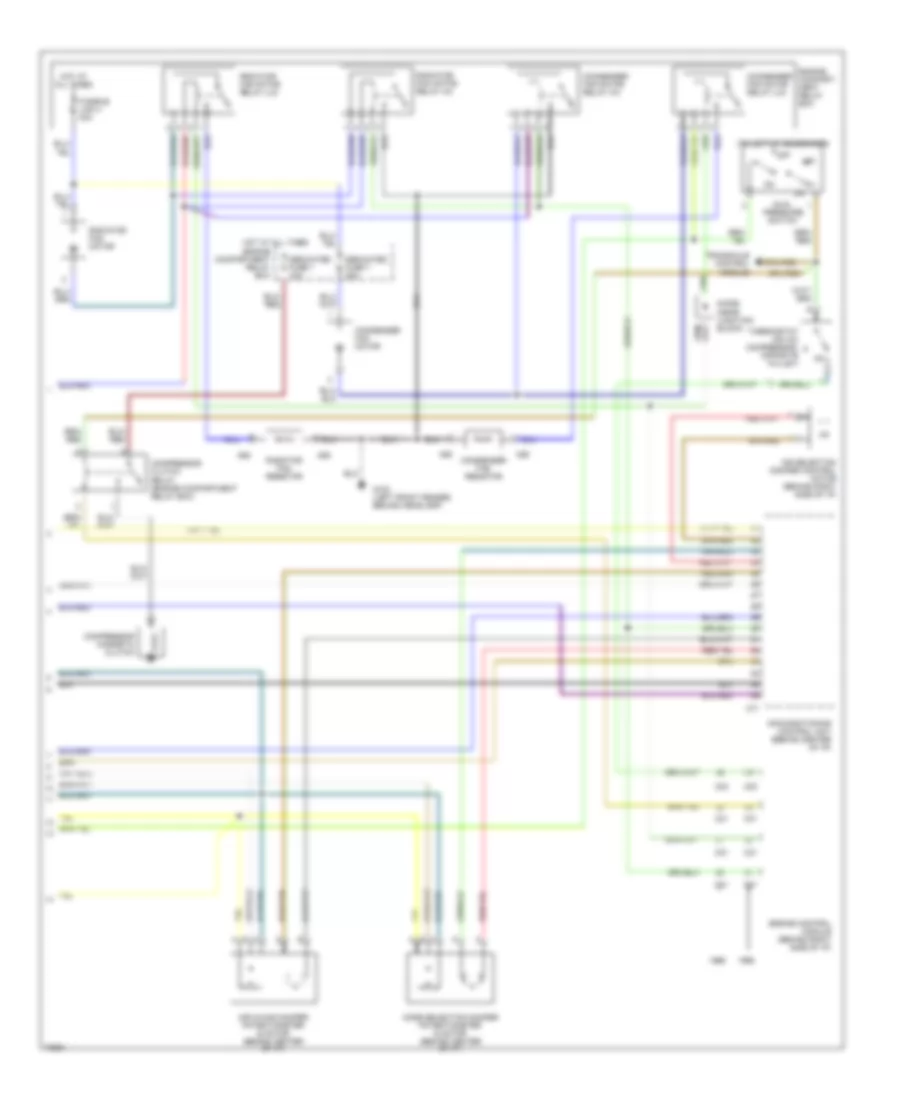

3.0L SOHC, Электросхема кондиционера (2 из 2) для Mitsubishi Diamante ES 1996

3.0L SOHC, Электросхема кондиционера (2 из 2) для Mitsubishi Diamante ES 1996 - Список элементов:

• (to left of condenser)
• A55
• A59
• Air conditioning control unit (behind center of i/p)
• Air mixing damper potentiometer & motor (behind center of i/p)
• Air selection damper control motor (behind right side of i/p)
• C21
• C23
• C71
• Compressor clutch relay (engine compartment relay box)
• Compressor magnetic clutch
• Condenser fan motor
• Condenser fan motor relay (hi)
• Condenser fan motor relay (lo)
• Condenser fan resistor
• Dedicated fuse 1 10a
• Dedicated fuse 7 30a
• Diode (near junction block)
• Dual pressure switch
• Engine compart- ment relay box
• Engine compartment relay box
• Engine control module (behind right side of i/p)
• Fusible link 4 40a
• G100 (left front fender, behind headlamp)
• Hot at all times
• Mode selection damper potentiometer & motor (behind center of i/p)
• Off
• Radiator fan motor
• Radiator fan motor relay (hi)
• Radiator fan motor relay (lo)
• Radiator fan resistor
• Thermostat (on a/c compressor, opposite pulley)
• Transaxle control module
