Электросхемы СИСТЕМА КОНДИЦИОНЕРА Mitsubishi Diamante LS 2000

СИСТЕМА КОНДИЦИОНЕРА

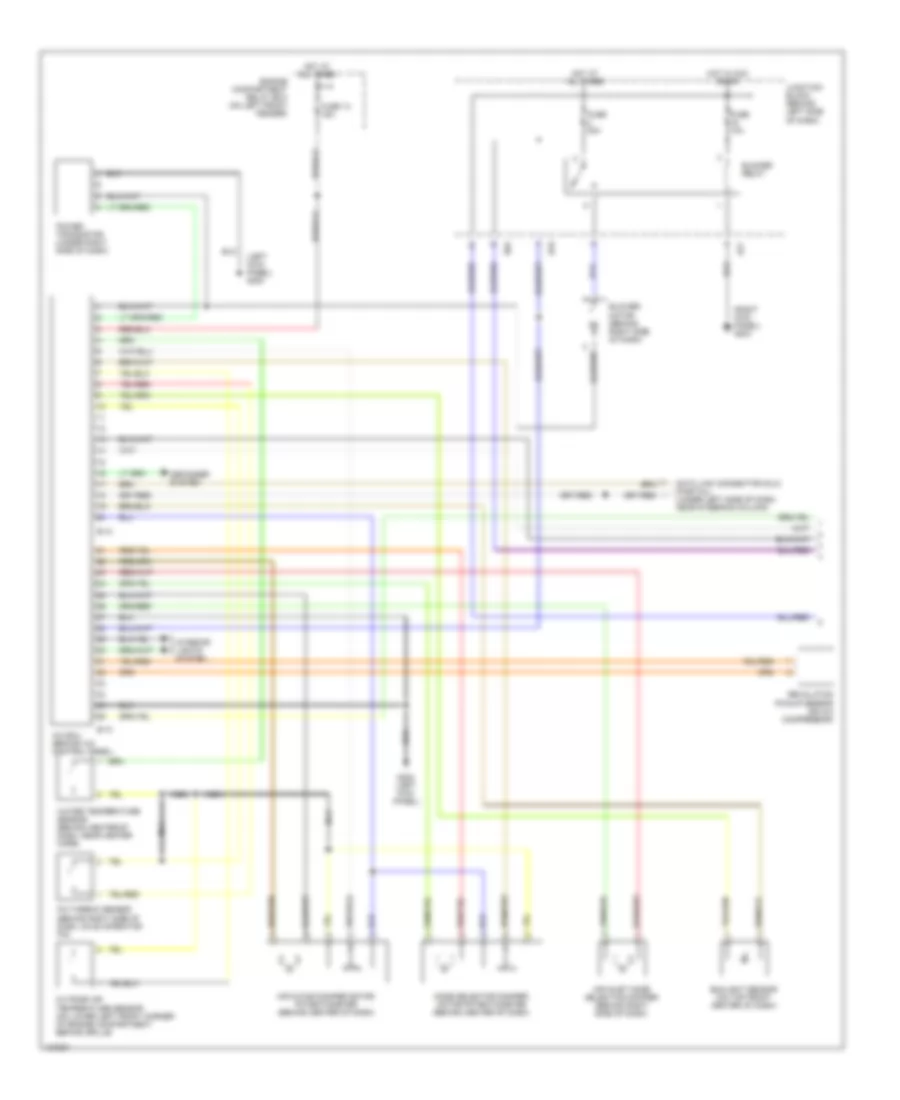

Электросхема кондиционера (1 из 2) для Mitsubishi Diamante LS 2000

Электросхема кондиционера (1 из 2) для Mitsubishi Diamante LS 2000 - Список элементов:

• (left kick panel) g200
• (right kick panel) g203
• A/c ecu (behind a/c control panel)
• Air inlet mode selection damper (behind right side of dash)
• Air mixing damper motor/ potentiometer (behind center of dash)
• B-12
• B-13
• B77
• B78
• B84
• Blower motor (behind right side of dash)
• Blower relay
• Data link connector (dlc) (partial) (under left side of dash, near steering column)
• Defogger system
• Engine compartment relay box (on left front fender)
• Fin thermo sensor (behind right side of dash, on evaporator fin)
• Fuse 10a
• Fuse 13 15a
• Fuse 30a
• G200 (left kick panel)
• Hot at all times
• Hot in acc or on
• Interior lights system
• Junction block (behind left side of dash)
• Mode selector damper/ motor potentiometer (behind center of dash)
• Nca
• Outside air temperature sensor (on lower left front corner of engine compartment, behind grille)
• Power transistor (under right side of dash)
• Revolution pickup sensor (on a/c compressor)
• Sunlight sensor (on top front center of dash)
• Water temperature sensor (behind center of dash, near heater core)

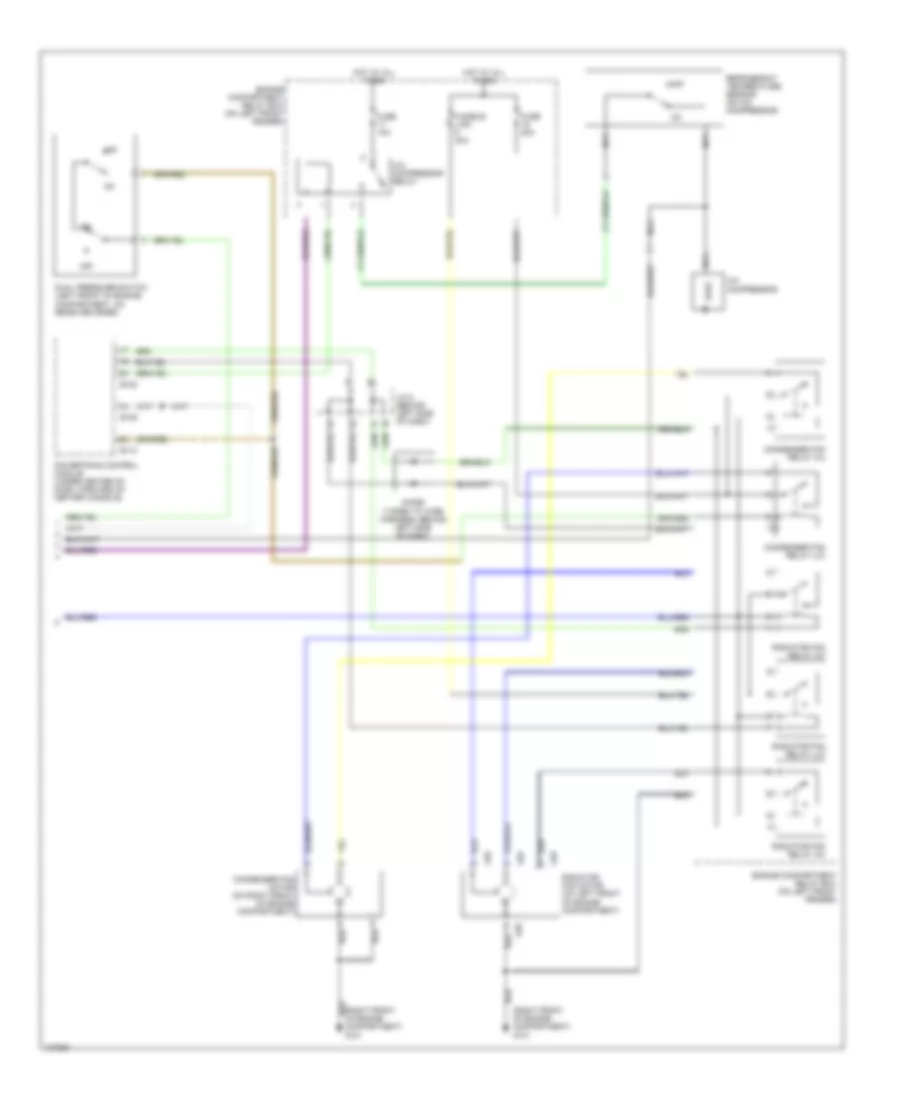

Электросхема кондиционера (2 из 2) для Mitsubishi Diamante LS 2000

Электросхема кондиционера (2 из 2) для Mitsubishi Diamante LS 2000 - Список элементов:

• (right front of engine compartment) g101
• A/c compressor
• A/c compressor relay
• A39
• A40
• B108
• B109
• B110
• Condenser fan motor (on right front of engine compartment)
• Condenser fan relay (hi)
• Condenser fan relay (lo)
• Diode (taped to wire harness, behind left side of dash)
• Dual pressure switch (left front of engine compartment, on receiver drier)
• Engine compartment relay box (on left front fender)
• Fuse 10a
• Fuse 20a
• Fusible link 40a
• Hot at all times
• J/c 5 (behind left side of dash)
• Nca
• Off
• Powertrain control module (under center of dash, forward of center console)
• Radiator fan motor (on left front of engine compartment)
• Radiator fan relay (hi)
• Radiator fan relay (lo)
• Radiator fan relay (mi)
• Refrigerant temperature sensor (on a/c compressor)
