Электросхемы СИСТЕМА КОНДИЦИОНЕРА Suzuki Grand Vitara 2013

СИСТЕМА КОНДИЦИОНЕРА

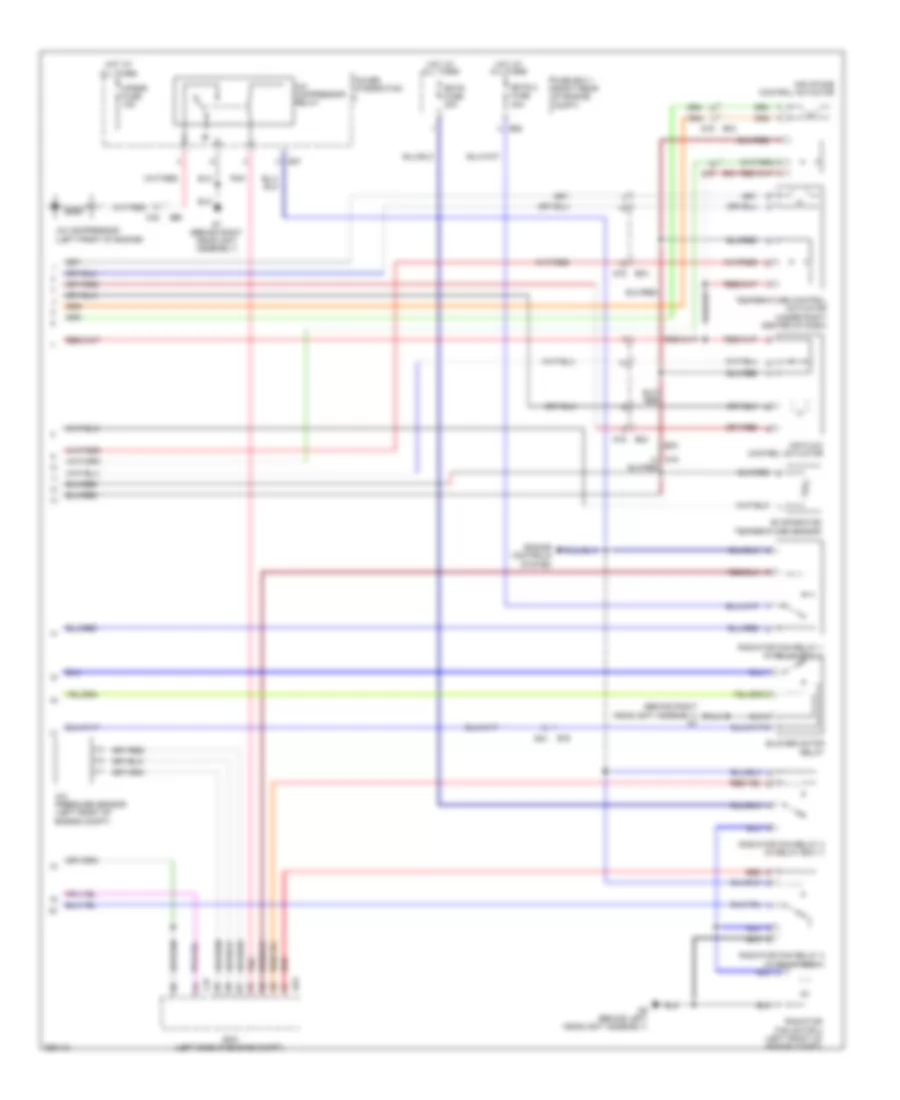

Электросхема кондиционера (1 из 2) для Suzuki Grand Vitara 2013

Электросхема кондиционера (1 из 2) для Suzuki Grand Vitara 2013 - Список элементов:

• (behind right side of dash) j/c g78
• Blower fan motor (behind right side of dash)
• Blower motor controller
• Body control module (bcm) (behind left side of dash)
• Computer data lines system
• Diode 2 (behind right side of dash)
• Dome fuse 10a
• E82
• Ect sensor (left rear of engine)
• Fr blw fuse 40a
• Fuse box 2 (left rear of engine compt)
• G03
• G16 (right kick panel)
• G30
• Hot at all times
• Hot in on
• Hot in on or start
• Hvac control module
• Ig2 sig fuse 15a
• Inside air temperature sensor
• Interior lights system
• J/c g76 (behind left side of dash)
• J/c g81 (behind left side of dash)
• Junction block (j/b) (behind left side of dash)
• Meter fuse 10a
• Pnk
• Radiator fan motor 1 (left front of engine compt)
• Red
• Sunlight sensor (under top left side of dash)

Электросхема кондиционера (2 из 2) для Suzuki Grand Vitara 2013

Электросхема кондиционера (2 из 2) для Suzuki Grand Vitara 2013 - Список элементов:

• (behind right headlight assembly) g7
• A/c compressor (left front of engine)
• A/c compressor relay
• A/c pressure sensor (left front of engine compt)
• Air flow control actuator
• Air intake control actuator
• B03
• Blower motor relay
• C35
• C37
• Cprsr fuse 15a
• E23
• E37
• E55
• E58
• E76
• Ecm (left side of engine compt)
• Engine controls system
• Evaporator temperature sensor
• Fuse box 1 (right rear of engine compt)
• G04
• G16
• G16 b03
• G7 (behind right headlight assembly)
• G9 (behind left headlight assembly)
• Hot at all times
• Pnk
• Power integration
• Radiator fan motor 2 (left front of engine compt)
• Radiator fan relay 1 (in relay box 1)
• Radiator fan relay 2 (in relay box 1)
• Radiator fan relay 3 (in relay box 1)
• Rdtr 2 fuse 30a
• Rdtr fuse 30a
• Red
• Temperature control actuator (under right center of dash)
