Электросхемы СИСТЕМА КОНДИЦИОНЕРА Suzuki SX4 2012

СИСТЕМА КОНДИЦИОНЕРА

Электросхема кондиционера (1 из 2) для Suzuki SX4 2012

Электросхема кондиционера (1 из 2) для Suzuki SX4 2012 - Список элементов:

• Acc fuse 15a
• Air flow control actuator (left side of dash)
• Air intake actuator (right side of dash)
• Back fuse 10a
• Blower motor (behind right side of dash)
• Blower motor relay
• Blower motor resistor (behind right side of dash, near blower motor)
• Blw fuse 30a
• Computer data lines system
• Defogger system
• Diode 1 (left side of dash)
• E323
• Evaporator temperature sensor (center of dash)
• G11 (behind right kick panel)
• G13 (behind left kick panel)
• G14 (behind right side of dash)
• G272
• G273
• Hot at all times
• Hot in on
• Hot in on or acc
• Hot in on or start
• Hvac control module (center of dash)
• Ig2 sig fuse 10a
• Individual circuit fuse box 1
• Inside air temperature sensor (left side of dash)
• Interior lights system
• J/c g306 (left side of dash)
• J/c g309 (left side of dash)
• J/c g310 (right side of dash)
• Junction block assembly (left side of dash)
• Pnk
• Power distribution system
• Red
• Sunload sensor (left side of dash)
• Temperature control actuator (left side of dash)

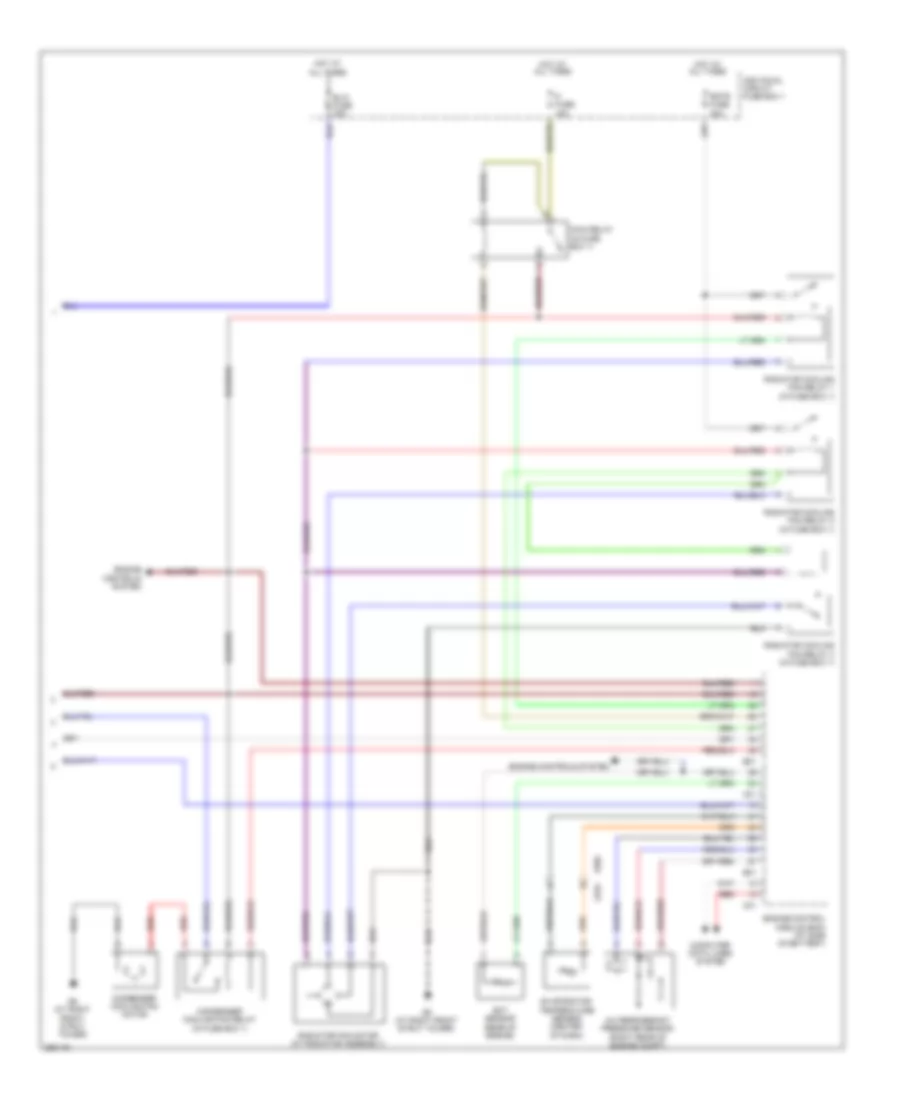

Электросхема кондиционера (2 из 2) для Suzuki SX4 2012

Электросхема кондиционера (2 из 2) для Suzuki SX4 2012 - Список элементов:

• (in fuse box 1)
• A/c compressor (left front of engine)
• A/c compressor relay (in fuse box 1)
• A/c fuse 20a
• A/c refrigerant pressure sensor (right rear of engine compt)
• Body control module (bcm) (left side of dash)
• C01
• C343
• Computer data lines system
• Condenser cooling fan motor
• Condenser cooling fan relay (in fuse box 1)
• E01
• E371
• E382
• Ect sensor (rear of engine)
• Engine control module (ecm) (at side of battery)
• Engine controls system
• Fi fuse 15a
• G04
• G05
• G334
• G9 (at right front strut tower)
• Hot at all times
• Individual circuit fuse box 1
• Main relay (in fuse box 1)
• Radiator cooling fan relay 1
• Radiator cooling fan relay 2 (in fuse box 1)
• Radiator cooling fan relay 3 (in fuse box 1)
• Radiator fan motor (at radiator assembly)
• Rdtr fuse 30a
• Red

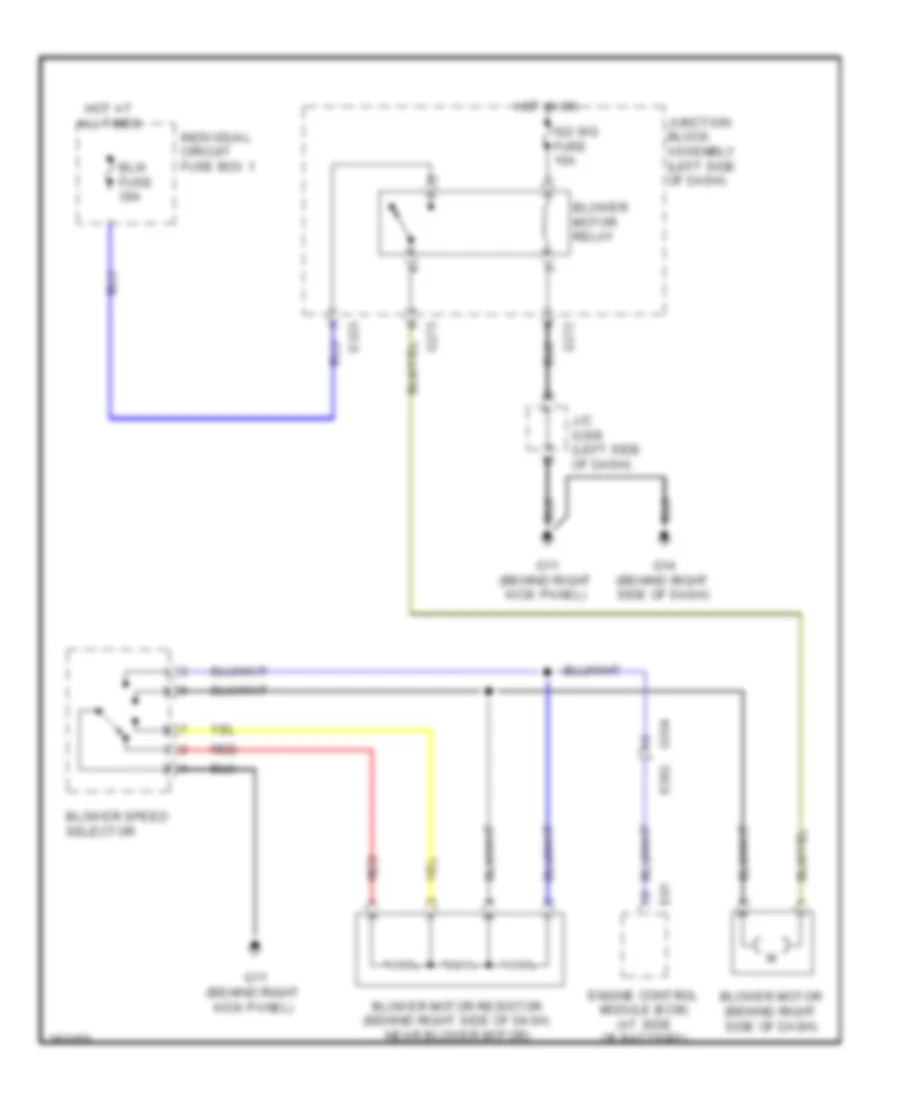

схема нагревателя для Suzuki SX4 2012

схема нагревателя для Suzuki SX4 2012 - Список элементов:

• Blower motor (behind right side of dash)
• Blower motor relay
• Blower motor resistor (behind right side of dash, near blower motor)
• Blower speed selector
• Blw fuse 30a
• E01
• E323
• Engine control module (ecm) (at side of battery)
• G11 (behind right kick panel)
• G14 (behind right side of dash)
• G272
• G273
• G334 e382
• Hot at all times
• Hot in on
• Ig2 sig fuse 10a
• Individual circuit fuse box 1
• J/c g309 (left side of dash)
• Junction block assembly (left side of dash)
• Red

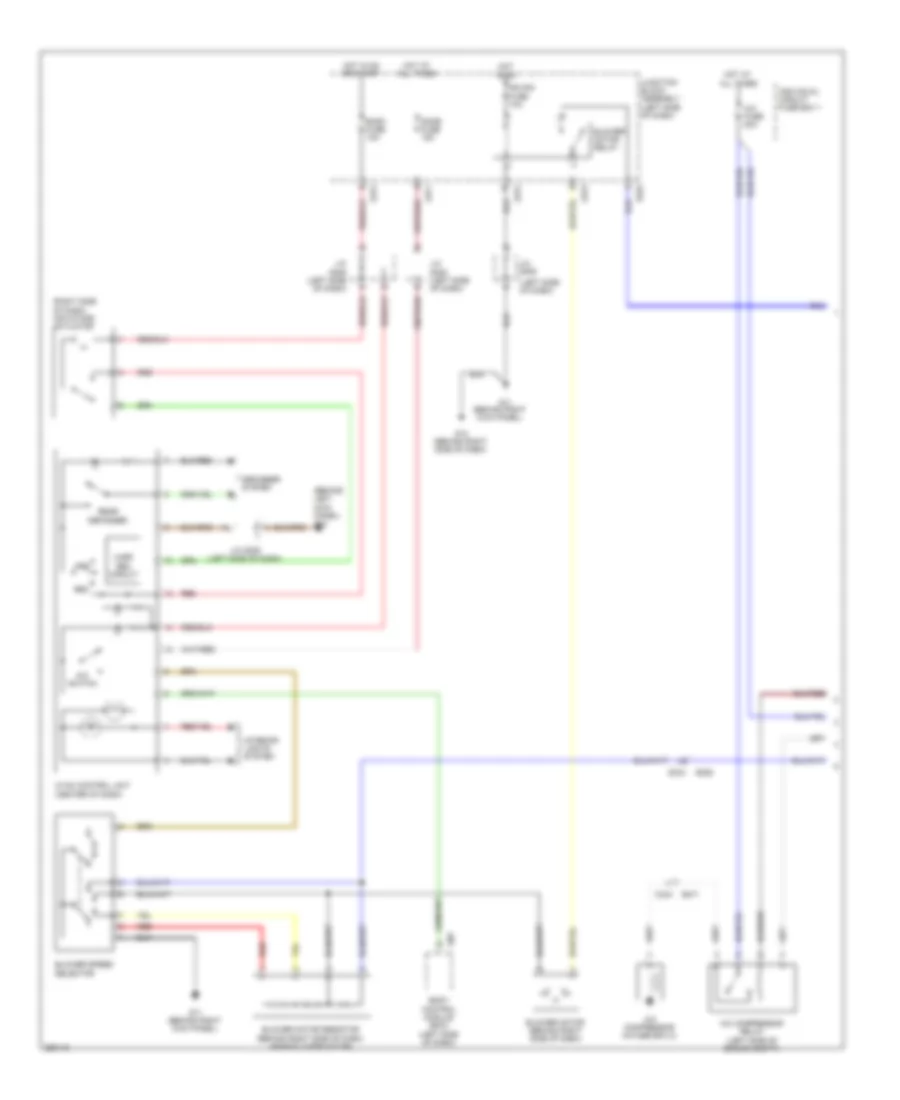

Электросхема кондиционера с ручный управлением (1 из 2) для Suzuki SX4 2012

Электросхема кондиционера с ручный управлением (1 из 2) для Suzuki SX4 2012 - Список элементов:

• (behind left kick panel) g13
• (behind right kick panel)
• (left side of dash)
• (right side of dash) air intake actuator
• A/c compressor (in fuse box 2)
• A/c compressor relay (left side of engine compt)
• A/c fuse 20a
• A/c switch
• Back fuse 10a
• Blower motor (behind right side of dash)
• Blower motor relay
• Blower motor resistor (behind right side of dash, near blower motor)
• Blower speed selector
• Body control module (bcm) (left side of dash)
• C343
• Defogger system
• Dome fuse 15a
• E323
• E371
• E382
• Fre
• G05
• G11
• G11 (behind right kick panel)
• G14 (behind right side of dash)
• G271
• G272
• G273
• G334
• Harf rec circuit
• Hot at all times
• Hot in on
• Hot in on or start
• Hvac control unit (center of dash)
• Ig2 sig fuse 10a
• Individual circuit fuse box 1
• Interior lights system
• J/c g306 (left side of dash)
• J/c g308 (left side of dash)
• J/c g309
• J/c g309 (left side of dash)
• Junction block assembly (left side of dash)
• Rear defogger
• Rec
• Red

Электросхема кондиционера с ручный управлением (2 из 2) для Suzuki SX4 2012

Электросхема кондиционера с ручный управлением (2 из 2) для Suzuki SX4 2012 - Список элементов:

• A/c refrigerant pressure sensor (right rear of engine compt)
• Blw fuse 30a
• C01
• Computer data lines system
• Condenser cooling fan motor
• Condenser cooling fan relay (in fuse box 1)
• E01
• E382
• Ect sensor (rear of engine)
• Engine control module (ecm) (at side of battery)
• Engine controls system
• Evaporator temperature sensor (center of dash)
• Fi fuse 15a
• G334
• G9 (at right front strut tower)
• Hot at all times
• Individual circuit fuse box 1
• Main relay (in fuse box 1)
• Radiator cooling fan relay 1 (in fuse box 1)
• Radiator cooling fan relay 2 (in fuse box 1)
• Radiator cooling fan relay 3 (in fuse box 1)
• Radiator fan motor (at radiator assembly)
• Rdtr fuse 30a
• Red
