СИСТЕМА КРУИЗКОНТРОЛЯ

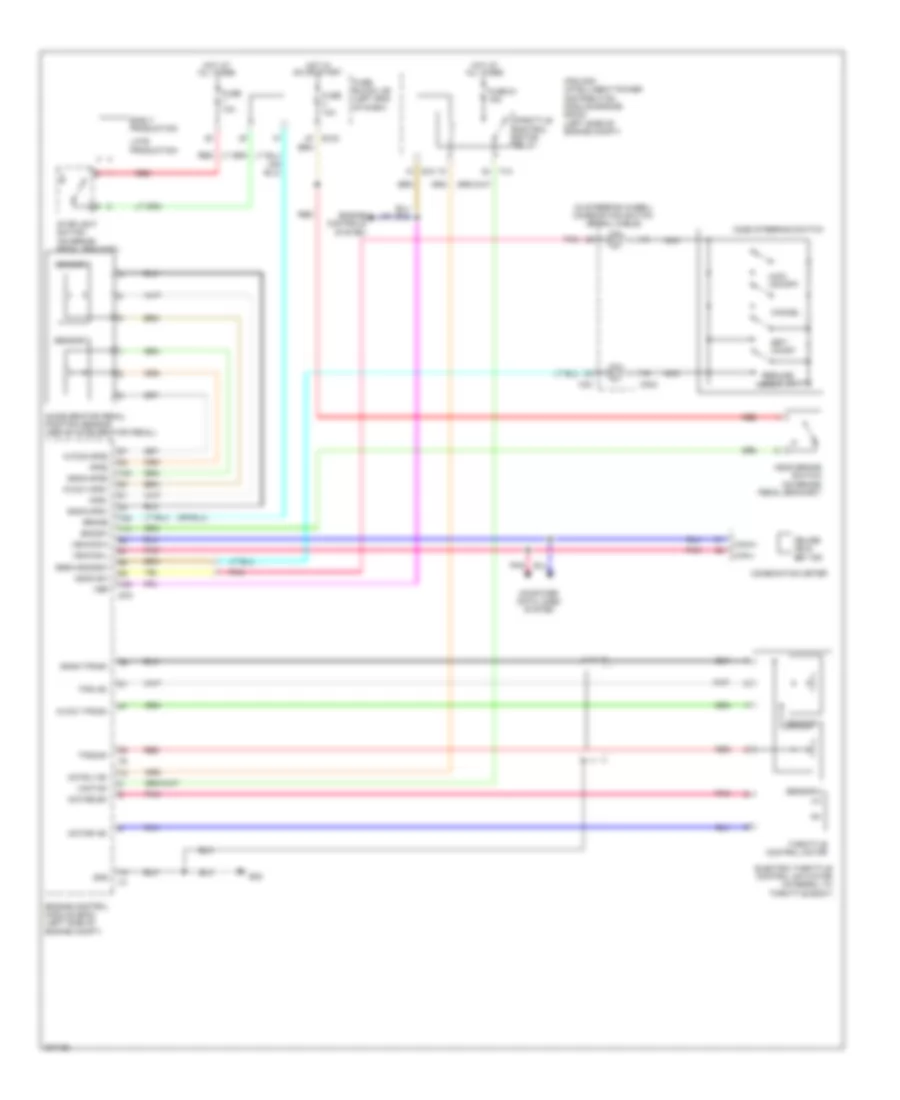

Электросхема системы круизконтроля для Nissan Murano SL 2009

Электросхема системы круизконтроля для Nissan Murano SL 2009 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема системы круизконтроля для Nissan Murano SL 2009 - Список элементов:

  • (in steering wheel) combination switch (spiral cable)
  • Accelerator pedal position sensor (above accelerator pedal)
  • Acsd steering switch
  • Aps1
  • Aps2
  • Ascd brake switch (on brake pedal bracket)
  • Ascd sw
  • Avcc1-aps1
  • Avcc1-tps-b1
  • Avcc2-aps2
  • Bncsw
  • Brake
  • Can-h
  • Can-l
  • Cancel
  • Combination meter
  • Computer data lines system
  • Cruise ind & set ind
  • E10
  • E103
  • E16
  • E38
  • Early production
  • Electric throttle control actuator (integral to throttle body)
  • Engine control module (ecm) (left side of engine compt)
  • Engine controls system
  • F12
  • Fuse 10a
  • Fuse 51 15a
  • Fuse block j/b (left end of dash)
  • Gnd
  • Gnda-aps1
  • Gnda-aps2
  • Gnda-ascdsw
  • Gnda-tps-b1
  • Hot at all times
  • Hot in on or start
  • Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt)
  • Late production
  • M303
  • M33
  • Main (on/off)
  • Motor1-b1
  • Motor2-b1
  • Motrly-b1
  • Nca
  • Pnk
  • Red
  • Resume/ accelerate
  • Sensor 1
  • Sensor 2
  • Set/ coast
  • Stoplight switch (on brake pedal bracket)
  • Throttle control motor
  • Throttle control motor relay
  • Tps1-b1
  • Tps2-b1
  • Vbr
  • Vehcan-h
  • Vehcan-l
  • Vmot-b1
