Электросхемы СИСТЕМА ОХЛАЖДЕНИЯ Nissan Murano SE 2007

СИСТЕМА ОХЛАЖДЕНИЯ

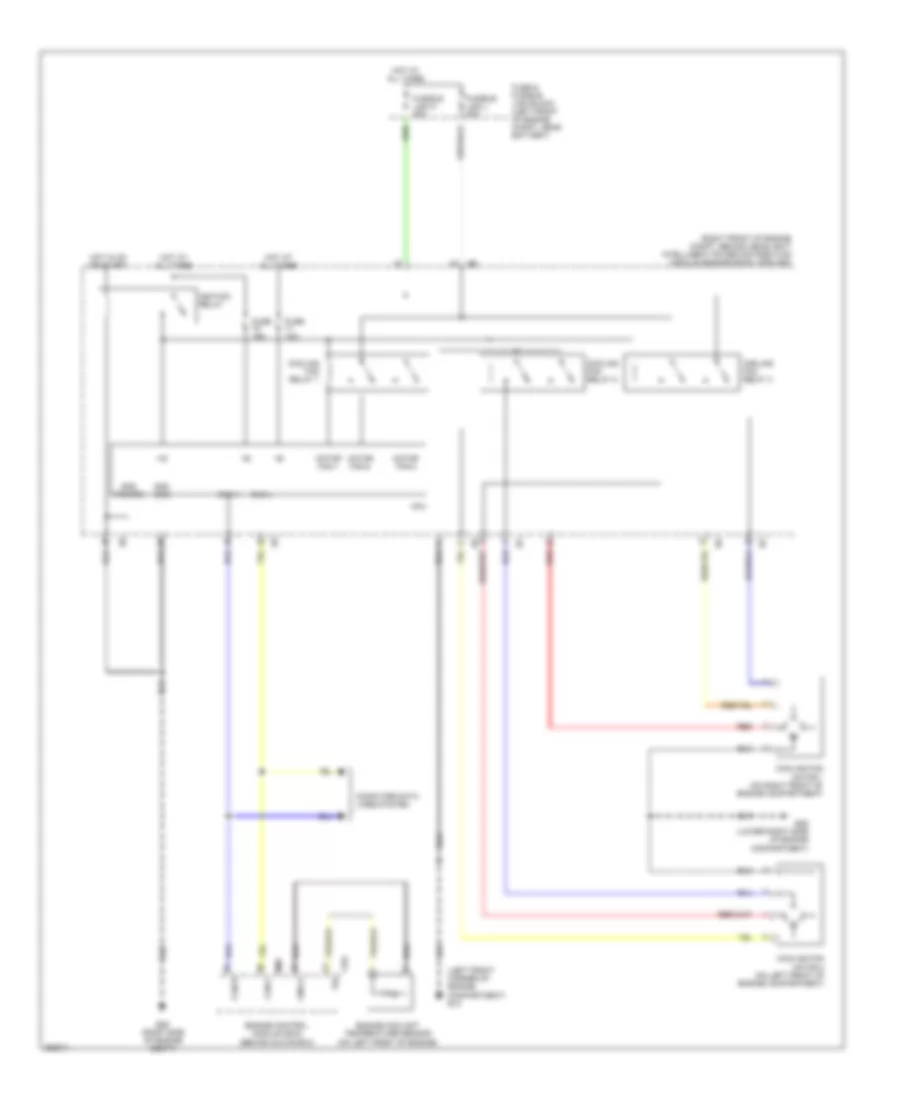

Электросхема системы охлаждения для Nissan Murano SE 2007

Электросхема системы охлаждения для Nissan Murano SE 2007 - Список элементов:

• (left front corner of engine compartment) e13
• (right front of engine compt, behind headlight) intelligent power distribution module (engine room) (ipdm e/r)
• +ig
• Can-h
• Can-l
• Computer data lines system
• Cooling fan motor 1 (on right front of engine compartment)
• Cooling fan motor 2 (on left front of engine compartment)
• Cooling fan relay 1
• Cooling fan relay 2
• Cooling fan relay 3
• Cpu
• E26 (lower right side of engine compartment)
• E28 (right side of engine compt)
• Engine control module (ecm) (behind glove box)
• Engine coolant temperature sensor (on left front of engine)
• F101
• Fuse & fusible link block (left front of engine compt, near battery)
• Fuse 10a
• Fuse 15a
• Fusible link k 40a
• Fusible link l 40a
• Gnd (power)
• Gnd (sig)
• Gnd-a
• Hot at all times
• Hot in on or start
• Ignition relay
• M80
• Motor fan-1
• Motor fan-2
• Motor fan-3
• Red
