СИСТЕМА ОХЛАЖДЕНИЯ

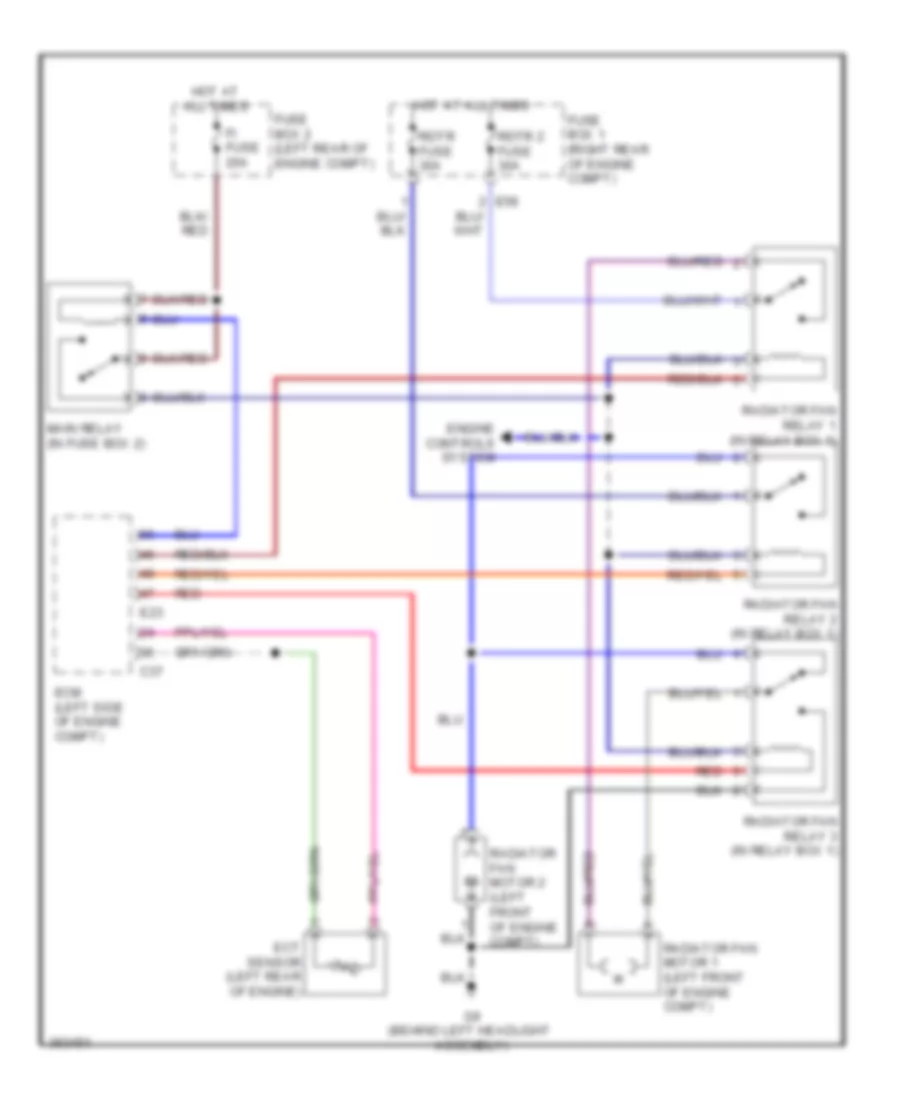

Электросхема системы охлаждения для Suzuki Grand Vitara 2013

Электросхема системы охлаждения для Suzuki Grand Vitara 2013 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема системы охлаждения для Suzuki Grand Vitara 2013 - Список элементов:

  • C37
  • E23
  • E58
  • Ecm (left side of engine compt)
  • Ect sensor (left rear of engine)
  • Engine controls system
  • Fi fuse 20a
  • Fuse box 1 (right rear of engine compt)
  • Fuse box 2 (left rear of engine compt)
  • G9 (behind left headlight assembly)
  • Hot at all times
  • Main relay (in fuse box 2)
  • Radiator fan motor 1 (left front of engine compt)
  • Radiator fan motor 2 (left front of engine compt)
  • Radiator fan relay 1 (in relay box 1)
  • Radiator fan relay 2 (in relay box 1)
  • Radiator fan relay 3 (in relay box 1)
  • Rdtr 2 fuse 30a
  • Rdtr fuse 30a
  • Red
