Электросхемы СИСТЕМА ПЕРЕДАЧИ ДАННЫХ Mitsubishi Mirage ES 2014

СИСТЕМА ПЕРЕДАЧИ ДАННЫХ

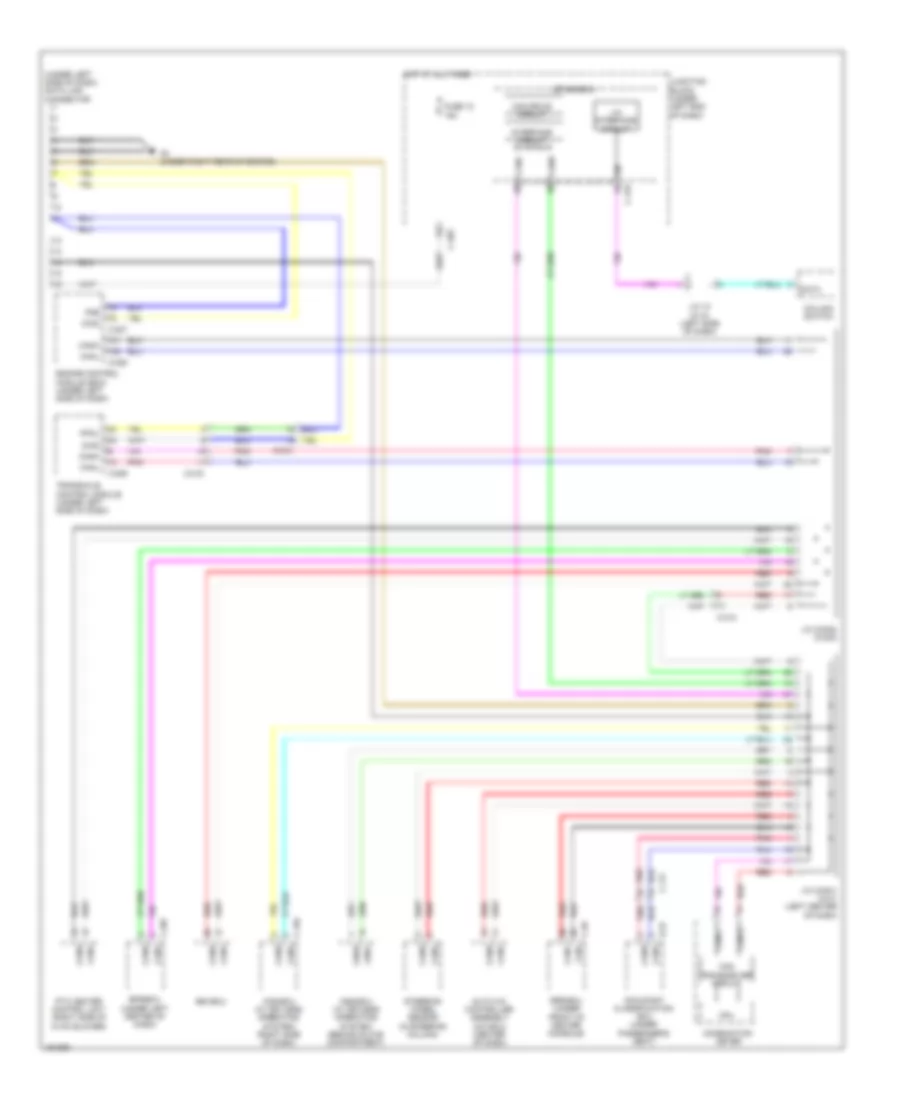

Электросхема линии передачи данных CAN для Mitsubishi Mirage ES 2014

Электросхема линии передачи данных CAN для Mitsubishi Mirage ES 2014 - Список элементов:

• (under left side of dash) data link connector
• Asc-ecu
• Auto a/c controller assembly (a/c ecu) (center of dash)
• C-104
• C-117
• C-207
• C-209
• C-212
• C-213
• C-215
• C-227
• C-228
• C-29
• C-403
• C-416
• Can drive circuit
• Can h
• Can l
• Can transceiver circuit
• Can+
• Can-
• Canh
• Canl
• Circuit
• Cnbh
• Cnbl
• Column switch
• Combination meter
• Cpu
• D-37
• Data
• Diad
• Engine control module (ecm) (under left side of dash)
• Eps-ecu (under left center of dash)
• Etacs-ecu
• Fmb
• Fpcu
• Fuse 12 15a
• G4 (under right rear of engine)
• Hot at all times
• Interface circuit
• J/c (can1) (c-01) (left center of dash)
• J/c (can2) (c-203)
• J/c 10 (c-10) (left side of dash)
• Junction block (under left end of dash)
• Kos-ecu (w/ keyless operating system) (right side of dash)
• Lin
• Lin interface
• Occupant classification ecu (under passenger's seat)
• Oss-ecu (w/ keyless operating system) (behind glove compartment)
• Pnk
• Ptc heater control unit (right side of hvac blower)
• Red
• Srs-ecu (under front of center console)
• Steering wheel sensor (in steering column)
• Transaxle control module (under left side of dash)
