Электросхемы СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ Mitsubishi Mirage ES 2014

СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ

1.2L

1.2L, Электросхема системы управления двигателем (1 из 4) для Mitsubishi Mirage ES 2014

1.2L, Электросхема системы управления двигателем (1 из 4) для Mitsubishi Mirage ES 2014 - Список элементов:

• (in exhaust, downstream of catalytic) rear heated oxygen sensor
• (main)
• (on input to intake manifold) throttle body assembly
• (sub)
• 0cv
• Afs
• Afs5
• Afse
• Altf
• Altg
• Altl
• Ats
• C-225
• C-226
• Cil 1
• Cil 2
• Cil 3
• Dgnd
• Engine control module (under left side of dash)
• Etv+
• Etv-
• G5 (under left side of dash)
• Hall ic
• Inj 1
• Inj 2
• Inj 3
• Injector
• Intake air temperature sensor
• K/s
• K/se
• Knock sensor (front of left side of engine)
• Lefl
• Lhfl
• Linear air-fuel ratio sensor (top of engine)
• Lpfl
• Lrl
• Lsfl
• Map
• Mass airflow sensor
• Mass airflow sensor (in output of air filter)
• Nca
• O2rl
• Ohrl
• Opsw
• Orle
• Pnk
• Purg
• Red
• Seng
• Sgc
• Sgt
• Starting/ charging system
• Throttle actuator control motor
• Throttle position sensor
• Tps5
• Tpse
• Tpsm
• Tpss
• Wts

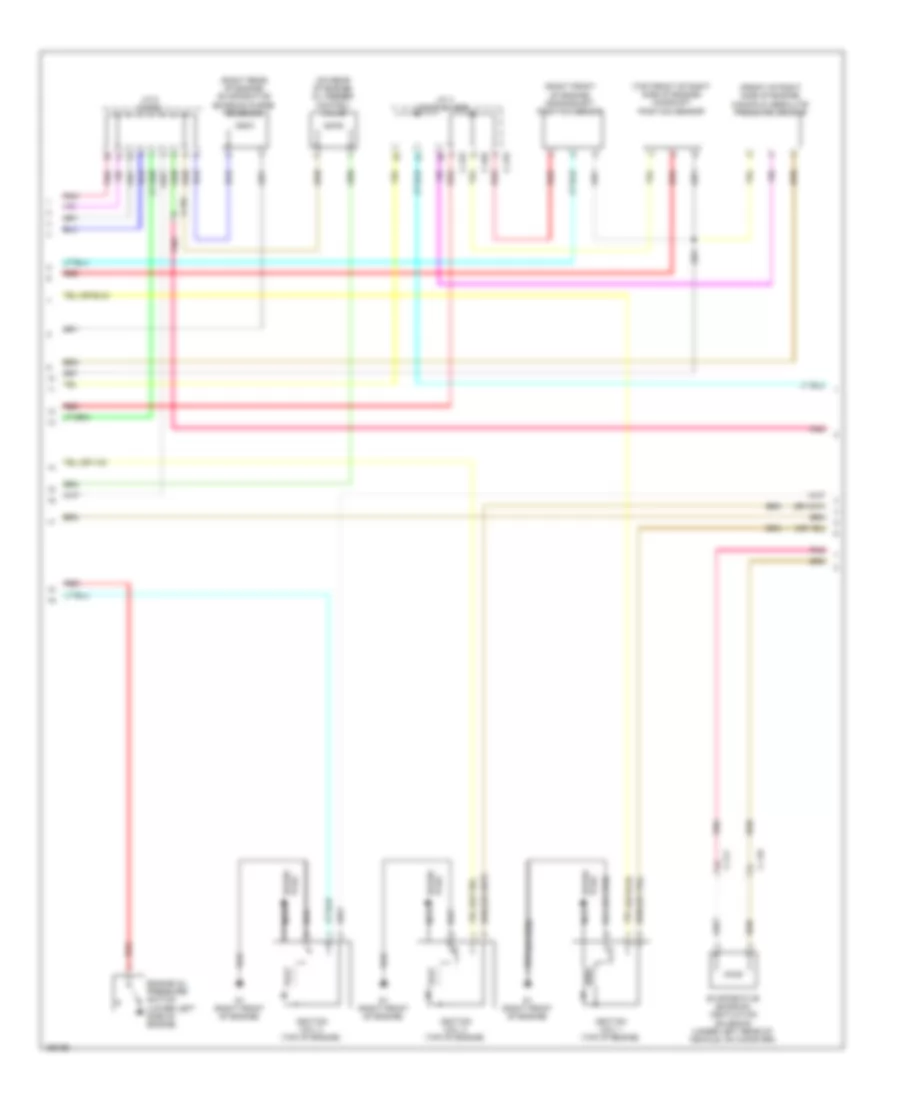

1.2L, Электросхема системы управления двигателем (2 из 4) для Mitsubishi Mirage ES 2014

1.2L, Электросхема системы управления двигателем (2 из 4) для Mitsubishi Mirage ES 2014 - Список элементов:

• (front of right side of engine) manifold absolute pressure sensor
• (on rear of engine) oil feeder control valve
• (right front of engine) crankshaft position sensor
• (right rear of engine) evaporative emission purge solenoid
• (top front of right side of engine) camshaft position sensor
• A-104
• C-118
• C-211
• C-219
• C-220
• Engine oil pressure switch (lower left side of engine)
• Evaporative emission ventilation solenoid (under left rear of vehicle, on canister)
• G1 (right front of engine)
• Ignition coil 1 (top of engine)
• Ignition coil 2 (top of engine)
• Ignition coil 3 (top of engine)
• J/c 4 (c-219 & c-220)
• J/c 5 (c-202)
• Nca
• Plug spark
• Pnk
• Red
• Spark plug

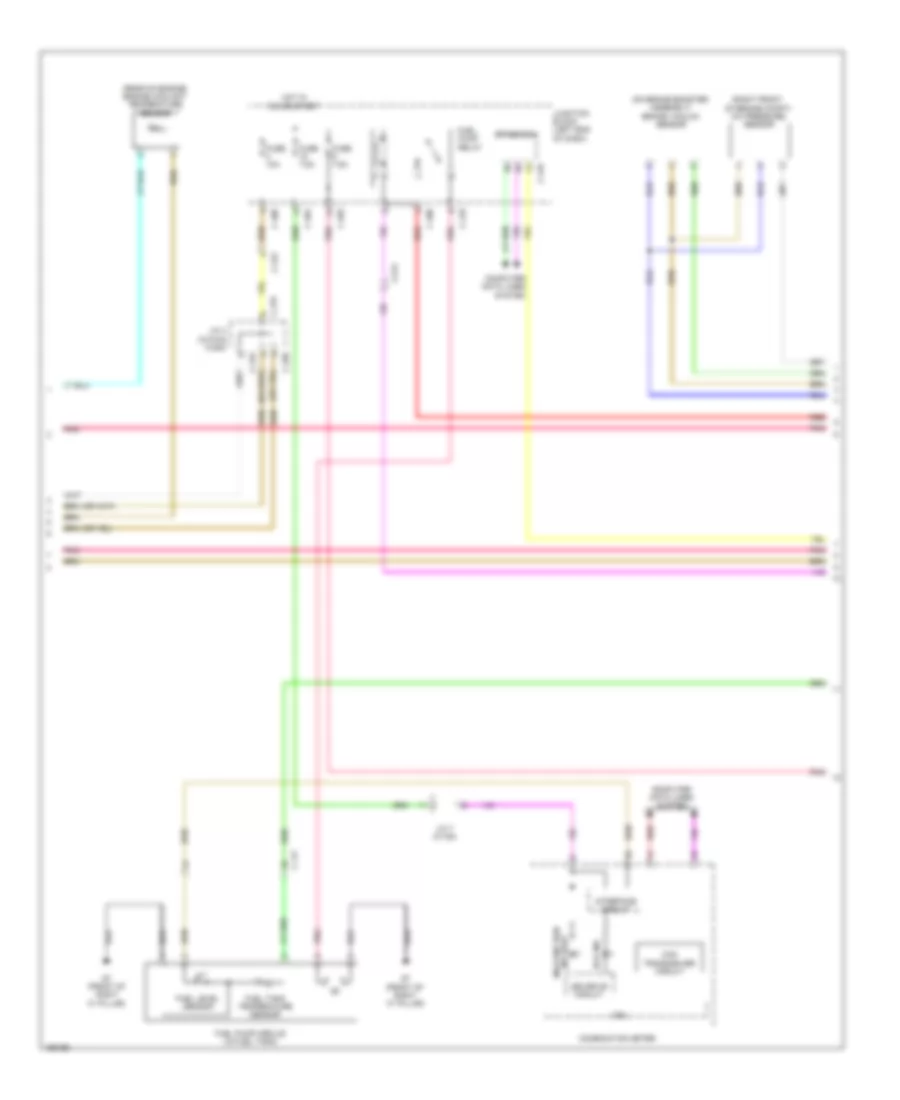

1.2L, Электросхема системы управления двигателем (3 из 4) для Mitsubishi Mirage ES 2014

1.2L, Электросхема системы управления двигателем (3 из 4) для Mitsubishi Mirage ES 2014 - Список элементов:

• (on brake booster assembly) brake vacuum sensor
• (rear of engine) engine coolant temperature sensor
• (right front
• C-117
• C-212
• C-215
• C-219
• C-220
• C-403
• C-404
• C-406
• C-416
• C-418
• Can transceiver circuit
• Combination meter
• Computer data lines system
• Cpu
• Eco ind
• Etacs-ecu
• Fuel level sensor
• Fuel pump module (in fuel tank)
• Fuel pump relay
• Fuel tank temperature sensor
• Fuse 10a
• Fuse 7.5a
• G7 (front of right "c" pillar)
• Hot in on or start
• Interface circuit
• J/c 4 (c-219 & c-220)
• J/c 7 (c-105)
• Junction block (left end of dash)
• Led drive circuit
• Malfunction ind light
• Of engine compt) a/c pressure sensor
• Pnk
• Red

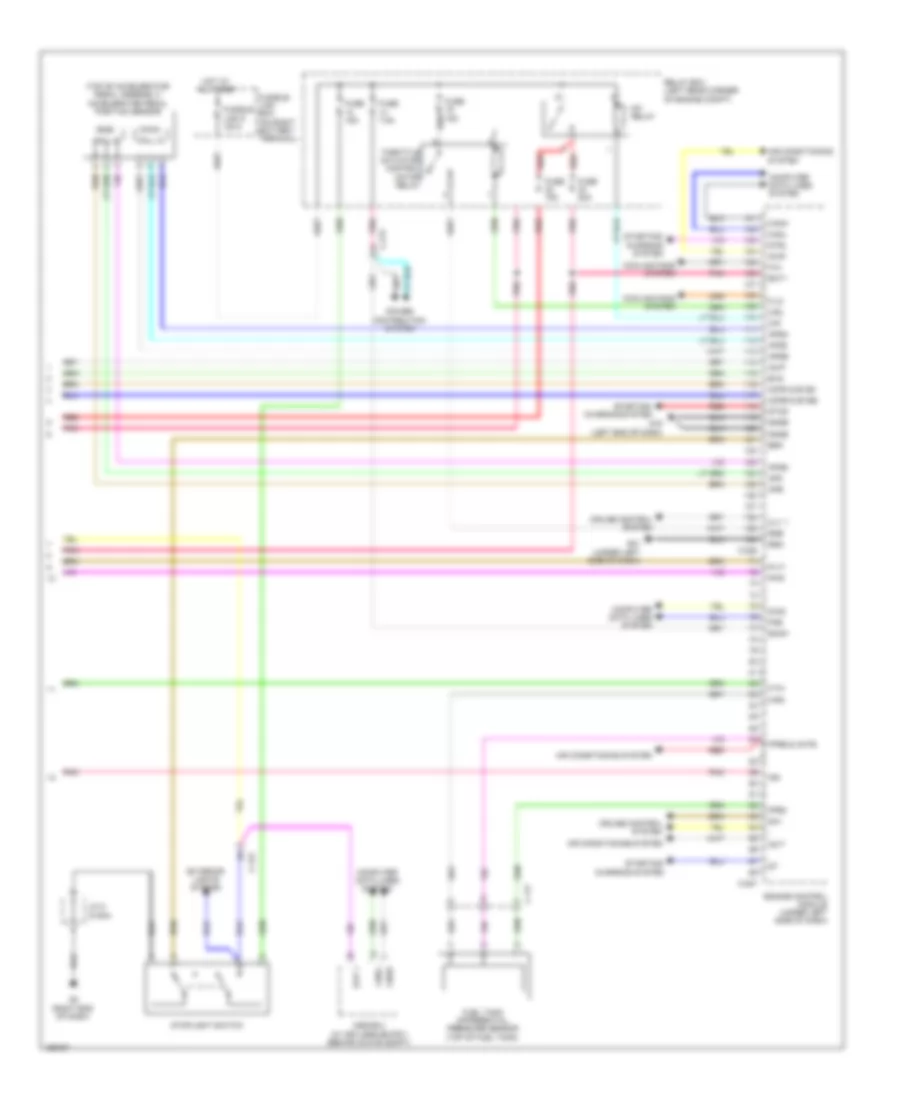

1.2L, Электросхема системы управления двигателем (4 из 4) для Mitsubishi Mirage ES 2014

1.2L, Электросхема системы управления двигателем (4 из 4) для Mitsubishi Mirage ES 2014 - Список элементов:

• (main)
• (sub)
• (top of accelerator pedal assembly) accelerator pedal position sensor
• Ac/p
• Ac/r
• Ac/t
• Acp5 & bvs5
• Acpe & bvse
• Air conditioning system
• Ap5
• Ape
• Aps5
• Apse
• Apsm
• Apss
• Back
• Bat1
• Brk
• Bvs
• C-117
• C-212
• C-213
• C-227
• C-228
• C/r
• C/rl
• Canh
• Canl
• Clt 1
• Cnbh
• Cnbl
• Computer data lines system
• Cooling fans system
• Cruise control system
• Diag
• Engine control module (under left side of dash)
• Exterior lights system
• F/hi
• F/lo
• F/pr
• F/tm
• Fmb
• Fp/r
• Fpr5
• Fpre & acte
• Fuel tank differential pressure sensor (top of fuel tank)
• Fuse 15a
• Fuse 20a
• Fuse 7.5a
• Fusible link 6 120a
• Fusible link box (on right battery terminal)
• G19 (left end of dash)
• G2 (right end of dash)
• G21 (under left side of dash)
• Gndb
• Gnde
• Hall ic
• Hot at all times
• Ign
• J/c 2 (c-204)
• Mfi relay
• Oss-ecu (w/ keyless entry) (behind glove compt)
• P/vt
• Pnk
• Power distribution system
• Red
• Relay box (left rear corner of engine compt)
• Rsb
• Rsg
• Starting/ charging system
• Stcd
• Stoplight switch
• Stp 1
• Strl
• Sw-
• Throttle actuator control motor relay
