Электросхемы СИСТЕМЫ ПАМЯТИ Mitsubishi Diamante ES 1996

СИСТЕМЫ ПАМЯТИ

Электросхема памяти сидений (1 из 2) для Mitsubishi Diamante ES 1996

Электросхема памяти сидений (1 из 2) для Mitsubishi Diamante ES 1996 - Список элементов:

• (left side of dash, on deck crossmember)
• (not used)
• +12v
• Bwd
• C75
• C84
• C86
• C88
• Down
• E58
• E59
• E60
• E62
• E63
• E64
• E65
• Emergency stop
• Front height
• Front height down
• Front height motor
• Front height position sensor
• Front height up
• Frt height dwn limit
• Frt height pos sens
• Frt height up limit
• Fwd
• G202
• Ground
• Hot at all times
• Hot in run
• Hot in run or start
• Ignition
• Instrument cluster system vehicle speed sensor
• Junction block (left side of dash)
• Left power seat switch
• Memory setting
• Multi- purpose fuse 11 10a
• Multi- purpose fuse 19 15a
• Multi- purpose fuse 3 10a
• Multi- purpose fuse 7 10a
• Park/neutral position switch (right side of engine, top of transaxle)
• Playback forbidden
• Playback operation
• Power seat control unit (under left front seat)
• Power source
• Rear height
• Rear height down
• Rear height motor
• Rear height position sensor
• Rear height up
• Recline
• Recline backward
• Recline forward
• Recline front limit
• Recline motor
• Recline pos sensor
• Recline rear limit
• Reclining position sensor
• Red
• Rr height dwn limit
• Rr height pos sens
• Rr height up limit
• Slide
• Slide backward
• Slide forward
• Slide front limit
• Slide motor
• Slide pos sensor
• Slide position sensor
• Slide rear limit
• Speed input
• Storage connector (in engine compartment relay box)

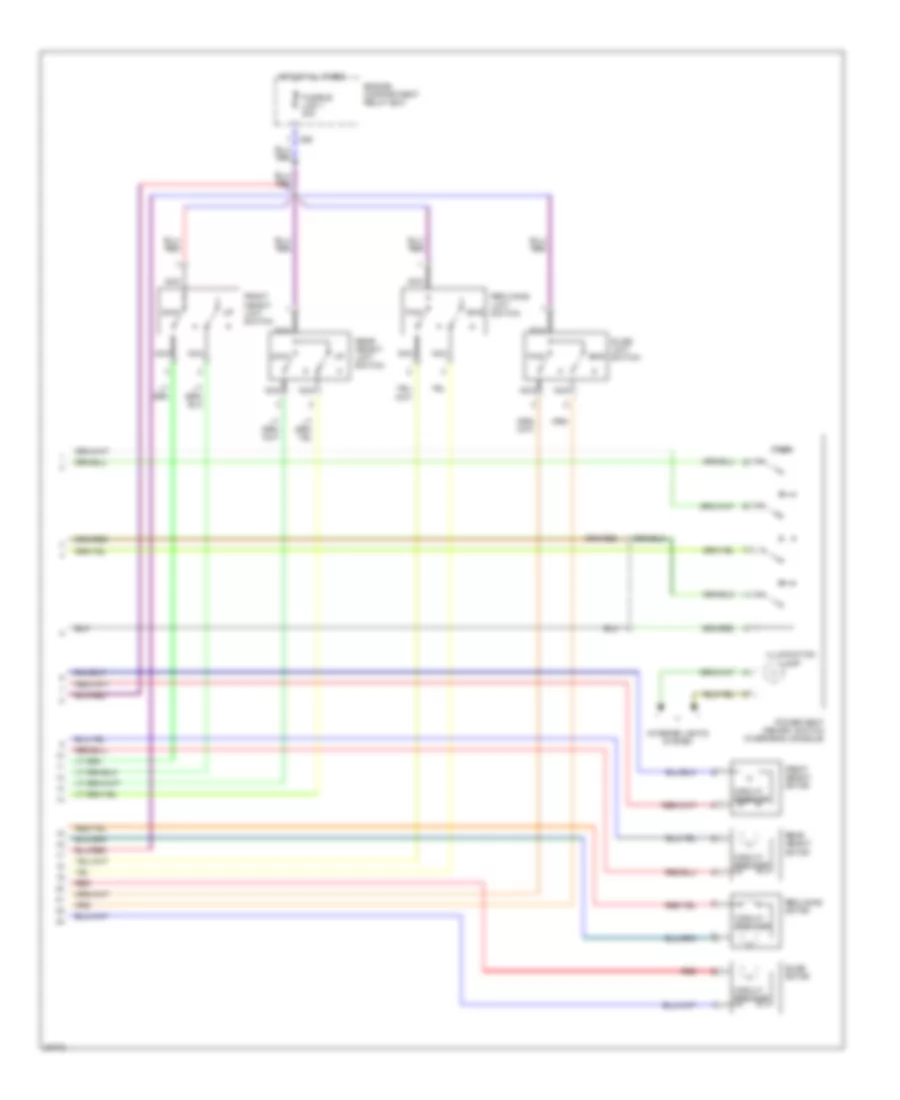

Электросхема памяти сидений (2 из 2) для Mitsubishi Diamante ES 1996

Электросхема памяти сидений (2 из 2) для Mitsubishi Diamante ES 1996 - Список элементов:

• Bwd
• C86
• Circuit breaker
• Dwn
• Engine compartment relay box
• Front height limit switch
• Front height motor
• Fusible link 1 30a
• Fwd
• Hot at all times
• Illumination lamp
• Interior lights system
• Nca
• Power seat memory switch (overhead console)
• Rear height limit switch
• Rear height motor
• Reclining limit switch
• Reclining motor
• Red
• Slide limit switch
• Slide motor
• Stop
