ВНЕШНЕЕ ОСВЕЩЕНИЕ

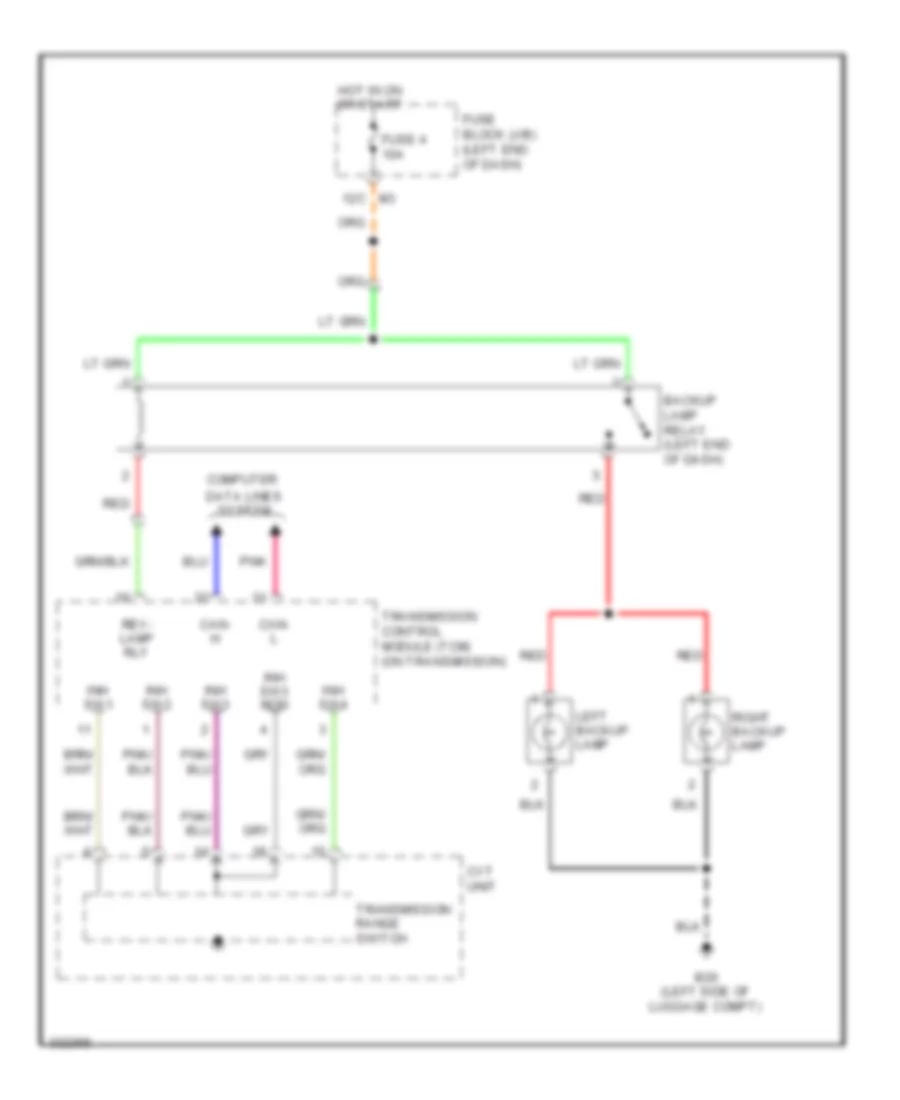

Электросхема заднего хода для Nissan Murano S 2010

Электросхема заднего хода для Nissan Murano S 2010 - Список элементов:

• B26 (left side of luggage compt)
• Backup lamp relay (left end of dash)
• Can- h
• Can- l
• Computer
• Cvt unit
• Data lines system
• Fuse 4 10a
• Fuse block (j/b) (left end of dash)
• Hot in on or start
• Inh sw1
• Inh sw2
• Inh sw3
• Inh sw3 mon
• Inh sw4
• Left backup lamp
• M3 12c
• Pnk
• Red
• Rev- lamp rly
• Right backup lamp
• Transmission control module (tcm) (on transmission)
• Transmission range switch

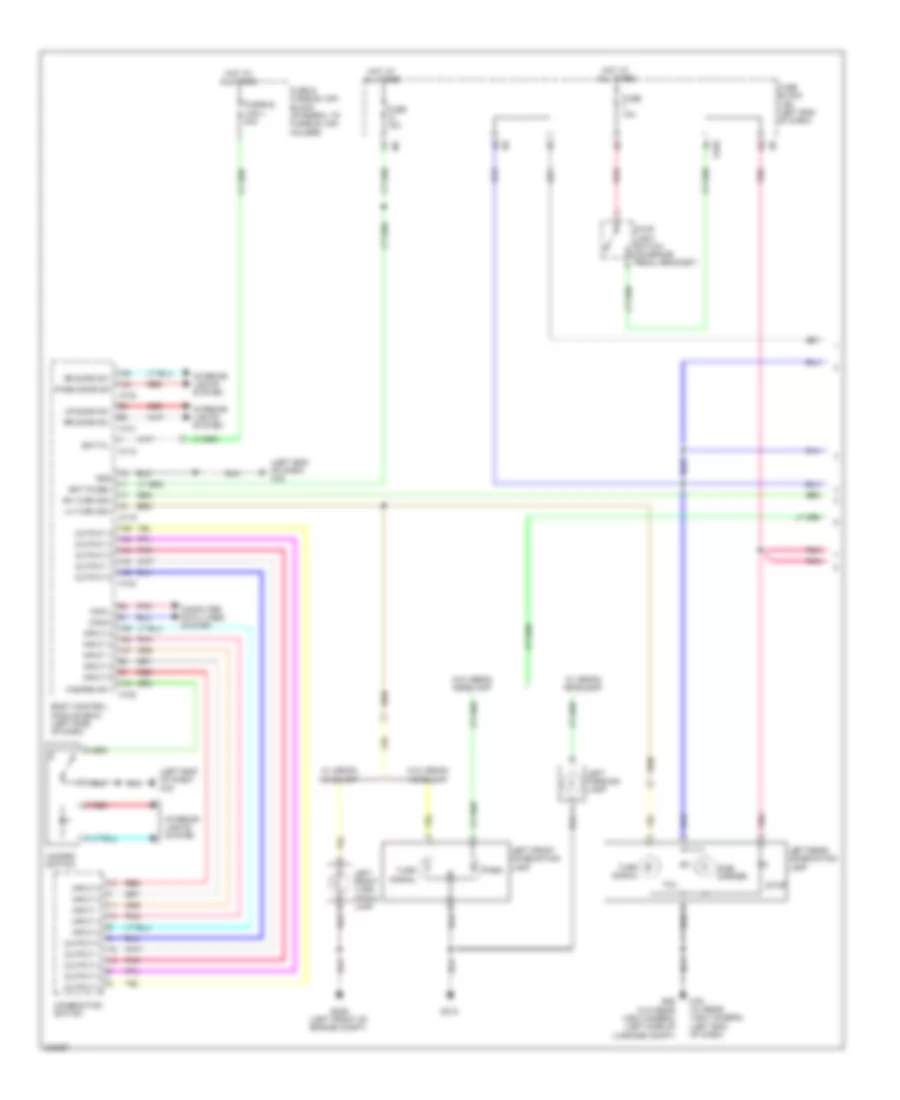

Электросхема внешнего освещения (1 из 2) для Nissan Murano S 2010

Электросхема внешнего освещения (1 из 2) для Nissan Murano S 2010 - Список элементов:

• (left end of dash) m76
• B26 (w/o rear view camera) (left side of luggage compt)
• Bat (fuse)
• Bat f/l
• Body control module (bcm) (left side of dash)
• Can-h
• Can-l
• Combination switch
• Computer data lines system
• Dr door sw
• E103
• E309 (left front of engine compt)
• E310
• Fuse & fusible link block (integral to fusible link holder)
• Fuse 10a
• Fuse block (j/b) (left end of dash)
• Fusible link l 40a
• Gnd
• Hazard sw
• Hazard switch
• Hot at all times
• Input 1
• Input 2
• Input 3
• Input 4
• Input 5
• Interior lights system
• Left front combination lamp
• Left front turn signal lamp
• Left parking lamp
• Left rear combination lamp
• Lh turn sig
• Lr door sw
• M118
• M119
• M121
• M122
• M123
• M76 (w/ rear view camera) (left end of dash)
• Output 1
• Output 2
• Output 3
• Output 4
• Output 5
• Park
• Pass door sw
• Pnk
• Red
• Rh turn sig
• Rr door sw
• Side marker
• Stop
• Stop light switch (on brake pedal bracket)
• Tail
• Turn signal
• W/ xenon headlamp
• W/o xenon headlamp

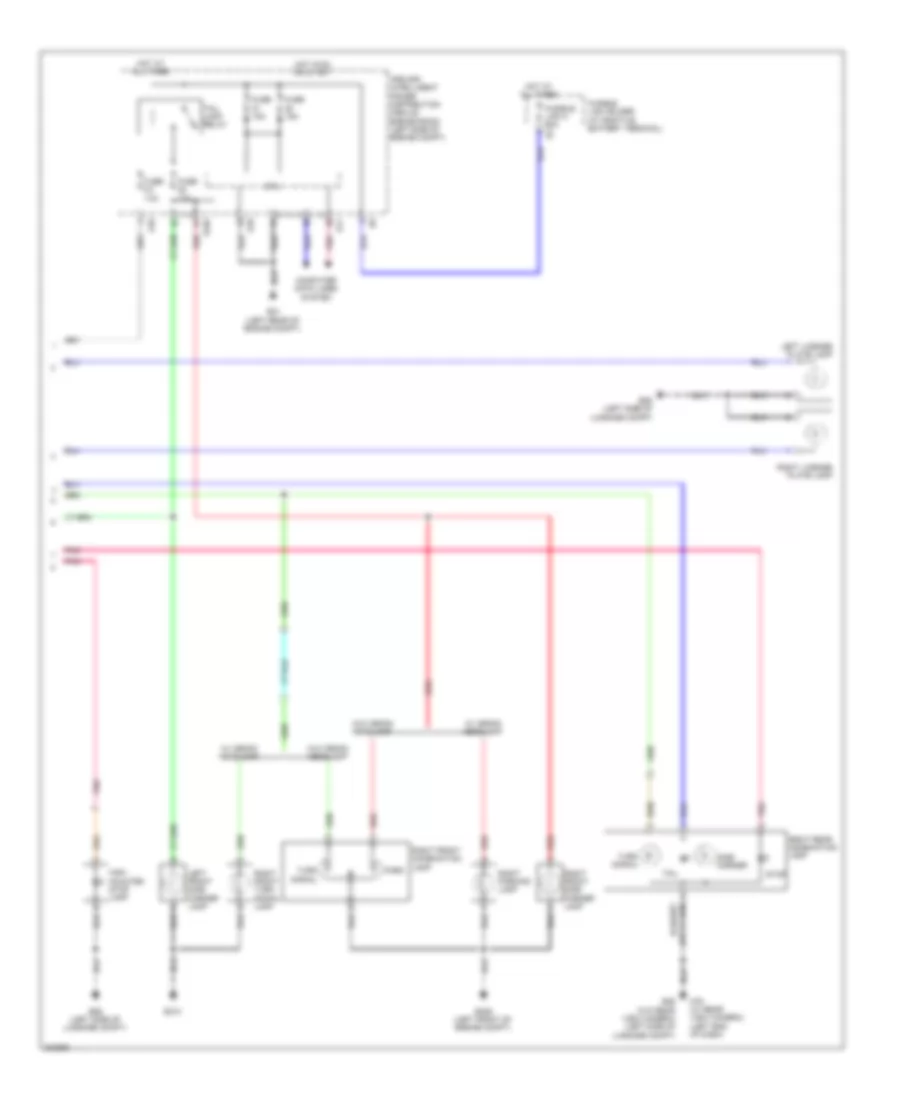

Электросхема внешнего освещения (2 из 2) для Nissan Murano S 2010

Электросхема внешнего освещения (2 из 2) для Nissan Murano S 2010 - Список элементов:

• B26 (left side of luggage compt)
• B26 (w/o rear view camera) (left side of luggage compt)
• Computer data lines system
• Cpu
• E10
• E11
• E21 (left rear of engine compt)
• E309 (left front of engine compt)
• E310
• E346
• Fuse 10a
• Fuse 15a
• Fusible link c 60a e2
• Fusible link holder (at positive battery terminal)
• High mounted stop lamp
• Hot at all times
• Hot in on or start
• Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt)
• Left front side marker lamp
• Left license plate lamp
• M76 (w/ rear view camera) (left end of dash)
• Park
• Pnk
• Red
• Right front combination lamp
• Right front side marker lamp
• Right front turn signal lamp
• Right license plate lamp
• Right parking lamp
• Right rear combination lamp
• Side marker
• Stop
• Tail
• Tail lamp relay
• Turn signal
• W/ xenon headlamp
• W/o xenon headlamp
