Электросхемы ВНЕШНЕЕ ОСВЕЩЕНИЕ Nissan Murano SE 2007

ВНЕШНЕЕ ОСВЕЩЕНИЕ

Электросхема заднего хода для Nissan Murano SE 2007

Электросхема заднего хода для Nissan Murano SE 2007 - Список элементов:

• B20 (behind left rear seat)
• Back-up lamp relay (under left side of dash, near fuse block (j/b))
• Can- h
• Can- l
• Computer data lines system
• Cvt unit (bottom left of transmission)
• Fuse 14 10a
• Fuse block (j/b) (below left side of dash)
• Hot in on or start
• Inh sw1
• Inh sw2
• Inh sw3
• Inh sw3 mon
• Inh sw3m
• Inh sw4
• Left back-up lamp
• Off off off on on
• Off off on on on
• Off on off on off
• Off on on on off
• P r n d l
• Park/ neutral position switch
• Rev- lamp rly
• Right back-up lamp
• Shift position
• Transmission control module (tcm) (behind right side of dash)

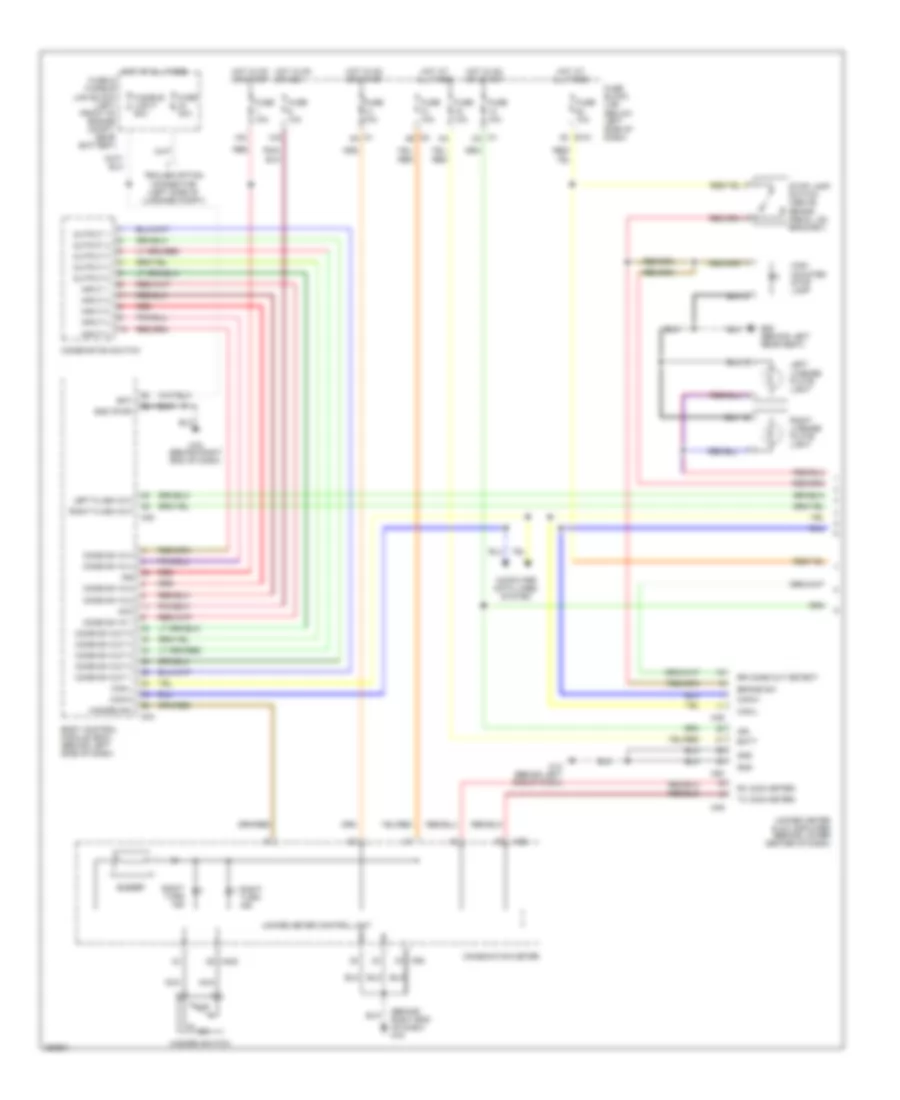

Электросхема внешнего освещения (1 из 2) для Nissan Murano SE 2007

Электросхема внешнего освещения (1 из 2) для Nissan Murano SE 2007 - Список элементов:

• (behind right end of dash) m78
• (below left side of dash)
• 12a
• 15a
• 8c e101
• Acc
• B20 (behind left rear seat)
• Bat
• Batt
• Body control module (bcm) (behind left side of dash)
• Brake sw
• Buzzer
• Can-h
• Can-l
• Comb sw in 1
• Comb sw in 2
• Comb sw in 3
• Comb sw in 4
• Comb sw in 5
• Comb sw out 1
• Comb sw out 2
• Comb sw out 3
• Comb sw out 4
• Comb sw out 5
• Combination meter
• Combination switch
• Computer data lines system
• Fuse & fusible link block (left front of engine compt, near battery)
• Fuse 10a
• Fuse 30a
• Fuse block (j/b)
• Fusible link f 50a
• Gnd
• Gnd (pwr)
• Hazard sw
• Hazard switch
• High mounted stop lamp
• Hot at all times
• Hot in on or acc
• Hot in on or start
• Ign
• Input 1
• Input 2
• Input 3
• Input 4
• Input 5
• Left flash out
• Left license plate light
• M1 2a
• M1 5a
• M14 (behind left end of dash)
• M2 4b
• M25
• M302
• M34
• M35
• M49
• M50
• M78 (behind right end of dash)
• Nca
• Off
• Output 1
• Output 2
• Output 3
• Output 4
• Output 5
• Red
• Right flash out
• Right license plate light
• Right turn ind
• Rr comb cut detect
• Rx (com meter)
• Stop lamp switch (above brake pedal, on bracket)
• Trailer option connector (left side of luggage compt)
• Tx (com meter)
• Unified meter & a/c amplifier (behind lower center of dash)
• Unified meter control unit

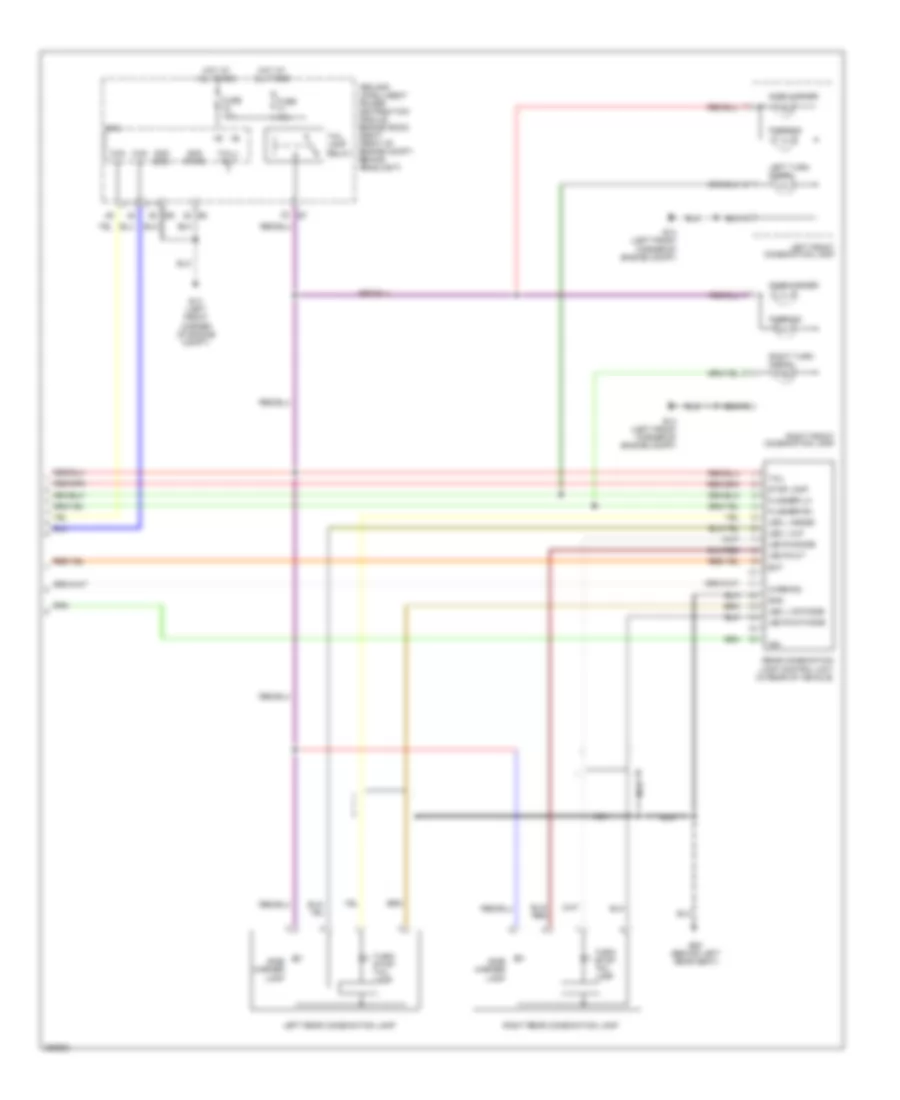

Электросхема внешнего освещения (2 из 2) для Nissan Murano SE 2007

Электросхема внешнего освещения (2 из 2) для Nissan Murano SE 2007 - Список элементов:

• B20 (behind left rear seat)
• Bat
• Can -h
• Can -l
• Cpu
• E13 (left front corner of engine compt)
• Flasher lh
• Flasher rh
• Fuse 10a
• Fuse 15a
• Gnd
• Gnd (pwr)
• Gnd (sig)
• Hot at all times
• Ign
• Ipdm e/r (intelligent power distribution module engine room) (right front of engine compt, behind headlight)
• Led l anode
• Led l cathode
• Led l cut
• Led r anode
• Led r cathode
• Led r cut
• Left front combination lamp
• Left rear combination lamp
• Left turn signal
• Nca
• Parking
• Rear combination lamp control unit (in rear of vehicle)
• Right front combination lamp
• Right rear combination lamp
• Right turn signal
• Side marker
• Side marker lamp
• Stop lamp
• Tail
• Tail lamp relay
• Tail/l rly
• Turn/ stop/ tail lamp
• Warning
