Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Mitsubishi Diamante ES 1996

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

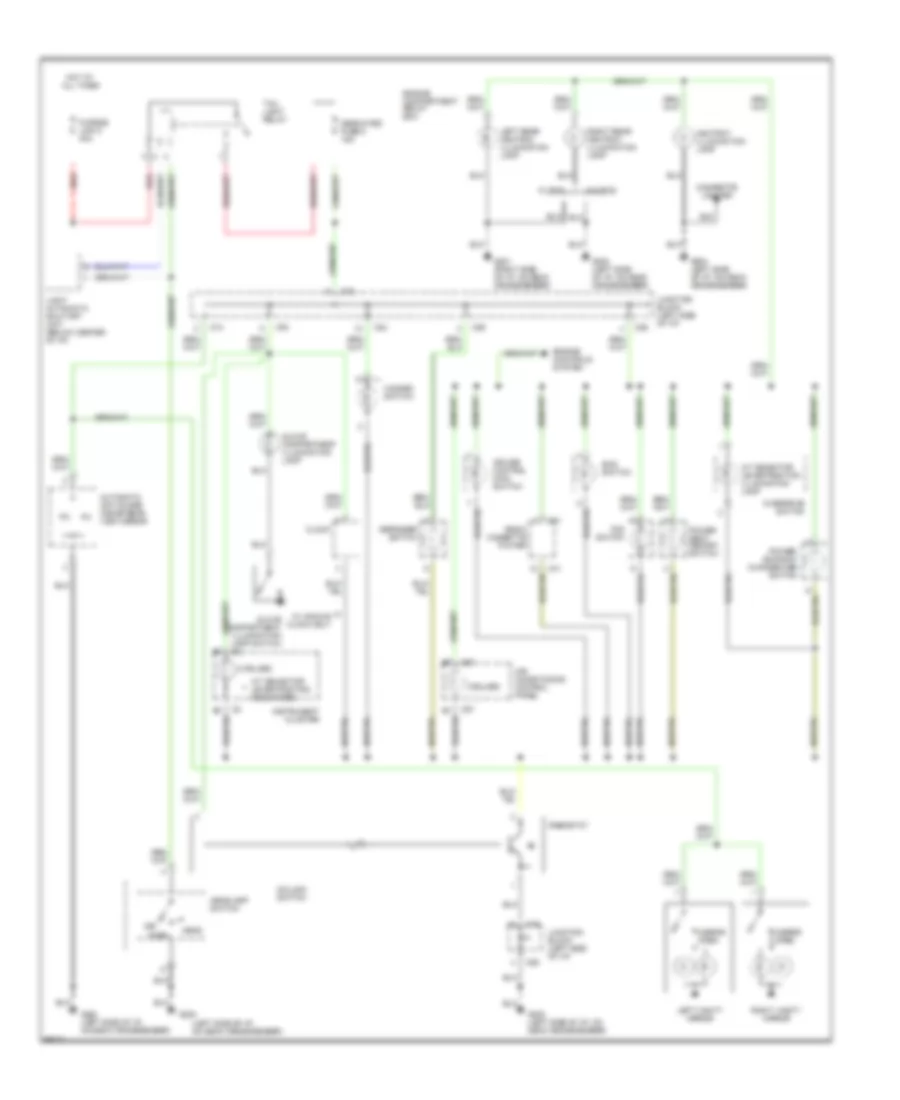

Электросхема подсветки для Mitsubishi Diamante ES 1996

Электросхема подсветки для Mitsubishi Diamante ES 1996 - Список элементов:

• (right side of engine compartment)
• (right side of i/p, on deck crossmember)
• 10 sec. timer
• 6 sec. timer
• Automatic light shut- off unit (below center of i/p)
• C35
• C36
• C74
• C75
• C84
• C86
• Constant voltage circuit
• Dedicated fuse 13
• Diode (left side of i/p, near junction block)
• Dome lamp
• Dome lamp assembly
• Door
• Door handle switch
• Door inputs
• Door key illumination assembly
• Door sw in
• Engine compartment relay box
• Etacs unit (below center of i/p)
• F10
• F17
• F24
• F25
• Fusible link 1 30a
• G201
• G202 (left side of i/p, on deck crossmember)
• G35
• Gnd
• Hot at all times
• Hot at all times
• Hot in on or start
• Ignition key illumination lamp
• Illum ctrl
• Junction block (left side of i/p)
• Keyless entry control unit (center of rear deck)
• Left door control unit
• Left front door lamp
• Left front door switch
• Left rear door lamp
• Left rear door switch
• Left rear personal lamp
• Left rear power window unit
• Luggage compartment lamp
• Luggage compartment lamp switch
• Map lamps
• Multi comm
• Multi- purpose fuse 11 10a
• Multi- purpose fuse 19 10a
• Multi- purpose fuse 6 15a
• Nca
• Off
• Power tops system (sunroof control unit) & warning system (buzzer)
• Power window main switch
• Power window relay
• Red
• Relay ctrl
• Right door control unit
• Right front door lamp
• Right front door switch
• Right rear door lamp
• Right rear door switch
• Right rear personal lamp
• Right rear power window unit
• Storage connector (engine compt. relay box)

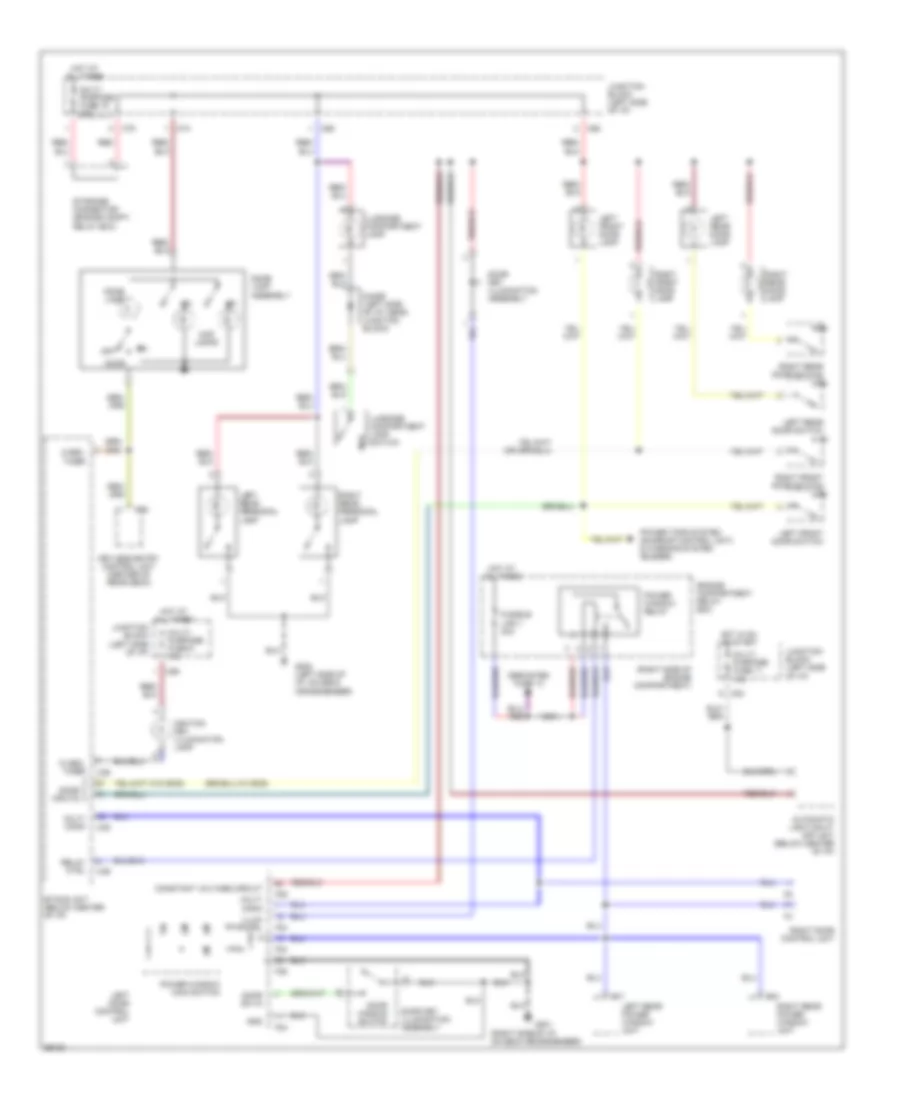

Электросхема подсветки приборов для Mitsubishi Diamante ES 1996

Электросхема подсветки приборов для Mitsubishi Diamante ES 1996 - Список элементов:

• (3 bulbs)
• (left side of i/p, on deck crossmember)
• A/t selector lever position illumination lamp
• A/t selector lever position indicators
• Air conditioning control panel
• Ashtray illumination lamp
• Automatic anti-glare inside rear view mirror
• C41
• C57
• C73
• C74
• C76
• C84
• C85
• C88
• C89
• Cigarette lighter
• Clock
• Column switch
• Cruise control main switch
• Dedicated fuse 5 15a
• Defogger switch
• Ecs switch
• Engine compartment relay box
• Engine controls system
• Fusible link 5 40a
• G201 (right side of i/p, on deck crossmember)
• G202
• G202 (left side of i/p, on deck crossmember)
• Glove compartment illumination lamp
• Glove compartment illumination lamp switch
• Hazard switch
• Head
• Headlamp switch
• Hot at all times
• Instrument cluster
• Junction block (left side of i/p)
• Left rear ashtray illumination lamp
• Left vanity mirror
• Light automatic shut-off unit (below center of i/p)
• Mirror open
• Off
• Overdrive switch
• Park
• Power seat memory switch
• Power/ economy changeover switch
• Radio cassette player
• Red
• Rheostat
• Right rear ashtray illumination lamp
• Right vanity mirror
• Tail light relay
• Tcs switch
• W/ analog clock only
• W/ ecs
• W/o ecs
