Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Nissan Murano S 2010

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

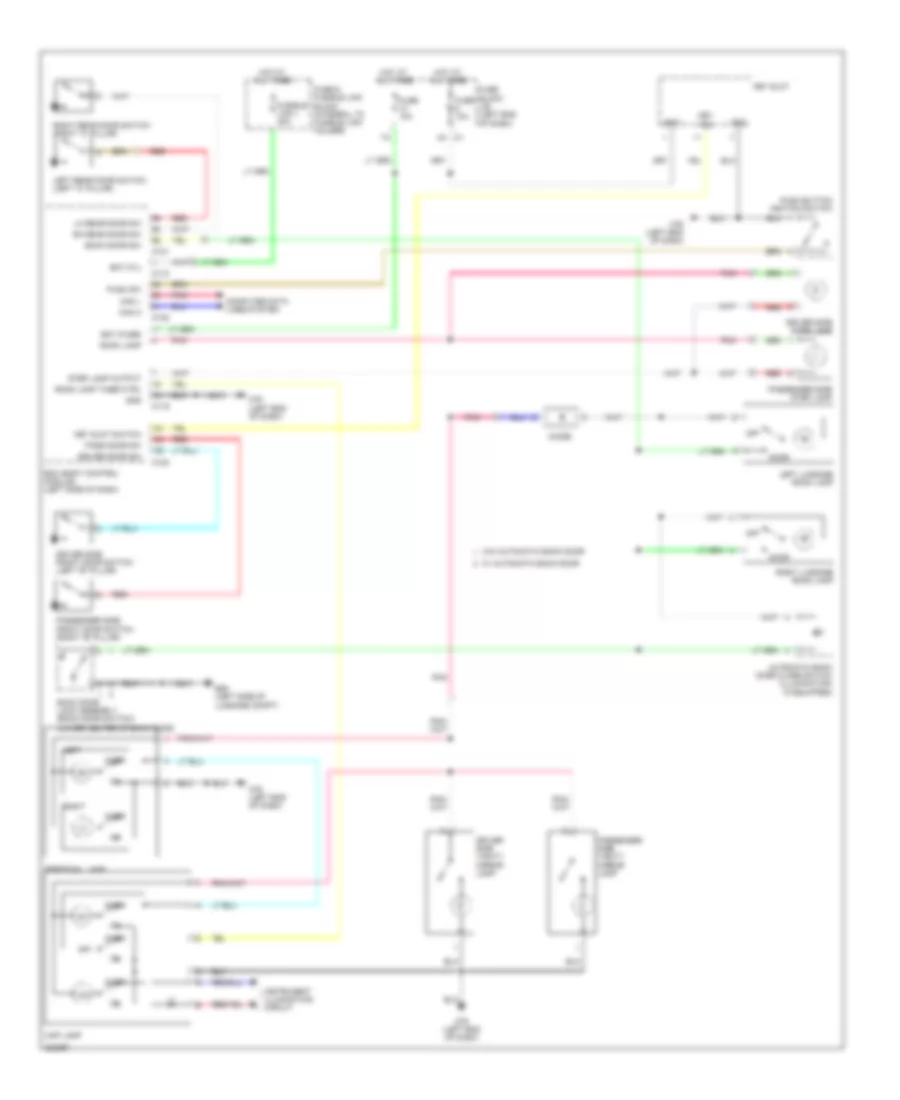

Электросхема подсветки для Nissan Murano S 2010

Электросхема подсветки для Nissan Murano S 2010 - Список элементов:

• (lower center of back door)
• 4a m1
• Automatic back door close switch (illumination) (if equipped)
• B26 (left side of luggage compt)
• Back door lock assembly (back door switch)
• Back door sw
• Bat
• Bat (f/l)
• Bat (fuse)
• Bcm (body control module) (left side of dash)
• Can h
• Can l
• Computer data lines system
• Diode
• Door
• Driver door sw
• Driver side front door switch (left "b" pillar)
• Driver side step lamp
• Driver side vanity mirror lamp
• Fuse & fusible link block (integral to fusible link holder)
• Fuse 10a
• Fuse block j/b (left end of dash)
• Fusible link l 40a
• Gnd
• Hot at all times
• Instrument illumination circuit
• Key slot
• Key slot switch
• Key sw
• Left
• Left luggage room lamp
• Left rear door switch (left "c" pillar)
• Lh rear door sw
• M118
• M119
• M121
• M122
• M123
• M76 (left end of dash)
• Map lamp
• Off
• Pass door sw
• Passenger side front door switch (right "b" pillar)
• Passenger side step lamp
• Passenger side vanity mirror lamp
• Personal lamp
• Pnk
• Push button ignition switch
• Push sw
• Red
• Rh rear door sw
• Right
• Right luggage room lamp
• Right rear door switch (right "c" pillar)
• Room lamp
• Room lamp timer ctrl
• Step lamp output
• W/ automatic back door
• W/o automatic back door

Электросхема подсветки приборов (1 из 2) для Nissan Murano S 2010

Электросхема подсветки приборов (1 из 2) для Nissan Murano S 2010 - Список элементов:

• Ashtray illumination
• Av control unit
• Bat (f/l)
• Bat (fuse)
• Bcm (body control module) (left side of dash)
• Can-h
• Can-l
• Combi sw input 1
• Combi sw input 2
• Combi sw input 3
• Combi sw input 4
• Combi sw input 5
• Combi sw output 1
• Combi sw output 2
• Combi sw output 3
• Combi sw output 4
• Combi sw output 5
• Combination meter
• Combination switch
• Combination switch (spiral cable) (in steering wheel)
• Computer data lines system
• Cont
• Dr door sw
• Driver side front door switch (left "b" pillar)
• Dvd player
• Fuse & fusible link block (integral to fusible link holder)
• Fusible link c 60a
• Fusible link holder (at positive battery terminal)
• Fusible link l 40a
• Glove box lamp
• Gnd
• Hot at all times
• If equipped
• Ill
• Input 1
• Input 2
• Input 3
• Input 4
• Input 5
• M118
• M119
• M122
• M123
• M127
• M303
• M32
• M33
• M35 (right end of dash)
• M43
• M76 (left end of dash)
• Multi-function switch
• Nca
• Output 1
• Output 2
• Output 3
• Output 4
• Output 5
• Pnk
• Push led
• Red
• Steering switch (illumination)
• Unified meter control unit (w/ meter illumination)

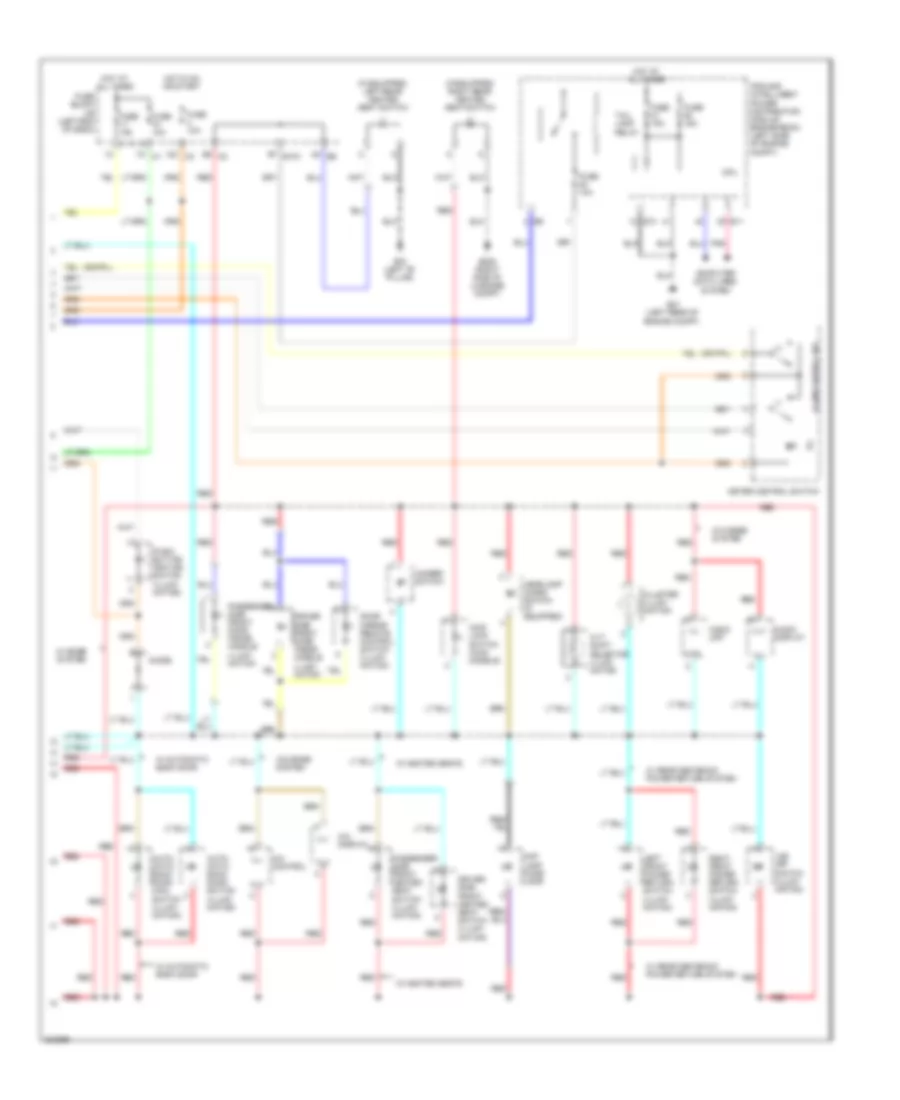

Электросхема подсветки приборов (2 из 2) для Nissan Murano S 2010

Электросхема подсветки приборов (2 из 2) для Nissan Murano S 2010 - Список элементов:

• (+)
• (-)
• (if equipped) left rear heated seat switch
• (if equipped) right rear heated seat switch
• 12c m3
• 4g b6
• 7a m1
• 8b m2
• 9f e103
• A/c control
• A/c display
• Audio display
• Audio unit
• Auto- matic back door main switch (illumi- nation)
• Auto- matic back door switch (illumi- nation)
• Awd lock switch (awd models)
• B15 (left "b" pillar)
• B208 (right side of luggage compt)
• Cluster illumi- nation
• Computer data lines system
• Cpu
• Ctrl
• Cvt shift selector illumi- nation
• Diode
• Door mirror remote control switch (illumi- nation)
• Driver side front door inside handle illumi- nation
• Driver side front heated seat switch (illumi- nation)
• E10
• E11
• E21 (left rear of engine compt)
• Fuse 10a
• Fuse 15a
• Fuse block j/b (left end of dash)
• Hazard switch
• Headlamp aiming switch (if equipped)
• Hot at all times
• Hot in on or start
• Ill
• Ill+
• Ill-
• Illum control sw
• Ipdm e/r (intelligent power distribution module engine room) (left side of engine compt)
• Left front power return switch (illumi- nation)
• Map lamp (mood lamp)
• Meter control switch
• Passenger side front door inside handle illumi- nation
• Passenger side front heated seat switch (illumi- nation)
• Pnk
• Push- button ignition switch (illumi- nation)
• Red
• Right front power return switch (illumi- nation)
• Tail lamp relay
• Vdc off switch (illumi- nation)
• W/ automatic back door
• W/ bose system
• W/ heated seats
• W/ rear seatback power return system
• W/o bose system
