Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Nissan Murano SE 2007

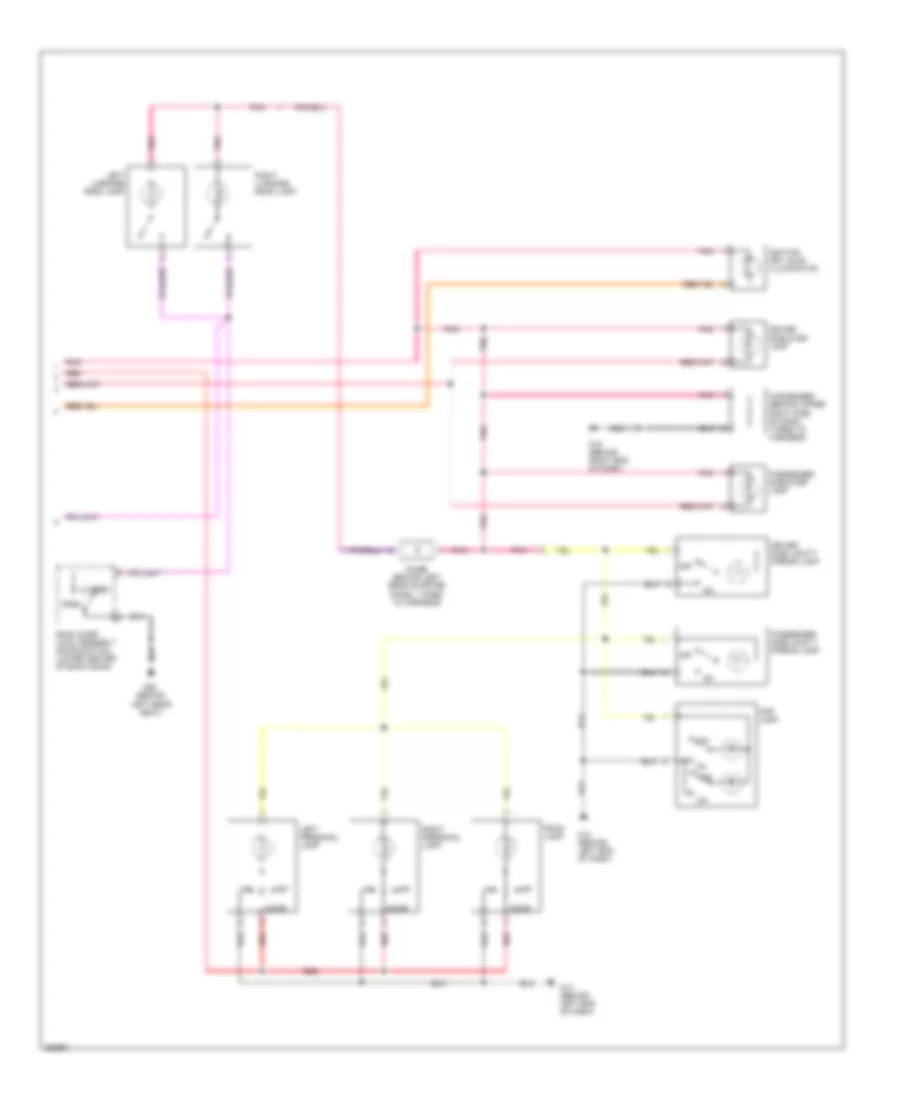

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

(behind left end of dash) m14
(behind right end of dash) m78
(door lock & unlock switch)
(in driver's door)
(passenger side) (door lock & unlock switch)
15a m1
B105 (behind right kick panel)
B20 (behind left rear seat)
Back door sw
Bat (f/l)
Battery saver out
Between full stroke & n
Body control module (behind left side of dash)
Can-h
Can-l
Computer data lines system
Cpu
Door key cylinder switch
Door sw (as)
Door sw (dr)
Door sw (rl)
Door sw (rr)
Front door lock assembly (driver side door switch) (rear of left front door)
Front door lock assembly (driver side) (door key cylinder switch) (rear of left front door)
Front door lock assembly (passenger side door switch) (rear of right front door)
Front power window switch
Full
Full stroke
Fuse & fusible link block (left front of engine compt, near battery)
Fuse 10a
Fuse block (j/b) (below left side of dash)
Fusible link f 50a
Gnd
Gnd (pwr)
Hot at all times
Hot in on or start
Ign sw
Key ring illum out
Key sw
Key switch & ignition knob switch
Key switch & key lock solenoid (on right side of steering column)
Left rear door lock assembly (door switch) (rear of left rear door)
Lock
Lock switch
M2 1b
M34
M35
M36
M78 (behind right end of dash)
Pnk
Power window main switch
Pwd serial link
Red
Right rear door lock assembly (door switch) (rear of right rear door)
Room lamp out
Step lamp out
Unlock
Unlock switch
W/ intelligent key
W/o intelligent key

(+)
(-)
(behind right end of dash) m78
(sig) gnd
(under front of center console)
12a
15a

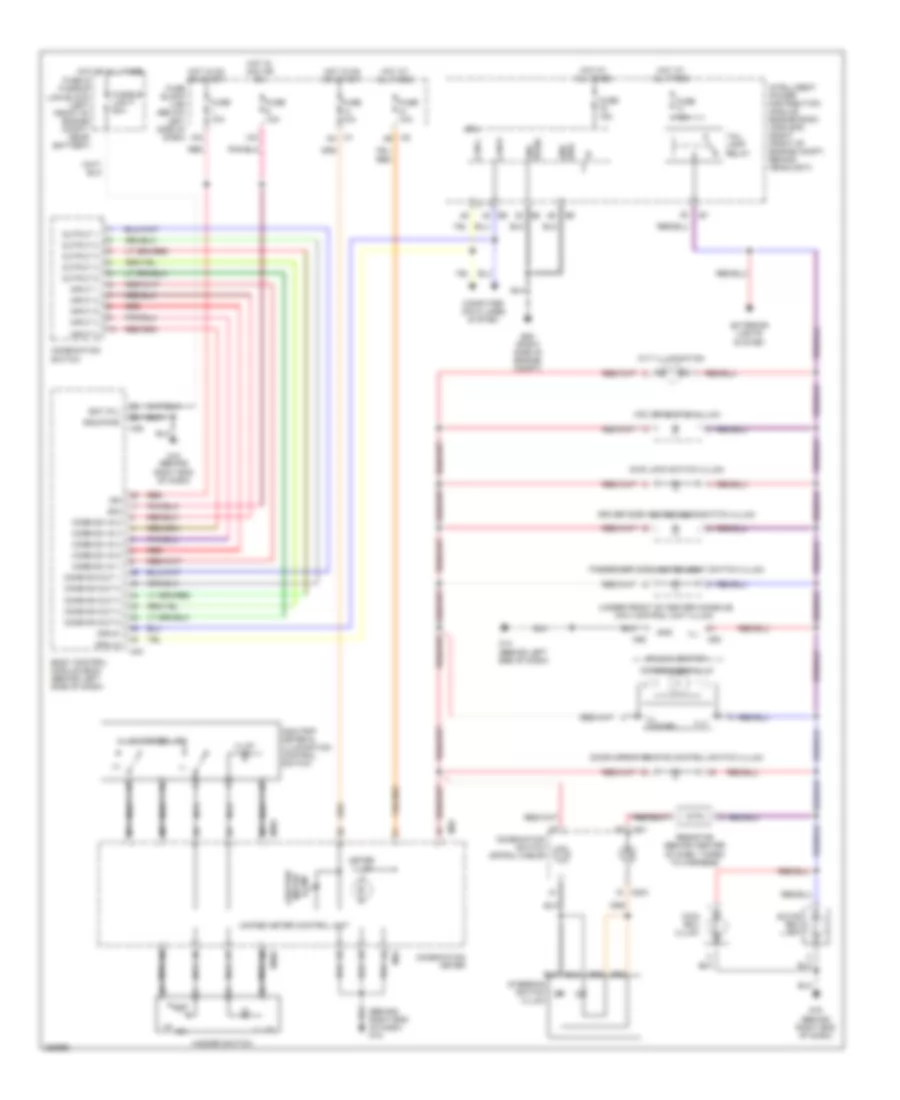

A/c & av switch
Acc
Awd lock switch (illum)
Bat (f/l)
Body control module (bcm) (behind left side of dash)
Can-h
Can-hi
Can-l
Can-lo
Coin box (illum)
Comb sw in 1
Comb sw in 2
Comb sw in 3
Comb sw in 4
Comb sw in 5
Comb sw out 1
Comb sw out 2
Comb sw out 3
Comb sw out 4
Comb sw out 5
Combination meter
Combination switch
Combination switch (spiral cable)
Computer data lines system
Console box illum
Cpu
Cvt illumination
Door mirror remote control switch (illum)
Driver side heated seat switch (illum)
E28 (right side of engine compt)
Exterior lights system
Fuse & fusible link block (left front of engine compt, near battery)
Fuse 10a
Fuse 15a
Fuse block (j/b) (below left side of dash)
Fusible link f 50a
Glove box lamp
Gnd
Gnd (pwr)
Hazard switch
Hot at all times
Hot in acc or on
Hot in on or start
Ign
Ill
Ill control
Ill+
Illum
Illum control sw
Illum meter
Input 1
Input 2
Input 3
Input 4
Input 5
Intelligent power distribution module engine room (ipdm e/r) (right front of engine compt, behind headlight)
M1 5a
M14 (behind left end of dash)
M203
M25
M301
M302
M31
M34
M35
M62
M63
M78 (behind right end of dash)
Meter illum
Navi control unit (illum)
Nca
Odo/trip
Odo/trip meter & illumination control switch
Off
Output 1
Output 2
Output 3
Output 4
Output 5
Passenger side heated seat switch (illum)
Red
Resistor (behind center of dash, taped to harness)
Steering switch (illum)
Tail lamp relay
Unified meter control unit
Vdc off switch (illum)
