Электросхемы Звуковой сигнал Гудок Nissan Murano SE 2007

Звуковой сигнал Гудок

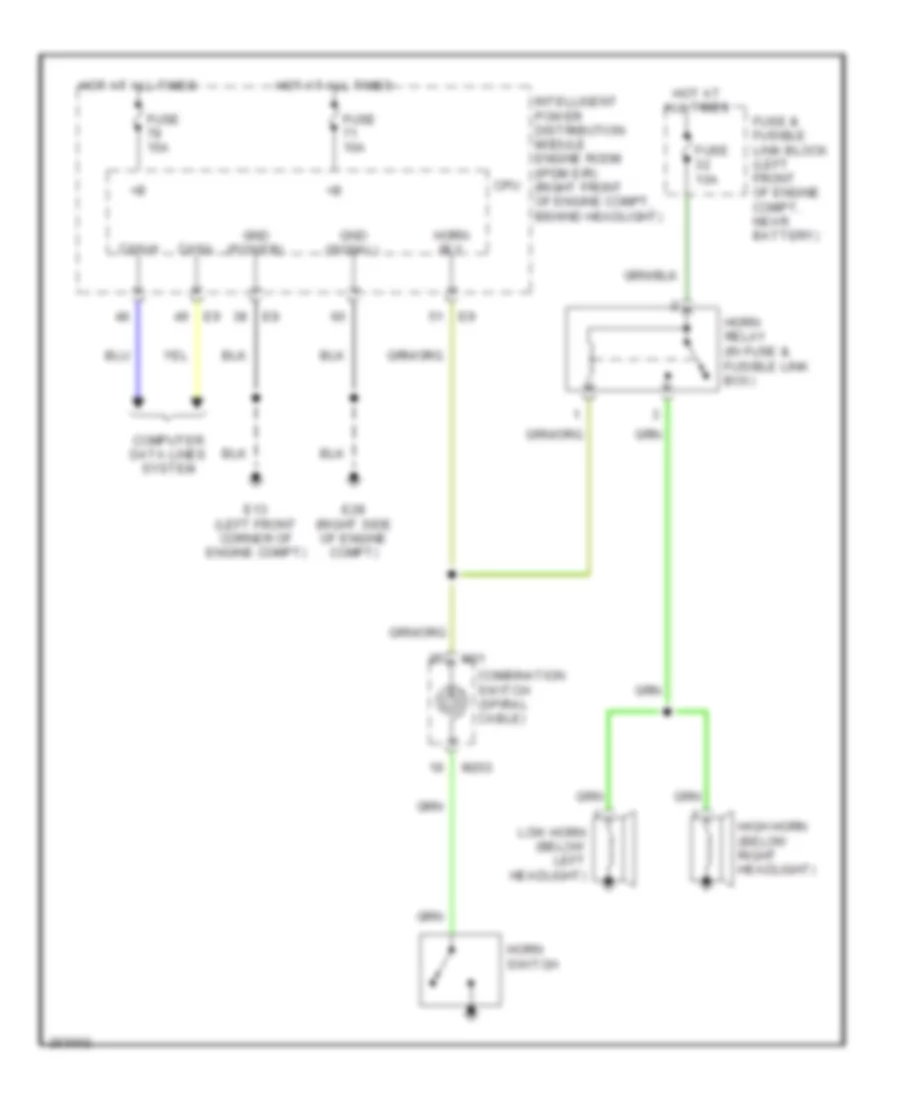

Электросхема звукового сигнал Гудка для Nissan Murano SE 2007

Электросхема звукового сигнал Гудка для Nissan Murano SE 2007 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема звукового сигнал Гудка для Nissan Murano SE 2007 - Список элементов:

  • (power)
  • (signal)
  • Can-h
  • Can-l
  • Combination switch (spiral cable)
  • Computer data lines system
  • Cpu
  • E13 (left front corner of engine compt)
  • E28 (right side of engine compt)
  • Fuse & fusible link block (left front of engine compt, near battery)
  • Fuse 10a
  • Fuse 15a
  • Gnd
  • High horn (below right headlight)
  • Horn relay (in fuse & fusible link box)
  • Horn rly
  • Horn switch
  • Hot at all times
  • Intelligent power distribution module engine room (ipdm e/r) (right front of engine compt, behind headlight)
  • Low horn (below left headlight)
  • M203
  • M31
