Электросхемы Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала Acura 3.2TL 2002

Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала

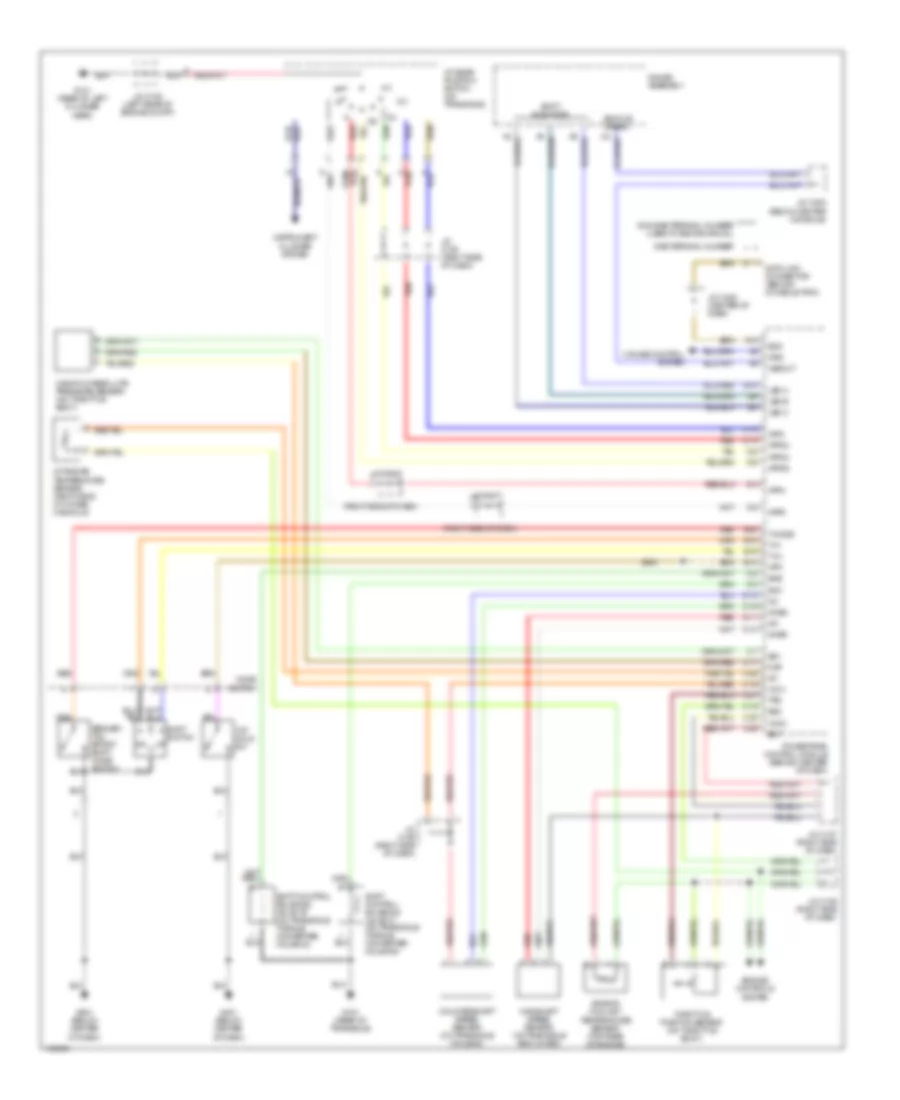

Электросхема коробки передач АКПП (1 из 2) для Acura 3.2TL 2002

Электросхема коробки передач АКПП (1 из 2) для Acura 3.2TL 2002 - Список элементов:

• (on transaxle housing) a/t clutch pressure control solenoid valve "a"
• (on transaxle housing) a/t clutch pressure control solenoid valve "b"
• (right side of dash)
• 3rd clutch pressure switch (on transaxle)
• 4th clutch pressure switch (left rear of transaxle)
• A/t gear position switch (on transaxle)
• A/t lock-up clutch pressure control solenoid valve (on transaxle housing)
• A14
• A22
• A28
• A32
• Anti-lock brake system
• Anti-lock brakes system
• Atf temperature sensor (left end of transmission)
• Atpnp
• Atsftp
• B10
• B13
• B14
• B17
• B18
• B19
• B20
• B21
• B22
• B24
• B25
• Bksw
• Box
• Brake switch (on brake pedal support)
• C10
• C18
• C22
• C24
• Climate control unit, radiator fan control module
• Cruise control system
• D13
• D5ind
• Driver's underdash fuse/relay box
• E13
• E17
• Engine controls system
• Fuse 15a
• Fuse 47 20a
• Fuse 7.5a
• G101 (rear of left cylinder head)
• G151 (rear of transaxle)
• Gauge assembly
• Hot at all tiimes
• Hot at all times
• Hot in on or start
• Ignition key switch
• Ilu
• Imrc unit
• J/c c105 (left rear of engine compt)
• J/c c106 (right side of dash)
• J/c c107
• J/c c107 (right side of dash)
• J12
• Lg1
• Lg2
• Lock-up control solenoid valve (on transaxle torque converter housing)
• Lsa+
• Lsa-
• Lsb+
• Lsb-
• Lsc+
• Lsc-
• O19
• O20
• Op3sw
• Op4sw
• Passenger's underdash fuse/relay
• Pg1
• Pg2
• Pnk
• Powertrain control module (behind center of dash)
• Red
• Seaf
• Sefa
• Sgl
• Sha
• Shift control solenoid valve "a" (on transaxle torque converter housing)
• Shift interlock system
• Taft
• Tcrxd
• Tctxd
• Under- hood fuse/ relay box
• Vbsol
• Vbu
• Vsa control unit (behind right kick panel)

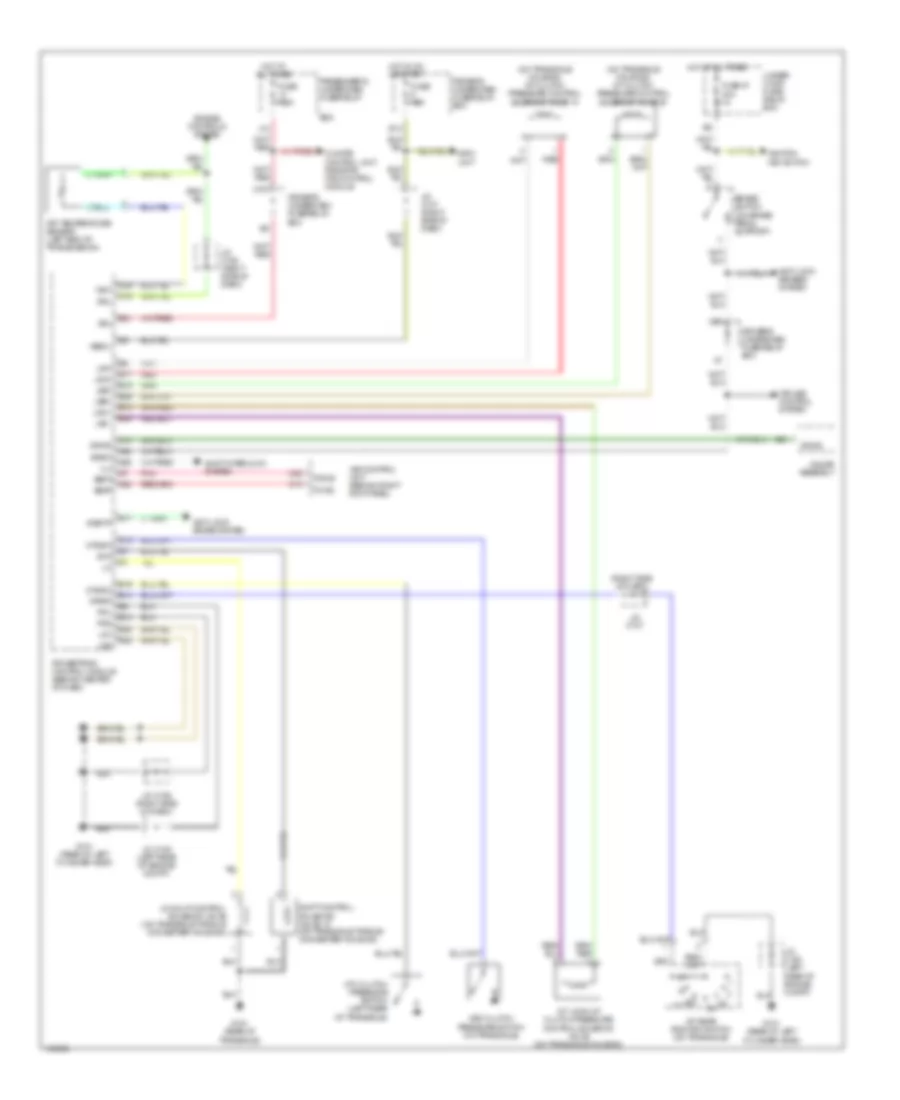

Электросхема коробки передач АКПП (2 из 2) для Acura 3.2TL 2002

Электросхема коробки передач АКПП (2 из 2) для Acura 3.2TL 2002 - Список элементов:

• (right side of dash)
• 1st hold sw
• A/t gear position switch (on transaxle)
• A10
• Atp1
• Atp2
• Atpd3
• Atpd4
• Atpd5
• Atpn
• Atpr
• C17
• C18
• C19
• C25
• C26
• C27
• C28
• Countershaft speed sensor (on transaxle housing)
• Crs
• Cruise control system
• D10
• D11
• D12
• D14
• D15
• D16
• Data link connector (behind console tray)
• E10
• E14
• E18
• E19
• E20
• Ect
• Engine controls system
• Engine coolant temperature sensor (top rear of engine)
• G101 (rear of left cylinder head)
• G151 (rear of transaxle)
• G401 (below center of dash)
• G501 (below center of dash)
• Gauge assembly
• Iat
• Instrument cluster system
• Intake air temperature sensor (right side of intake manifold)
• J/c c105 (left rear of engine compt)
• J/c c106
• J/c c106 (right side of dash)
• J/c c107
• J/c c107 (right side of dash)
• J/c c453 (center of dash)
• J/c c454 (below center console)
• Led a
• Led b
• Led c
• Mainshaft speed sensor (on transaxle end cover)
• Manifold absolute pressure sensor (on throttle body)
• Map
• Mode switch
• Ncsg
• Nmsg
• Non-sae terminal number (used in sevice manual)
• Powertrain control module (behind center of dash)
• Red
• Red/
• Sae terminal number
• Scs
• Sequen- tial sport- shift mode switch
• Sg1
• Sg2
• Shb
• Shc
• Shift control solenoid valve "b" (on transaxle torque converter housing)
• Shift control solenoid valve "c" (on transaxle torque converter housing)
• Shift indicator
• Shift switch
• T-m+
• T-m-
• T-mode
• Throttle position sensor (on throttle body)
• Tps
• Vcc1
• Vcc2
• Vehicle speed
• Vssout
