Электросхемы БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА Chevrolet Suburban C2500 2008

БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА

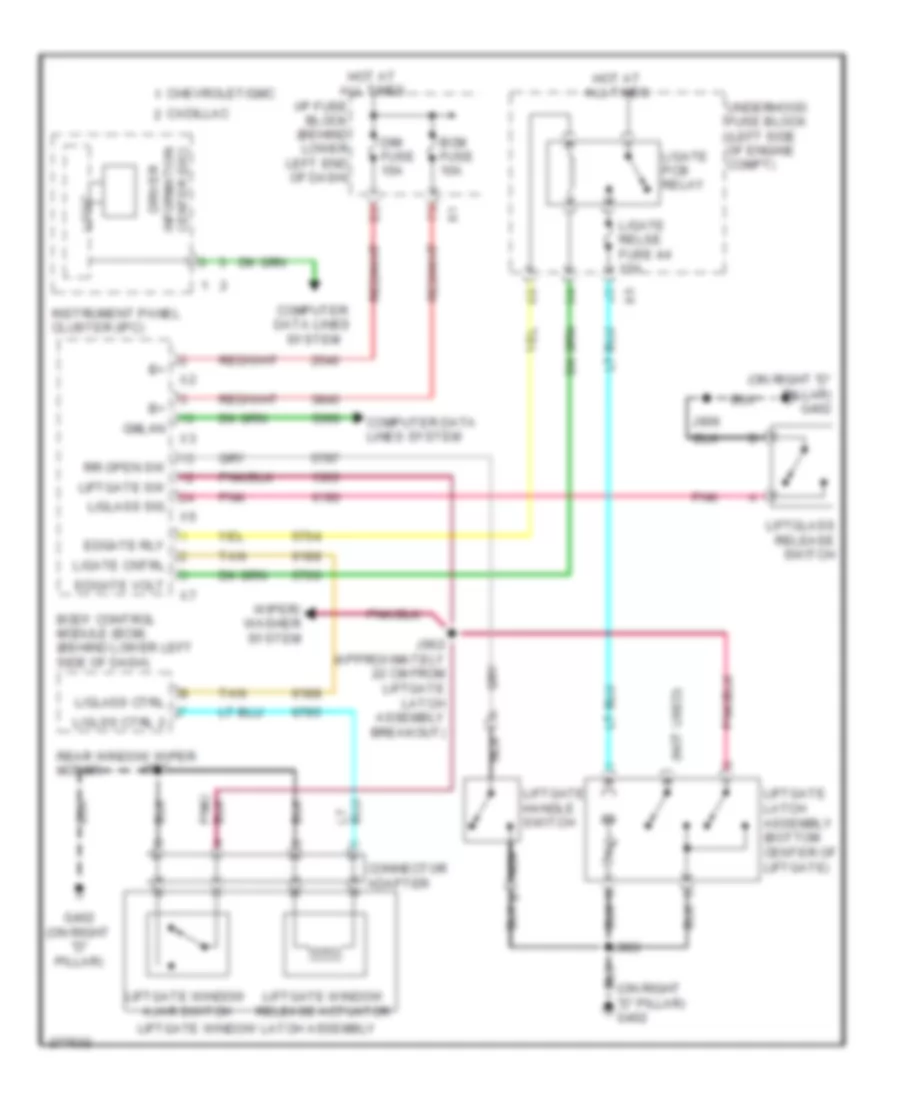

Электросхема открывания багажника для Chevrolet Suburban C2500 2008

Электросхема открывания багажника для Chevrolet Suburban C2500 2008 - Список элементов:

• (not used)
• (on right "d" pillar) g402
• Bcm fuse 10a
• Body control module (bcm) (behind lower left side of dash)
• Cadillac
• Chevrolet/gmc
• Computer data lines system
• Connector adapter
• Dim fuse 10a
• Driver information center (dic)
• Edgate rly
• Edgate volt
• G402 (on right "d" pillar)
• Gmlan
• Hot at all times
• I/p fuse block (behind lower left end of dash)
• Instrument panel cluster (ipc)
• J902 (approximately 22 cm from liftgate latch assembly breakout)
• J903
• J906
• L/gate cntrl
• L/gate pcb relay
• L/gate relse fuse 44 15a
• L/glass ctrl
• L/glass sig
• L/glss ctrl 2
• Liftgate handle switch
• Liftgate latch assembly (bottom center of liftgate)
• Liftgate sw
• Liftgate window ajar switch
• Liftgate window latch assembly
• Liftgate window release actuator
• Liftglass release switch
• Logic
• Nca
• Pnk
• Rear window wiper motor
• Rr open sw
• Tan
• Underhood fuse block (left side of engine compt)
• Wiper/ washer system

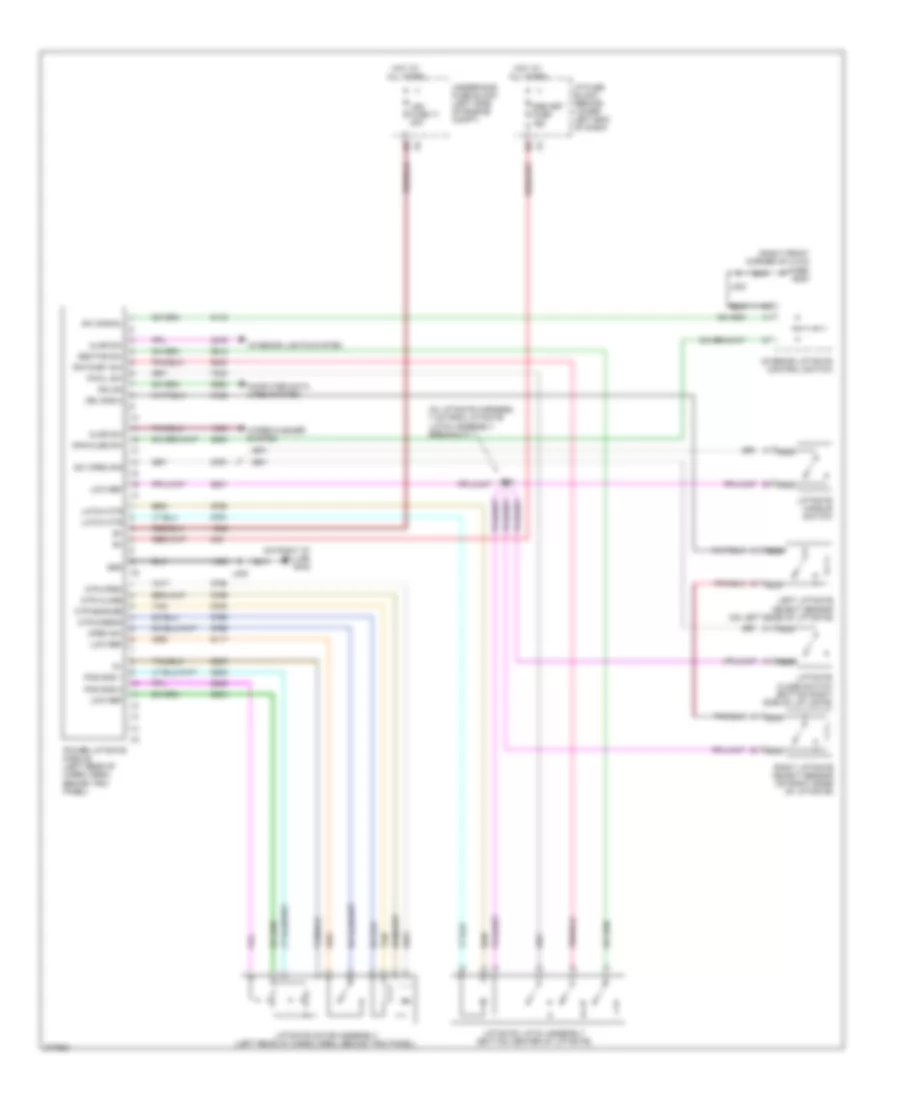

Электросхема привода багажника для Chevrolet Suburban C2500 2008

Электросхема привода багажника для Chevrolet Suburban C2500 2008 - Список элементов:

• (in liftgate harness, 7 cm from liftgate latch assembly breakout)
• (on right "d" pillar) g402
• (right front corner of hvac case) g200
• Ajar sw
• Computer data lines system
• Gmlan
• Grd
• Hot at all times
• I/p fuse block (behind lower left end of dash)
• Interior liftgate control switch
• Interior lights system
• J323
• J400
• J904
• Latch mtr
• Left liftgate object sensor (on left edge of liftgate)
• Lgm fuse 71 30a
• Liftgate close switch (bottom right side of lift gate)
• Liftgate handle switch
• Liftgate latch assembly (bottom center of liftgate)
• Liftgate motor assembly (left rear of cargo area, behind trim panel)
• Low ref
• Mtr close
• Mtr diseng
• Mtr engage
• Mtr open
• Nca
• Obj sns 2
• Obs det fuse 10a
• Open sw
• Opn/clse sw
• Pawl sw
• Pos sns 1
• Pos sns 2
• Power liftgate module (left rear of cargo area, behind trim panel)
• Ratchet sw
• Right liftgate object sensor (on right edge of liftgate)
• Sector sw
• Sw open sig
• Sw signal
• Tan
• Underhood fuse block (left side of engine compt)
• Wiper/washer system

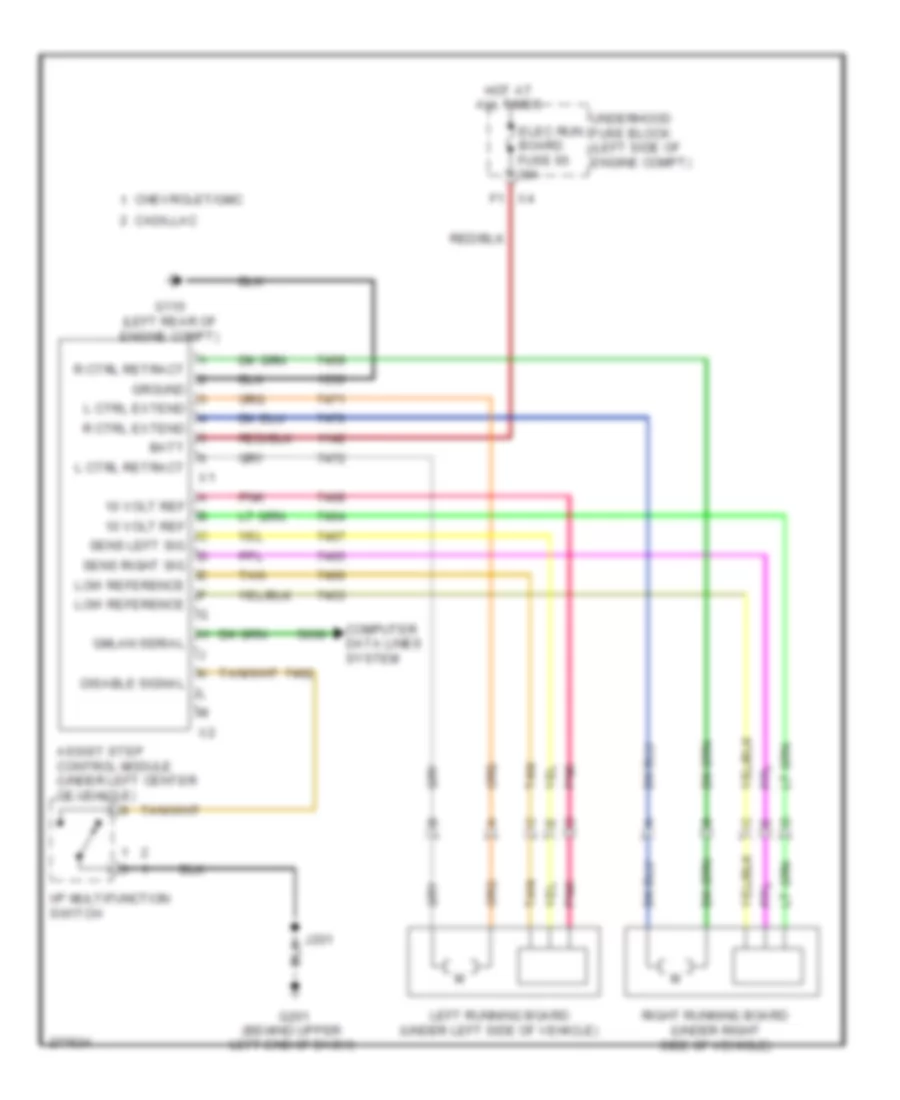

выдвигающаяся схема подножек для Chevrolet Suburban C2500 2008

выдвигающаяся схема подножек для Chevrolet Suburban C2500 2008 - Список элементов:

• 10 volt ref
• Assist step control module (under left center of vehicle)
• Batt
• Cadillac
• Chevrolet/gmc
• Computer data lines system
• Disable signal
• Elec run board fuse 65 30a
• G110 (left rear of engine compt)
• G201 (behind upper left end of dash)
• Gmlan serial
• Ground
• Hot at all times
• I/p multifunction switch
• J201
• L ctrl extend
• L ctrl retract
• Left running board (under left side of vehicle)
• Low reference
• Pnk
• R ctrl extend
• R ctrl retract
• Right running board (under right side of vehicle)
• Sens left sig
• Sens right sig
• Tan
• Underhood fuse block (left side of engine compt)
