Электросхемы ЦЕНТРАЛЬНЫЙ ЗАМОК Chevrolet Silverado 1500 LT 2014

ЦЕНТРАЛЬНЫЙ ЗАМОК

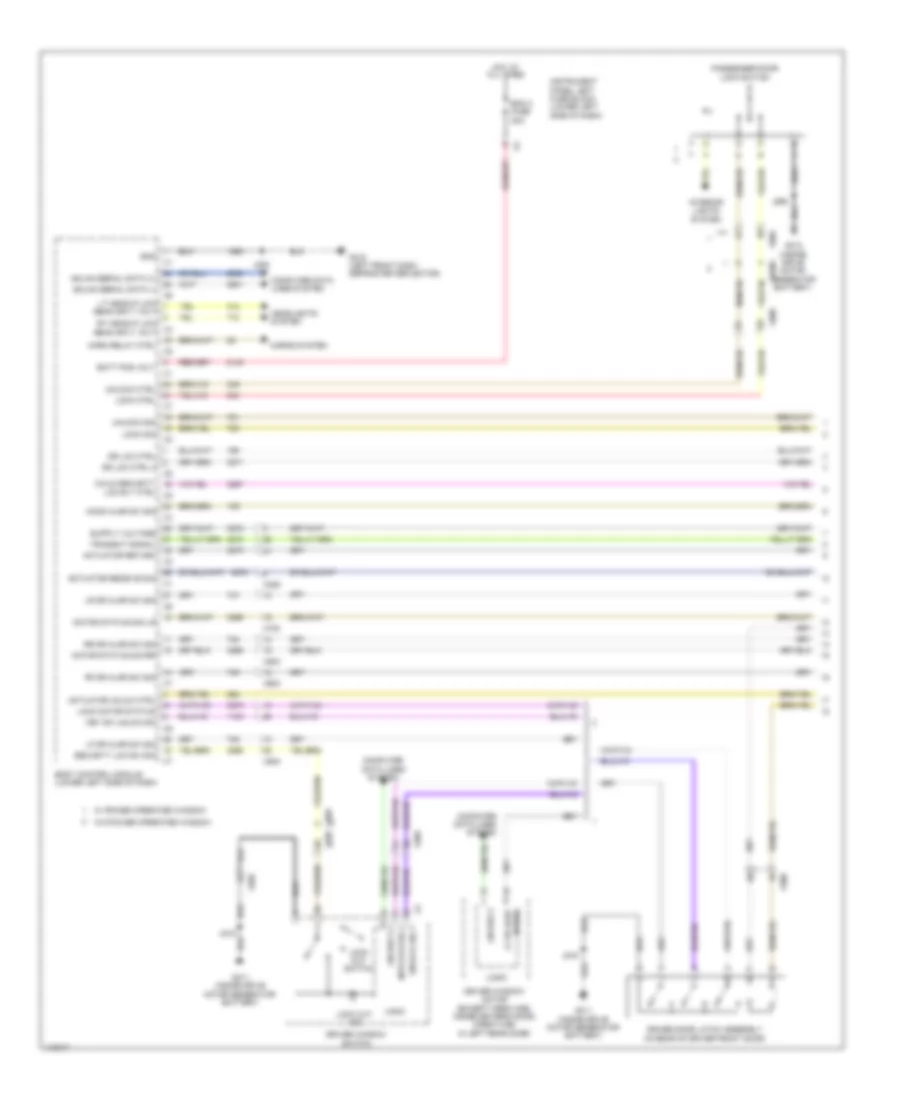

Электросхема центрального замка (1 из 3) для Chevrolet Silverado 1500 LT 2014

Электросхема центрального замка (1 из 3) для Chevrolet Silverado 1500 LT 2014 - Список элементов:

• Actuator receive sig
• Actuator return
• Actuator unlck ctrl
• Batt pos volt
• Bcm 3 fuse 20a
• Beam sply volt
• Body control module (lower left side of dash)
• Child security
• Computer data lines system
• Dr lck ctrl
• Dr lck ctrl 2
• Driver door latch assembly (in rear of driver front door)
• Driver window motor (except crew cab: inside driver's door) (crew cab: in left rear door)
• Driver window switch
• G218 (left front dash defroster deflector)
• G311 (inside drive motor generator battery)
• G312 (inside drive motor generator battery)
• Gmlan serial data (+)
• Gmlan serial data (-)
• Gnd
• Headlights system
• Hood ajar sw sig
• Horn relay ctrl
• Horns system
• Hot at all times
• Instrument panel left fuse block (lower left side of dash)
• Interior lights system
• J205
• J515
• J650
• Key sw unlck sig
• Lck rly ctrl
• Lf dr ajar sw sig
• Lin bus 3
• Lock ctrl
• Lock motor status
• Lock out ind
• Lock out switch
• Lock sig
• Logic
• Lr dr ajar sw sig
• Lt headlp low
• Motor status sig lr
• Motor status sig rr
• Mtr status
• Passenger door lock switch
• Rf dr ajar sw sig
• Rr dr ajar sw sig
• Rt headlp low beam sply volt
• Security lck sw sig
• Sw sig lf dr ajar
• Transmit signal
• Unlock ctrl
• Unlock sig
• W/ power operated window
• W/o power operated window
• X225
• X500
• X505
• X600
• X605
• X606
• X700
• X800

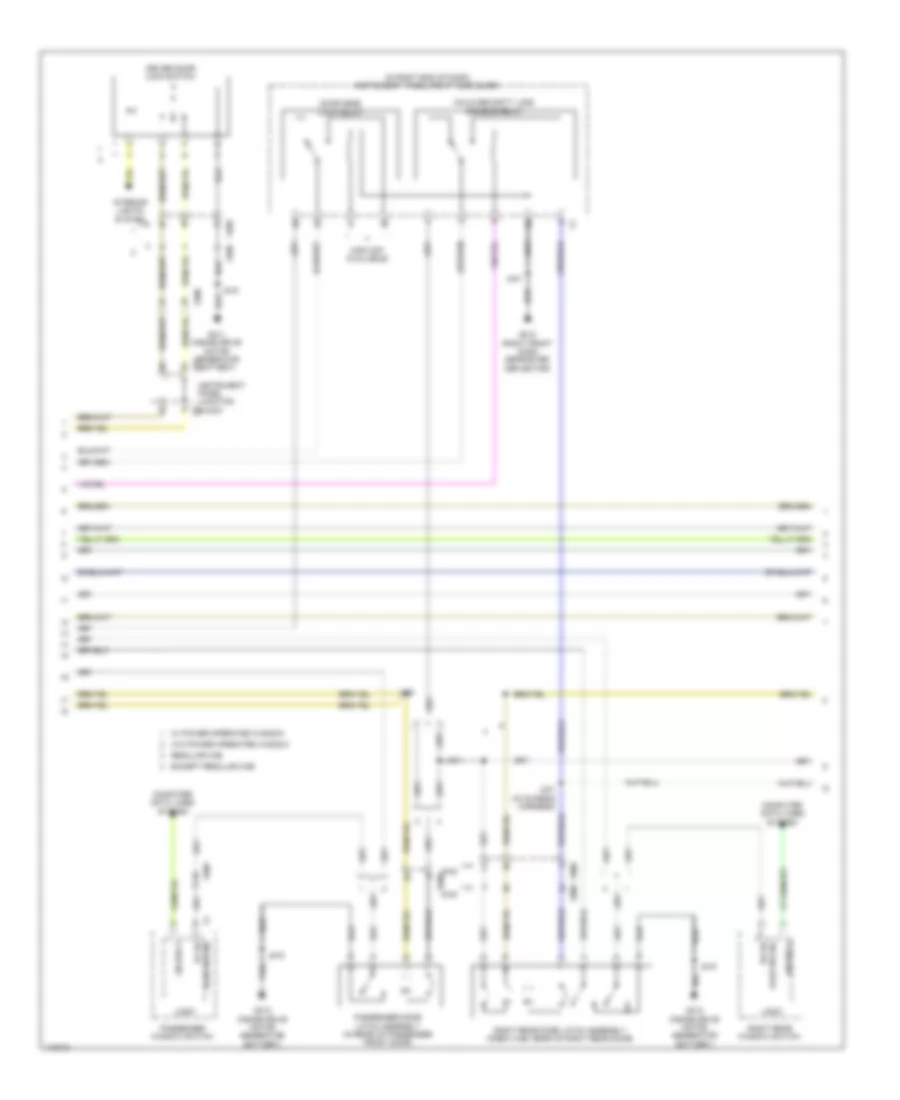

Электросхема центрального замка (2 из 3) для Chevrolet Silverado 1500 LT 2014

Электросхема центрального замка (2 из 3) для Chevrolet Silverado 1500 LT 2014 - Список элементов:

• (in right end of dash) instrument panel right fuse block
• (info not available)
• 2wd
• 4wd
• Ajar sw sig rf dr
• Ajar sw sig rr dr
• Child security lock disable relay
• Computer data lines system
• Door dead lock relay
• Driver door lock switch
• Except regular cab
• G210 (right front dash defroster deflector)
• G311 (inside drive motor generator battery)
• G312 (inside drive motor generator battery)
• Instrument panel junction block x5
• Interior lights system
• J241
• J331 (in chassis harness)
• J360
• J361
• J515
• J615
• J815
• Lin bus 3
• Lin bus 4
• Logic
• Passenger door latch assembly (in rear of passenger front door)
• Passenger window switch
• Regular cab
• Right rear door latch assembly (crew cab: rear of right rear door)
• Right rear window switch
• W/ power operated window
• W/o power operated window
• X500
• X505
• X506
• X600
• X605
• X800

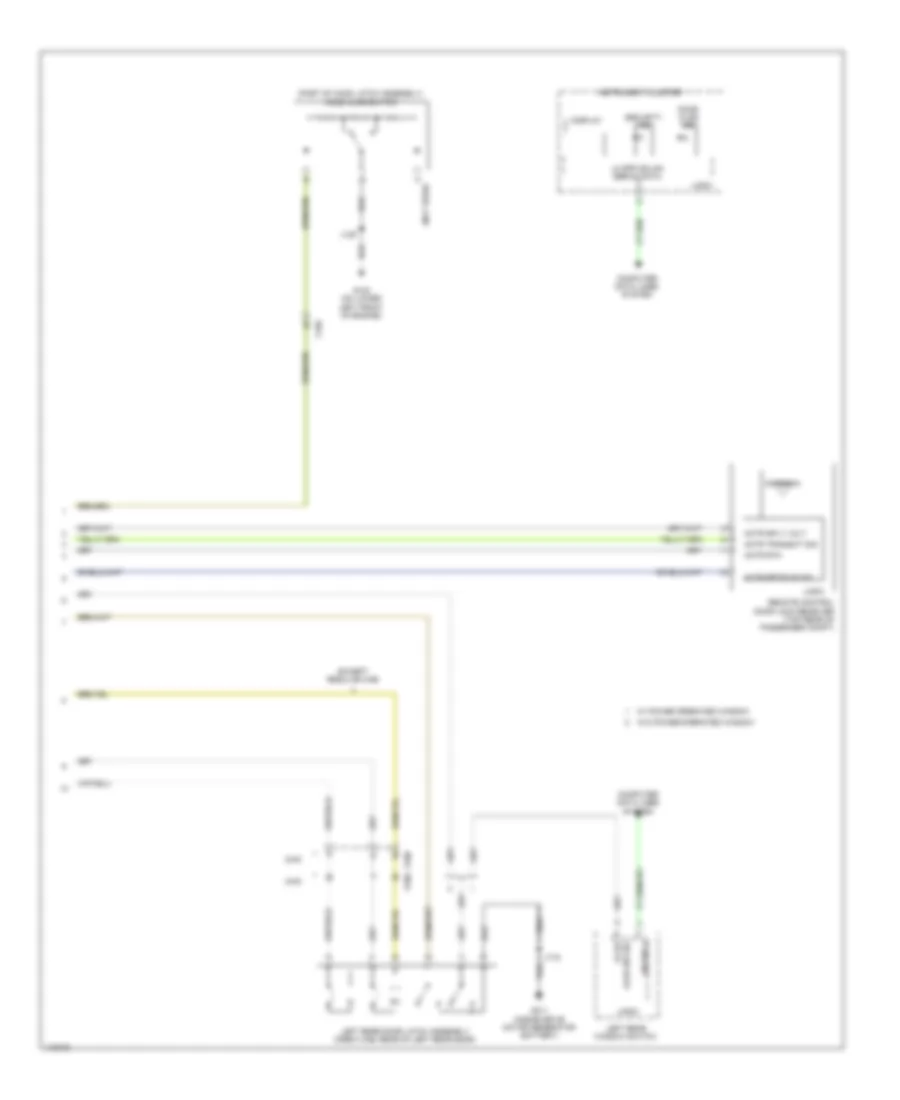

Электросхема центрального замка (3 из 3) для Chevrolet Silverado 1500 LT 2014

Электросхема центрального замка (3 из 3) для Chevrolet Silverado 1500 LT 2014 - Список элементов:

• (not used)
• (part of hood latch assembly) hood ajar switch
• 2wd
• 4wd
• Actr receive sig
• Actr rtn
• Actr sply volt
• Actr transmit sig
• Ajar sw sig lr dr
• Antenna
• Computer data lines system
• Display
• Door ajar ind
• Except regular cab
• G102 (on lower left front of engine)
• G311 (inside drive motor generator battery)
• Instrument cluster
• J125
• J715
• Left rear door latch assembly (crew cab: rear of left rear door)
• Left rear window switch
• Lin bus 4
• Lo spd gmlan serial data
• Logic
• Remote control door lock receiver (top rear of passenger compt)
• Security ind
• W/ power operated window
• W/o power operated window
• X150
• X700
