Электросхемы Навигация GPS Парктроники Acura TSX 2012

Навигация GPS Парктроники

схема компаса для Acura TSX 2012

схема компаса для Acura TSX 2012 - Список элементов:

• (or +b)
• (under front passenger's seat) g651
• 3.5l
• A12
• A14
• A24
• A35
• Acc
• Audio unit
• B11
• B12
• C410
• C655
• Compass rx+
• Compass rx-
• Compass tx+
• Compass tx-
• Disp rx+
• Disp rx-
• Disp tx+
• Disp tx-
• Driver's junction box 1 (under left side of dash)
• Driver's under-dash fuse/relay box (behind left kick panel)
• Electrical compass unit (under right side of rear shelf)
• Fuse 15 10a
• Fuse 18 7.5a
• Fuse 5 7.5a
• G401 (behind center of dash)
• Gnd
• Hot at all times
• Hot in acc or on
• Hot in on or start
• Ig1
• Main gnd
• P13
• P20
• Passenger's under-dash fuse/relay box (behind right kick panel)
• Pnk
• Red
• Sport wagon
• Under-hood fuse/relay box (left rear of engine compt)

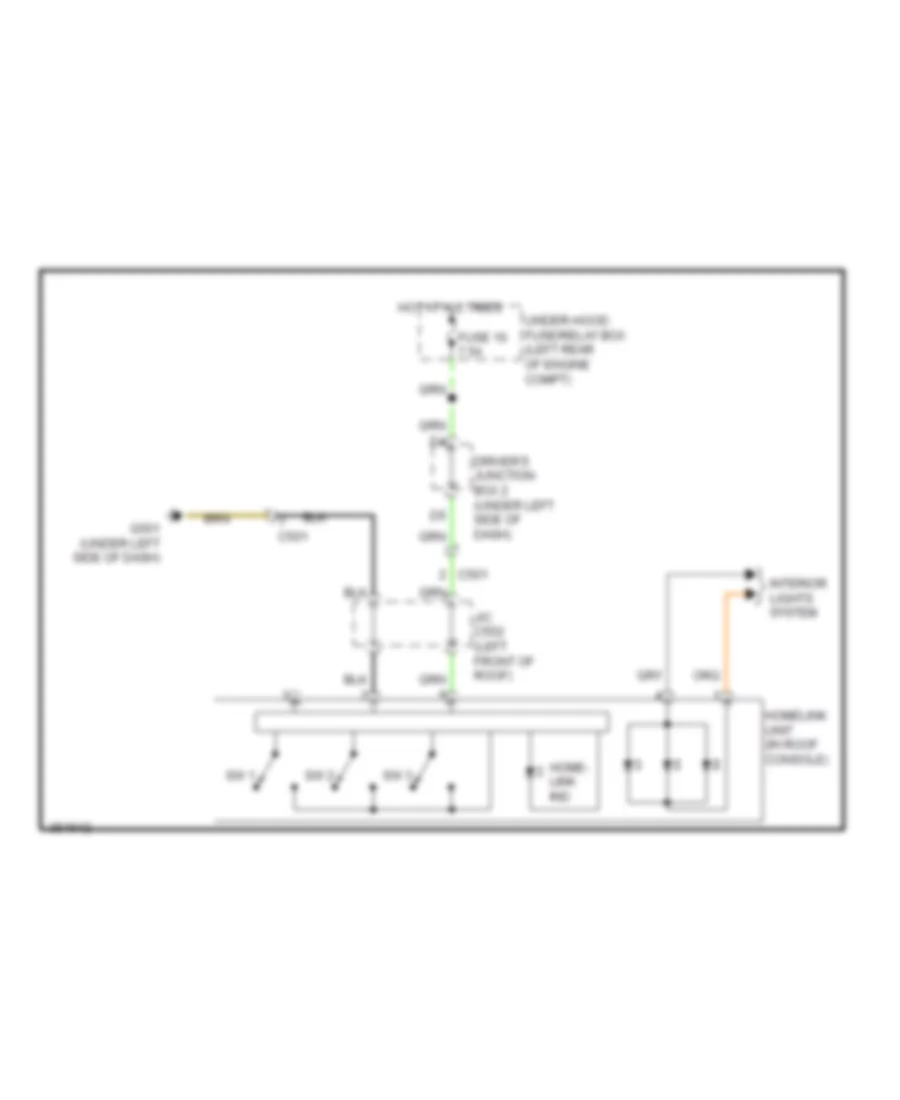

домой свяжите схему с дистанционным управлением для Acura TSX 2012

домой свяжите схему с дистанционным управлением для Acura TSX 2012 - Список элементов:

• C501
• Driver's junction box 2 (under left side of dash)
• Fuse 16 7.5a
• G501 (under left side of dash)
• Home- link ind
• Homelink unit (in roof console)
• Hot at all times
• Interior lights system
• J/c c552 (left front of roof)
• Sw 1
• Sw 2
• Sw 3
• Under-hood fuse/relay box (left rear of engine compt)

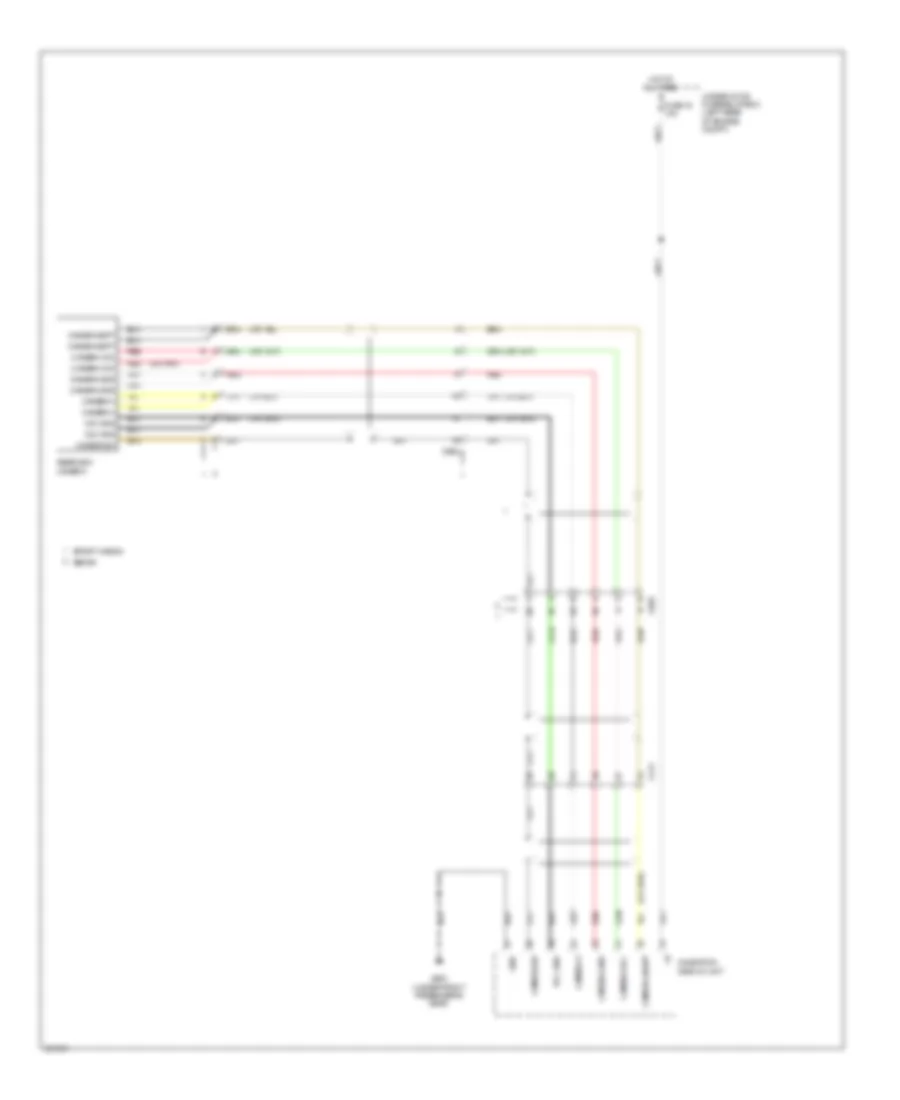

Электросхема навигации GPS (1 из 7) для Acura TSX 2012

Электросхема навигации GPS (1 из 7) для Acura TSX 2012 - Список элементов:

• "c" pillar)
• (3.5l)
• (behind left side of dash)
• (not used)
• (right
• A10
• A11
• A12
• A13
• A14
• A15
• A16
• A17
• A18
• A19
• A20
• A21
• A22
• A23
• A24
• A30
• A35
• Acc
• Am signal window antenna
• Am/fm
• Amplifier
• Ant +b
• Antenna
• Antenna lead connector
• Anti-theft system
• Audio navigation unit
• Aux det
• Aux gnd
• Aux l
• Aux rch
• Aux sh gnd
• Aux sig gnd
• B10
• B11
• B12
• B13
• B14
• B15
• B16
• B17
• B18
• B19
• B20
• B21
• B22
• B23
• B24
• C301
• C401
• C410
• C411
• Computer data lines system
• Ctr pre sh
• Ctr pre+
• Ctr pre-
• D15
• Driver's junction box 1
• Driver's under-dash fuse/relay box (behind left kick panel)
• Fl pre+
• Fl pre-
• Fm signal window antenna
• Fr pre sh
• Fr pre+
• Fr pre-
• Fuse 10a
• Fuse 20a
• Fuse 7.5a
• G651 (under front passenger seat)
• Gps antenna (under right side of rear shelf)
• Gps sh
• Gps sig
• Hot at all times
• Hot in acc or on
• Hot in on
• Hot in on or start
• K-line
• Main gnd
• Nca
• P13
• P18
• P20
• Passenger's under-dash fuse/relay box (behind right kick panel)
• Pcm (left side of engine compt)
• Pnk
• Rear window
• Red
• Remote sw
• Remote sw gnd
• Rf in
• Rf sh
• Roof antenna
• Scty2
• Sedan
• Sport wagon
• Subw pre+
• Subw pre-
• Sur l pre+
• Sur l pre-
• Sur r pre+
• Sur r pre-
• Swd +b
• Telm sig sh
• Telm sig+
• Telm sig-
• Under-hood fuse/relay box (left rear of engine compt)
• Vsp

Электросхема навигации GPS (2 из 7) для Acura TSX 2012

Электросхема навигации GPS (2 из 7) для Acura TSX 2012 - Список элементов:

• (or red)
• Air conditioning system
• Anc chk2
• Audio-navigation switch panel
• Audio-navigation unit
• Aux det
• Aux gnd
• Aux lch
• Aux rch
• Aux sig gnd
• Auxiliary jack assembly
• B1 els data-
• B10 fl pre+
• B11
• B12 fr pre+
• B13 sur l pre+
• B14
• B15 sur r pre+
• B16 els data+
• B17 rs
• B18
• B19 ctr pre-
• B20 subw pre-
• B21 swd +d
• B22 rgl+
• B23
• B24 fl pre-
• B25
• B26 fl pre-
• B27 sur l pre-
• B28 sur r pre-
• B3 swd +b
• B4 ctr pre+
• B5 subw pre+
• B6 subw pre+
• B8 rg l sh
• B9 rg gnd
• Back lt
• C1 fr+
• C2 fr-
• C3 rr+
• C4 rr-
• Comm3
• Diag+
• Diag-
• Disp clk
• Disp so
• Duet cont
• Duet rx
• Duet sh
• Duet tx
• Enc+
• Enc-
• Exterior lights system
• F10
• F11
• F12
• G401 (behind center of dash)
• Gnd
• H10
• H11
• H12
• H13
• H14
• H15
• H16
• H17
• H18
• H19
• H20
• H21
• H22
• H23
• H24
• H25
• H26
• H27
• H28
• Ig2
• Ill+
• Ill-
• Ill-lcd
• Ill-led
• Interior lights system
• Jog
• Jog sh
• Mic sig sh
• Mic sig+
• Mic sig-
• Navi comm sh
• Navi comm1
• Navi comm2
• Navi comm4
• Navigation service connector (under right side of rearshelf)
• Opera cont
• Opera rx
• Opera sh
• Opera tx
• Pnk
• Pwr sw
• Red
• Stereo amplifier (right side of trunk)

Электросхема навигации GPS (3 из 7) для Acura TSX 2012

Электросхема навигации GPS (3 из 7) для Acura TSX 2012 - Список элементов:

• (left side of engine compt) (3.5l) pcm
• (not used)
• (or red)
• A13
• A33
• Acc
• Anc chk2
• Anc gnd
• Anc/active sound control unit (if equipped)
• Audio remote switch
• Back switch
• C13
• C301
• C401
• C402
• C502
• Cable reel (under steering column over)
• Channel down switch
• Channel up switch
• F gnd
• Fr+
• Fr-
• G401 (behind center of dash)
• Gnd
• Hfl-voice control switch
• Interface dial (3.5l)
• Interior lights system
• Intr-lt
• Jog
• Jog sh
• Mic 8v
• Mode switch
• Nep
• Off hook switch
• On hook switch
• Pnk
• R gnd
• Red
• Rr+
• Rr-
• Sound systems
• Steering wheel
• Talk switch
• Volume down switch
• Volume up switch

Электросхема навигации GPS (4 из 7) для Acura TSX 2012

Электросхема навигации GPS (4 из 7) для Acura TSX 2012 - Список элементов:

• (2.4l)
• (3.5l)
• (or red)
• A10
• A11
• A12
• A13
• A14
• A15
• A16
• A17
• A18
• A19
• A20
• A21
• A22
• A23
• A24
• A25 comm sh hip/hfl comm2
• A26 hip/hfl
• A27
• A28
• A29
• A30
• A31
• A32
• Acc
• Acuralink control unit (xm receiver) (right "c" pillar)
• B-can hi
• B-can lo
• C410
• C411
• Computer data lines system
• F-can hi
• F-can lo
• G401 (behind center of dash)
• G651 (under front passenger's seat)
• Ga audio sh
• Ga bus sh
• Ga bus+
• Ga bus-
• Ganet audio l+
• Ganet audio l-
• Ganet audio r+
• Ganet audio r-
• Gnd
• Gnd sh
• Hfl mute
• Hfl/navigation microphone front hfl-navigation anc/active sound control microphone (in roof console)
• Hip/hfl comm1
• Hip/hfl comm3
• Hip/hfl comm4
• Ig1
• J/c c407 (under right side of dash)
• Mic 8v
• Mic+
• Mic-
• Navi comm sh
• Navi comm1
• Navi comm2
• Navi comm3
• Navi comm4
• Nca
• Pnk
• R gnd
• Rear hfl-navigation anc/active sound control microphone (3.5l)
• Red
• Sat/ter
• Satellite signal antenna
• W/ acura link
• W/o acura link
• Xm antenna

Электросхема навигации GPS (5 из 7) для Acura TSX 2012

Электросхема навигации GPS (5 из 7) для Acura TSX 2012 - Список элементов:

• A10
• A11
• A12
• A13
• A14
• Acc
• Audio l+
• Audio l-
• Audio r+
• Audio r-
• Audio sh
• B-can hi
• B-can lo
• C402
• C412
• C501
• Computer data lines system
• G401 (behind center of dash)
• Ga audio sh
• Ga bus sh
• Ga bus+
• Ga bus-
• Ganet audio l+
• Ganet audio l-
• Ganet audio r+
• Ganet audio r-
• Ganet bus sh
• Ganet bus+
• Ganet bus-
• Gnd
• Gnd sh
• Handsfreelink control unit (under right side of dash)
• Hfl mute
• Hfl strg sw
• Hip/hfl comm1
• Hip/hfl comm3
• Hip/hfl comm4
• Hip/hfl commsh
• Hip/hflcomm2
• J/c c405 (behind center of dash)
• J/c c408 (under right side of dash)
• Mic sh
• Mic sig-
• Mic+
• Mic-
• Nca
• Pnk
• Red
• Sat/ter
• Satellite signal antenna
• Sys acc
• Telm sig sh
• Telm sig+
• Telm sig-
• W/ acura link
• W/o acura link
• Xm antenna
• Xm receiver (if equipped) (right "c" pillar)

Электросхема навигации GPS (6 из 7) для Acura TSX 2012

Электросхема навигации GPS (6 из 7) для Acura TSX 2012 - Список элементов:

• (or red)
• A10
• A11
• A12
• A13
• A14
• A15
• A16
• A17
• A18
• C410
• C651
• C654
• C655
• C663
• C751
• C761
• C771
• C781
• Ctr sp+
• Ctr sp-
• Driver's door speaker
• Driver's door tweeter
• Fl sp+
• Fl sp-
• Fr sp +
• Fr sp -
• Front center speaker
• Front passenger's door speaker
• Front passenger's door tweeter
• G651 (under front passenger's seat)
• Gnd
• Left rear door speaker
• Left rear speaker
• Left satellite speaker
• Pnk
• Red
• Right rear door speaker
• Right rear speaker
• Right satellite speaker
• Rl sp+
• Rl sp-
• Rr sp+
• Rr sp-
• Sedan
• Sport back
• Sport wagon
• Stereo amplifier (right side of trunk)
• Sub+
• Sub-
• Subw swd+d
• Subw+
• Subw-
• Subwoofer
• Subwoofer (sport wagon)
• Sur l sp+
• Sur l sp-
• Sur r sp +
• Sur r sp -
• Swd+b

Электросхема навигации GPS (7 из 7) для Acura TSX 2012

Электросхема навигации GPS (7 из 7) для Acura TSX 2012 - Список элементов:

• (under front passenger's seat) g651
• Acc
• Air conditioning system
• Anti-theft
• Audio l+
• Audio l-
• Audio navigation unit
• Audio r+
• Audio r-
• Audio sh
• B sig
• B-can h
• B-can l
• B-canh
• B-canl
• C sig
• C10
• C11
• C12
• C13
• C14
• C410
• C411
• Computer data lines system
• D10
• D11
• D12
• D13
• D14
• D15
• D16
• D17
• D18
• D19
• D20
• Els data sh
• Els data+
• Els data-
• G sig
• G10
• G11
• G12
• G13
• G14
• G15
• G16
• Ga b+
• Ga bus sh
• Ga bus+
• Ga bus-
• Ga gnd
• Ga sys on
• Gnd
• Gnd sig
• J/c c406 (behind center of dash)
• J/c c407 (under right side of dash)
• J/c c413 (center of dash)
• Navi clk
• Navi si
• Navi so
• Navigation display unit
• Nca
• Pnk
• R sig
• Rearview camera circuit
• Red
• Rg l gnd
• Rg l sh
• Rg l-
• Scty1
• Scty2
• Sh sig
• System
• Usb adapter connector
• Usb data
• Usb data+
• Usb det
• Usb det gnd
• Usb gnd
• Usb port
• Usb sh
• Usb vbus

Электросхема парктроников для Acura TSX 2012

Электросхема парктроников для Acura TSX 2012 - Список элементов:

• (2.4l: under automatic transmission) (3.5l: top of transmission) transmission range switch
• (left rear of trunk) g901
• (left side of tailgate) j/c c664
• (top left of transmission) (m/t) backup light switch
• (top of transmission) j/c c105
• 2.4l
• 3.5l
• A/t
• A/t reverse diode a
• A/t reverse diode b
• A/t reverse relay
• A10
• Atpr
• B15
• Backup sensor beeper assembly
• Backup sensor control unit
• Backup sensor in-line fuse
• Backup sensor system connector
• Backup sensor system ground
• Beeper (-)
• C101
• C107
• C25
• C602
• C604
• Driver's under-dash fuse/ relay box (behind left kick panel)
• F27
• F28
• Fuse 5 7.5a
• G101 (right front of engine)
• G101 (top left rear of engine)
• G901 (left rear of trunk)
• Ground
• Hot in on or start
• J/c c101 (left side of engine compt)
• J/c c107 (top of transmission)
• L corner sens (+)
• L middle sens (+)
• Left backup light
• Left corner backup sensor
• Left middle backup sensor
• M/t
• Nca
• Pcm (3.5l) ecm/pcm (2.4l) (left side of engine comp)
• Pnk
• Power
• R corner sens (+)
• R middle sens (+)
• Right backup light
• Right corner backup sensor
• Right middle backup sensor
• S2 (thermal joint)
• Sedan
• Sens (-)
• Sport wagon

Электросхема камеры заднего вида для Acura TSX 2012

Электросхема камеры заднего вида для Acura TSX 2012 - Список элементов:

• (or pnk)
• C411
• C655
• C662
• Camera adapt
• Camera adpt
• Camera gnd
• Camera sh
• Camera v
• Camera vcc
• Fuse 15 10a
• G651 (under front passenger's seat)
• Gnd
• Hot at all times
• Navigation display unit
• Rearview camera
• Red
• Sedan
• Sport wagon
• Under-hood fuse/relay box (left rear of engine compt)
• Vcc gnd
