Электросхемы Подогрев стекол и зеркал Subaru Forester 2.5i Touring 2014

Подогрев стекол и зеркал

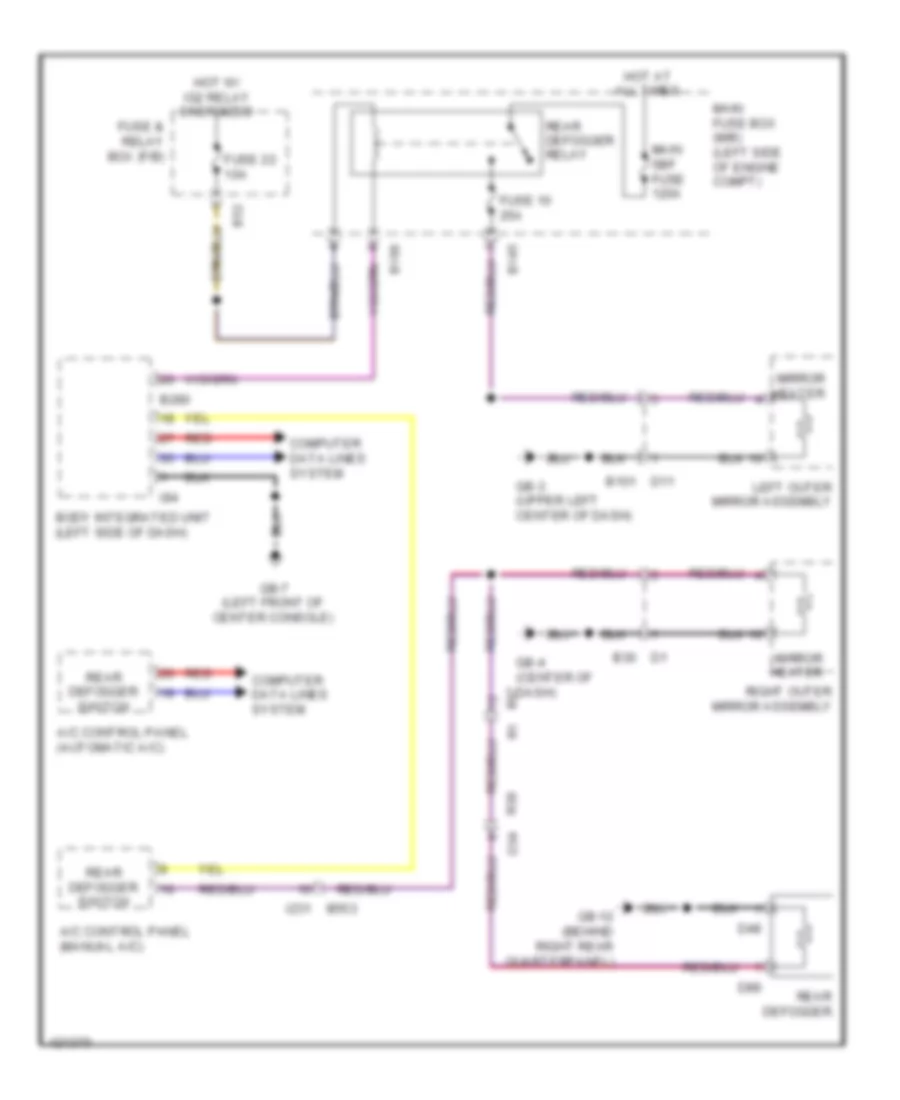

нагреватель зеркала и Электросхема заднего стекла для Subaru Forester 2.5i Touring 2014

нагреватель зеркала и Электросхема заднего стекла для Subaru Forester 2.5i Touring 2014 - Список элементов:

• A/c control panel (automatic a/c)
• A/c control panel (manual a/c)
• B101 d11
• B145
• B186
• B280
• B30 d1
• B52
• B97 r1
• Body integrated unit (left side of dash)
• Computer data lines system
• D34
• D48
• D89
• Fuse & relay box (f/b)
• Fuse 10 25a
• Fuse 22 10a
• Gb-12 (behind right rear quarterpanel)
• Gb-3 (upper left center of dash)
• Gb-4 (center of dash)
• Gb-7 (left front of center console)
• Hot at all times
• Hot w/ ig2 relay energized
• I231 b553
• I84
• Left outer mirror assembly
• Main fuse box (m/b) (left side of engine compt)
• Main sbf fuse 120a
• Mirror heater
• R38
• Rear defogger
• Rear defogger relay
• Rear defogger switch
• Red
• Right outer mirror assembly

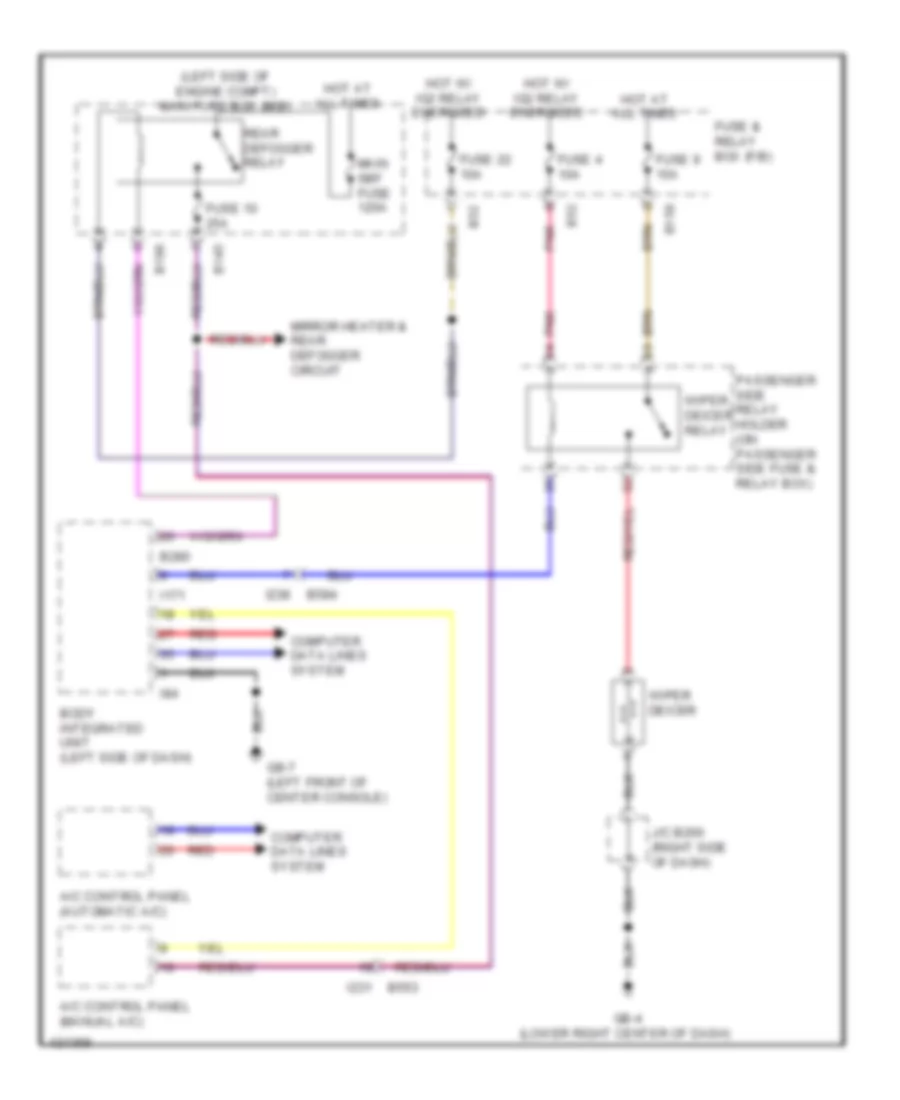

схема антиобледенителя дворника для Subaru Forester 2.5i Touring 2014

схема антиобледенителя дворника для Subaru Forester 2.5i Touring 2014 - Список элементов:

• (left side of engine compt) main fuse box (m/b)
• A/c control panel (automatic a/c)
• A/c control panel (manual a/c)
• B145
• B158
• B186
• B280
• B52
• B553
• B584
• Body integrated unit (left side of dash)
• Computer data lines system
• Fuse & relay box (f/b)
• Fuse 10 25a
• Fuse 22 10a
• Fuse 4 10a
• Fuse 9 15a
• Gb-4 (lower right center of dash)
• Gb-7 (left front of center console)
• Hot at all times
• Hot w/ ig2 relay energized
• I171
• I231
• I238
• I84
• J/c b260 (right side of dash)
• Main sbf fuse 120a
• Mirror heater & rear defogger circuit
• Passenger side relay holder (on passenger side fuse & relay box)
• Pnk
• Rear defogger relay
• Red
• Wiper deicer
• Wiper deicer relay
