Электросхемы ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ Subaru Forester 2.5i Touring 2014

ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ

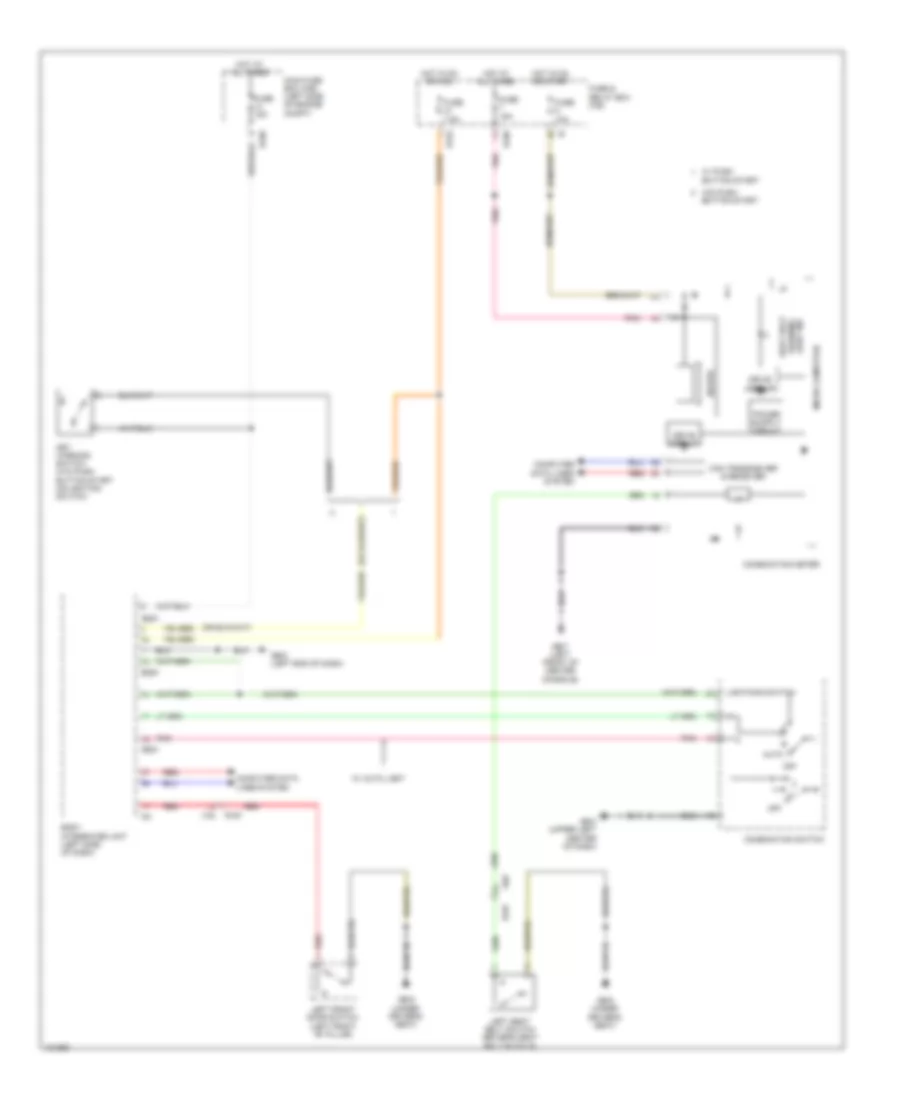

Электросхема сигнала для Subaru Forester 2.5i Touring 2014

Электросхема сигнала для Subaru Forester 2.5i Touring 2014 - Список элементов:

• Auto
• B152
• B186
• B280
• B281
• Body integrated unit (left side of dash)
• Button start
• Buzzer
• Can transceiver & receiver
• Combination meter
• Combination switch
• Computer data lines system
• Drive circuit
• Fuse & relay box (f/b)
• Fuse 10a
• Fuse 15a
• Fuse 7.5a
• Gb-3 (upper left center of dash)
• Gb-5 (left end of dash)
• Gb-7 (left front of center console)
• Gb-9 (under driver's seat)
• Hot at all times
• Hot in on or acc
• Hot in on or start
• I/f
• I102
• I84
• Key warning switch (w/o push button start (on ignition switch)
• Left front door switch (left front "b" pillar)
• Left seat belt switch (driver's seat belt buckle)
• Light ind warning seat belt
• Lightning switch
• Main fuse box (m/b) (left side of engine compt)
• Micro computer
• Off
• Pnk
• R167
• R168
• Red
• W/ auto light
• W/ push
• W/o push

Электросхема системы контроля давления в шинах для Subaru Forester 2.5i Touring 2014

Электросхема системы контроля давления в шинах для Subaru Forester 2.5i Touring 2014 - Список элементов:

• (u4 model) pressure ind tire inflation
• (under front passenger's seat)
• B280
• Body integrated unit (left side of dash)
• Buzzer
• Can transceiver & receiver
• Combination meter
• Computer data lines system
• Drive circuit
• Fuse & relay box (f/b)
• Fuse 10a
• Fuse 15a
• Gb-11
• Gb-5 (left end of dash)
• Gb-7 (left front of center console)
• Hot at all times
• Hot in on or start
• Hot w/ ig2 relay energized
• I/f
• I171
• I195
• I84
• Micro computer
• Pnk
• R168
• R382
• R81
• R82
• Red
• Tpms & keyless entry control module (base of right "c" pillar)
• W/o push button start
