ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ

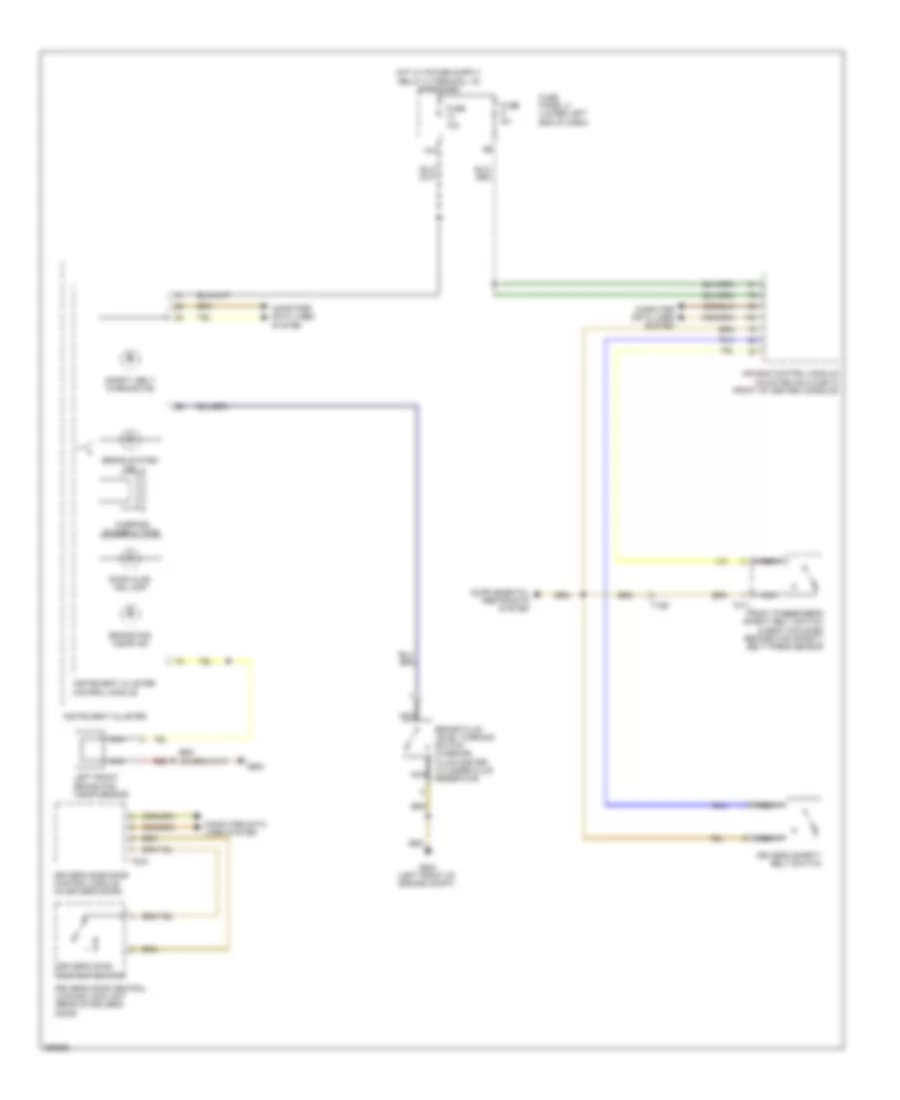

тональная схема для Volkswagen Tiguan SEL 4Motion 2010
тональная схема для Volkswagen Tiguan SEL 4Motion 2010 - Список элементов:
- 14a
- Air bag control module (mounted on floor in front of center console)
- Brake fluid level warning switch (in brake fluid master cylinder fluid reservoir)
- Brake pad wear ind
- Brake system ind
- Computer data lines system
- Door ajar ind lamp
- Driver's door central locking lock unit (rear of driver's door)
- Driver's door contact switch
- Driver's safety belt switch
- Driver's side door control module (in driver's door)
- Front passenger's safety belt switch & seat occupied recognition safety belt force sensor
- Fuse 10a
- Fuse 5a
- Fuse panel c (lower left end of dash)
- G640 (left front of engine compt)
- G684
- Instrument cluster
- Instrument cluster control module
- Left front brake pad wear sensor
- Nca
- Red
- Safety belt warning ind
- T10e
- T20a
- T2yl
- Warning buzzer & tone

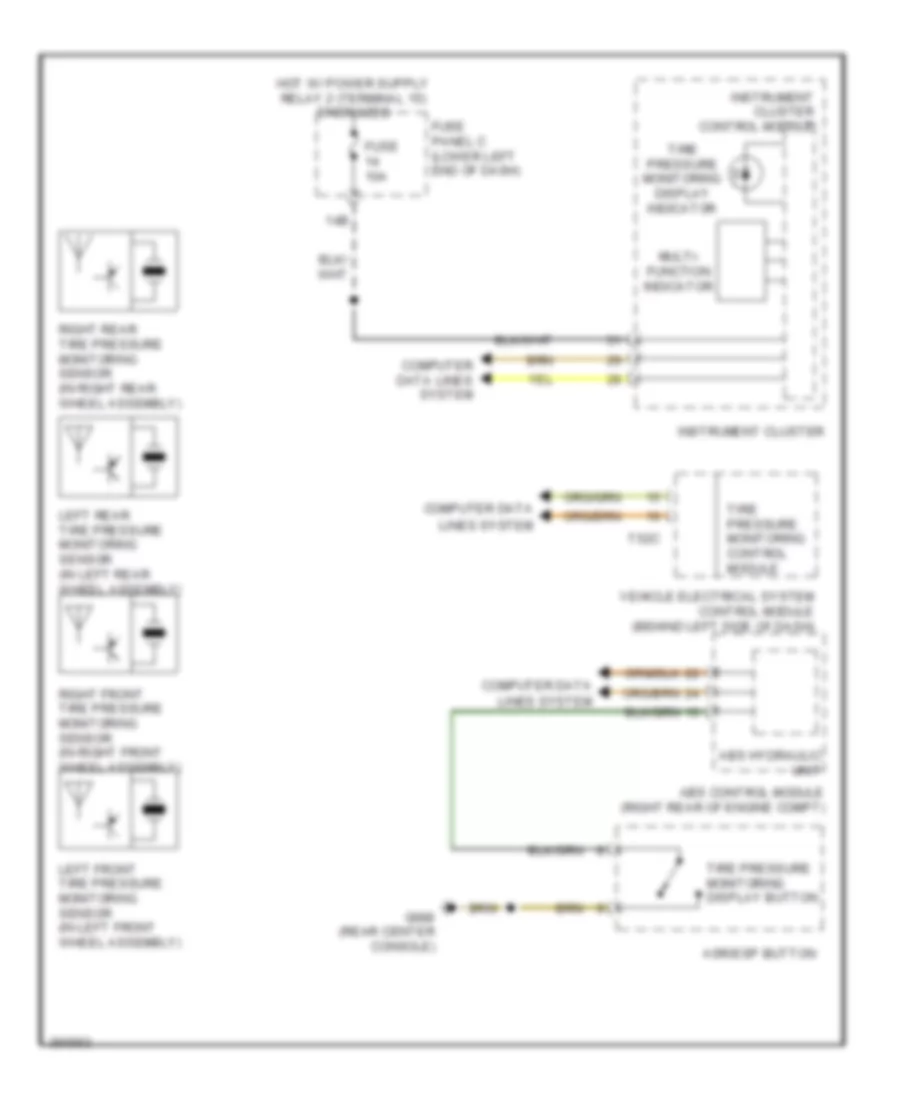

Электросхема системы контроля давления в шинах для Volkswagen Tiguan SEL 4Motion 2010
Электросхема системы контроля давления в шинах для Volkswagen Tiguan SEL 4Motion 2010 - Список элементов:
- 14b
- Abs control module (right rear of engine compt)
- Abs hydraulic unit
- Asr/esp button
- Computer data
- Computer data lines system
- Fuse 10a
- Fuse panel c (lower left end of dash)
- G688 (rear center console)
- Instrument cluster
- Instrument cluster control module
- Left front tire pressure monitoring sensor (in left front wheel assembly)
- Left rear tire pressure monitoring sensor (in left rear wheel assembly)
- Lines system
- Multi- function indicator
- Right front tire pressure monitoring sensor (in right front wheel assembly)
- Right rear tire pressure monitoring sensor (in right rear wheel assembly)
- T52c
- Tire pressure monitoring control module
- Tire pressure monitoring display button
- Tire pressure monitoring display indicator
- Vehicle electrical system control module (behind left side of dash)
