Электросхемы ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Chevrolet Cab amp; Chassis Silverado 3500 HD 2008

ПРИВОД СТЕКЛОПОДЪЕМНИКОВ

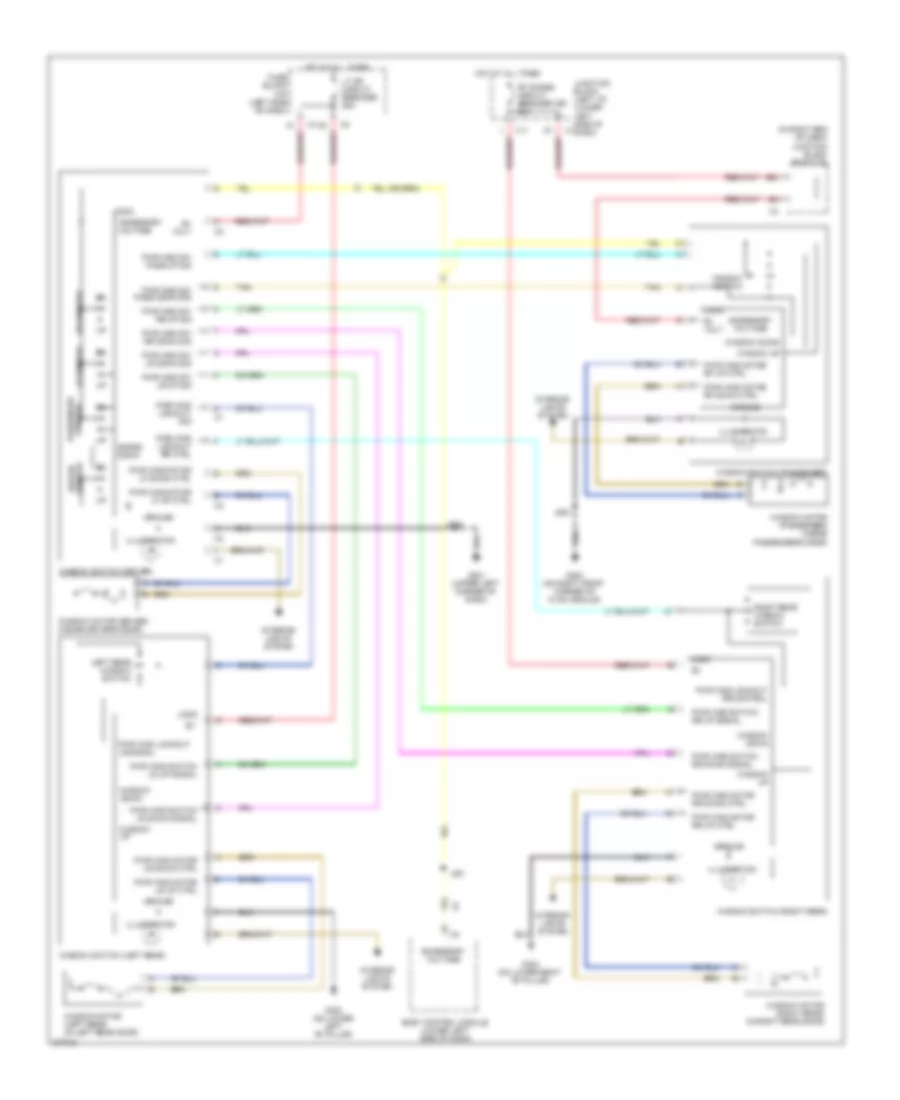

Электросхема стеклоподъемников, С AN3/DL3 для Chevrolet Cab amp; Chassis Silverado 3500 HD 2008

Электросхема стеклоподъемников, С AN3/DL3 для Chevrolet Cab amp; Chassis Silverado 3500 HD 2008 - Список элементов:

• (crew & extended cab)
• (in right end of dash) junction block (right i/p)
• (upper left corner of dash) g201
• 3b1
• 3b4
• 4a7
• B+ volt
• Body control module (lower left side of dash)
• Door locks system
• Down
• Driver door lock/window switch
• Driver window motor (inside driver's door)
• Fuse block (i/p) (left side of dash)
• G200 (on right front corner of hvac module)
• G303 (on lower left "b" pillar)
• G304 (on lower right "b" pillar)
• Ground
• Hot at all times
• Illumination
• Interior lights system
• Junction block (left i/p) (lower left side of dash)
• Left rear window switch
• Lo spd serial data
• Lo speed serial data
• Logic
• Lr window
• Lt dr circuit breaker 25a
• Passenger door lock/window switch
• Passenger window
• Pwr wnd lockout lr signal
• Pwr wnd lockout rr ctrl
• Pwr wnd lockout rr sig
• Pwr wnd motor lf down ctrl
• Pwr wnd motor lf up ctrl
• Pwr wnd motor lr down ctrl
• Pwr wnd motor lr up ctrl
• Pwr wnd motor rf down ctrl
• Pwr wnd motor rf up ctrl
• Pwr wnd motor rr down ctrl
• Pwr wnd motor rr up ctrl
• Pwr wnd sw lockout sig
• Pwr wnd sw lr down sig
• Pwr wnd sw lr up sig
• Pwr wnd sw rr down sig
• Pwr wnd sw rr up sig
• Pwr wnd switch lr down signal
• Pwr wnd switch lr up signal
• Pwr wnd switch rr down signal
• Pwr wnd switch rr up signal
• Right rear window switch
• Rr window
• Rt doors circuit breaker cb1 25a
• Splice pack jx221 (in the i/p harness, behind left side of dash)
• Switch power
• W/ individual front seat
• Window down
• Window driver
• Window lockout indicator down
• Window lockout switch
• Window motor (left rear) (in left rear door)
• Window motor (passenger) (inside passenger's door)
• Window motor (right rear) (in right rear door)
• Window switch (left rear)
• Window switch (right rear)
• Window switch passenger
• Window up
• Window up express down window down
• X11

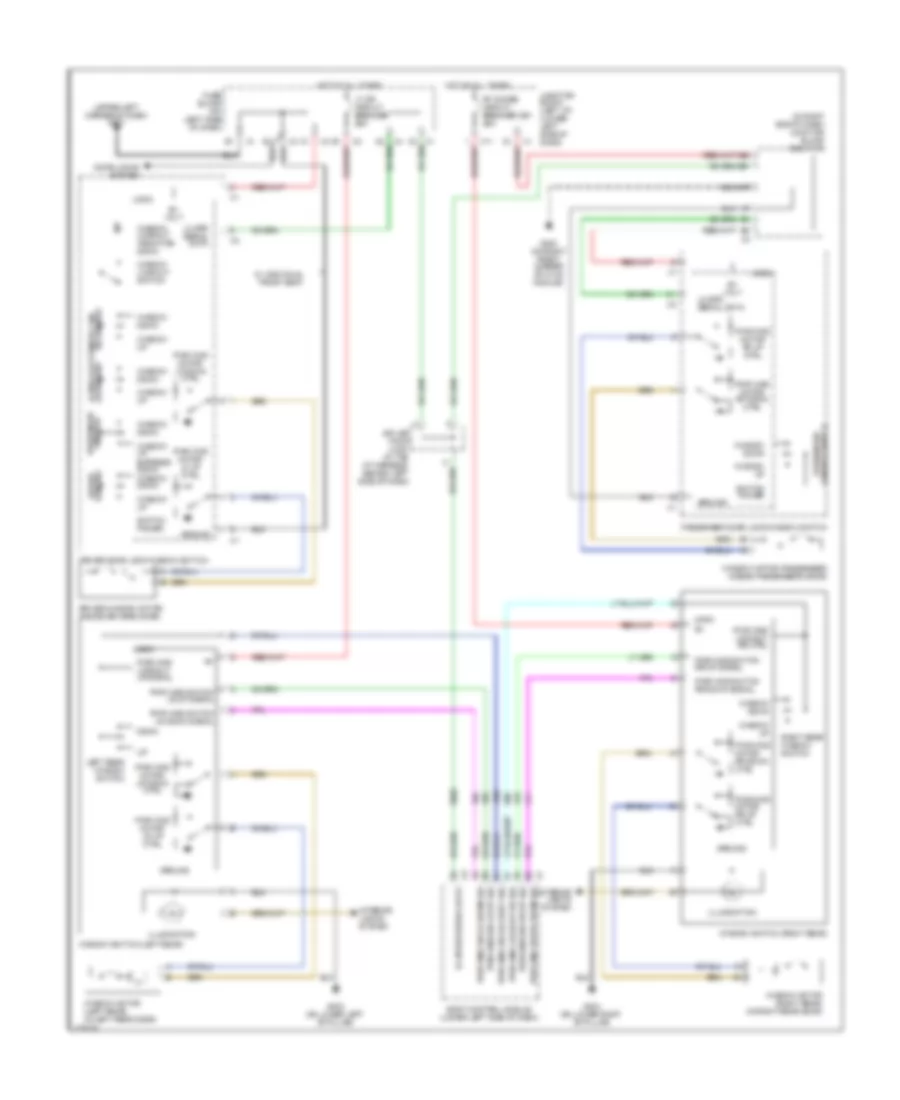

Электросхема стеклоподъемников, без AN3/DL3 для Chevrolet Cab amp; Chassis Silverado 3500 HD 2008

Электросхема стеклоподъемников, без AN3/DL3 для Chevrolet Cab amp; Chassis Silverado 3500 HD 2008 - Список элементов:

• (in right end of dash) junction block (right i/p)
• 3b4
• Accessory voltage
• B+ volt
• Body control module (lower left side of dash)
• Exprs down
• Fuse block (i/p) (left side of dash)
• G200 (on right front corner of hvac module)
• G201 (upper left corner of dash)
• G303 (on lower left "b" pillar)
• G304 (on lower right "b" pillar)
• Ground
• Hot at all times
• Illumination
• Interior lights system
• J231
• J502
• J603
• Junction block (left i/p) (lower left side of dash)
• Left rear window switch
• Logic
• Lr window
• Lt dr circuit breaker 25a
• Passenger window
• Pwr wnd lockout lr signal
• Pwr wnd lockout rr control
• Pwr wnd lockout rr ctrl
• Pwr wnd lockout sig
• Pwr wnd motor lf down ctrl
• Pwr wnd motor lf up ctrl
• Pwr wnd motor lr down ctrl
• Pwr wnd motor lr up ctrl
• Pwr wnd motor rf down ctrl
• Pwr wnd motor rf up ctrl
• Pwr wnd motor rr down ctrl
• Pwr wnd motor rr up ctrl
• Pwr wnd sw lr down sig
• Pwr wnd sw lr up sig
• Pwr wnd sw pass down sig
• Pwr wnd sw pass up sig
• Pwr wnd sw rr down sig
• Pwr wnd sw rr up sig
• Pwr wnd switch lr down signal
• Pwr wnd switch lr up signal
• Pwr wnd switch rr down signal
• Pwr wnd switch rr up signal
• Right rear window switch
• Rr window
• Rt doors circuit breaker cb1 25a
• Tan
• Window down
• Window driver
• Window motor (driver) (inside driver's door)
• Window motor (left rear) (in left rear door)
• Window motor (passenger) (inside passenger's door)
• Window motor (right rear) (in right rear door)
• Window switch
• Window switch (driver)
• Window switch (left rear)
• Window switch (passenger)
• Window switch (right rear)
• Window up
• X11

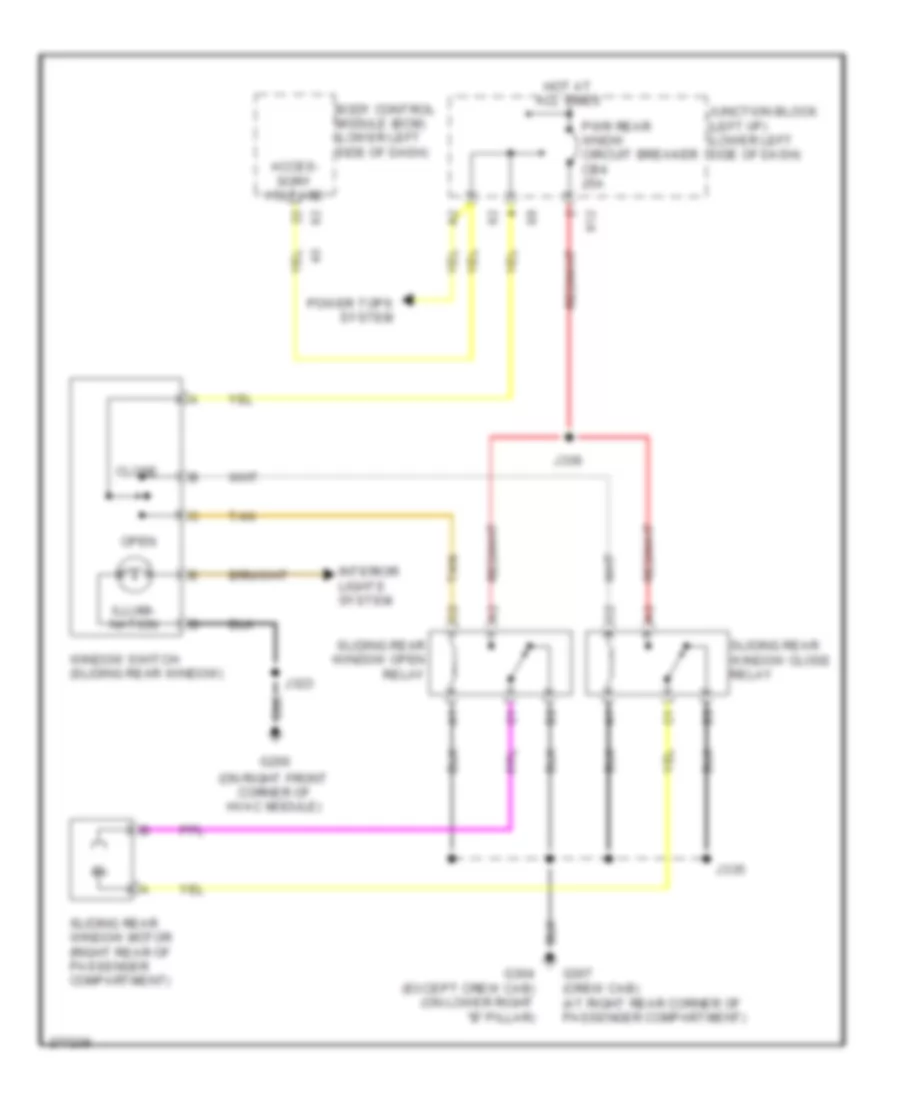

скольжение схемы заднего окна для Chevrolet Cab amp; Chassis Silverado 3500 HD 2008

скольжение схемы заднего окна для Chevrolet Cab amp; Chassis Silverado 3500 HD 2008 - Список элементов:

• (on right front corner of hvac module)
• Acces- sory voltage
• Body control module (bcm) (lower left side of dash)
• Close
• G200
• G304 (except crew cab) (on lower right "b" pillar)
• G307 (crew cab) (at right rear corner of passenger compartment)
• Hot at all times
• Illumi- nation
• Interior lights system
• J323
• J335
• J336
• Junction block (left i/p) (lower left side of dash)
• Open
• Power tops system
• Pwr rear wndw circuit breaker cb4 25a
• Sliding rear window close relay
• Sliding rear window motor (right rear of passenger compartment)
• Sliding rear window open relay
• Tan
• Window switch (sliding rear window)
• X12
